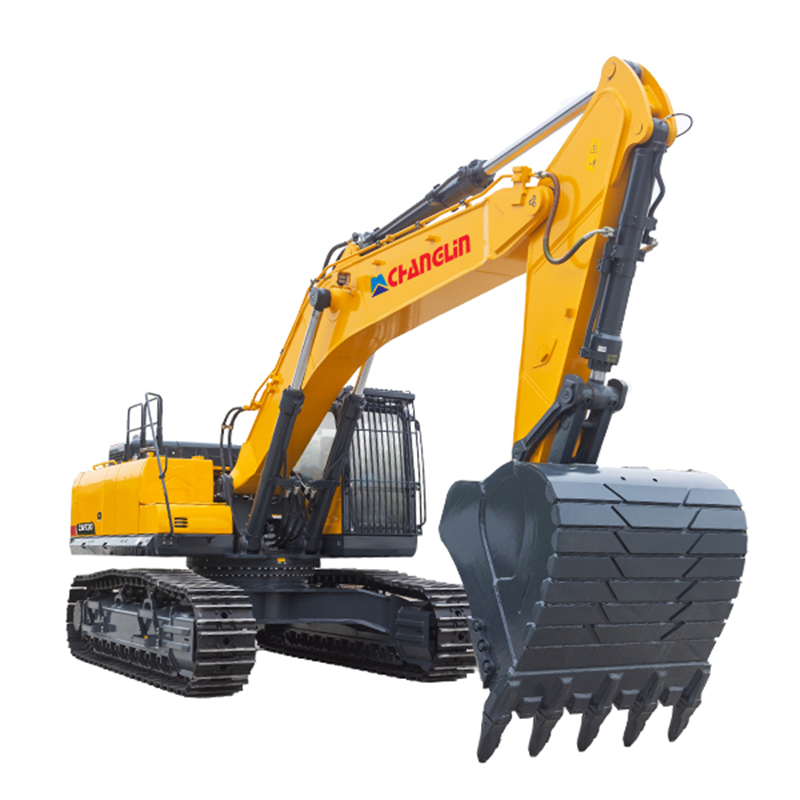

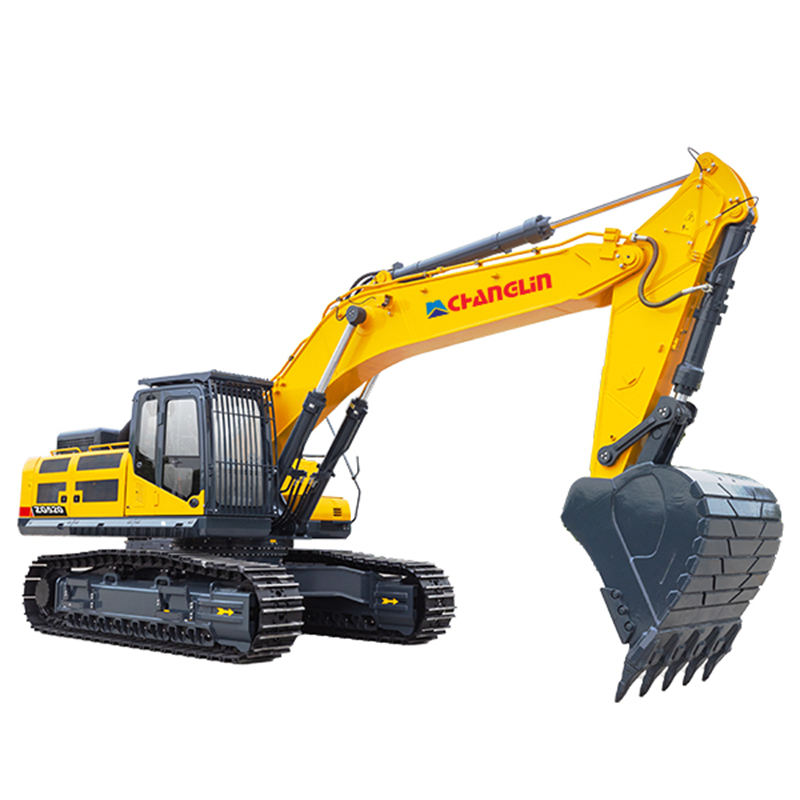

ZG520 Crawler Hydraulic Excavator

Introducing the ZG520 Crawler Hydraulic Excavator, engineered to deliver unmatched performance and reliability in demanding excavation applications. Equipped with a Cummins EFI engine, compliant with Ⅲ-stage emission regulations, this excavator boasts robust power, energy efficiency, and exceptional durability. Its advanced negative flow hydraulic system ensures comfortable operation, high efficiency, and outstanding cost-effectiveness. With full power control and four adaptable power modes, it excels in various working conditions, making it the top choice for contractors and operators seeking productivity and efficiency.

Main Features

Key Specifications:

- Operating Weight: 50460kg

- Power: 280kW/2100rpm

- Rated Bucket Capacity: 3.2m3

Introduction:

The ZG520 features a Cummins EFI engine, complying with Ⅲ-stage emission regulations, ensuring powerful performance, low fuel consumption, and high reliability. Its advanced negative flow hydraulic system, coupled with full power control, guarantees superior performance and comfort during operation. The precise fuel injection system ensures optimal combustion, enhancing fuel efficiency. Additionally, state-of-the-art 3D modeling and finite element analysis technology ensure the structural parts' reliability and stability.

Characteristics:

1. Equipped with Cummins' latest high-power EFI engine, delivering robust performance, low fuel consumption, and high reliability.

2. New-generation hydraulic system with a large displacement main pump and flow main valve, ensuring better coordination and easier operation.

3. Large-caliber cylinders and optimized hinge point arrangement enhance the machine's digging force, with an automatic supercharging function to increase digging force as the load increases.

4. The new generation control system intelligently adjusts hydraulic absorption power according to working conditions, optimizing system matching for maximum performance.

5. Features an 8-inch color anti-glare monitoring instrument and intelligent electronic monitoring system, providing vehicle maintenance information prompts, fault self-diagnosis, and alarms.

6. Comes with a safe and reliable new cab equipped with automatic air conditioning for operator comfort.

The ZG520 Crawler Hydraulic Excavator sets a new standard for power, efficiency, and durability, making it the ultimate solution for demanding excavation tasks across various industries.


Main Specifications

Technical specification

ITEM UNIT Specifications
ZG520H
Operating weight Kg 50460
Rated power kW/rpm 280/2100
Rated bucket capacity m3 3.2
Length A mm 11657
Width(600mm track) B mm 3340/3562(Pedal)
Height C mm 3998
Turntable width D mm 3214
Height of cabin E mm 3438
clearance of counterweight F mm 1276
Engine cover height G mm 2918
Min. ground clearance H mm 555
Tail length I mm 3740
Turning radius of turntable I' mm 3780
Wheel base of track shoe J mm 4470
Length of chassis K mm 5595
Width of chassis L mm 3340/3562(Pedal)
Track shoe gauge M mm 2740
Standard track width N mm 600
Max. traction kN 358
Traveling speed (H/L) Km/hr 5.5/3.1
Swing speed rpm 9.4
Gradeability Degree(%) 35(70%)
Ground pressure Kgf/cm2 0.85

Working range

ITEM 6.55m Arm,2.5m Stick,3.2 m³Bucket
ZG520H
Maximum digging radius A 10922 mm
Ground maximum digging radius A' 10691 mm
Maximum digging depth B 6453 mm
Ground maximum digging depth B' 6280 mm
Maximum vertical digging depth C 5663 mm
Maximum digging height D 11020 mm
Maximum dumping height E 7438 mm
Min. front turning radius F 4740 mm
Bucket digging force ISO 290 kN
Stick digging force ISO 270 kN

Engine specifications

Specifications Model Cummins QSM11(Ⅲ)-C375
Type 6-cylinder in-line, four-stroke turbocharger
Emission National Ⅲ
Cooling method Water cooled
Bore diameter × stroke mm 125×147
Displacement L 10.8
Rated power 280kW/2100rpm
Max. torque N.m 1898/1400rpm
Engine oil capacity L 31.8-40.9
Rated diesel consumption g/KW.h 204 (1400rpm)
Starter 24V-7.2kW
Generator 24V-70A
Product Superiority And Transportation
  • 1J4A4641-23

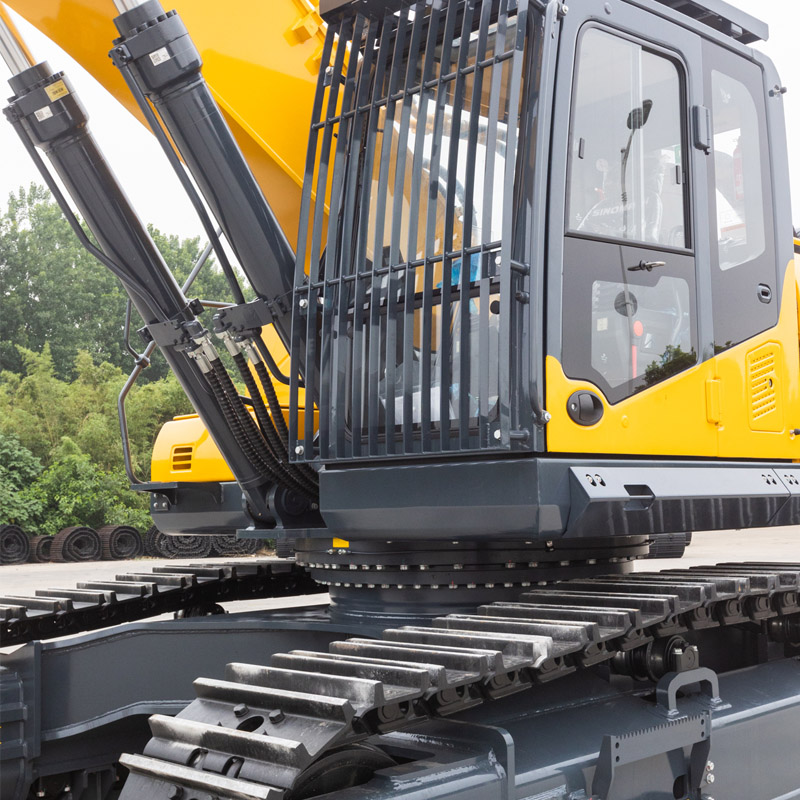

  • 采用安全可靠的新型驾驶室, 配置全自动冷暖空调

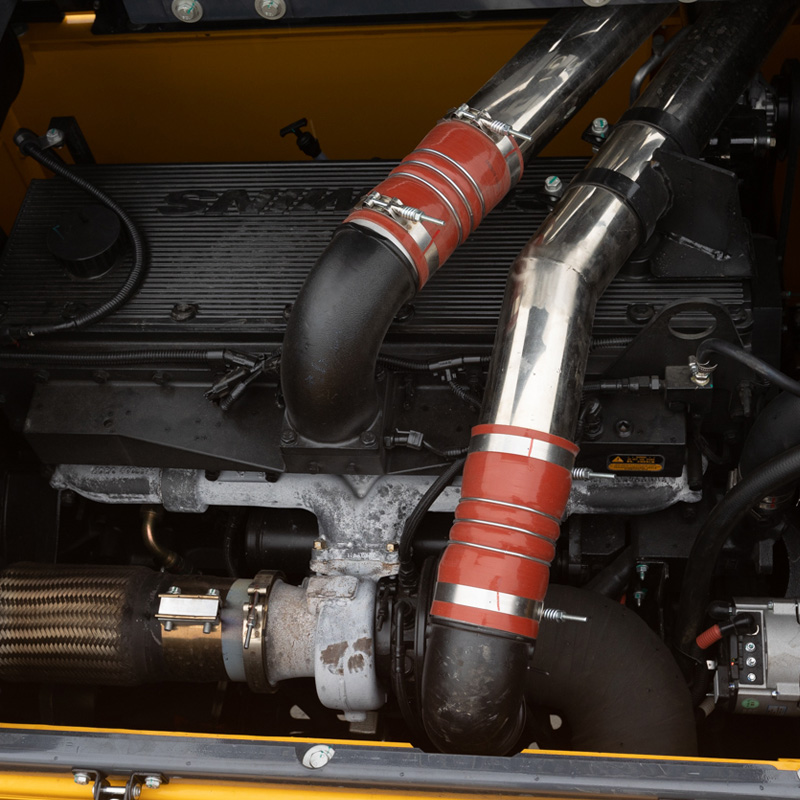

  • 康明斯新一代大功率电喷发动机,动力强劲,燃油消耗低,可靠性高;

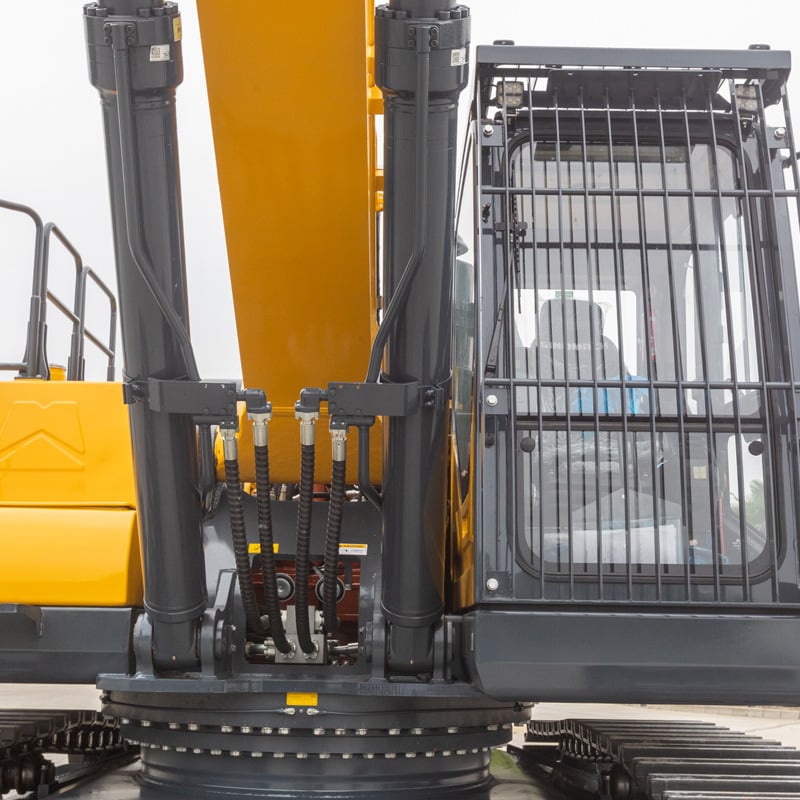

  • 配备大缸径油缸,优化各关键铰点的布置

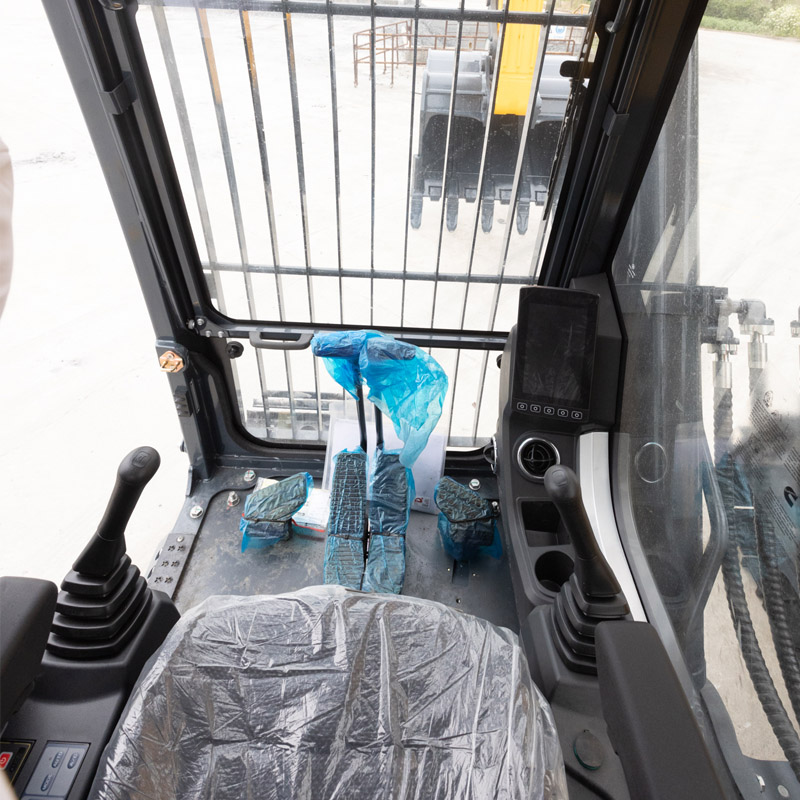

  • 配备高分辨率、高亮度的 8 寸彩色防炫目监控仪表

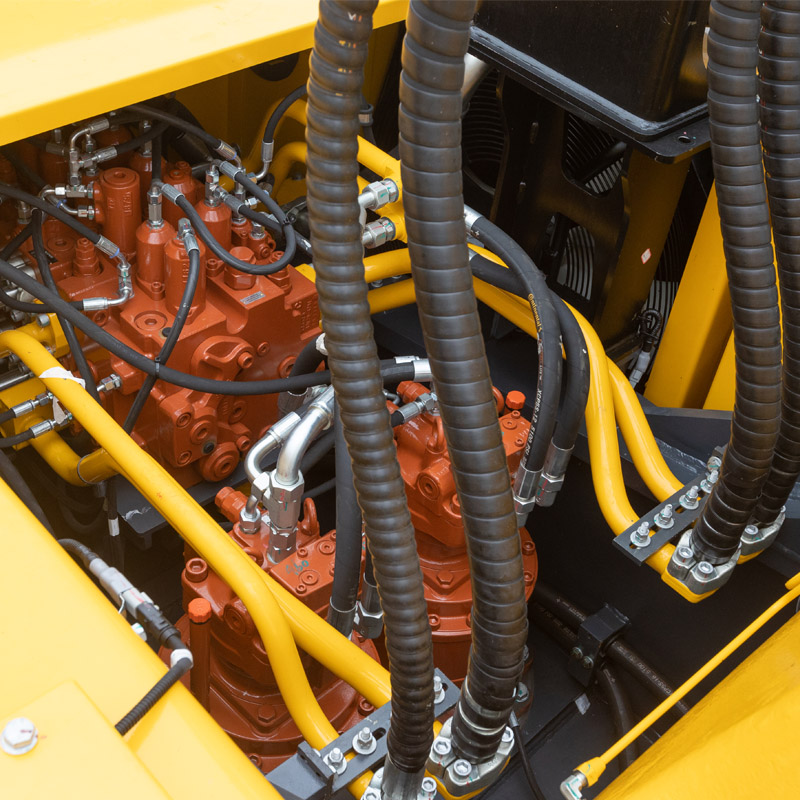

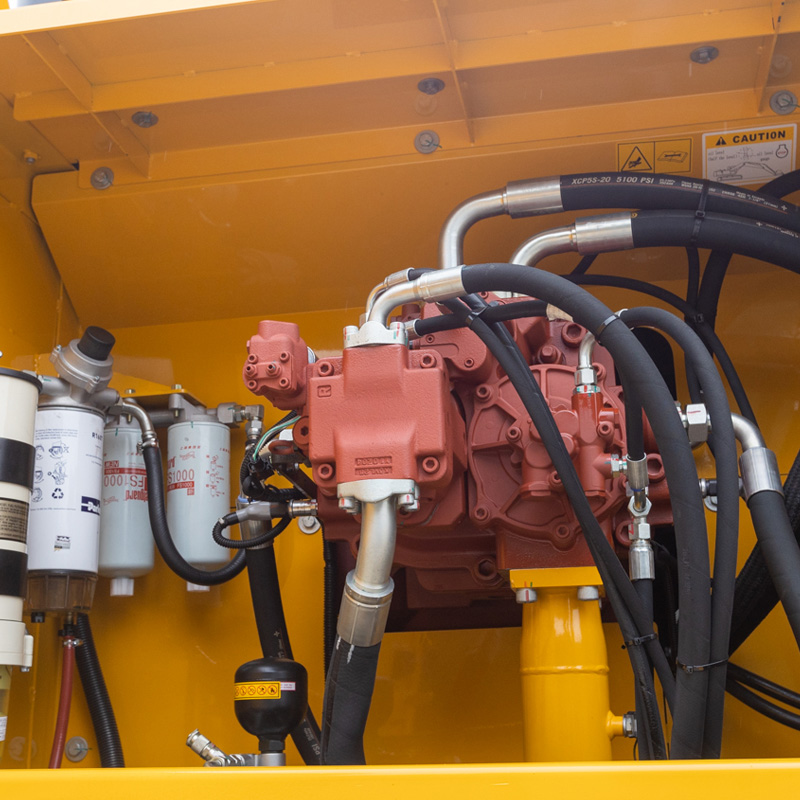

  • 新型的液压系统,大排量主泵,大流量主阀

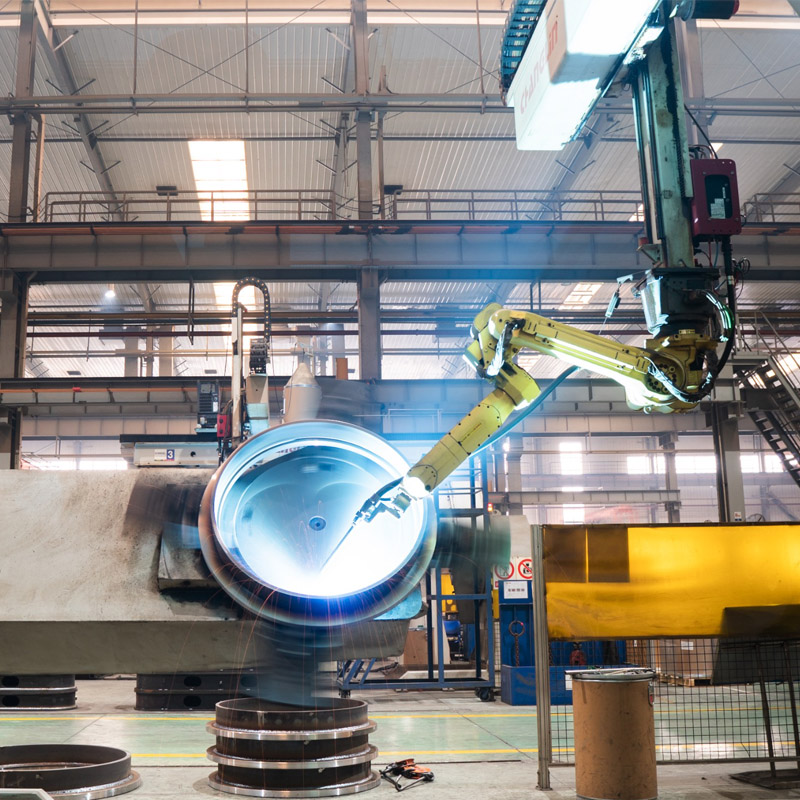

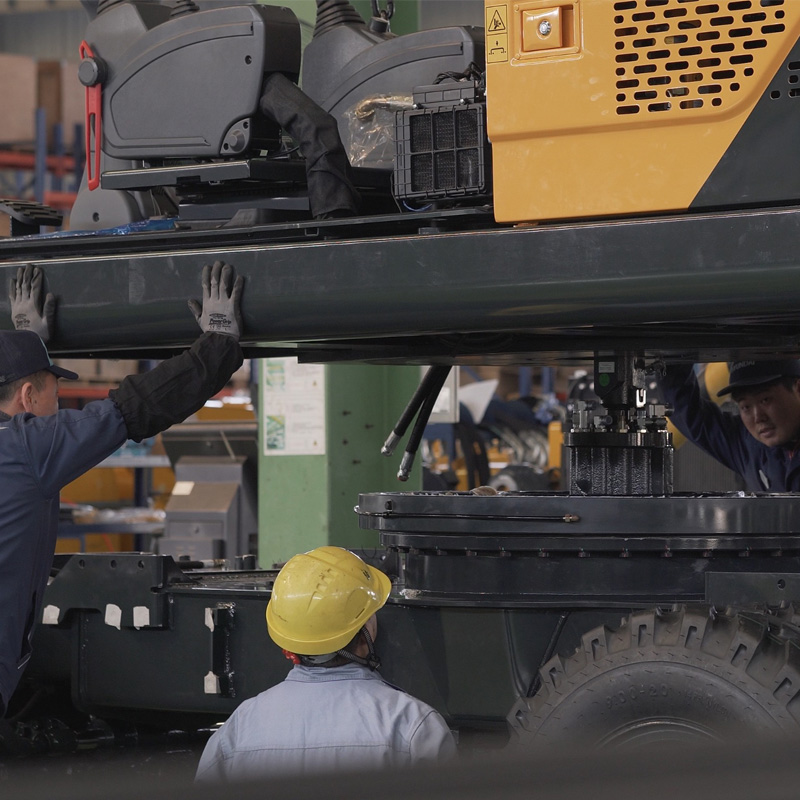

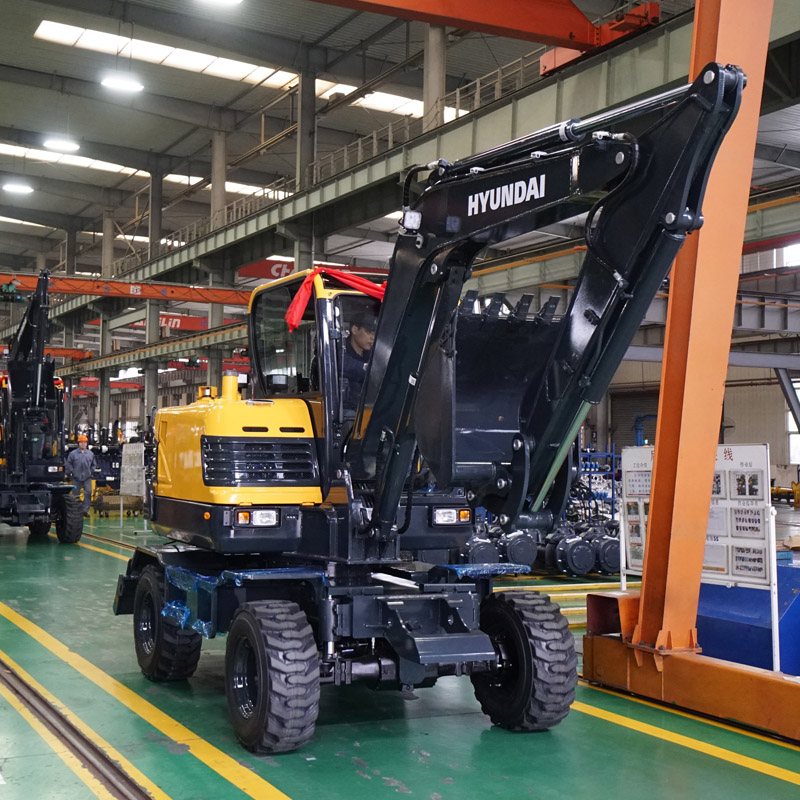

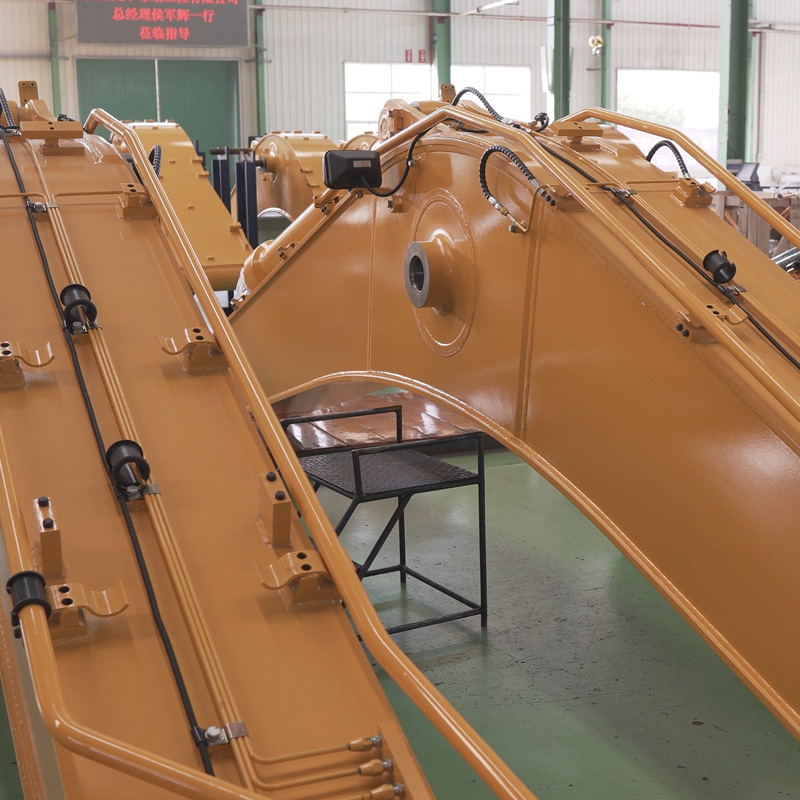

Production Line

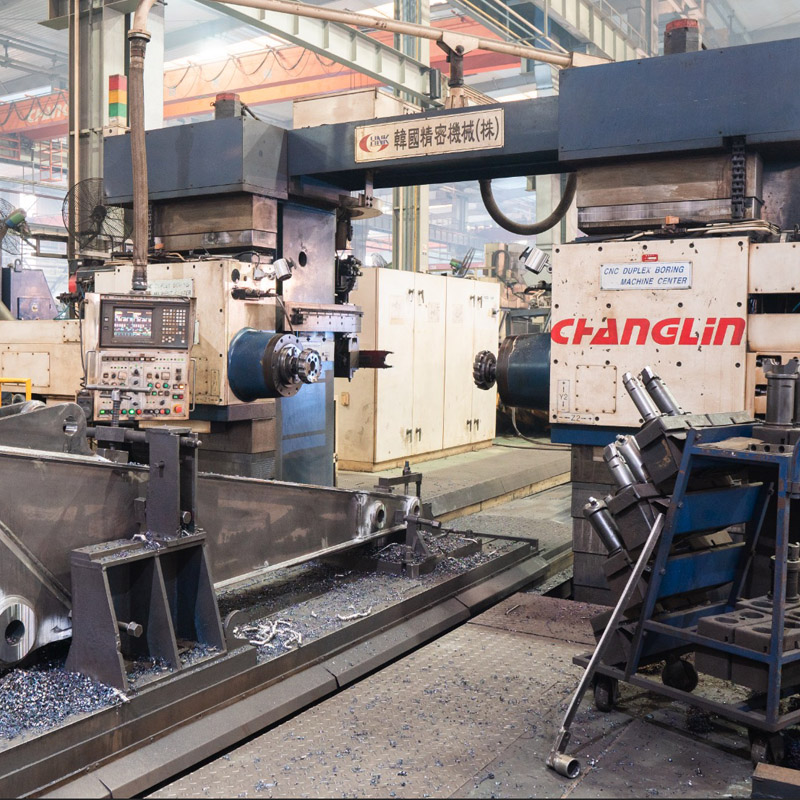

  • WechatIMG1044
  • WechatIMG1045

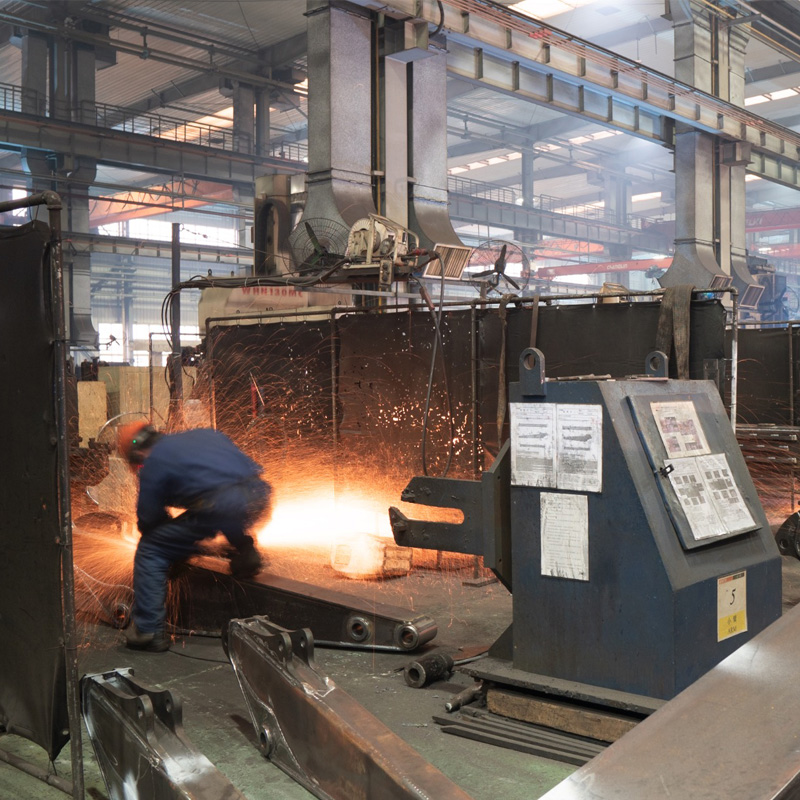

  • WechatIMG1046
  • WechatIMG1051
  • WechatIMG1549
  • WechatIMG1550

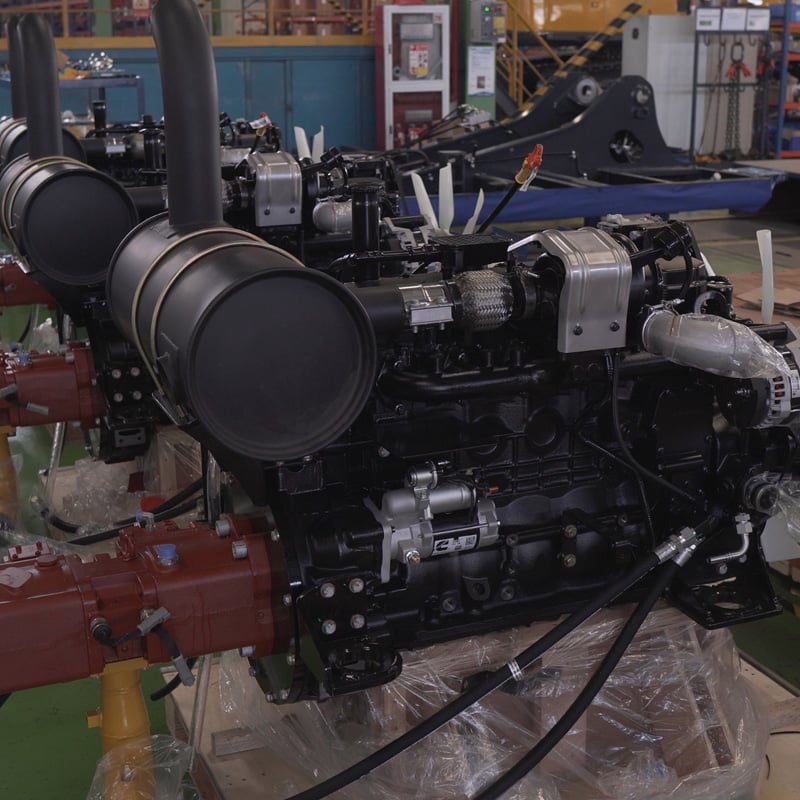

  • WechatIMG1551

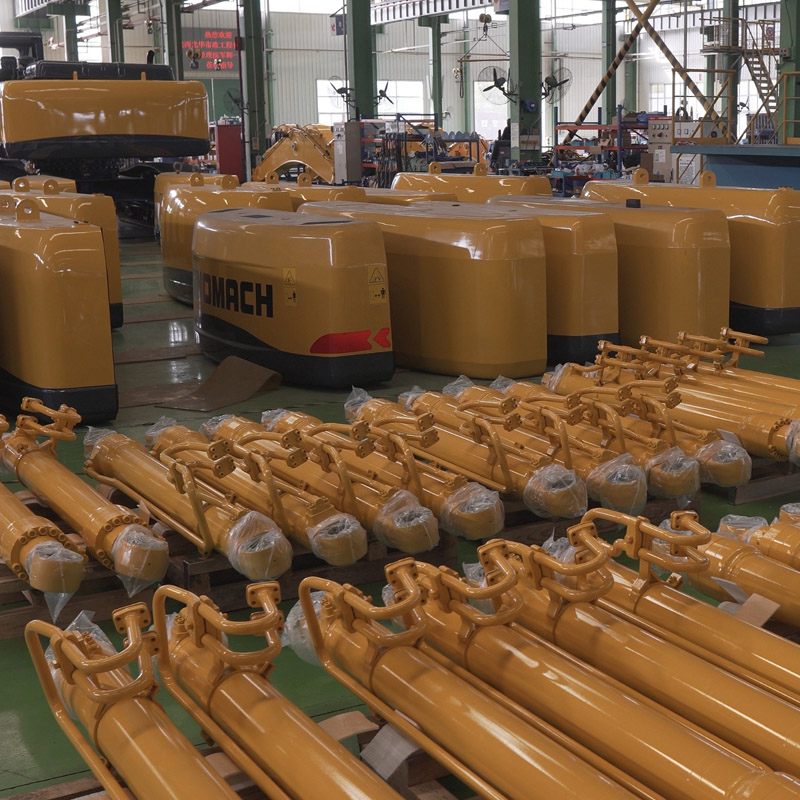

  • WechatIMG1552
