Introducing the ZG360 Crawler Hydraulic Excavator, a powerhouse of performance and reliability tailored for demanding excavation operations.
Equipped with a Cummins high-power engine compliant with Ⅱ-stage emission regulations, this excavator delivers exceptional power, energy efficiency, and durability. Its advanced negative flow hydraulic system ensures comfortable operation, high efficiency, and outstanding cost-effectiveness, setting new standards in the industry.
Key Specifications
- Operating Weight: 34000kg
- Power: 241kW/2000rpm
- Rated Bucket Capacity: 1.7m3
Introduction
The ZG360 features a Cummins new generation high-power engine, providing robust power output, low fuel consumption, and exceptional reliability. Its advanced negative flow hydraulic system, combined with full power control and four adaptable power modes, ensures superior operational efficiency across various working conditions. With a reliable and precise fuel injection system, combustion is optimized for increased fuel efficiency. Comprehensive 3D modeling and finite element analysis technology guarantee the structural reliability and stability of the excavator.
Characteristics

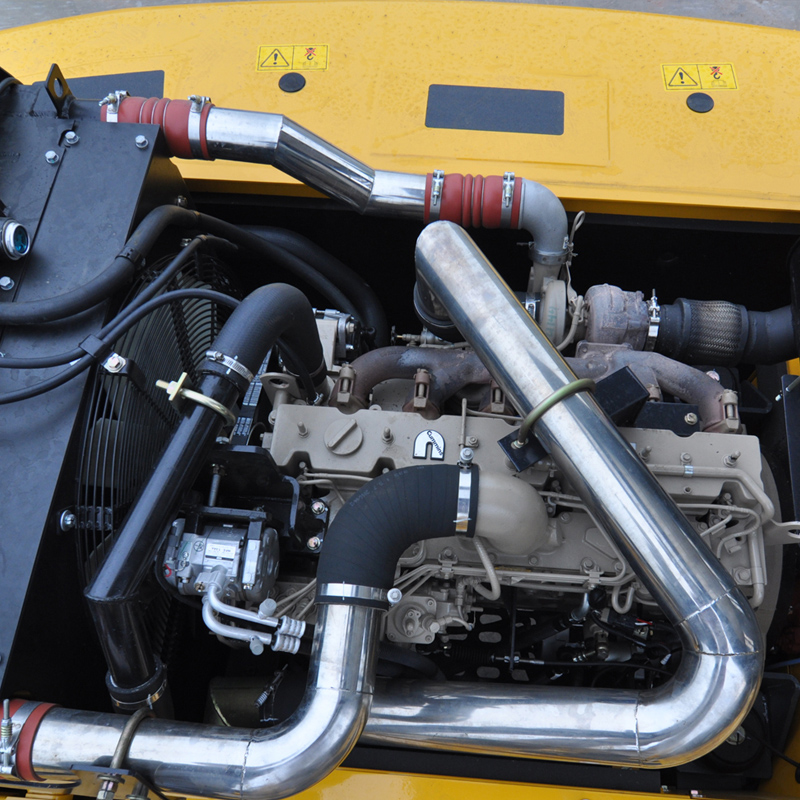

1. Cummins new generation high-power engine delivers strong performance, low fuel consumption, and high reliability.

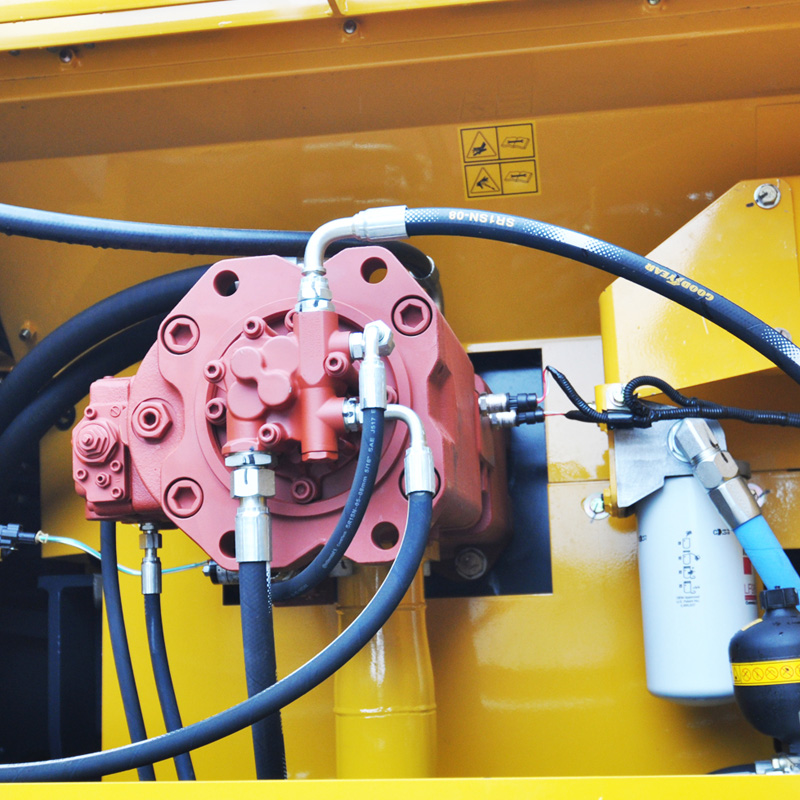

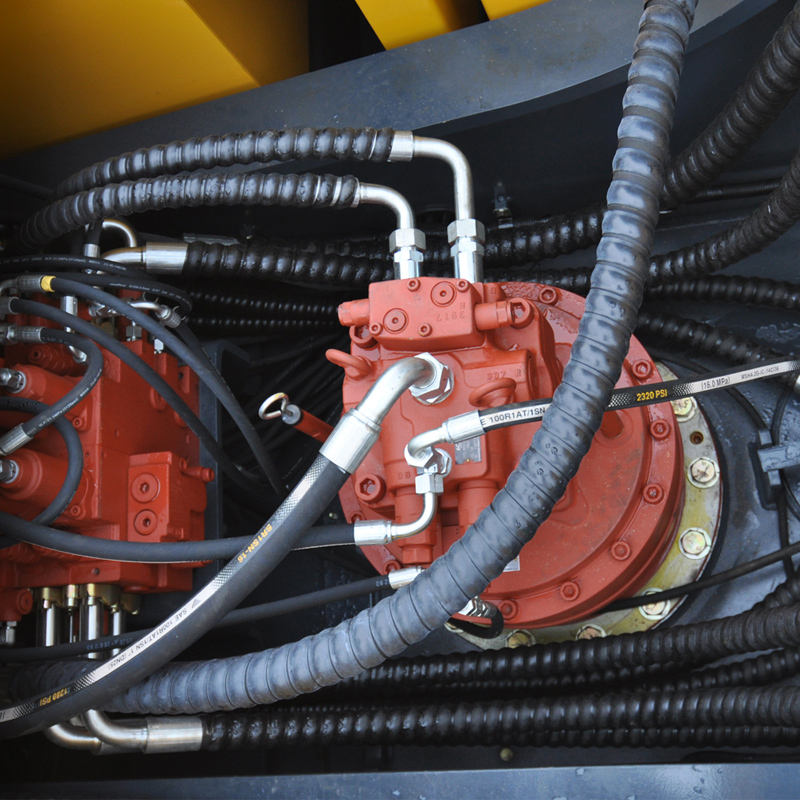

2. New hydraulic system with large displacement main pump and main valve ensures better coordination, reduced pressure loss, and easier operation.
3. Equipped with large-bore oil cylinders and optimized hinge point arrangement for improved digging force. Automatic supercharging function increases digging force as load increases.

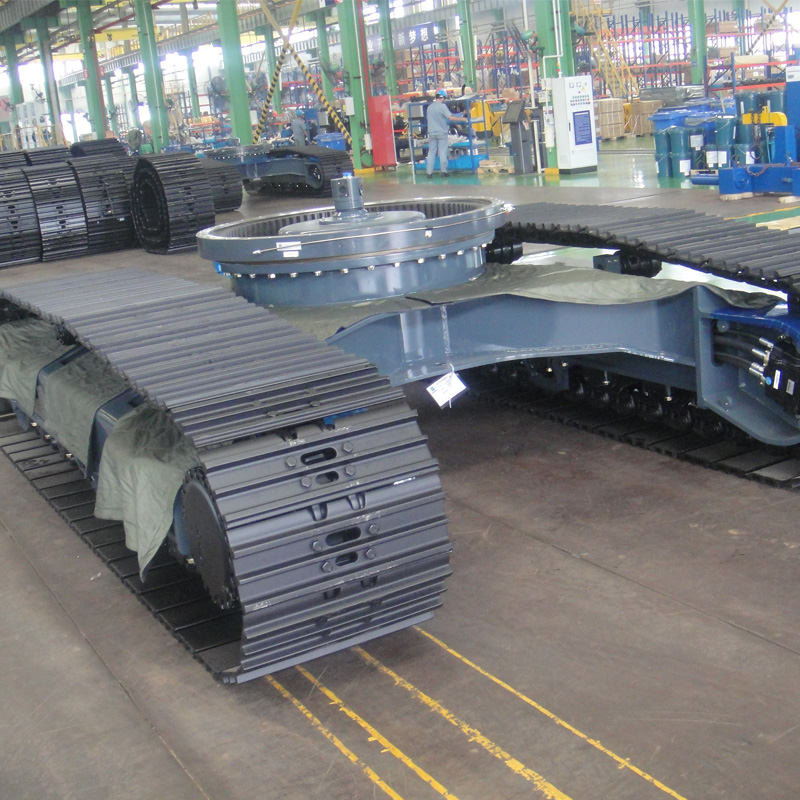

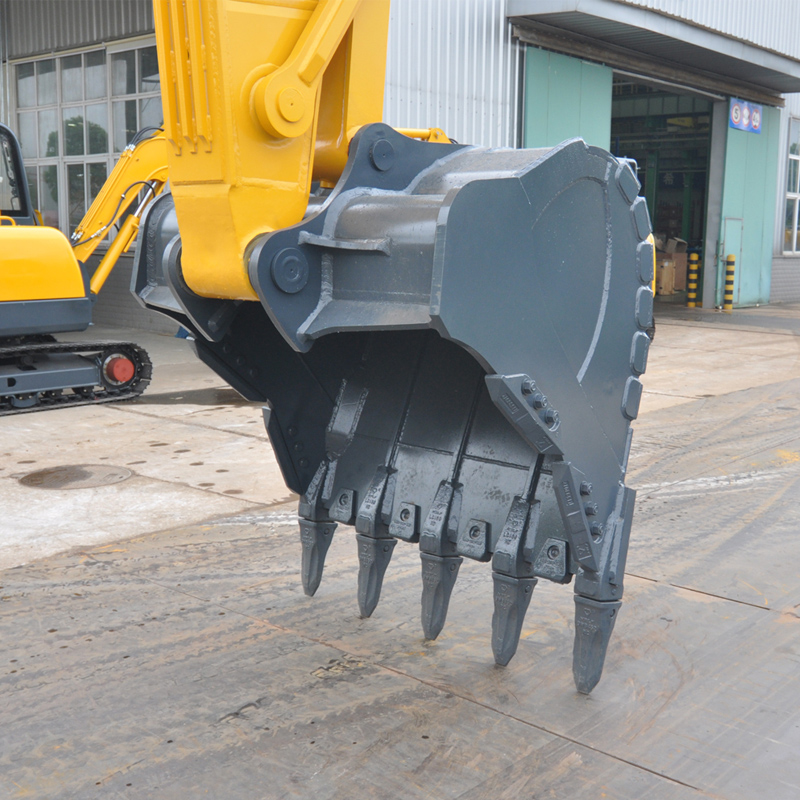

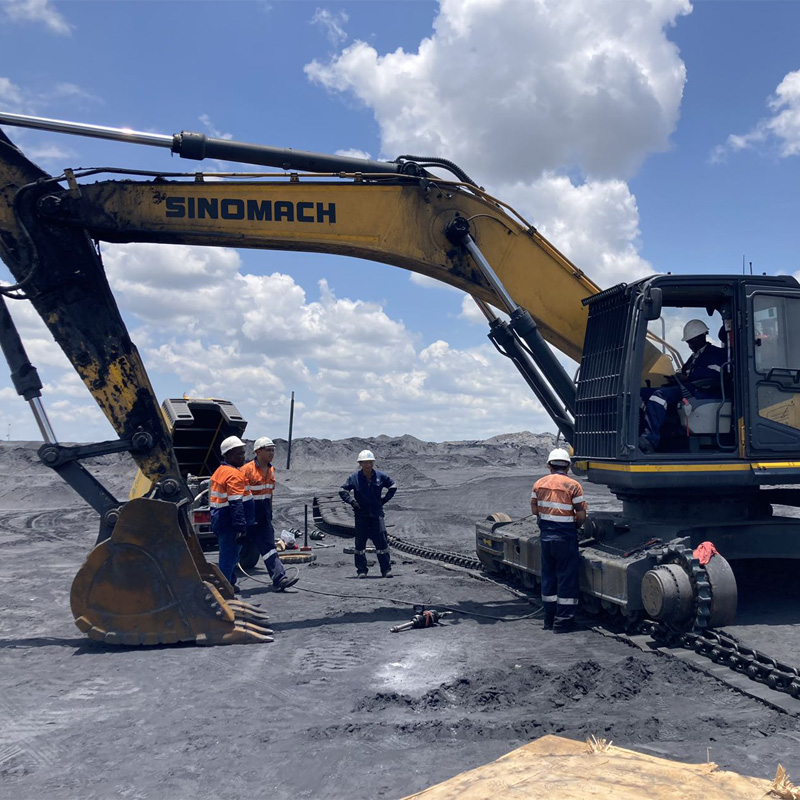

4. Specifically designed for extreme mining conditions, with standard heavy-duty reinforced boom, mine-specific short stick, and large-capacity rock bucket. The extended and widened heavy-duty chassis ensures stability.

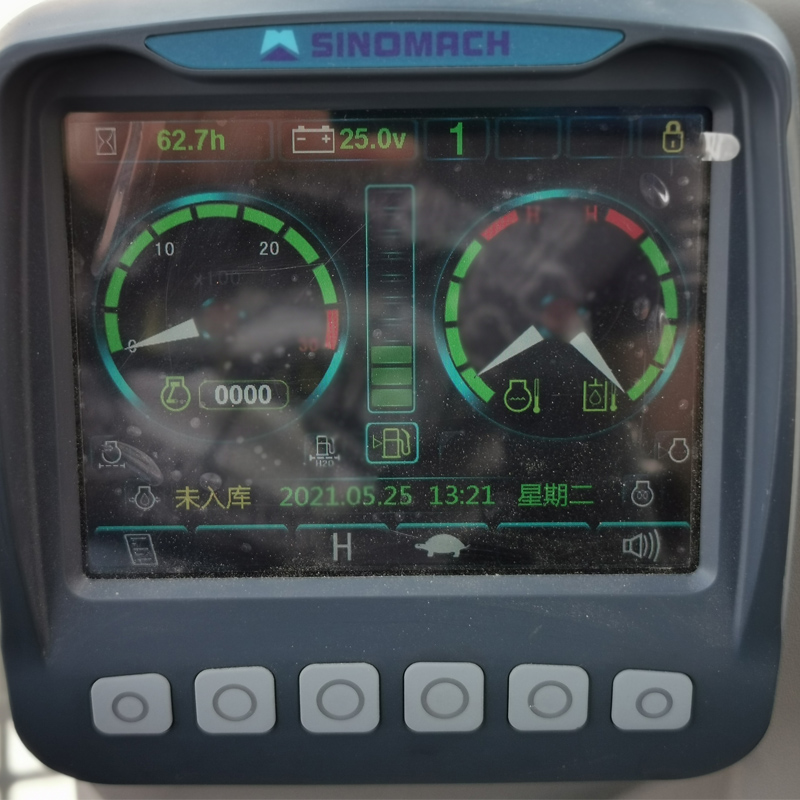

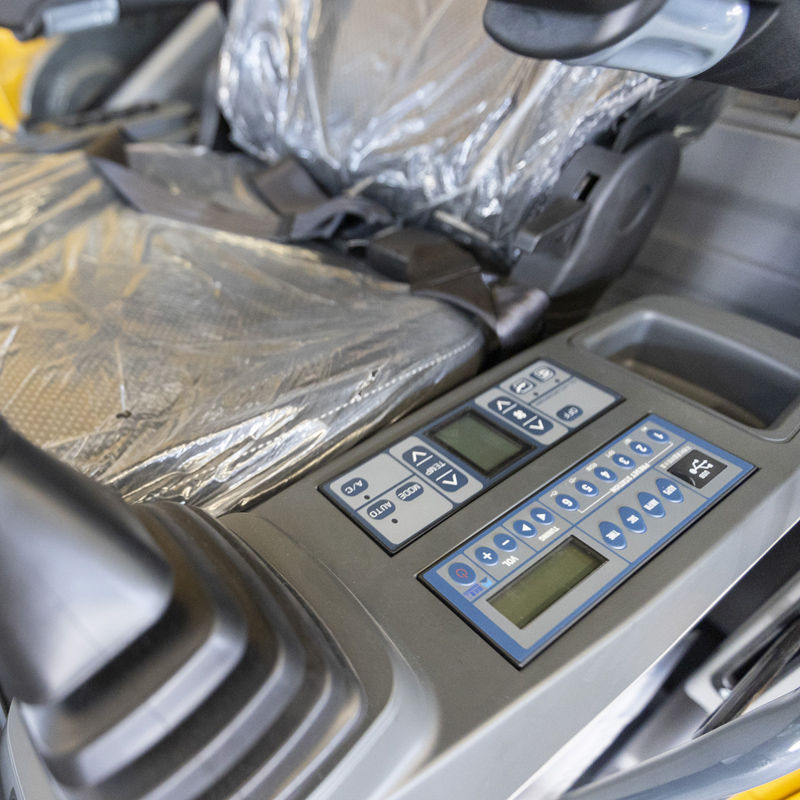

5. Features a high-resolution, high-brightness 5.7-inch color anti-glare monitoring instrument and intelligent electronic monitoring system for maintenance prompts, fault diagnosis, and alarms.
The ZG360 Crawler Hydraulic Excavator is the epitome of power, efficiency, and reliability, ideal for tackling the toughest excavation tasks with ease and precision.
Technical specification
ITEM | UNIT | Technical specifications | |
Operating weight | Kg | 34000 | |
Rated power | KW/rpm | 241/2000 | |
Rated bucket capacity | m3 | 1.7 | |
Overall length | A | mm | 10820 |
Overall width(600mm track) | B | mm | 3280 |
Overall height | C | mm | 3546 |
Platform width | D | mm | 3060 |
Height of cabin | E | mm | 3145 |
Ground clearance of counterweight | F | mm | 1193 |
Engine cover height | G | mm | 2640 |
Min. ground clearance | H | mm | 471 |
Tail length | I | mm | 3325 |
Turning radius of turntable | I' | mm | 3370 |
Wheel base of track shoe | J | mm | 4030 |
Length of chassis | K | mm | 4950 |
Width of chassis | L | mm | 3280 |
Track shoe gauge | M | mm | 2680 |
Standard track width | N | mm | 600 |
Max. traction | KN | 283 | |
Traveling speed (H/L) | Km/hr | 4.8/3.0 | |
Swing speed | rpm | 10.0 | |
Gradeability | Degree(%) | 35(70%) | |
Ground pressure | Kgf/cm2 | 0.631 |
Working range
ITEM | 6.2m arm,2.65m Stick,1.6m3 bucket | |
Maximum digging radius | A | 10233 mm |
Ground maximum digging radius | A' | 10028 mm |
Maximum digging depth | B | 6536 mm |
Ground maximum digging depth | B' | 6331 mm |
Maximum vertical digging depth | C | 4758 mm |
Maximum digging height | D | 9617 mm |
Maximum dumping height | E | 6666 mm |
Min. front turning radius | F | 4256 mm |
Bucket digging force | ISO | 225 KN |
Engine specifications
Model | Cummins 6LTAA8.9-C325 | ||
Specifications | Type | 4 Stroke,6 Cylinder in line ,direct injection, turbocharged | |
Cooling type | 水冷 Water cooled | ||
Bore diameter × stroke | mm | 114×145 | |
Displacement | L | 8.9 | |
rated power | kW/rpm | 241/2000 | |
Max. touque | Nm/rpm | 1400/1400 | |
Rated diesel consumption | g/KW.h(rpm) | 217(2000) | |
Starter | 24V 8.5KW | ||
Generator | (28V-70A) | ||
Battery | 2×12V×120Ah |
