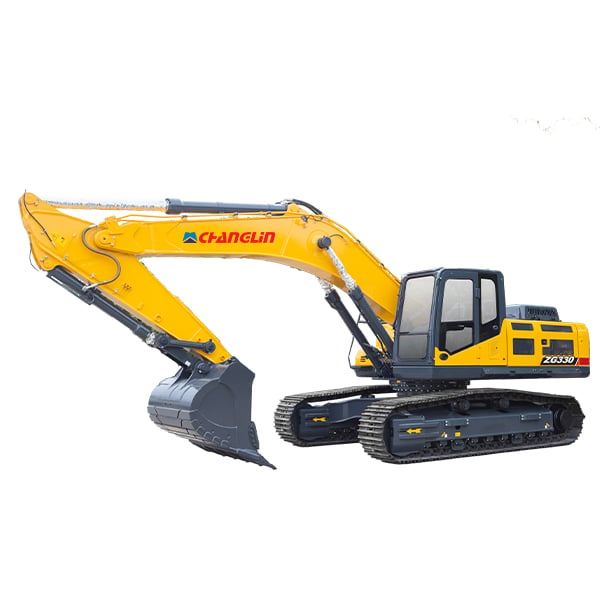

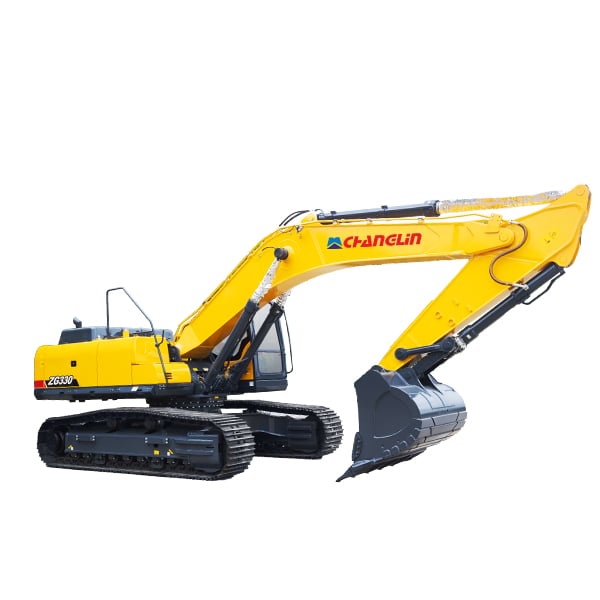

ZG330 Crawler Hydraulic Excavator

Introducing the ZG330 crawler hydraulic excavator, equipped with a Cummins EFI engine compliant with the Ⅲ-stage emission regulations, delivering powerful, energy-efficient, and reliable performance. Its advanced negative flow hydraulic system ensures comfortable operation, high efficiency, and excellent cost performance.

Main Features

With full power control and four power modes, it adapts seamlessly to various work conditions. The precise fuel injection system controls fuel quantity in real-time, enhancing combustion completeness and fuel efficiency. Structural integrity is ensured through full 3D modeling and finite element analysis technology.

1. High-Power Engine: The Cummins new generation high-power EFI engine offers strong power, low fuel consumption, and high reliability, providing optimal performance for demanding tasks.

2. Advanced Hydraulic System: The new hydraulic system features a large displacement main pump and main valve, ensuring smooth operation, minimal pressure loss, and better coordination for effortless operation.

3. Enhanced Digging Force: Equipped with large-bore oil cylinders and optimized hinge point arrangements, the excavator boasts improved digging force. It also features an automatic supercharging function that increases digging force with load, along with a large displacement slewing motor and gear design for enhanced rotation.

4. Mining-Optimized Configuration: Standard configurations include a heavy-duty reinforced boom, mine-specific short stick, and large-capacity rock bucket, along with an extended and widened heavy-duty chassis for improved stability in harsh mining conditions.

5. Intelligent Monitoring System: Equipped with a high-resolution, high-brightness 5.7-inch color anti-glare monitoring instrument and an intelligent electronic monitoring system, providing various functions such as vehicle maintenance information prompts, fault self-diagnosis, and alarms.

The ZG330 crawler hydraulic excavator sets a benchmark in performance, efficiency, and reliability, making it the ideal choice for various excavation tasks across different industries.

Main Specifications
ITEM UNIT Technical specifications
ZG330
Operating weight Kg 31880
Rated power KW/rpm 241/2000
Rated bucket capacity m3 1.6
Overall length A mm 10700
Overall width(600mm track) B mm 3280
Overall height C mm 3546
Platform width D mm 3060
Height of cabin E mm 3145
Ground clearance of counterweight F mm 1193
Engine cover height G mm 2563
Min. ground clearance H mm 471
Tail length I mm 3205
Turning radius of turntable I' mm 3250
Wheel base of track shoe J mm 4030
Length of chassis K mm 4950
Width of chassis L mm 3280
Track shoe gauge M mm 2680
Standard track width N mm 600
Max. traction m3 273
Traveling speed (H/L) Km/hr 5.1/3.1
Swing speed rpm 10.0
Gradeability Degree(%) 35(70%)
Ground pressure Kgf/cm2 0.594

Working range

ITEM 6.2m arm,2.65m Stick,1.6m3 bucket
GE330D
Maximum digging radius A 10233 mm
Maximum digging depth B 6536 mm
Ground maximum digging depth B' 6331 mm
Maximum vertical digging depth C 4758 mm
Maximum digging height D 9617 mm
Maximum dumping height E 6666 mm
Min. front turning radius F 4256 mm
Bucket digging force ISO 225 KN
Stick digging force ISO 182 KN

Engine specifications

Model Cummins  6LTAA8.9-C325
Specifications Type 4 Stroke,6 Cylinder in line,direct injection,turbocharged
Cooling type Water cooled
Bore diameter × stroke mm 114×145
Displacement L 8.9
rated power kW/rpm 241/2000
Max. touque Nm/rpm 1400/1400
Rated diesel consumption g/KW.h(rpm) 217(2000)
Starter 24V  8.5KW
Generator JFZ2725-010(28V-70A)
Battery 2×12V×120Ah
Scope of Application

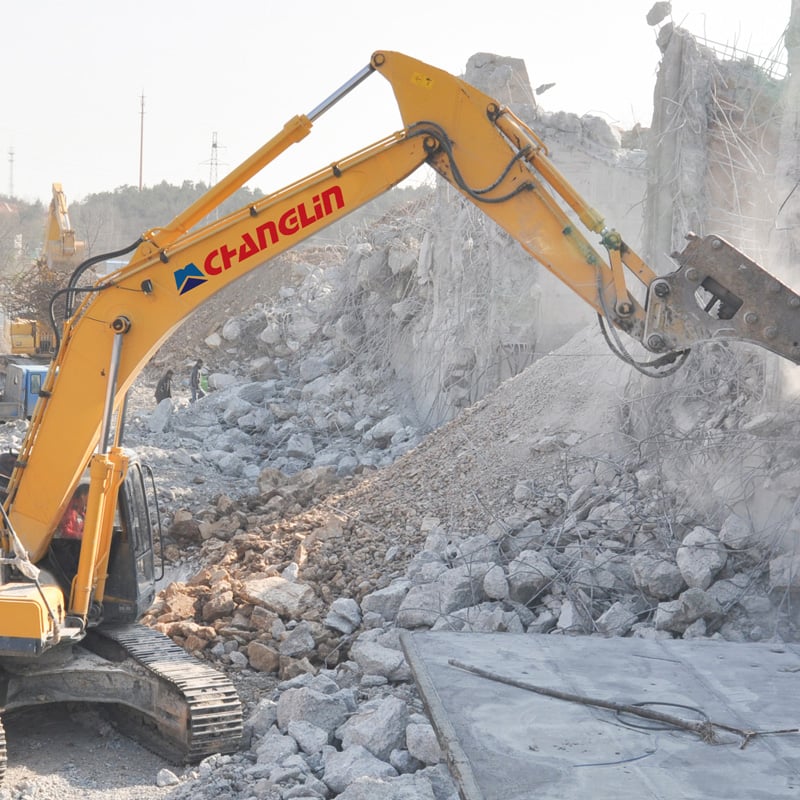

  • 1的副本

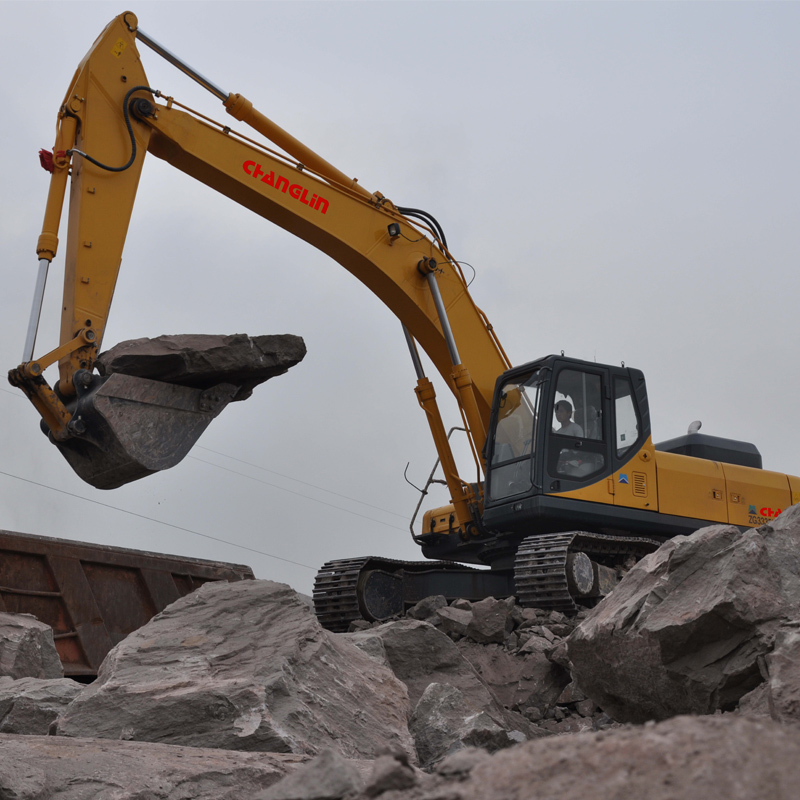

  • DSC_0009

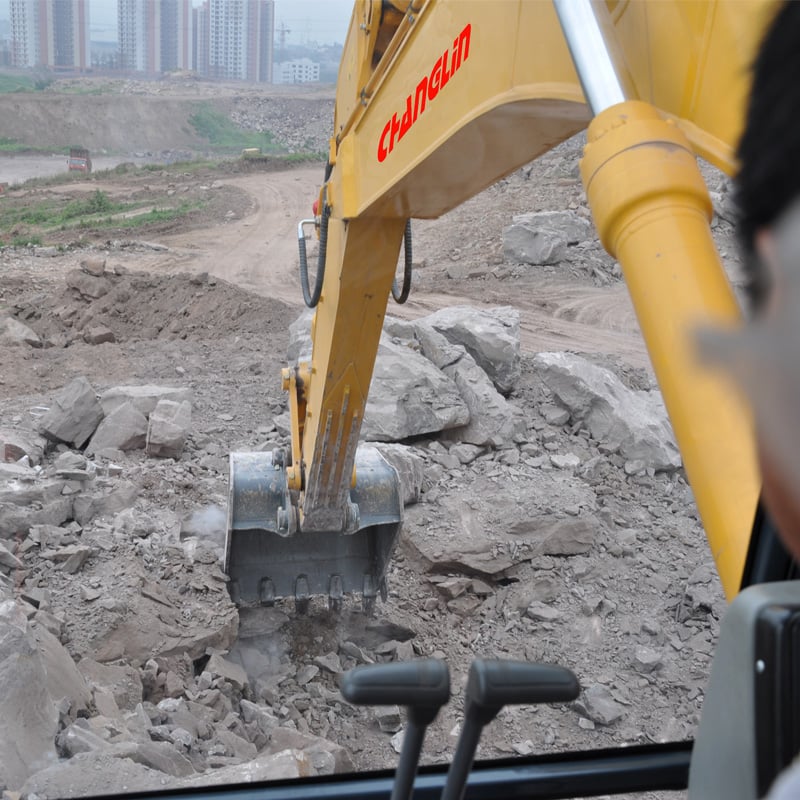

  • DSC_0038

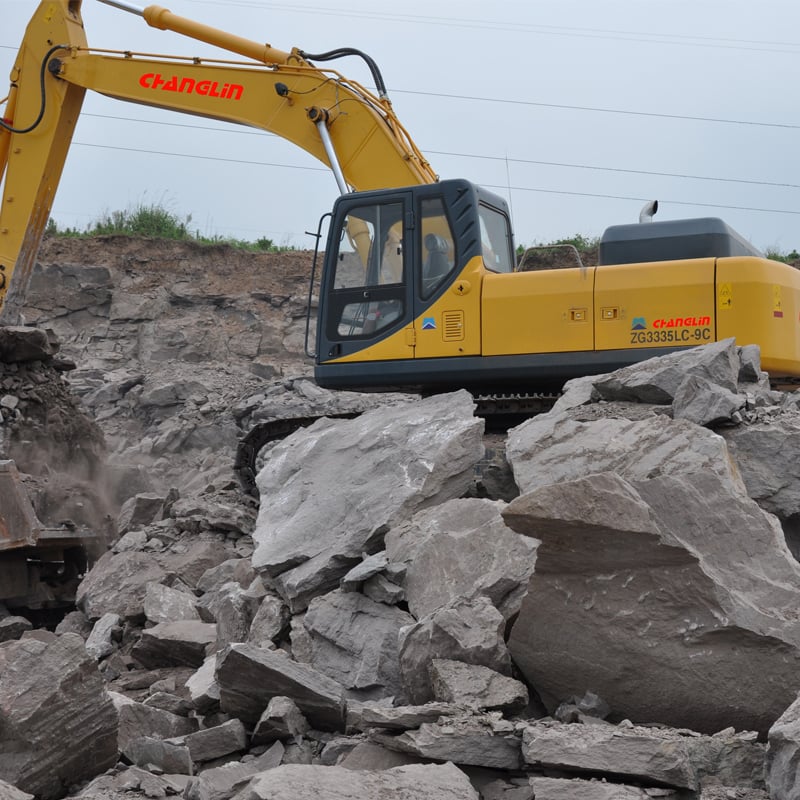

  • DSC_0092

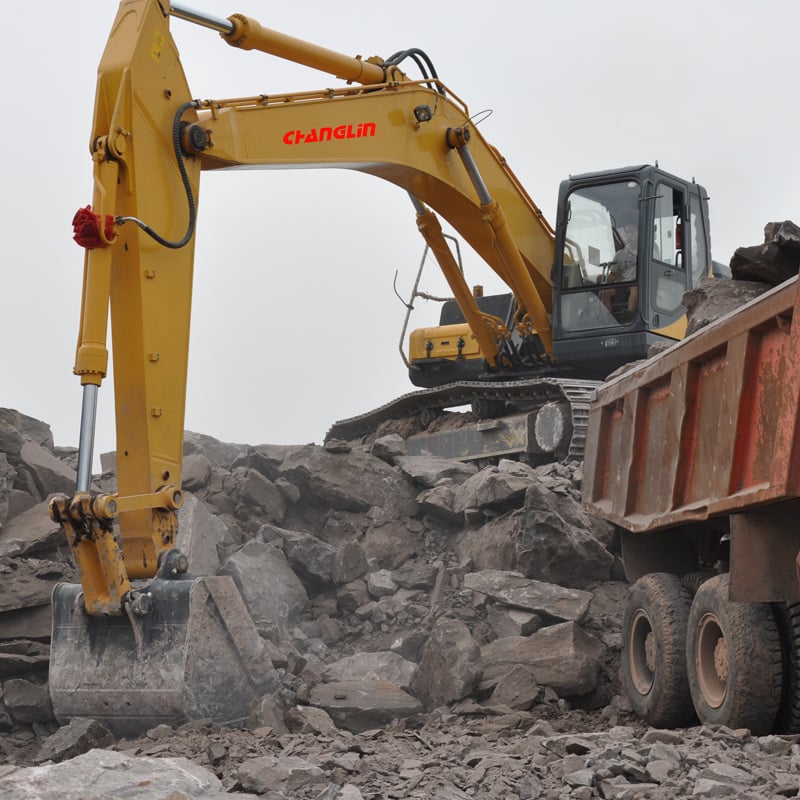

  • DSC_0104

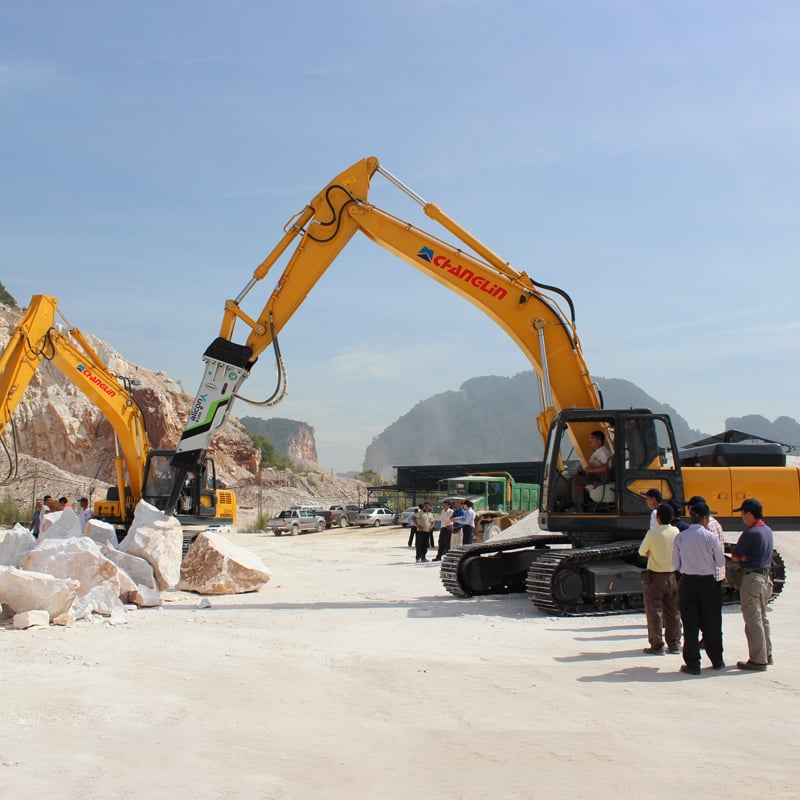

  • 微信图片_202116203852
Product Superiority And Transportation

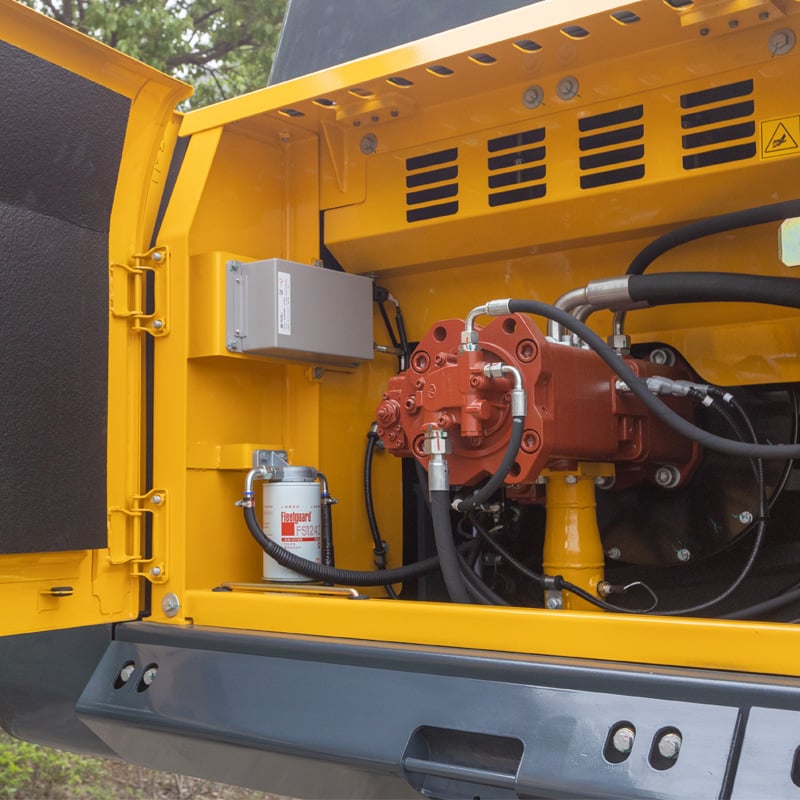

  • 1J4A4229-8

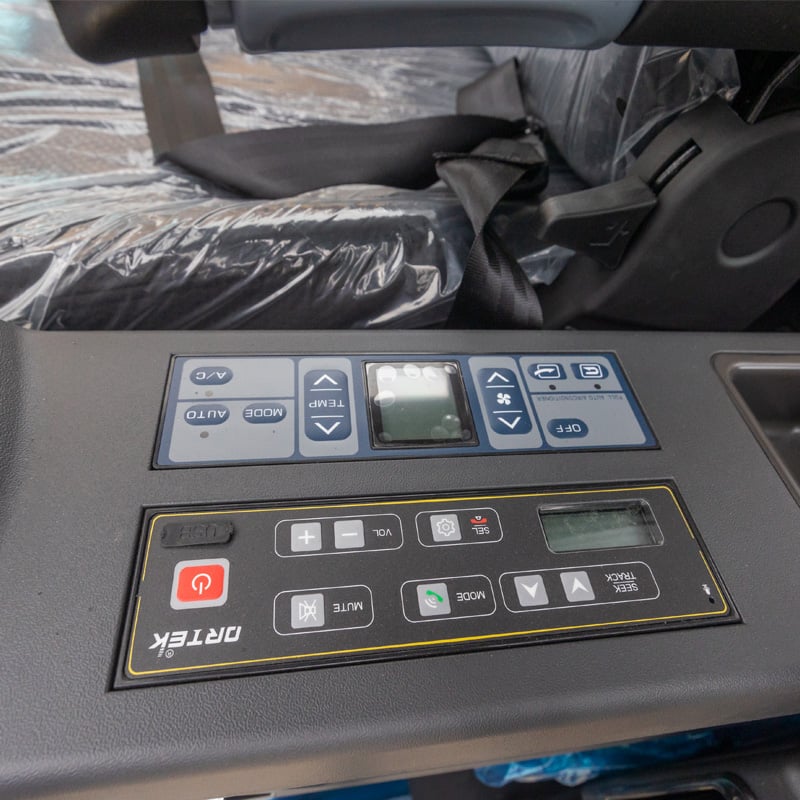

  • 1J4A4235-14

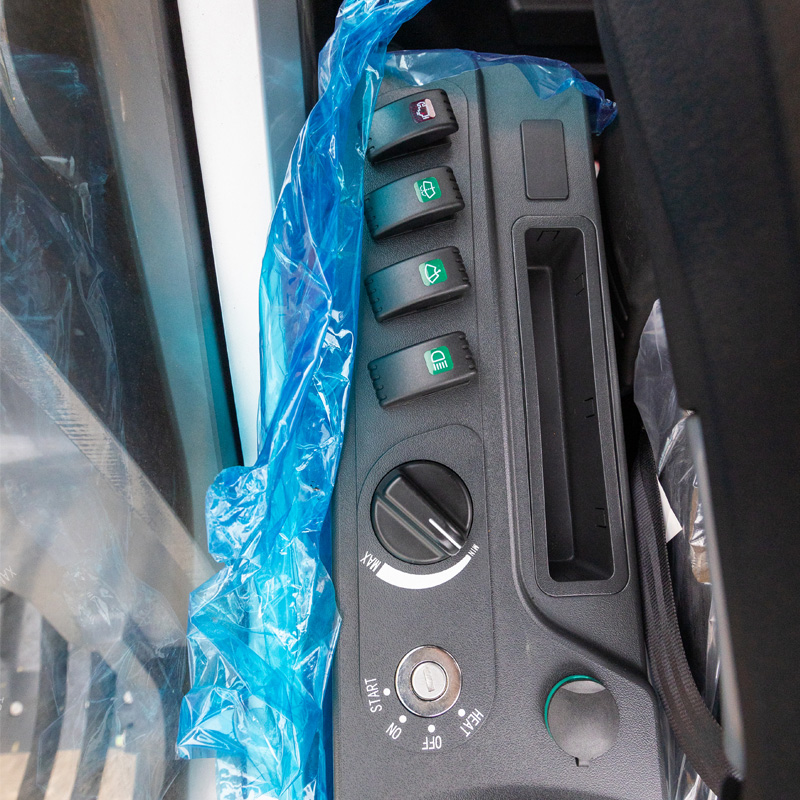

  • 1J4A4240-19

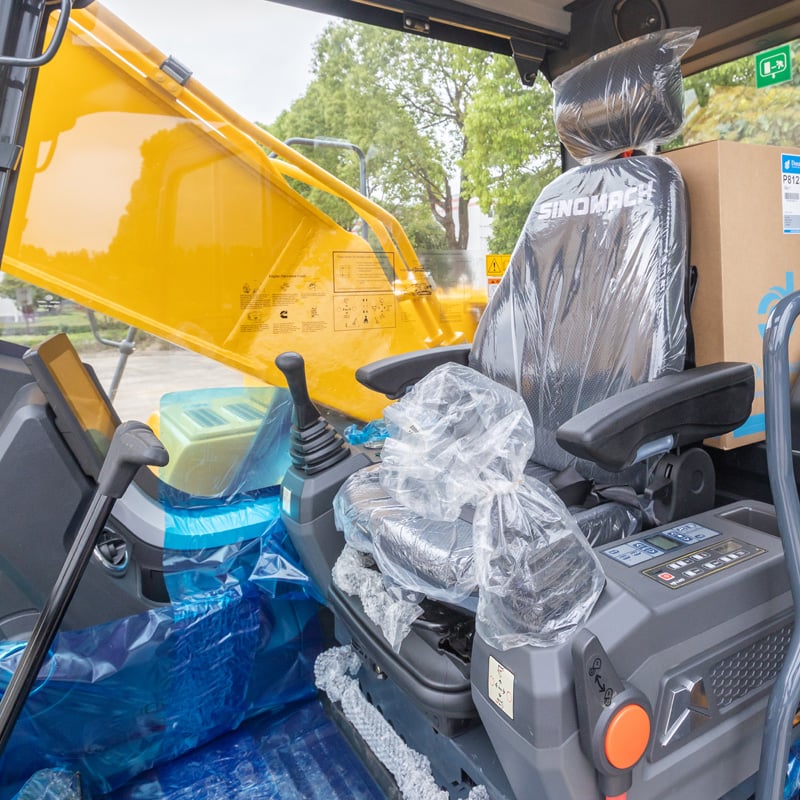

  • 1J4A4241-20
  • 1J4A4249-28

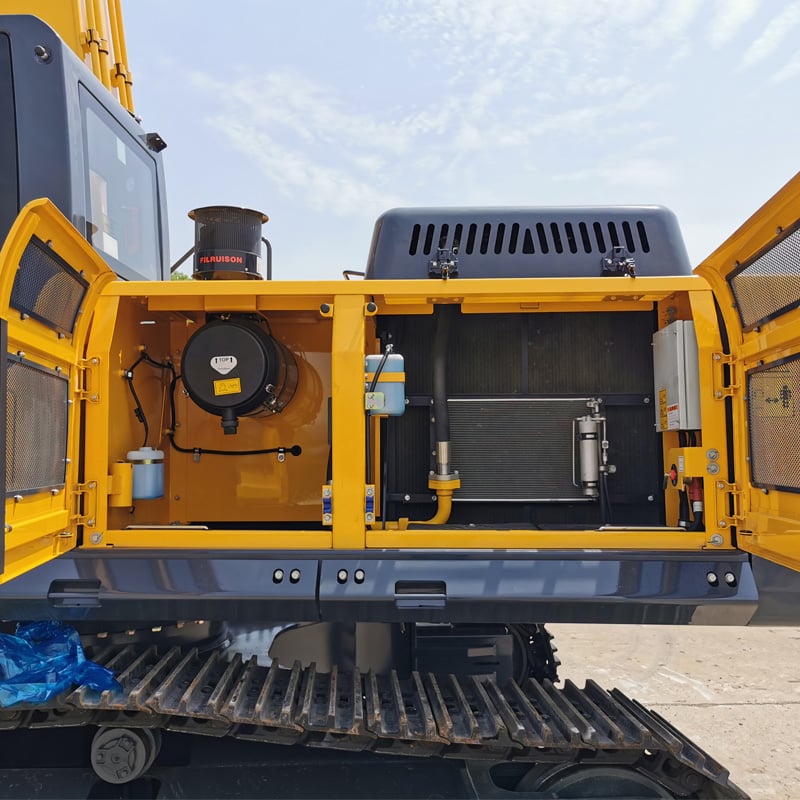

  • 微信图片_20210601110612
Production Line
  • WechatIMG1044
  • WechatIMG1045
  • WechatIMG1046
  • WechatIMG1051
  • WechatIMG1549
  • WechatIMG1550
  • WechatIMG1551
  • WechatIMG1552
