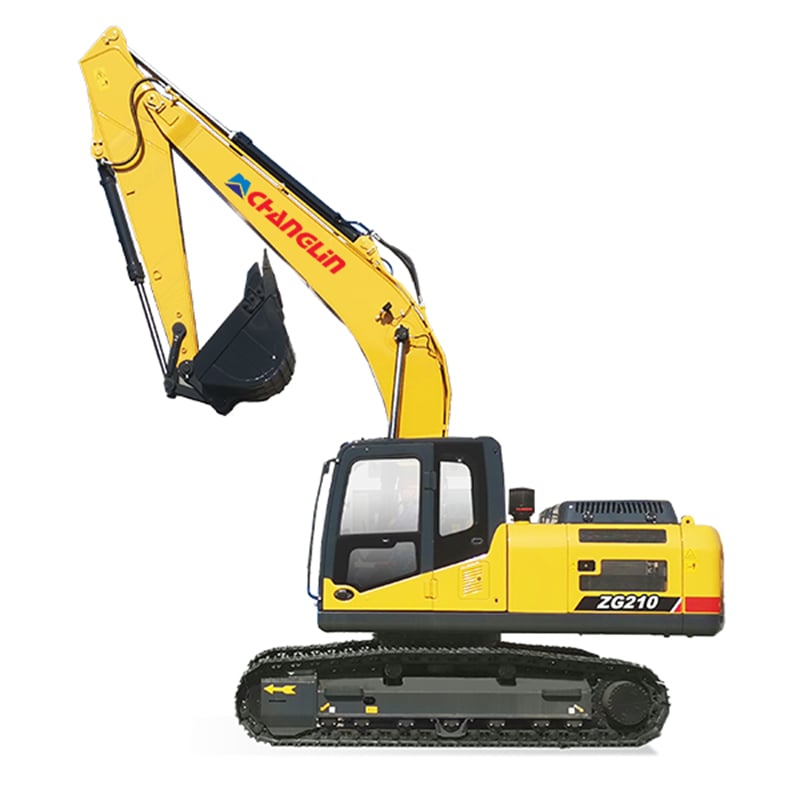

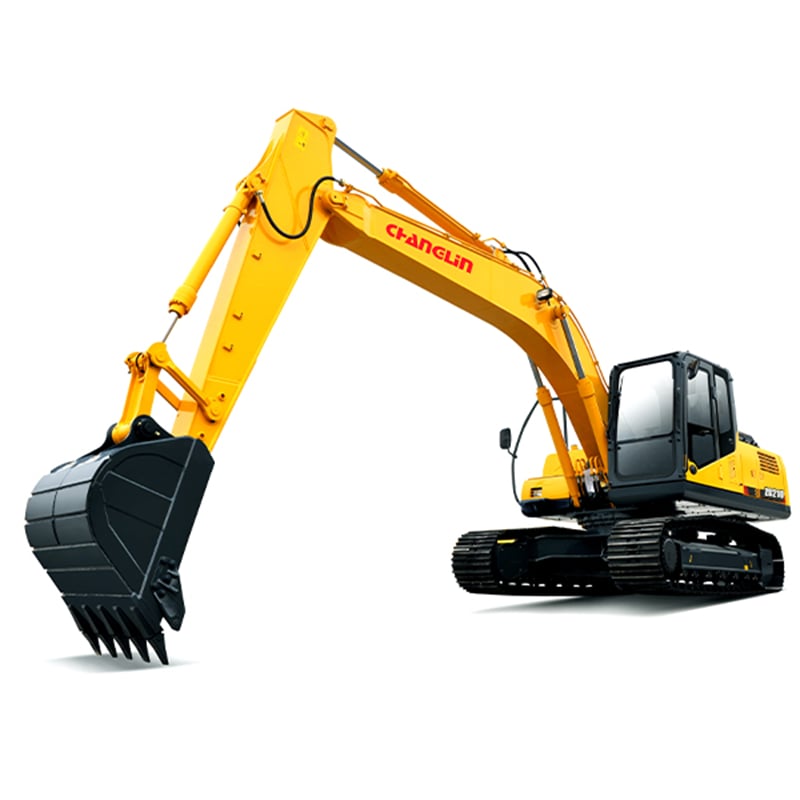

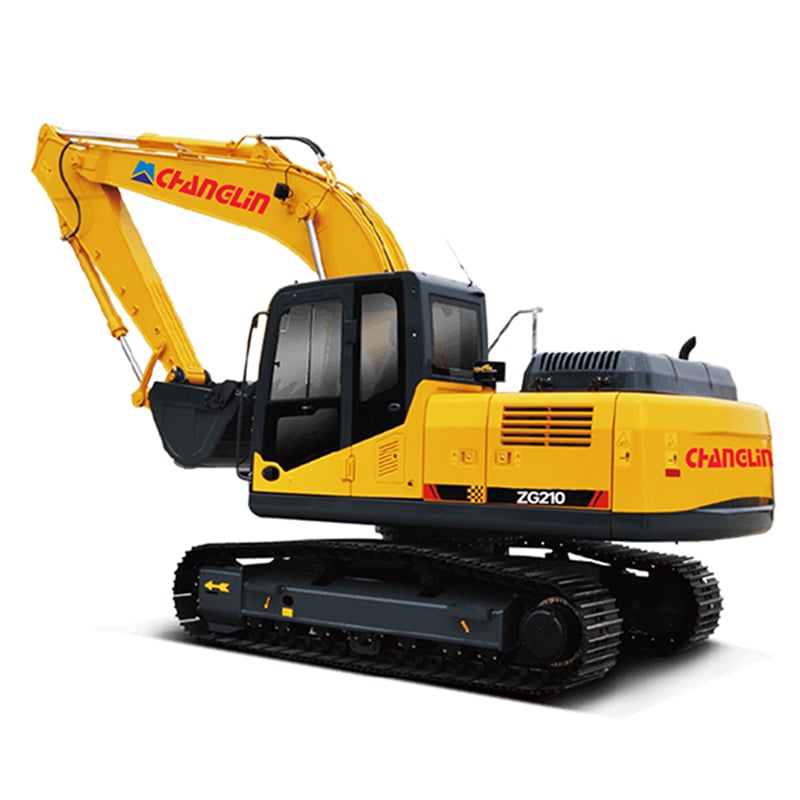

Introducing the ZG210 Crawler Hydraulic Excavator, a powerhouse of efficiency and reliability designed for heavy-duty excavation tasks. Equipped with a Cummins engine, this excavator delivers robust power output while maintaining low fuel consumption and high durability. Its advanced negative flow hydraulic system ensures stable and reliable performance, enhancing operational comfort and efficiency for exceptional cost-effectiveness.
Key Specifications:
- Operating Weight: 21000kg
- Power: 112kW/1950rpm
- Rated Bucket Capacity: 1.0m3
Introduction:
The ZG210 is powered by a Cummins engine, renowned for its high load resistance and efficient power output, resulting in reduced fuel consumption and maintenance costs. Its advanced negative flow hydraulic system provides superior stability and reliability, enabling faster compound action speeds and higher operational efficiency. Utilizing full power control with four different power modes, this excavator adapts seamlessly to various working conditions. Additionally, precise throttle control through stepper motors significantly reduces fuel consumption, while comprehensive 3D modeling and finite element analysis ensure structural reliability and stability.
Characteristics:
1. Equipped with a Cummins engine for high load resistance, high horsepower output, and low fuel consumption, reducing overall operational and maintenance costs.

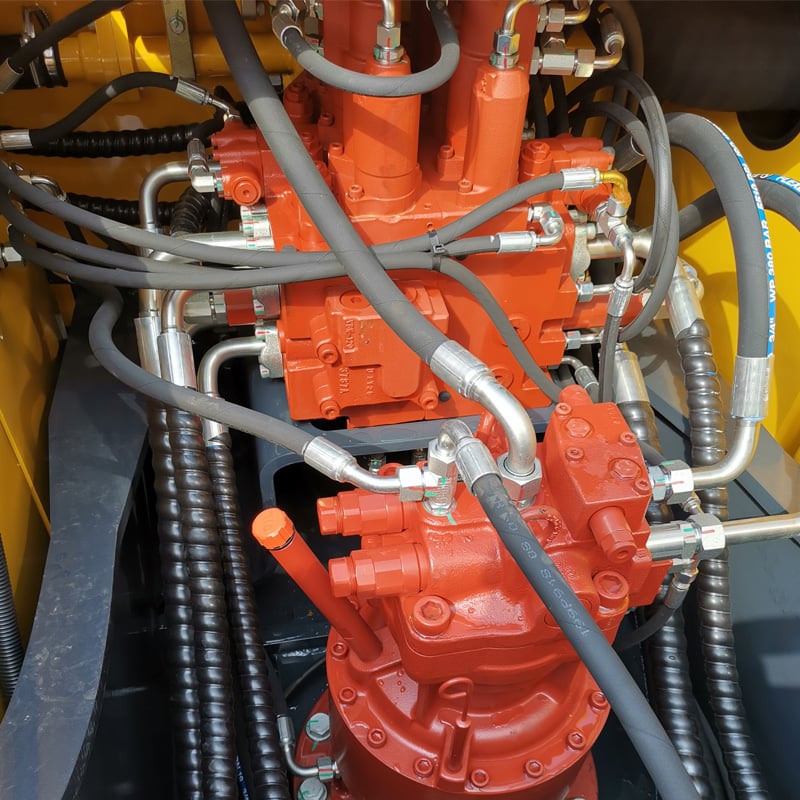

2. Advanced negative flow hydraulic system for enhanced stability, reliability, faster compound action speeds, and increased operational efficiency.

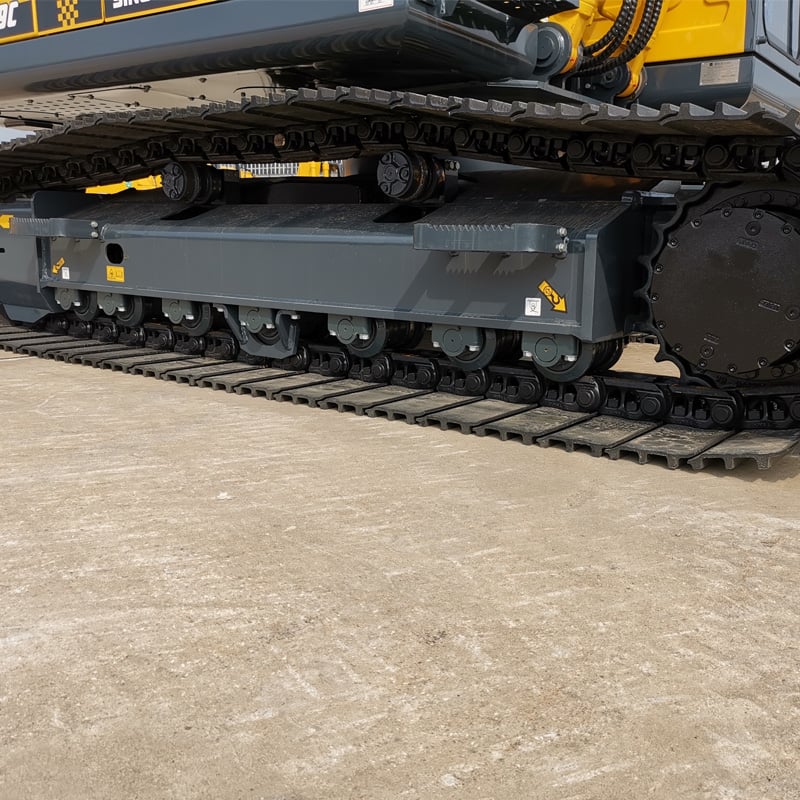

3. Features high-strength reinforced box-type side beams and X-shaped middle frames, along with reliable towline wheels and track rollers, capable of withstanding heavy loads and impacts.

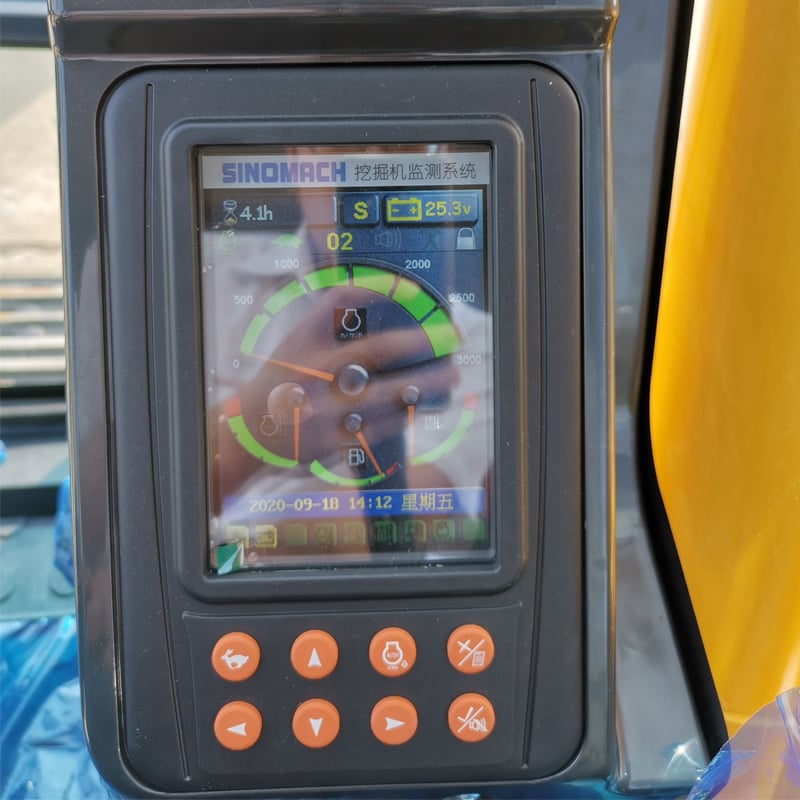

4. Incorporates an intelligent electronic monitoring system for real-time monitoring, fault self-diagnosis, and maintenance information prompts, ensuring optimal performance and timely maintenance.
The ZG210 Crawler Hydraulic Excavator is the ultimate choice for contractors and operators seeking a powerful, efficient, and reliable solution for their demanding excavation projects.
Overall Dimension
| ITEM | UNIT | Specifications | |
| Operating weight | Kg | 21000 | |
| Rated bucket capacity | m3 | 1.0 | |
| Overall length | A | mm | 9660 |
| Overall width(600mm track shoe) | B | mm | 2800 |
| Overall height | C | mm | 3030 |
| Trunable width | D | mm | 2700 |
| Cabin height | E | mm | 2958 |
| Groundclearance of counterweight | F | mm | 1025 |
| Engine cover height | G | mm | 2338 |
| Min. ground clearance | H | mm | 470 |
| Tail length | I | mm | 2800 |
| Turning radius of turnable | I' | mm | 2800 |
| Wheel base of track shoe | J | mm | 3370 |
| Chassis length | K | mm | 4160 |
| Chassis width | L | mm | 2800 |
| Track shoe gauge | M | mm | 2200 |
| Standard track shoe width | N | mm | 600 |
| Max. traction | KN | 204 | |
| Travelling speed (H/L) | Km/hr | 5.8/3.3 | |
| Swing speed | rpm | 13.9 | |
| Gradeability | Degree(%) | 35(70%) | |
| Ground pressure | Kgf/cm2 | 0.47 | |
Working range
| ITEM | 2.91mStick (mm) | |
| Maximum digging radius | A | 9953 |
| Ground maximum digging radius | A' | 9794 |
| Maximum digging depth | B | 6690 |
| Ground maximum digging depth | B' | 6505 |
| Maximum vertical digging depth | C | 6104 |
| Maximum digging height | D | 9642 |
| Maximum dumping height | E | 6813 |
| Min. front turning radius | F | 3560 |
| Bucket digging force | ISO | 137 KN |
| Stick digging force | ISO | 102 KN |

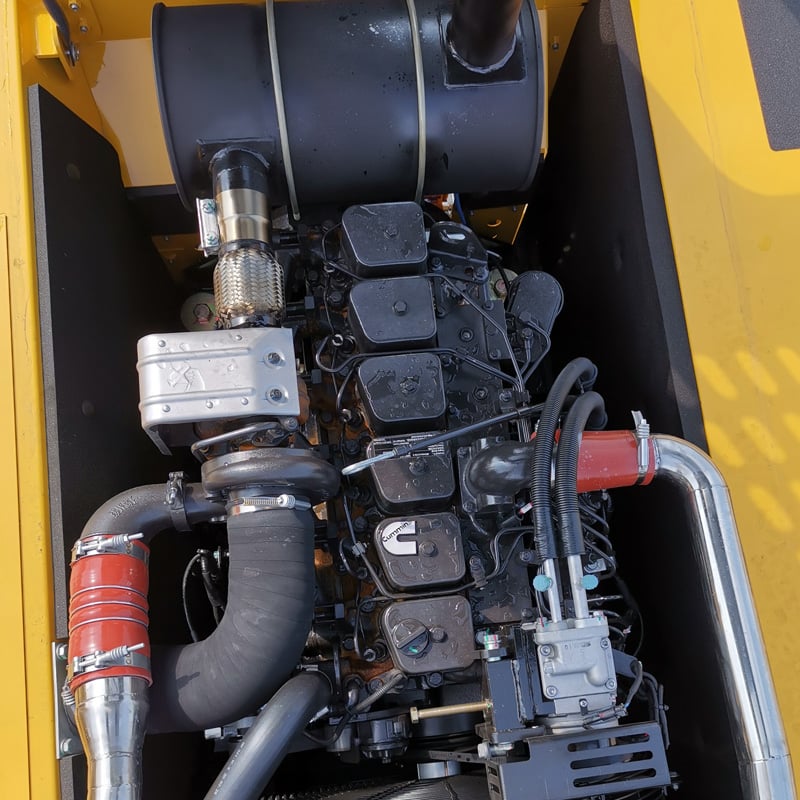

Engine specifications
| Specifications | Model | Cummins6BTAA5.9-C150 | |
| Type | 6-cylinder in-line, four-stroke turbocharger | ||
| Emission | National Ⅱ | ||
| Cooling method | Water cooled | ||
| Bore diameter × stroke | mm | 102×120 | |
| Displacement | L | 5.883 | |
| Rated power | 112KW(150PS)@1950rpm | ||
| Max. torque | N.m | 614N.m@1500rpm | |
| Engine oil capacity | L | 24 | |
| Rated diesel consumption | g/ps.hr(rpm) | 208g/ps.hr(1500rpm) | |
| Starter | DENSO 24V/4.5KW | ||
| Generator | DELCO 24SI 28V/70A |
