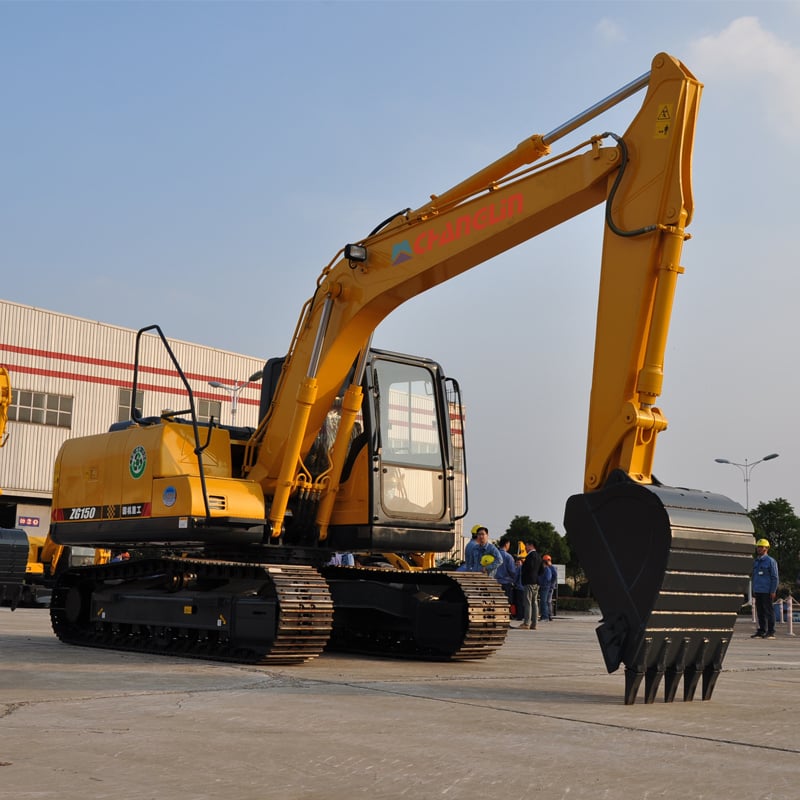

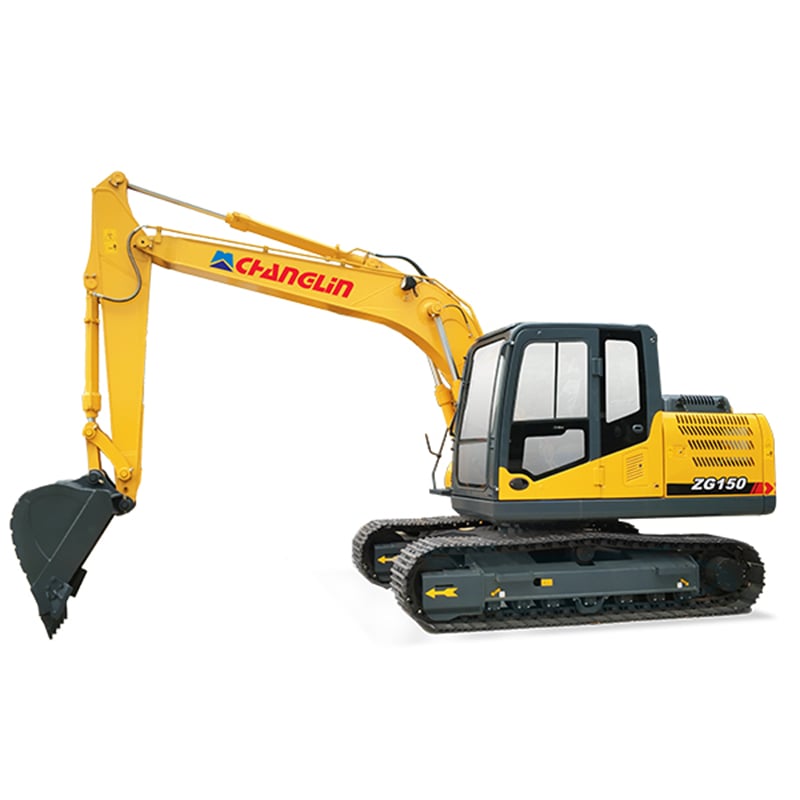

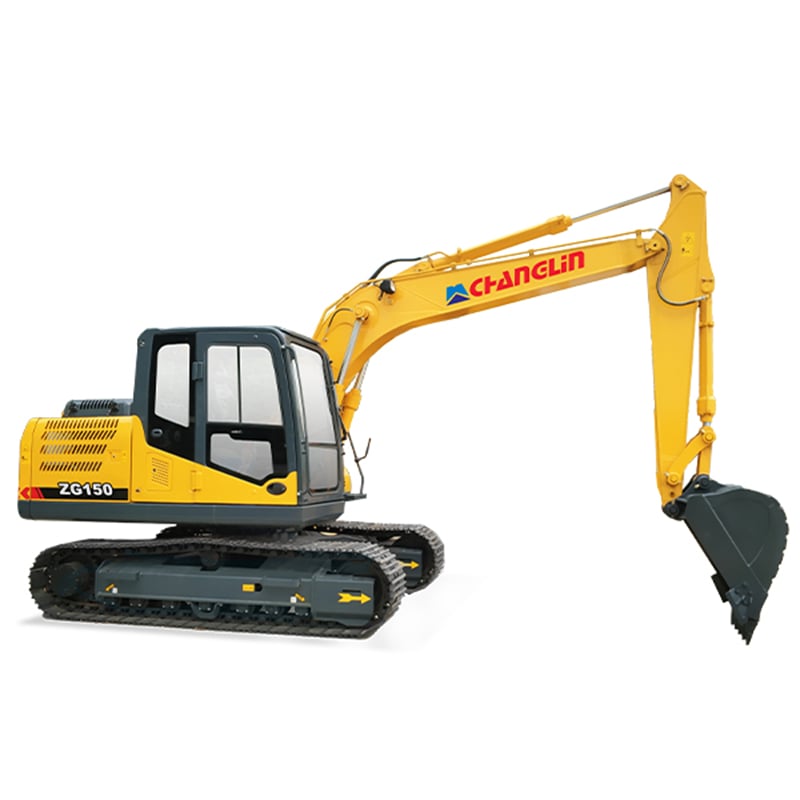

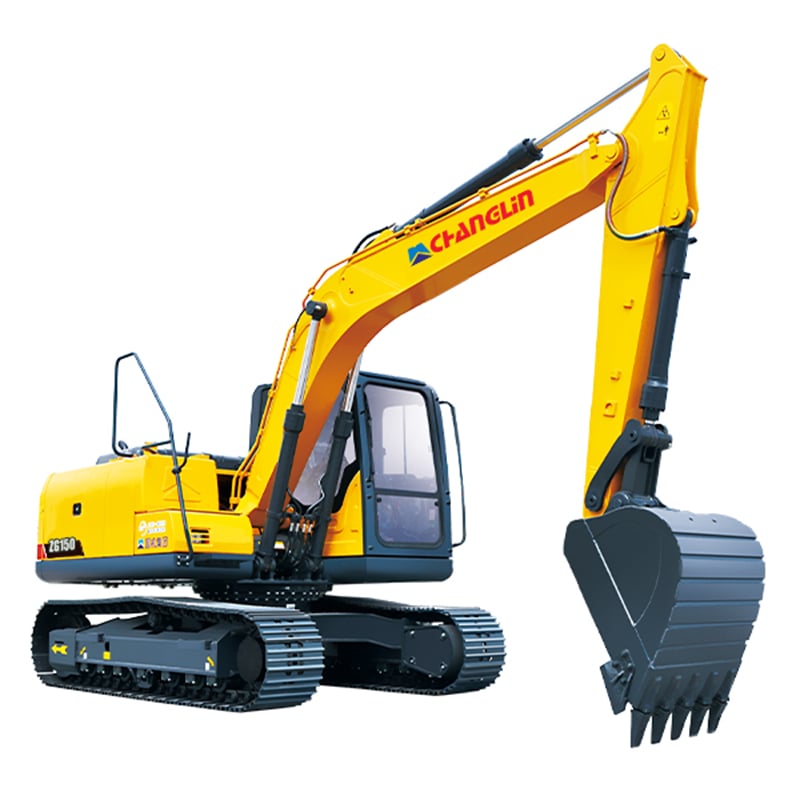

Introducing the ZG150 Crawler Hydraulic Excavator, a robust and efficient machine designed for a variety of excavation tasks. With its powerful Cummins' new generation high-power EFI engine, this excavator delivers exceptional performance while maintaining low fuel consumption and high reliability.
Featuring a new Inline hydraulic system, equipped with a large displacement main pump and a large flow main valve, the ZG150 ensures smooth and precise operation with minimal pressure loss. Its large-caliber cylinders and optimized hinge point arrangement enhance digging force, with an automatic supercharging function that adjusts digging force according to the load.
The ZG150 boasts a new generation control system that intelligently adjusts hydraulic absorption power, optimizing system matching for comprehensive performance. Its high-resolution, high-brightness 8-inch color anti-glare monitoring instrument provides operators with essential information and features an intelligent electronic monitoring system for maintenance prompts, fault diagnosis, and alarms.

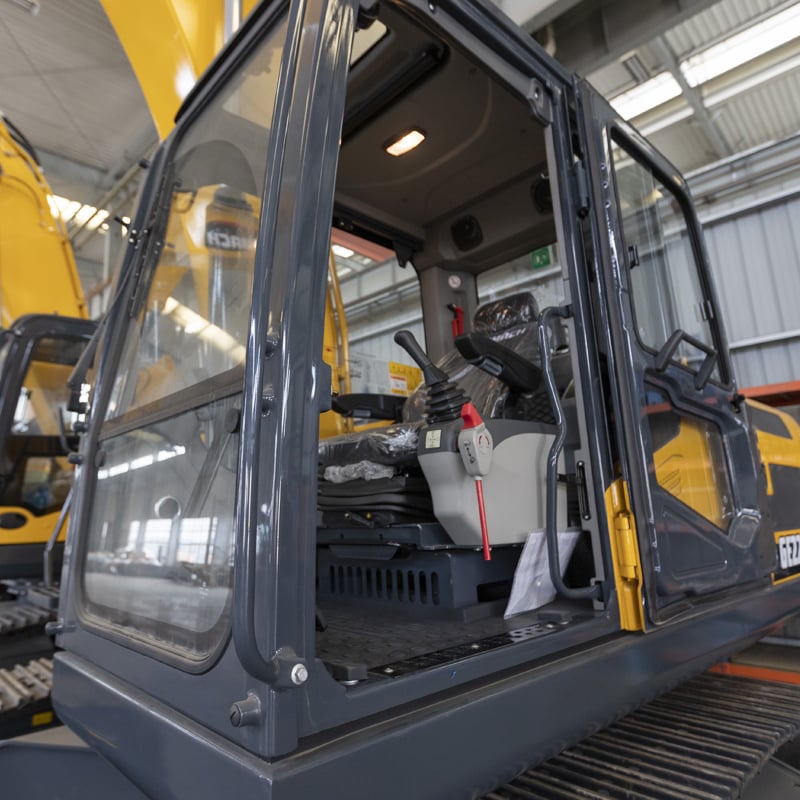

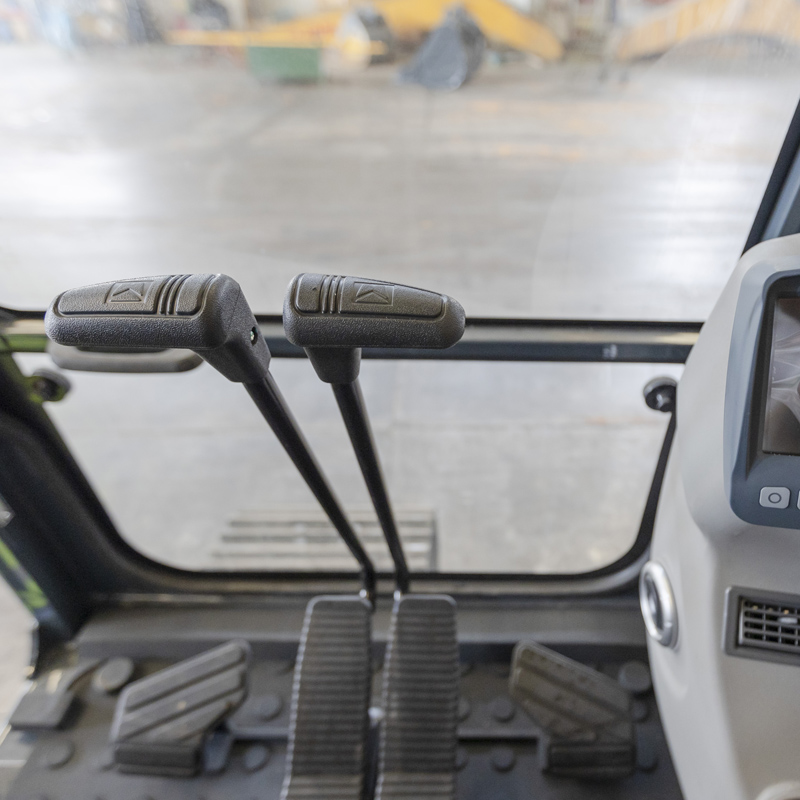

Safety is paramount with the ZG150, featuring a new, safe, and reliable cab design complete with automatic air conditioning for operator comfort in any condition.
Key Specifications:
- Operating Weight: 13890kg
- Power: 86kW/2200rpm
- Rated Bucket Capacity: 0.6m3
Features:
1. Powerful Cummins' new generation high-power EFI engine for strong performance and low fuel consumption.
2. New Inline hydraulic system for smooth operation and precise control.
3. Large-caliber cylinders and optimized hinge point arrangement for enhanced digging force.
4. Automatic supercharging function adjusts digging force based on load.
5. New generation control system optimizes hydraulic absorption power for comprehensive performance.
6. High-resolution, high-brightness 8-inch color anti-glare monitoring instrument with intelligent electronic monitoring system.
7. Safe and reliable cab design with automatic air conditioning for operator comfort.
The ZG150 Crawler Hydraulic Excavator is the ideal choice for contractors and operators seeking performance, reliability, and operator comfort in their excavation operations.
Overall Dimension
| ITEM | UNIT | Technical specifications | |
| GE150H | |||
| Operating weight | Kg | 13890 | |
| Power | KW/rpm | 86/2200 | |
| Rated bucket capacity | m3 | 0.6 | |
| Length | A | mm | 7762 |
| Width(500mm track) | B | mm | 2510 |
| Height | C | mm | 2983 |
| Turntable width | D | mm | 2510 |
| Height of cabin | E | mm | 2825 |
| Ground clearance of counterweight | F | mm | 915 |
| Engine cover height | G | mm | 2243 |
| Min. ground clearance | H | mm | 416 |
| Tail length | I | mm | 2306 |
| Turning radius of turntable | I' | mm | 2387 |
| Wheel base of track shoe | J | mm | 3010 |
| Length of chassis | K | mm | 3751 |
| Width of chassis | L | mm | 2490 |
| Track shoe gauge | M | mm | 1990 |
| Standard track width | N | mm | 500 |
| Max. traction | KN | 122 | |
| Traveling speed (H/L) | Km/hr | 5.9/3.4 | |
| Swing speed | rpm | 13 | |
| Gradeability | Degree(%) | 35(70%) | |
| Ground pressure | Kgf/cm2 | 0.423 | |
Working range
| ITEM | 4.6m Arm,2.491m Stick,0.6m³Bucket | |
| GE150H | ||
| Maximum digging radius | A | 8335 mm |
| Ground maximum digging radius | A' | 8203 mm |
| Maximum digging depth | B | 5491 mm |
| Ground maximum digging depth | B' | 5288 mm |
| Maximum vertical digging depth | C | 4826 mm |
| Maximum dumping height | E | 6174 mm |
| Min. front turning radius | F | 2605 mm |
| Bucket digging force | ISO | 100 KN |
| Stick digging force | ISO | 68 KN |

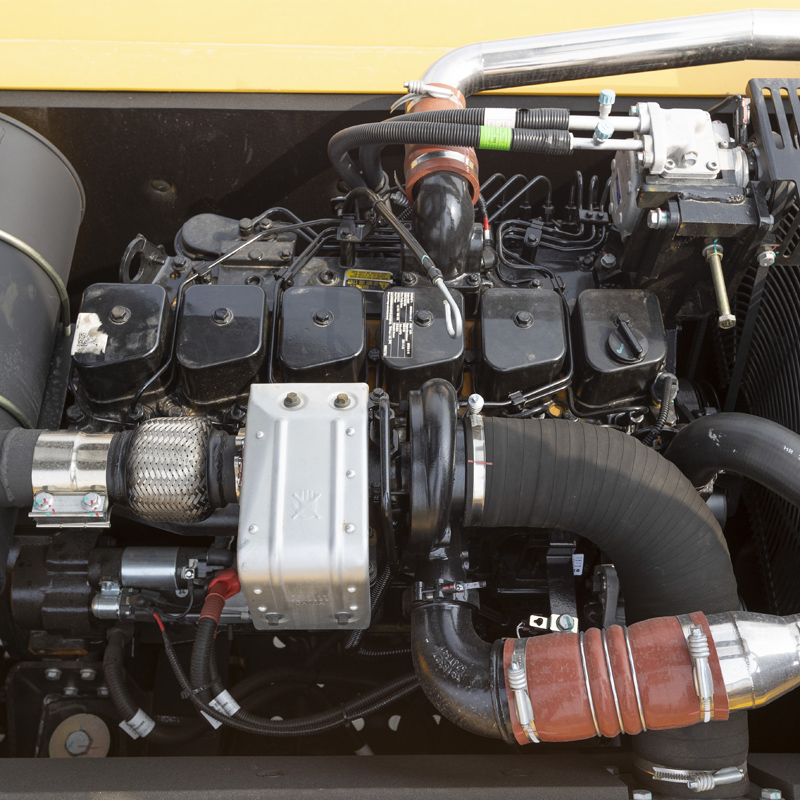

Engine specifications
| Specifications | Model | CumminsQSF3.8-C115 | |
| Type | Four-cylinder in-line, four-stroke turbocharger | ||
| Emission | National Ⅲ | ||
| Cooling method | 水冷 Water cooled | ||
| Bore diameter × stroke | mm | 102×115 | |
| Displacement | L | 3.76 | |
| Rated power | 86KW/2220RPM | ||
| (1400r/min) Max. torque | N.m | 470 | |
| Engine oil capacity | L | 17-26 | |
| Rated diesel consumption | g/KW.h | 249 | |
| Starter | 24V/4.6KW | ||
| Generator | 28V/70A |
