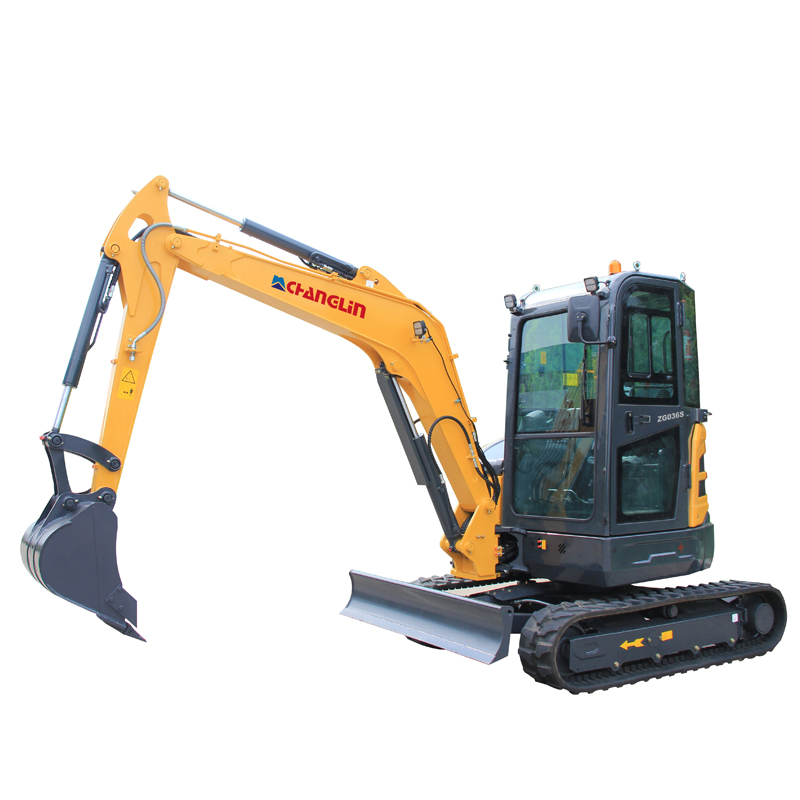

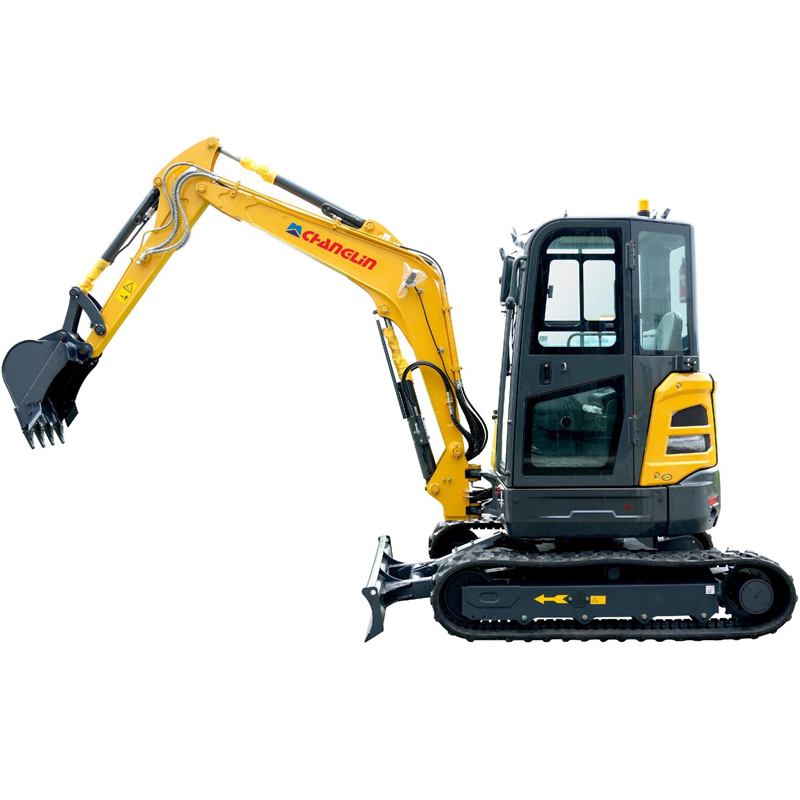

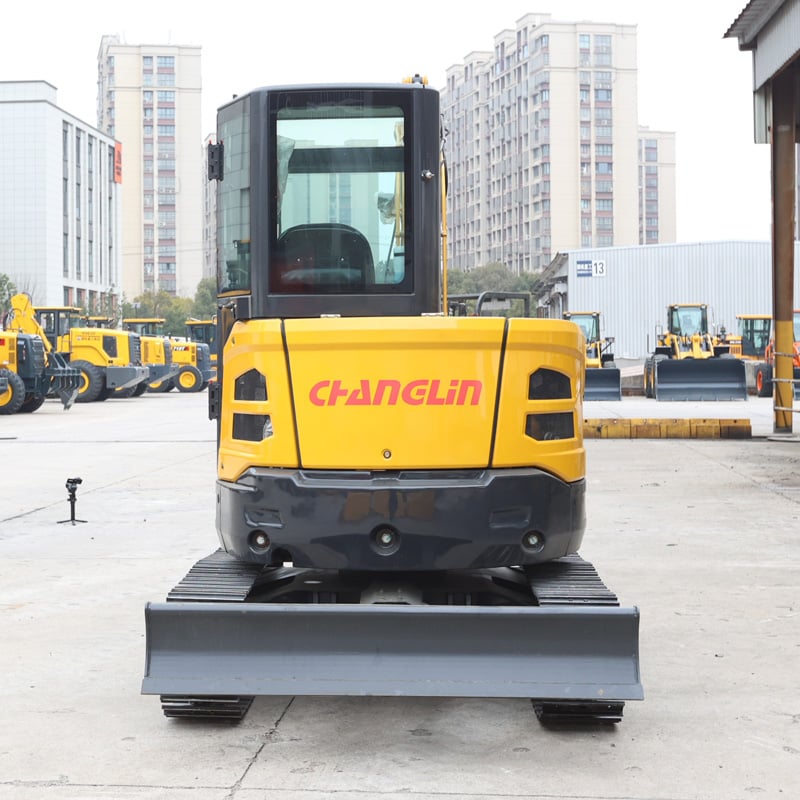

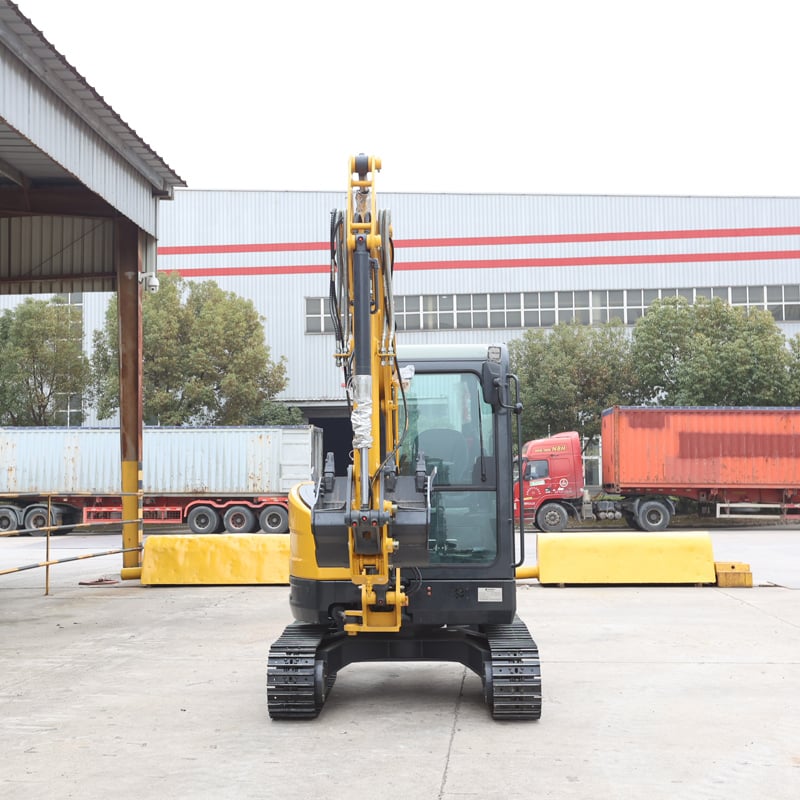

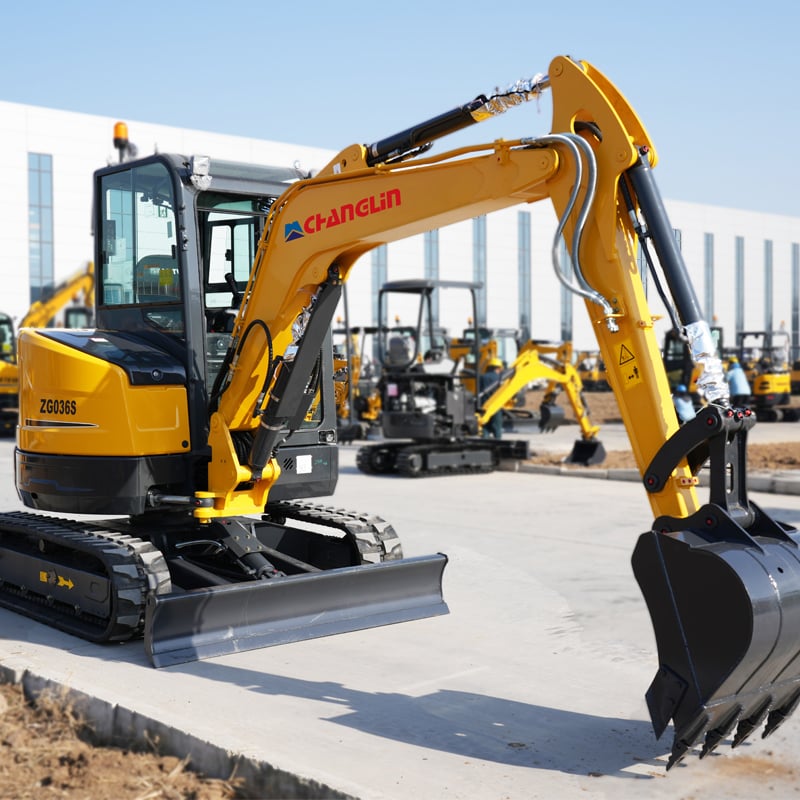

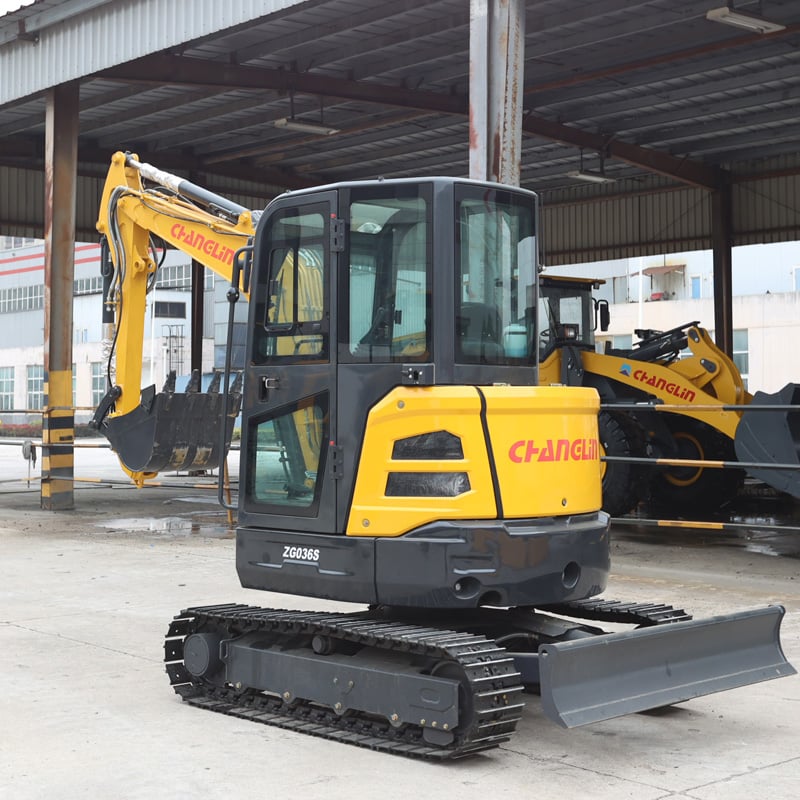

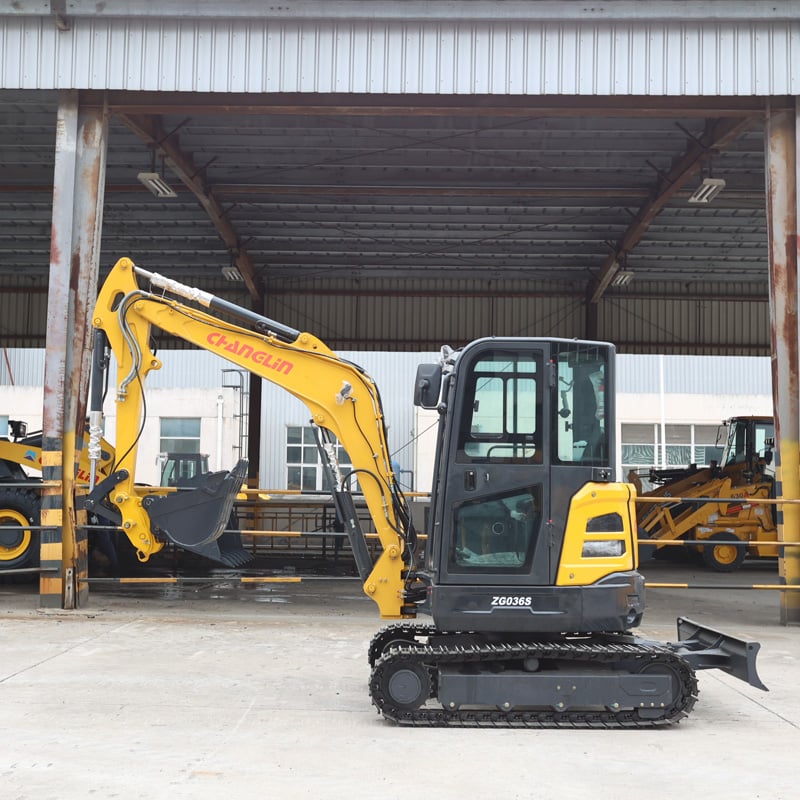

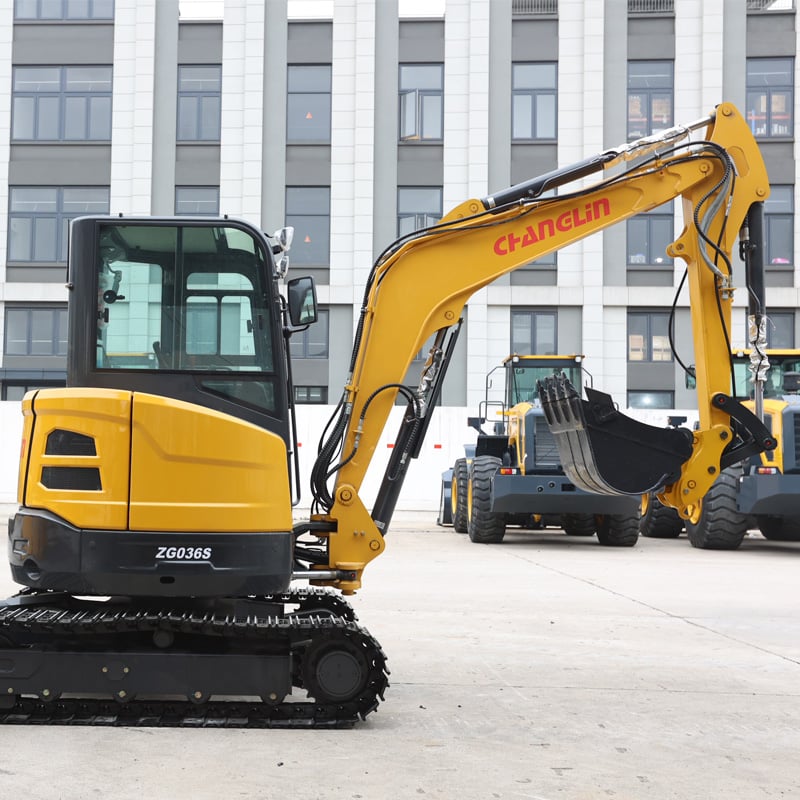

Introducing the ZG035S mini hydraulic excavator, a high-quality and versatile machine perfect for a wide range of tasks. With a 3.5-ton capacity, this compact digger is designed to excel in small spaces while delivering powerful performance.
1. Compact and Versatile: With its compact size and full functionality, the ZG035S is perfect for operating in narrow spaces, leaving no dead angles during operation.

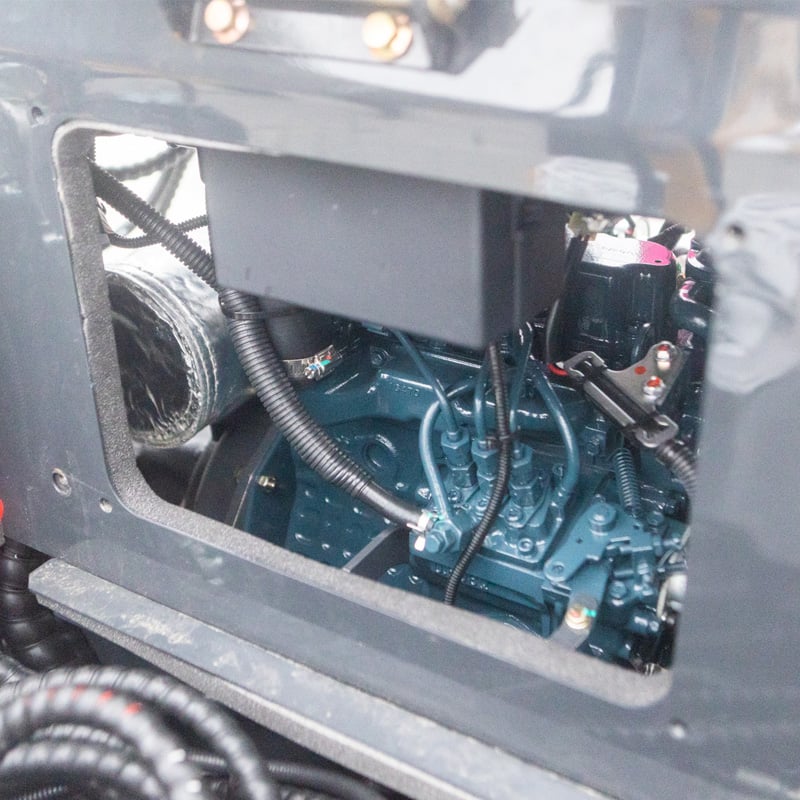

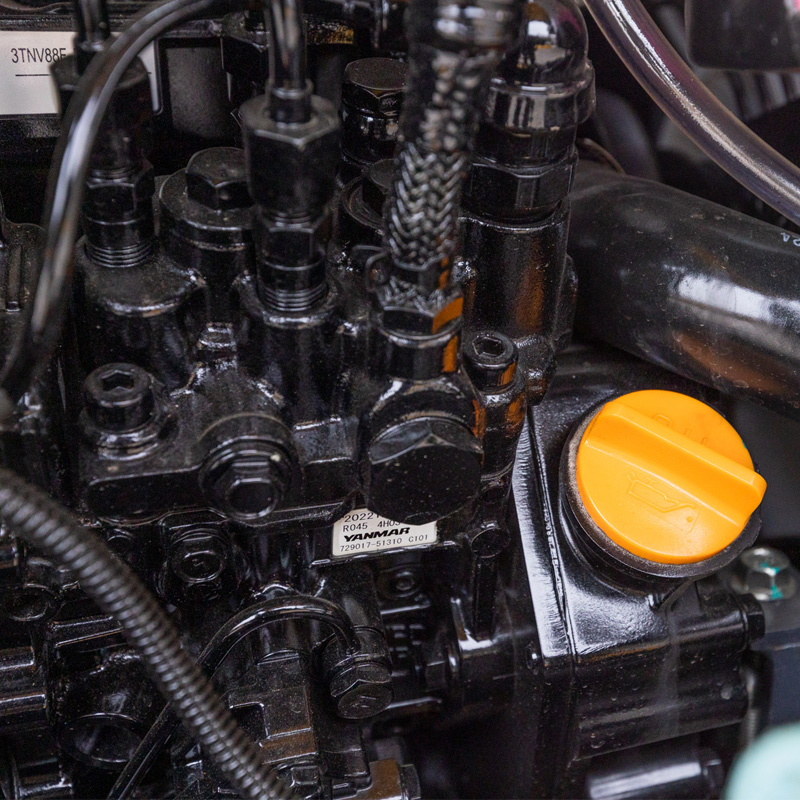

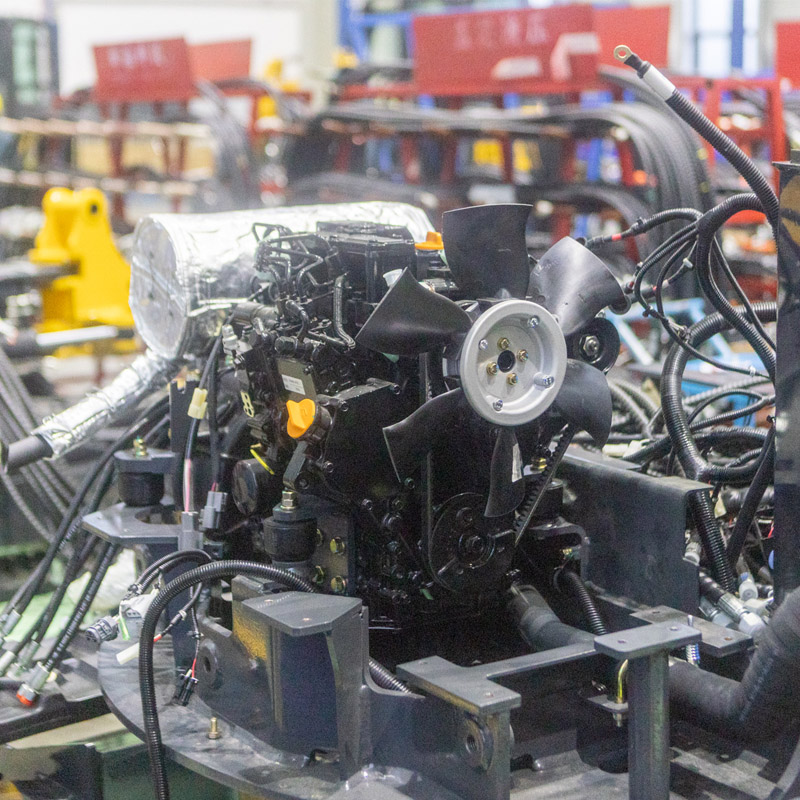

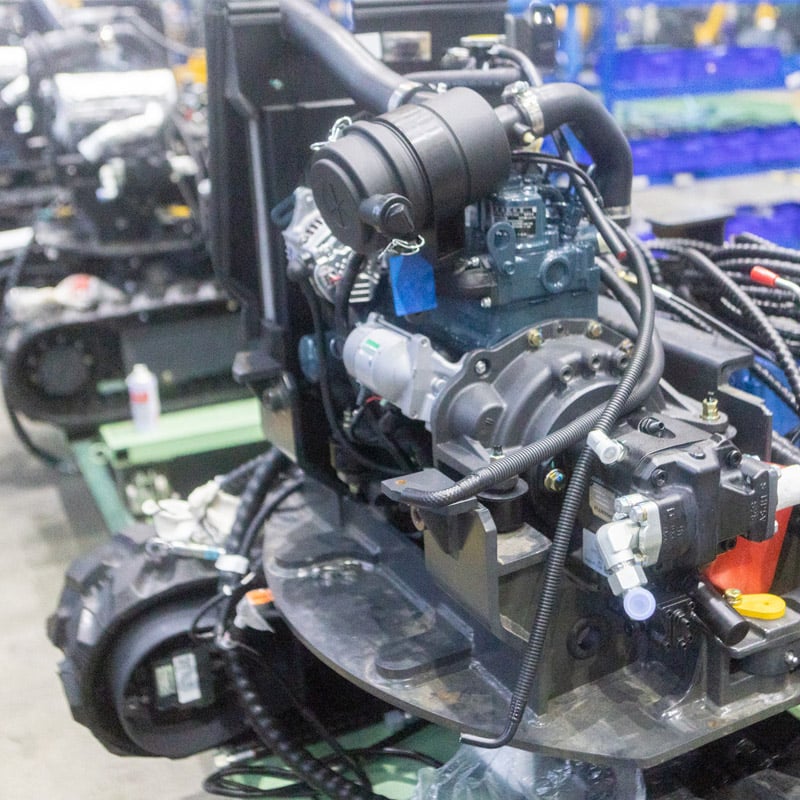

2. High Power Configuration:Equipped with a high-power and energy-saving Yangma engine, meeting emissions standards such as China's National IV, Europe's Stage V, and EPA4. The load-sensitive hydraulic control system ensures high efficiency and quick response.

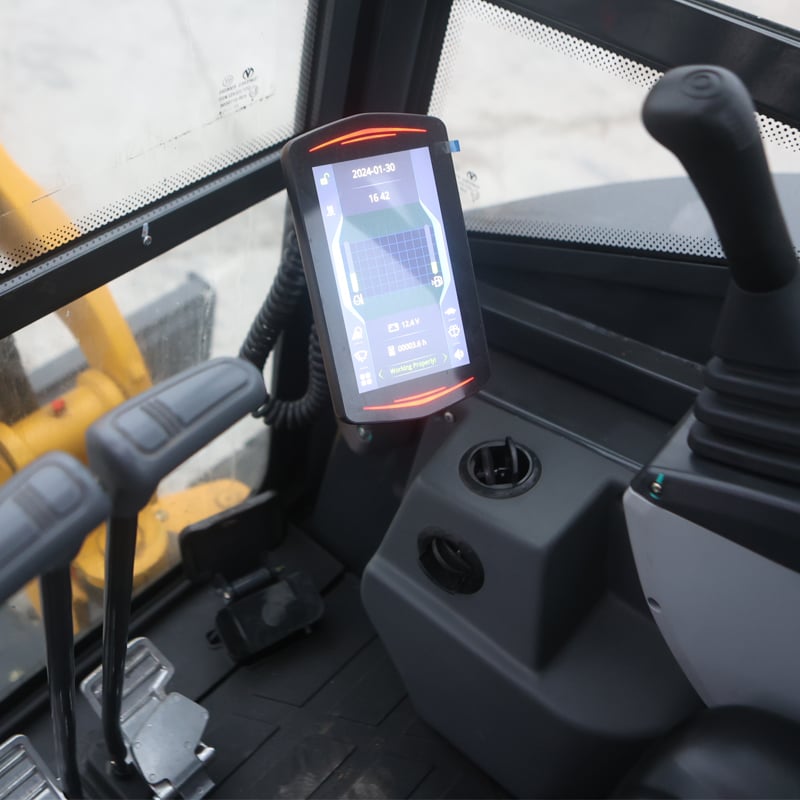

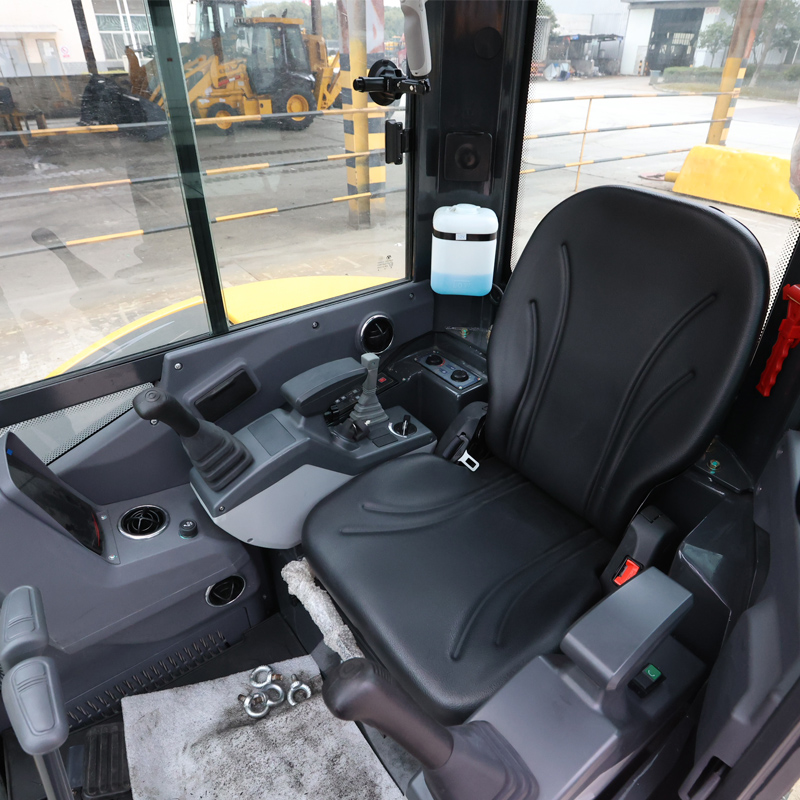

3. User-Friendly Design:The ZG035S comes standard with a comfortable cab equipped with air conditioning, Bluetooth, USB interface, radio, high-quality speakers, a multifunctional large-screen color display, and touchscreen controls for convenience and ease of use.

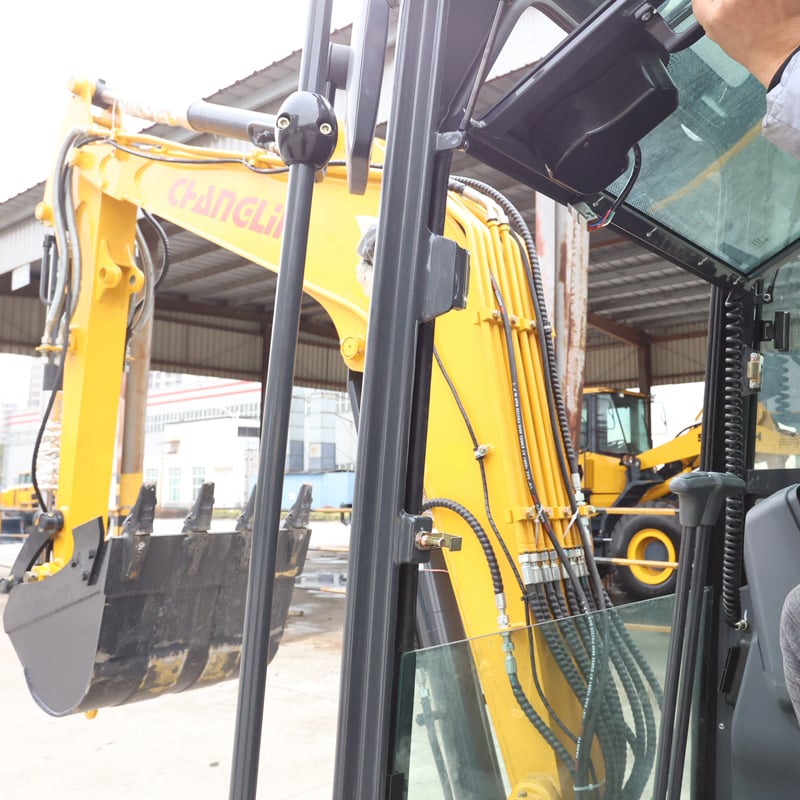

4. Versatile Attachments: Standard with multiple hydraulic lines, the ZG035S can be equipped with various attachments such as hydraulic breakers, shears, and augers, providing comprehensive functionality to cover a wide range of work modes.

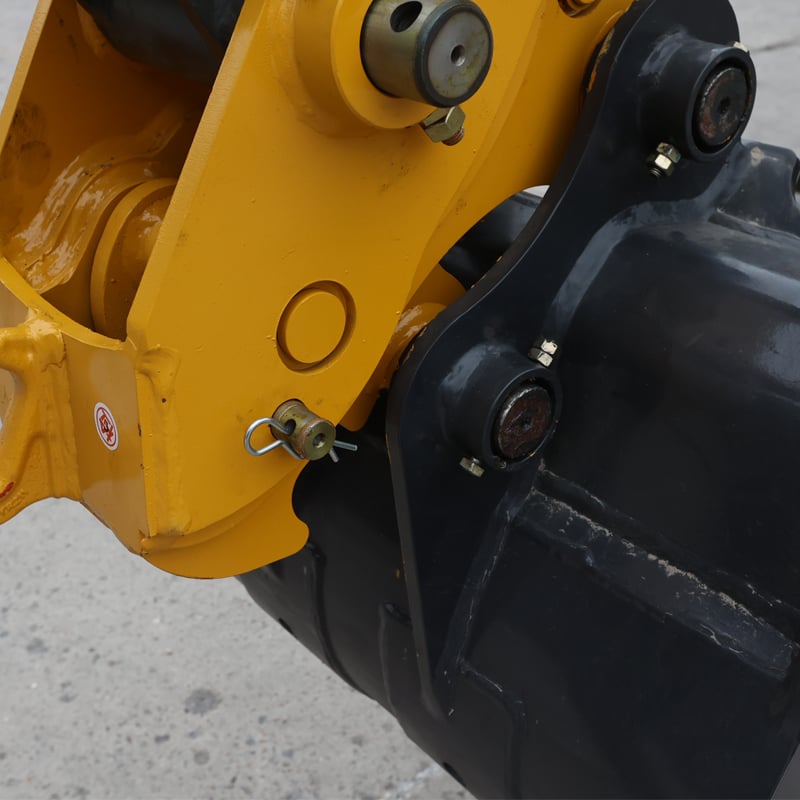

5. Modern Styling and Construction: The ZG035S features a robust design with high-strength cast steel components for durability. Its sleek and compact appearance, coupled with a rational color scheme, reflects a modern and sophisticated aesthetic.
With its combination of high performance, versatility, user-friendly design, and modern styling, the ZG035S mini hydraulic excavator is an excellent choice for any construction or excavation project.

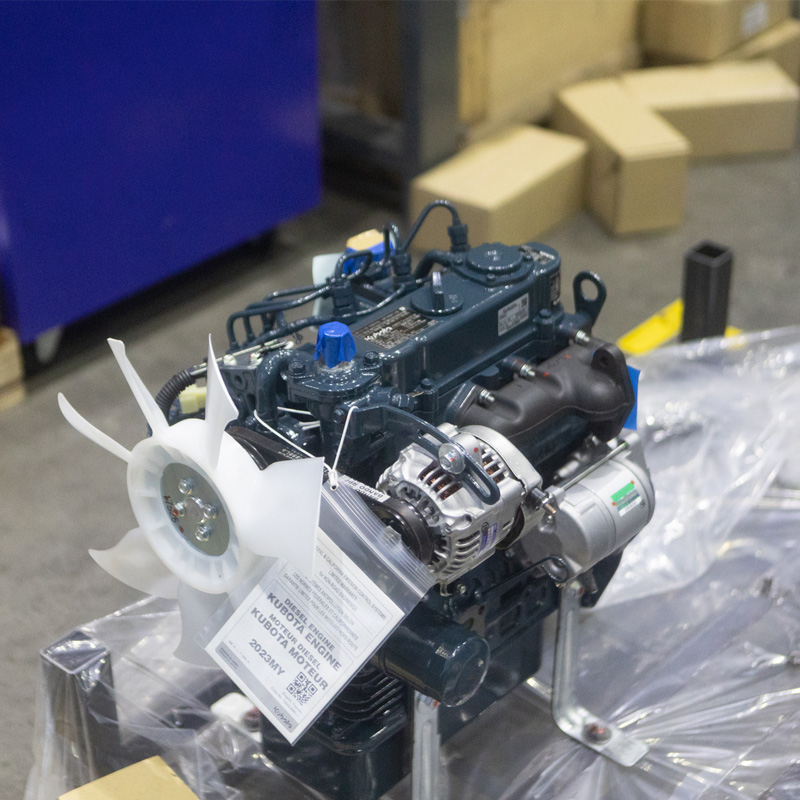

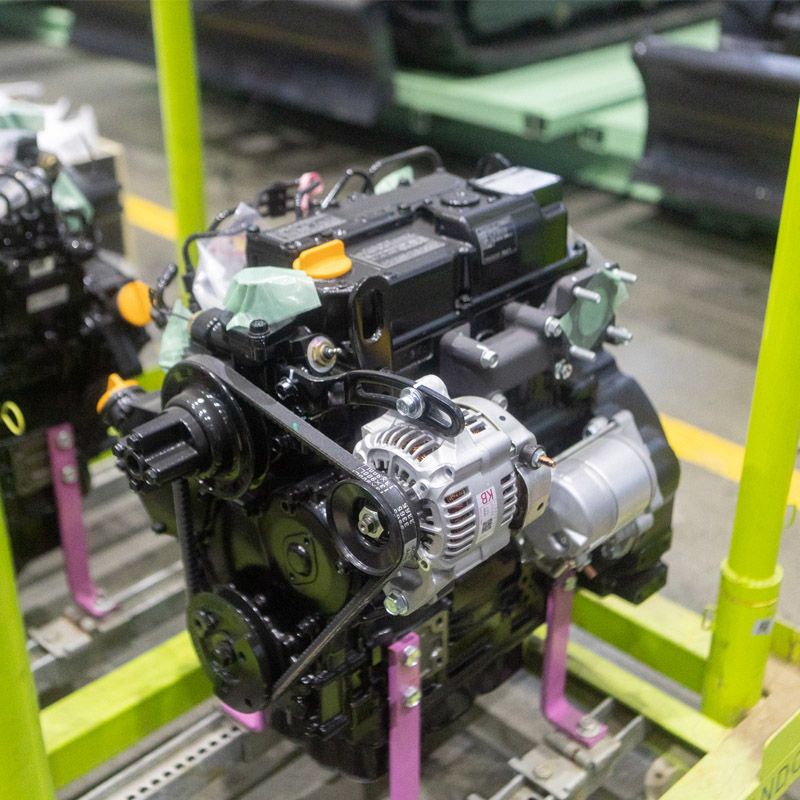

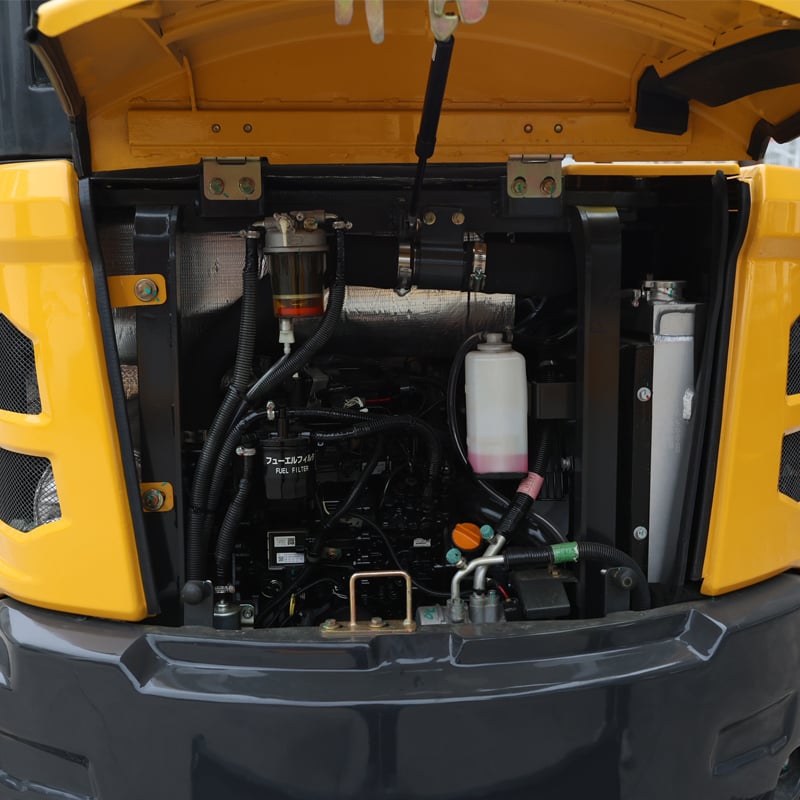

ENGINE | ||
Model | 3TNV80F | |
Type | 3 cylinders,direct injection | |
No.of cylinder | 3 | |
Emission | EPA Tier 4 Final/Europe Stage | V |
Displacement | 1.267L | |
Power output | 14.6kW/2400rpm | |

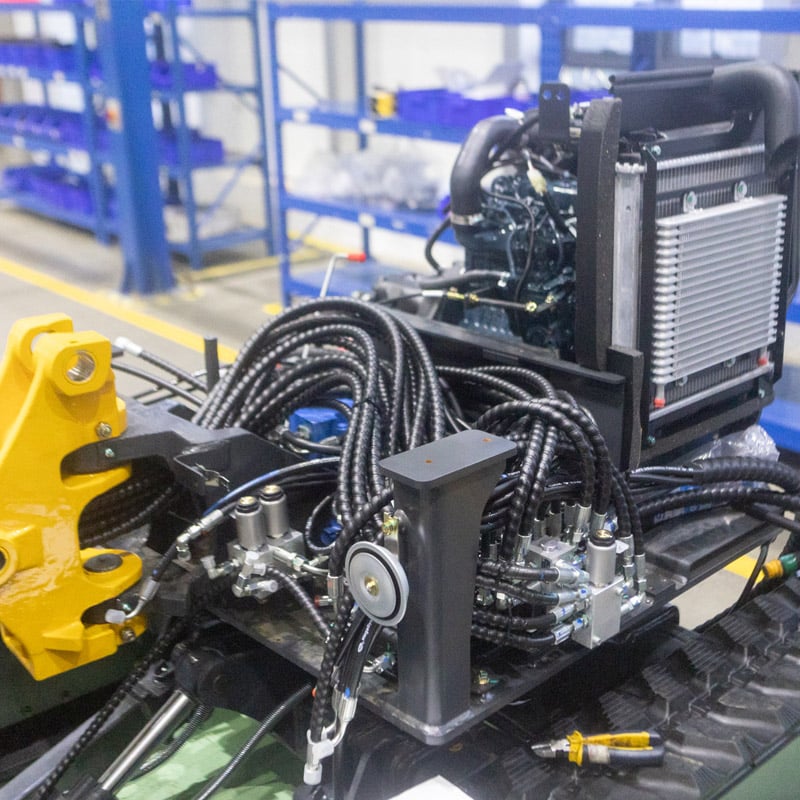

HYDRAULICSYSTEM | ||
Type | Variable plunger pump | |
Operating flow | 86.4L/min | |
Operating pressure | 24.5MPa | |
DIGGING FORCE(IS06015) | ||
Bucket digging force | 24kN | |
Armdigging force | 14.8kN | |

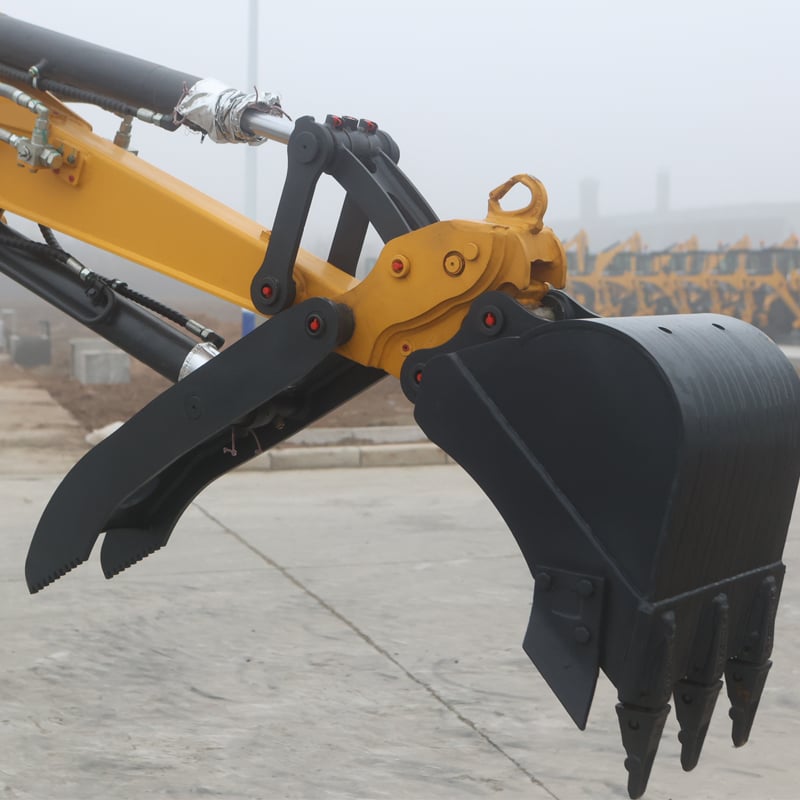

BUCKET | ||
Type | Backhoe bucket | |
Bucket capacity | 0.065m³ | |
Bucket width | 460mm | |

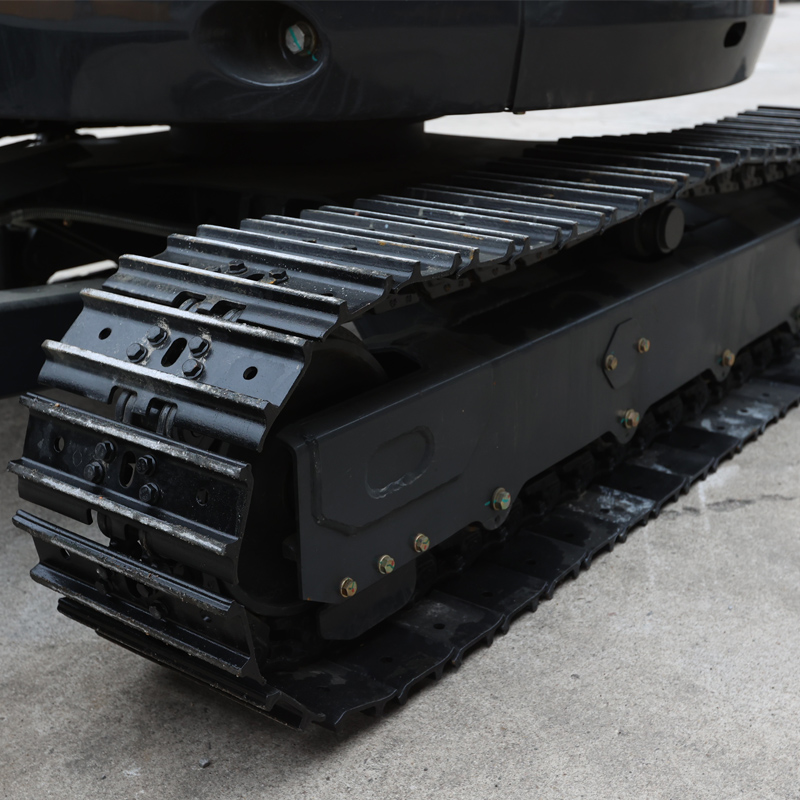

TRAVEL SYSTEM | ||
Type | Plunger moto | |
Track roller | 2×3 | |
Track shoes | 2×42 | |
Travel pressure | 24.5MPa | |
DIMENSIONS | mm | |
A | Qverall length | 4200 |
B | 0verall height(top of canopy) | 2480 |
C | 0verall width | 1550 |
D | Tail swing radius | 775 |
E | Undercarriage Length | 2020 |
F | Upperbody width (zero tail) | 1400 |
WORKING RANGE | mm | |
A | Max.digging height | 4390 |
B | Max.dumping height | 3060 |
C | Max.digging depth | 2800 |
D | Max.vertical digging depth | 2310 |
