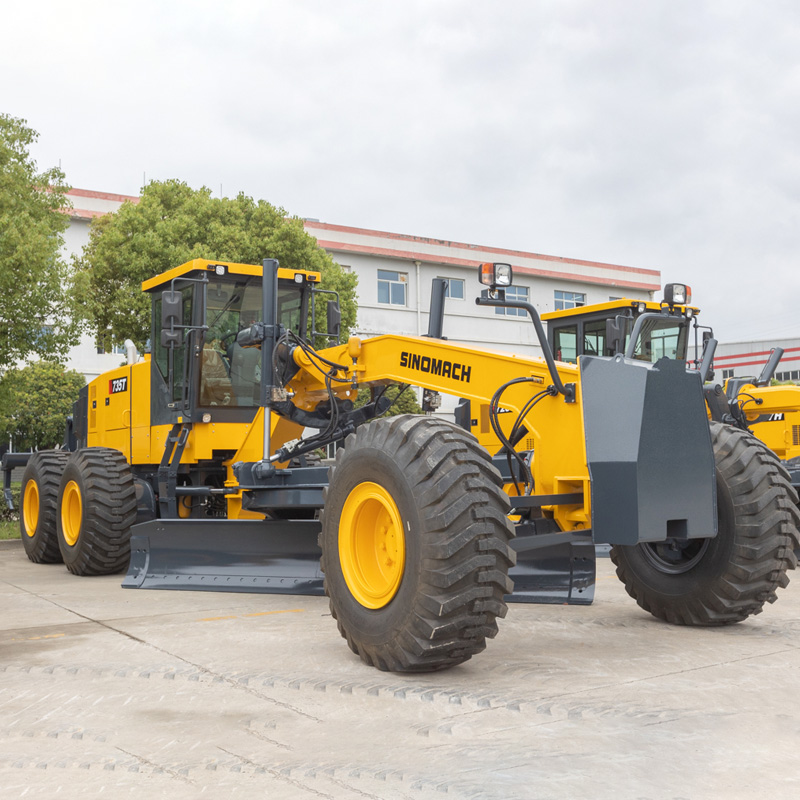

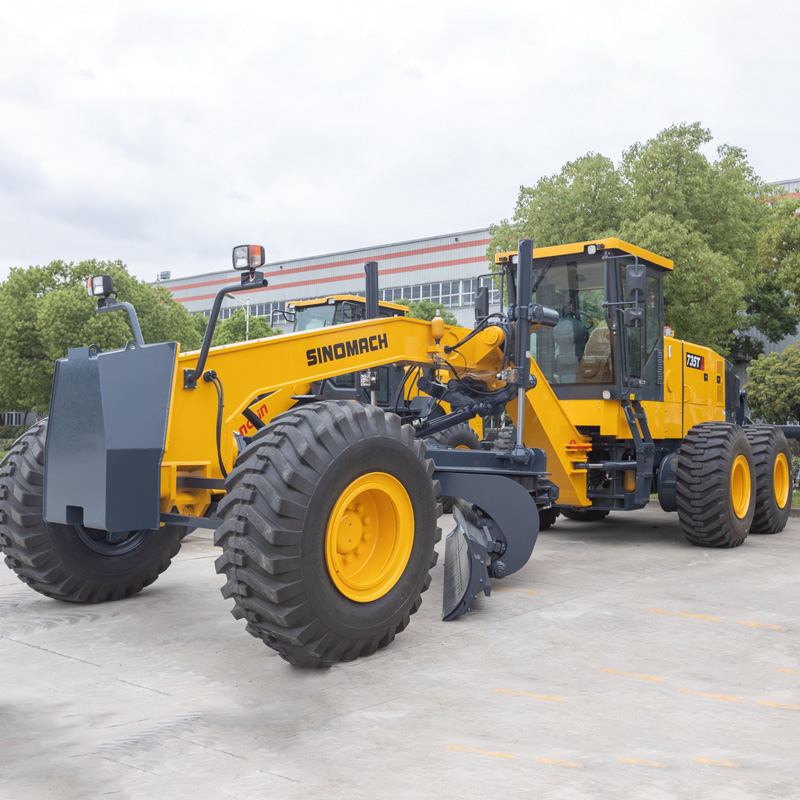

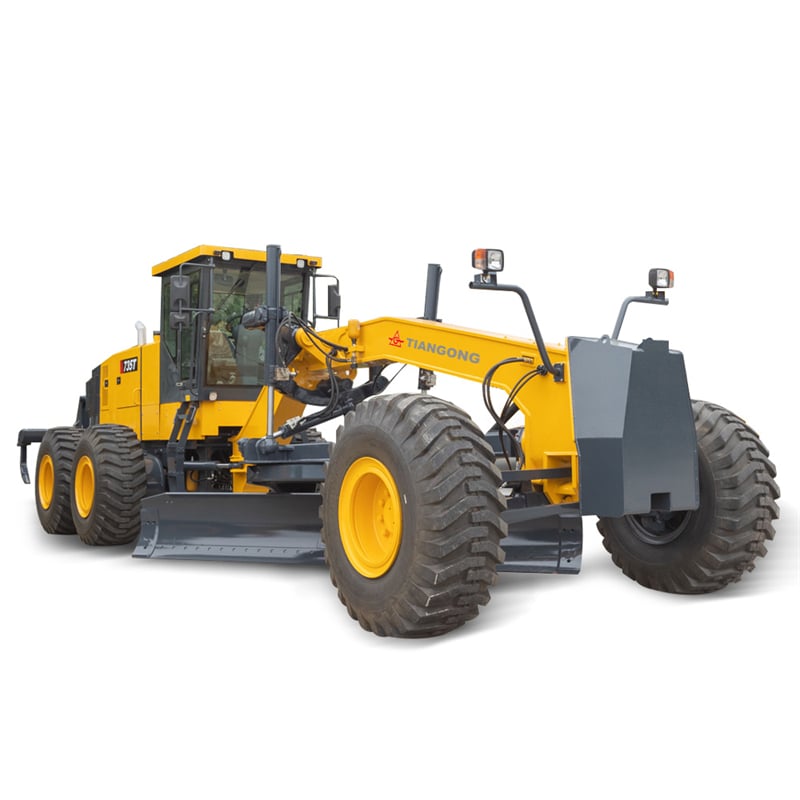

The 735T Motor Grader is a formidable machine designed for heavy-duty tasks. With an impressive operating weight of 28,000kg and a rated output of 268kW, it offers exceptional power and performance.

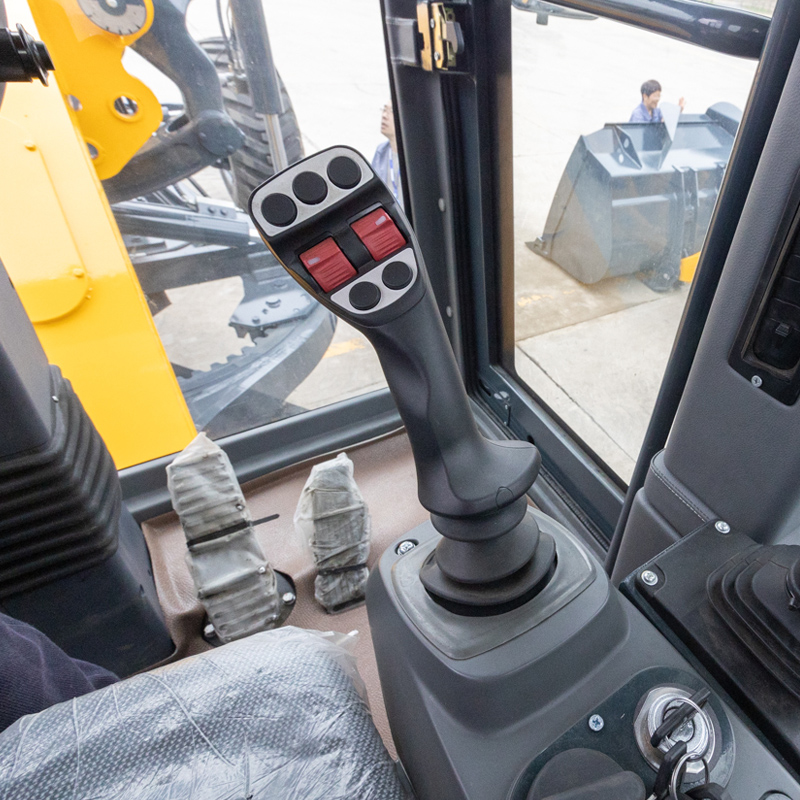

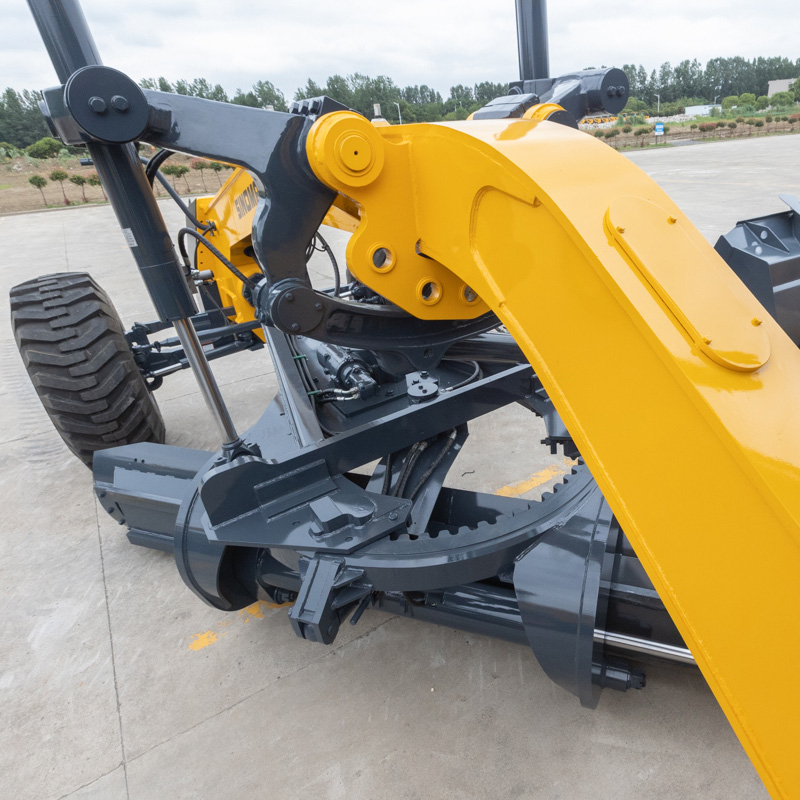

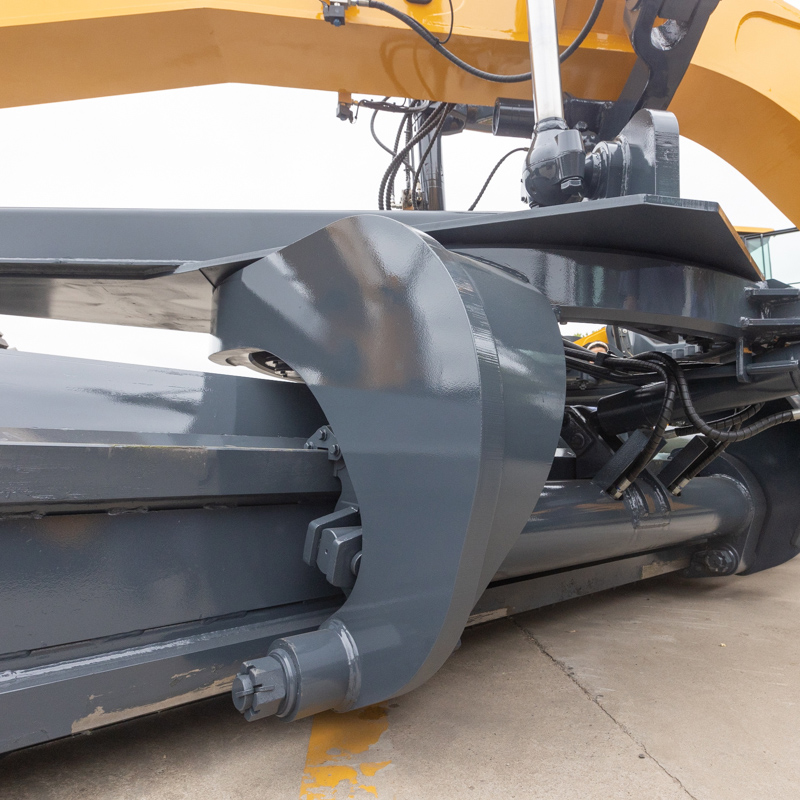

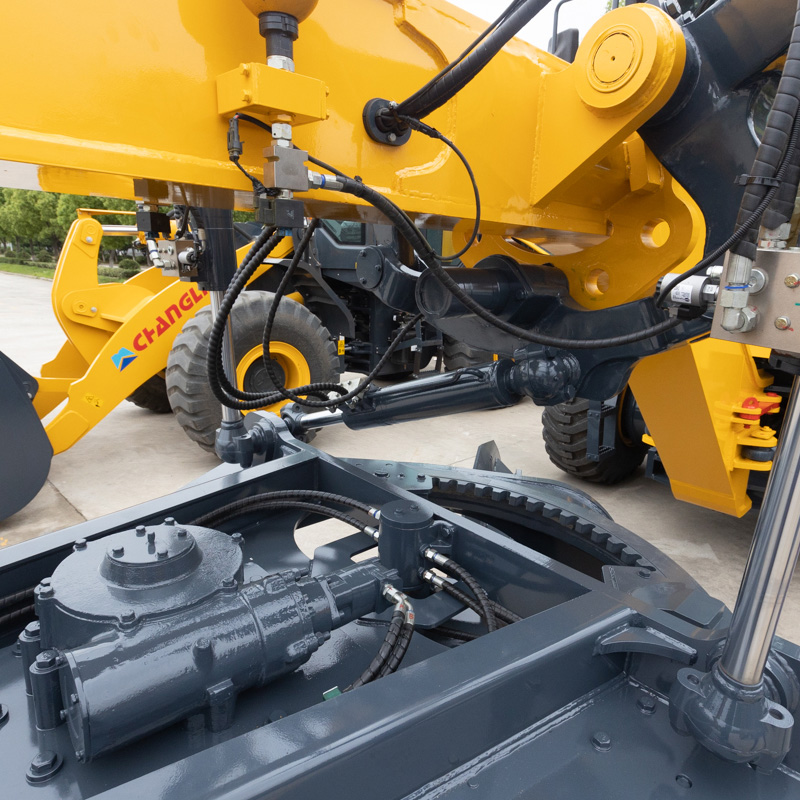

Powered by a reliable Cummins QSM11-C360 engine, it ensures reliability and efficiency in operation. Its single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse shifts makes operation effortless. Enhanced stability and traction are guaranteed with a hydraulic lock and auto lock/unlock NO-SPIN differential. The ideal axle load allocation provides excellent stability, especially when cutting hard surfaces. Its efficient hydraulic system enables every part to be fully utilized, while the box-typed frame and advanced transmission enable it to tackle heavy-duty work with ease. With a flexible blade suspension system and articulated frame, it offers a wide working range, making it suitable for various applications.
| Overall Dimension | |||||
| 1 | Length | 12500mm | |||
| 2 | Width | 3300mm | |||
| 3 | Height(To the top of the cab) | 3700mm | |||
| 4 | Wheel base | 7760mm | |||
| 5 | Tread | 2650mm | |||
| 6 | Min. turning radius | 9000mm | |||
| Main Technical Specification | |||||
| 1 | Operating weight | 28000kg | |||
| 2 | Blade length | 4920mm | |||
| 3 | Blade height | 695mm | |||
| 4 | Blade width | 25mm | |||
| 5 | Max. lift above ground | 515mm | |||
| 6 | Max. grading depth | 735mm | |||
| 7 | Max. shoulder reach outside rear tire | 2260mm(L)/1950mm(R) | |||
| 8 | Traveling speed(Km/h),6 forward and 3 reverse | ||||
| (1) forward | 5.4/8.2/12.7/19.3/27.5/41 km/h | ||||
| (2) reverse | 5.4/12.7/27.5 km/h | ||||
| Diesel engine | |||||
| 1 | Model | Cummins QSM11-C360 | |||
| 2 | Type | EFI,turbocharger,air-to-aircooling,temperature control independent cooling system | |||
| 3 | Rated output | 268(kW) | |||
| 4 | Rated speed | 2100(r/min) | |||
| 5 | Max. Torque | 1830(N.m)/(1400r/min) | |||
| Transmission case | |||||
| 1 | Model | 6WG310 (ZF technology) | |||
| 2 | Type | electro-hydraulic controlled power shift single handle operation,automatic transmission | |||
| 3 | Gear shift position | 6 Forward and 3 reverse gears | |||
| Axle and Tire | |||||
| 1 | Max.drawing force | 144kN | |||
| 2 | Size of tire | 18.00-25-28PR | |||
| Working Device Hydraulic System | |||||
| 1 | Model of oil pump | 丹佛斯 FRR074BLS2520-3S1N2A1 | |||
| 2 | System pressure | 25MPa | |||
| 3 | Model of distribution valve | Walvoil DRFC22132 DPX100/5Walvoil DRFC22133 DPX100/5 | |||
| 4 | Model of oil motor | Eaton 604-1113 | |||
| Steering System | |||||
| 1 | Type | ForeTiredeflexion | |||
| 2 | Model of steering gear | Eaton Xcel45-320 | |||
| 3 | System pressure | 16MPa | |||
| Brake System | |||||
| 1 | Type of traveling brake | Full Hydraulic Wet Brakes | |||
| 2 | Model of brake pump | HPT2-35/HPT1-20/9 | |||
| 3 | System pressure | 6.9MPa | |||
| 4 | Type of parking brake | Hydraulically Operated Disc Brake | |||
| Oil Capacity | |||||
| 1 | Fuel(diesel) | 540L | |||
| 2 | Engine lubricating oil | 28L | |||
| 3 | Oil for converter and gear box | 35-40L | |||
| 4 | Oil for hydraulic system | 200L | |||
| 5 | Oil for driving rear axles | 35L | |||
| 6 | Tandem box | 2*60L | |||
