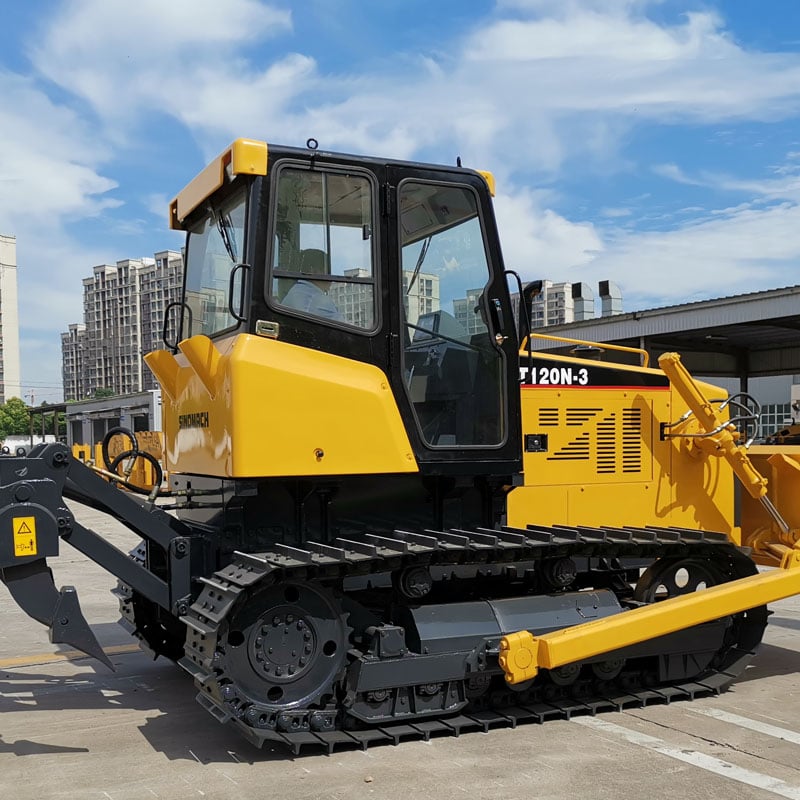

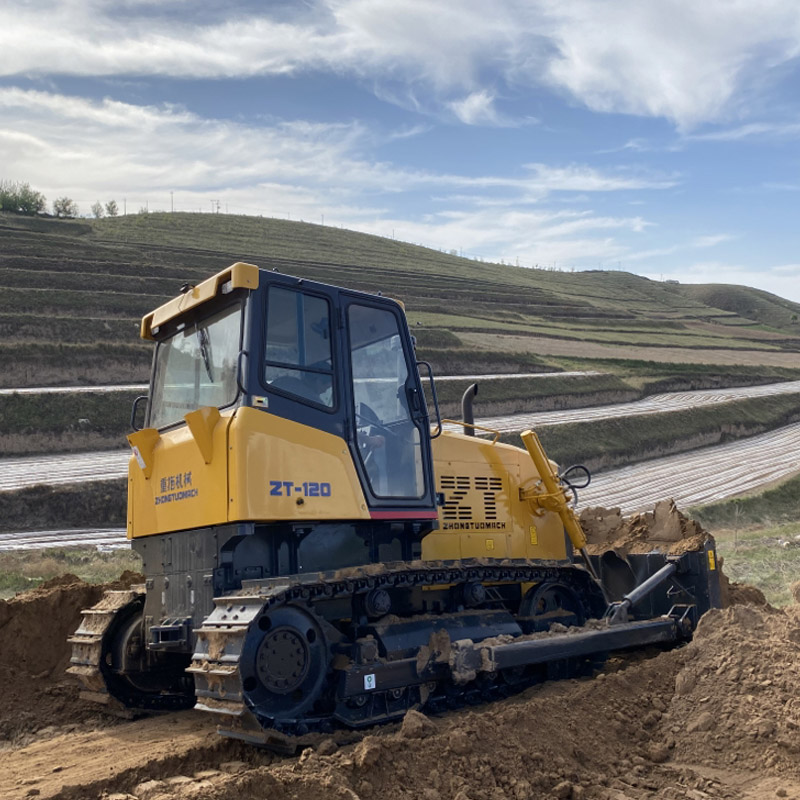

Discover the GTY120, designed with a high-pressure common rail diesel engine from Dongfanghong and British Ricardo, ensuring compliance with stage II emission standards. This 13,000kg beast, with a 93kW output and a 3135mm blade, offers low noise, high torque, and energy efficiency.

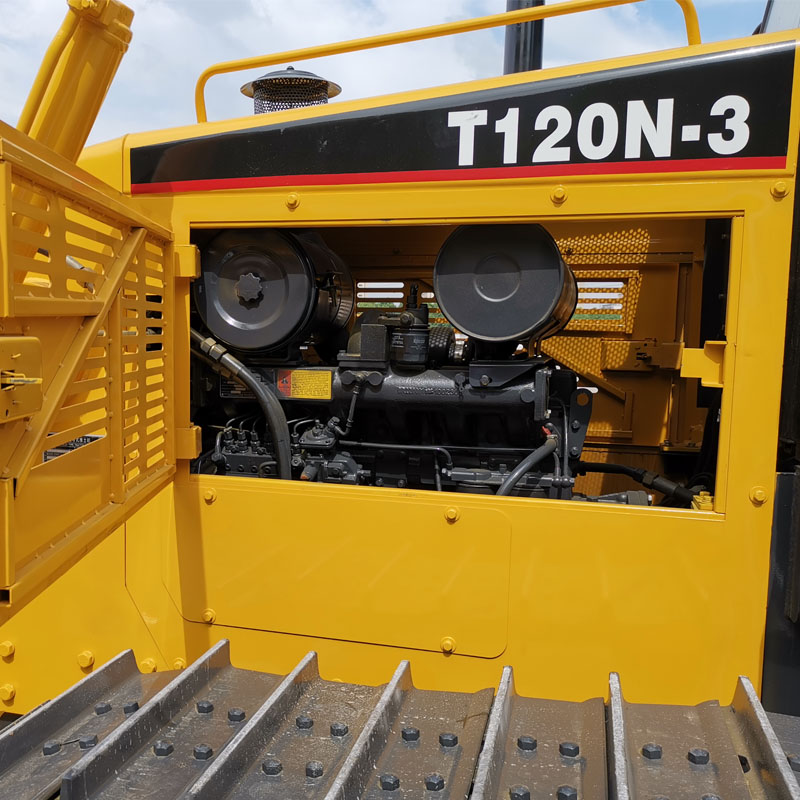

The installed YTO electronic control engine conforms to China-III/EU StageⅢA emission regulation and features stronger power and higher energy-saving and environmental friendliness. The fuel system with three-stage filter guarantees good adaptability to low-quality diesel in Southeast Asian markets.
Transmission is 4F+2R mechanical shift transmission, simple operation, convenient maintenance, reliable use;
Using digital instrument, real-time monitoring of the vehicle working state;
The whole vehicle is equipped with LED headlights to improve the efficiency of night construction;

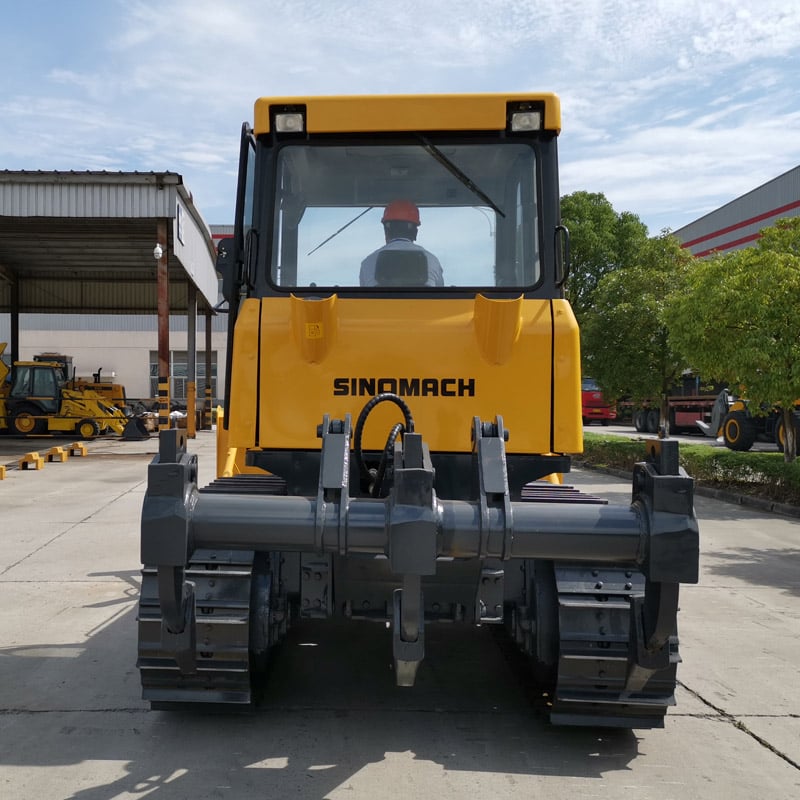

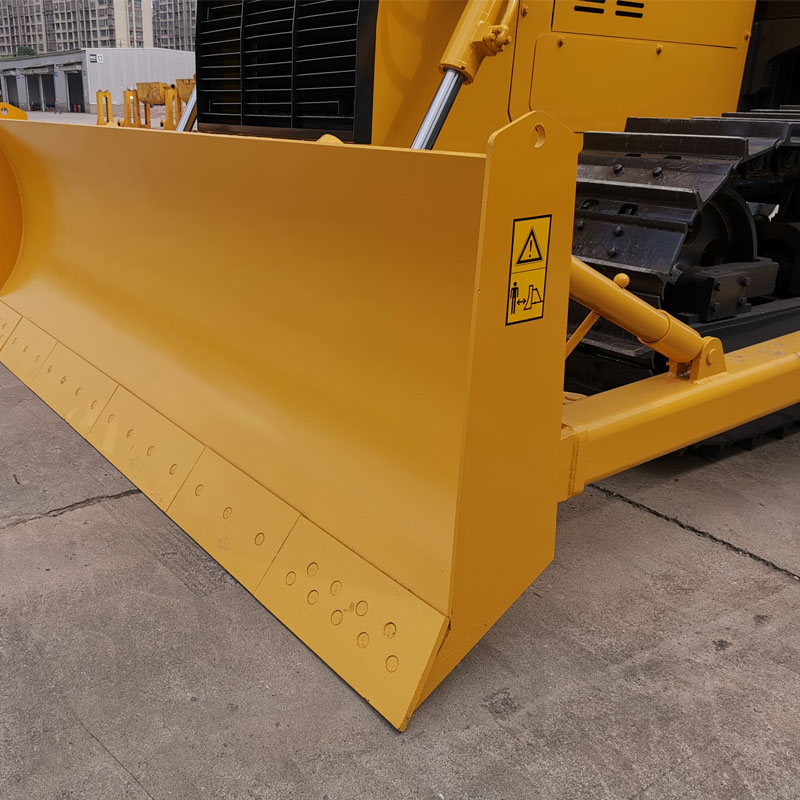

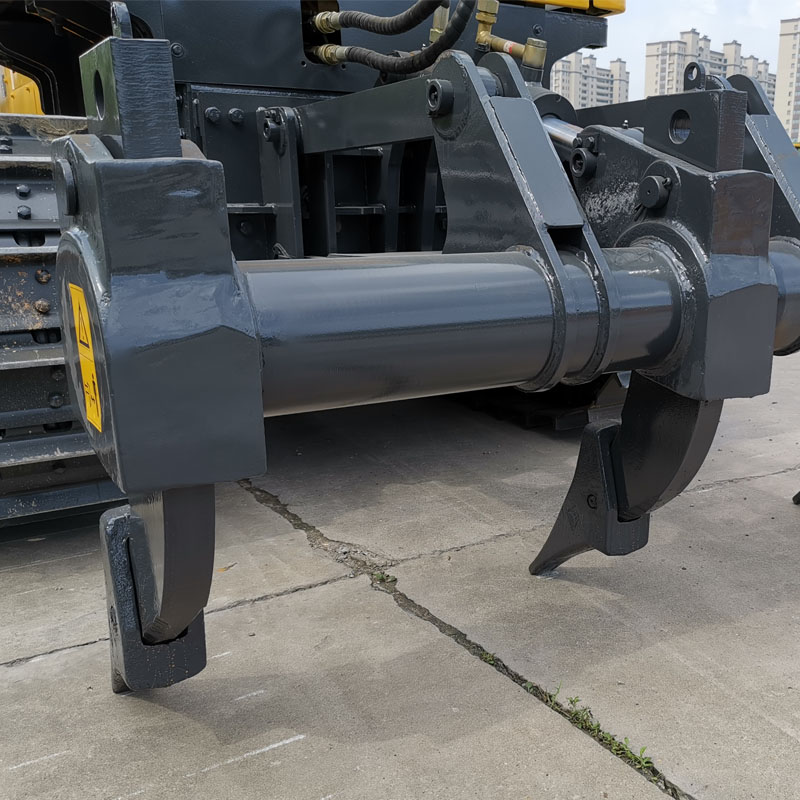

The straight tilting blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability.
| Model | Unit | T120 |
| Total weight | kg | 13000 |
| Max towing force | kN | 115 |
| Engine model | 6A3LR20/0920 | |
| Engine rated power /speed | kw/ r/min | 92/2000 |
| Fuel consumption of the engine | g/kw.h | ≤220 |
| Engine max torque | N.m | 587 |
| Forward travel speed-F4 | km/h | 2.4～10.6 |
| Backward travel speed-R2 | km/h | 3.8～7.0 |
| Track board with | mm | 500 |
| Land pressure | kPa | 51 |
| track-center distance | mm | 1860 |
| Overall dimension(L×W×H) | mm | 5560(with ripper)×3135×3230 |
| Bulldozer shovel(W×H) | mm | 3135×970 |
| Blade max lifting height | mm | 894 |
| Blade max digging depth | mm | 400 |

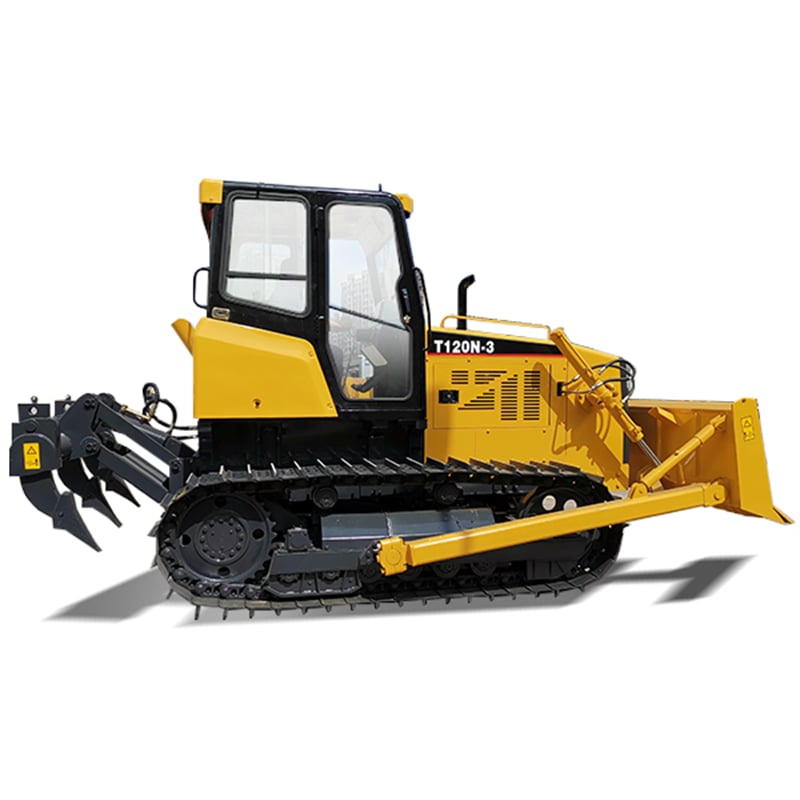

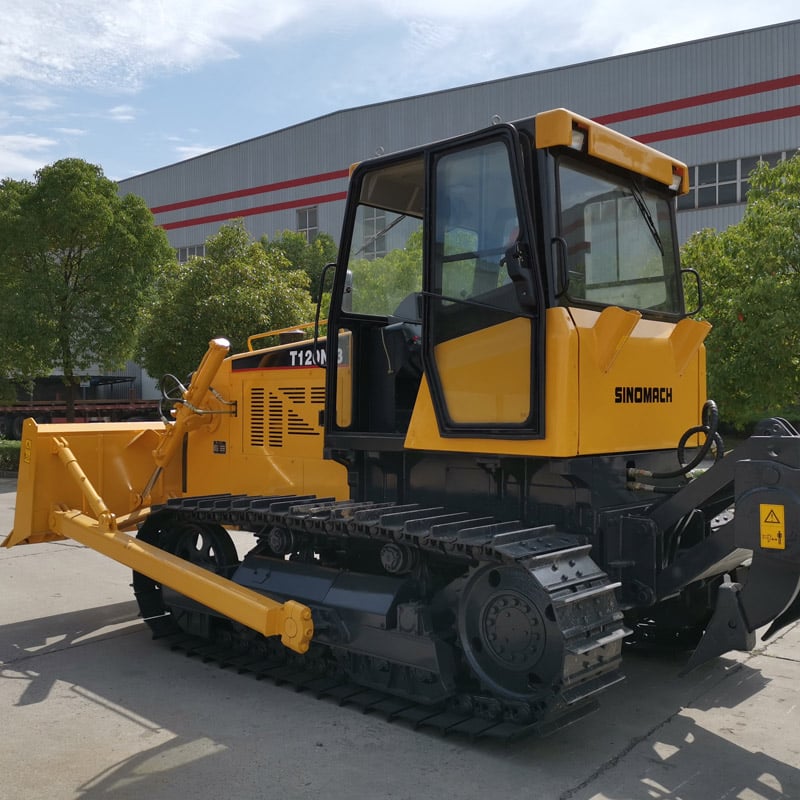

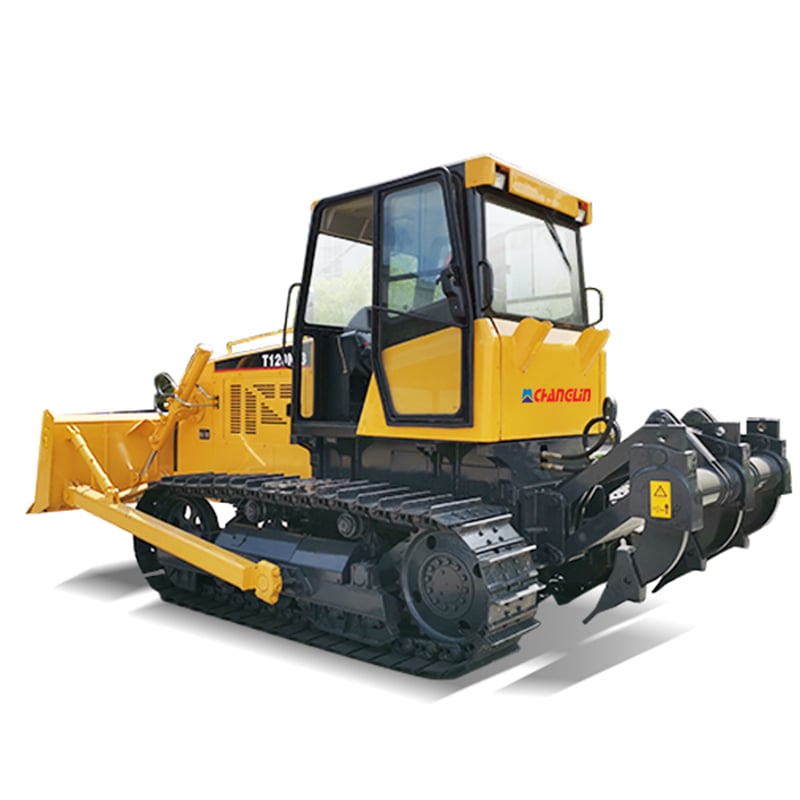

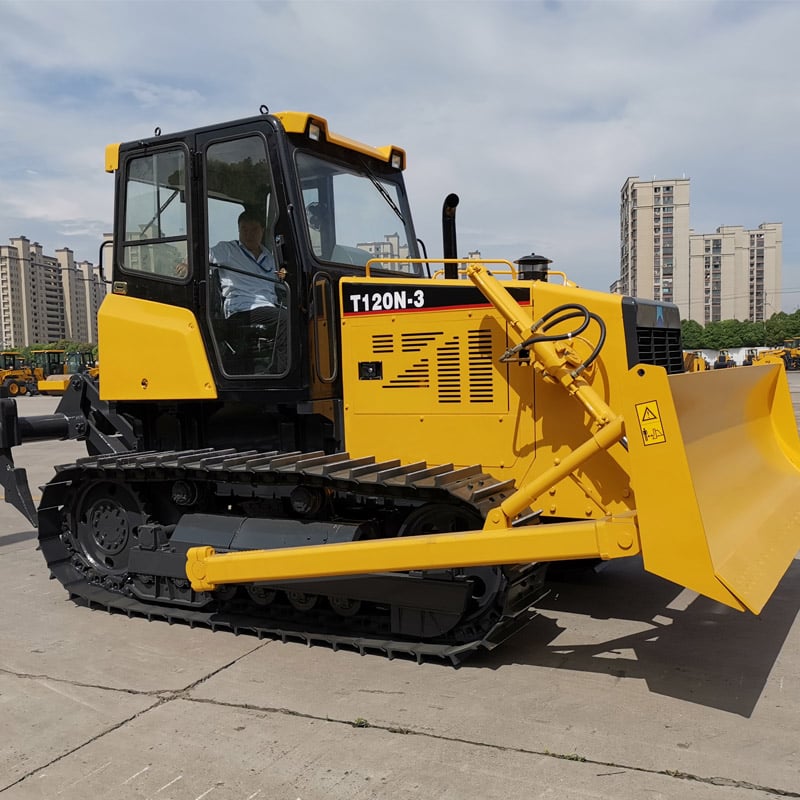

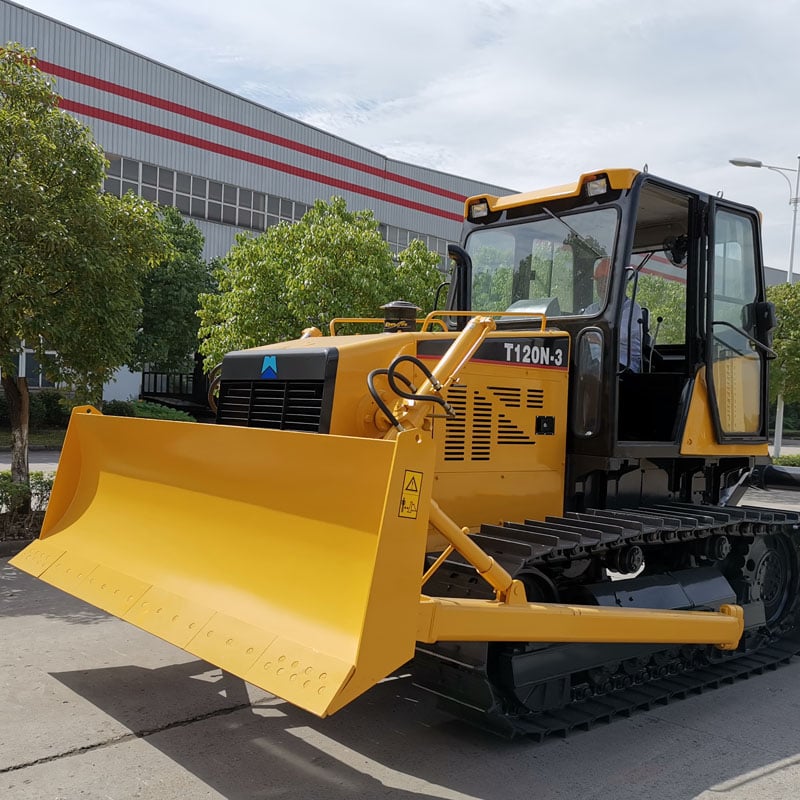

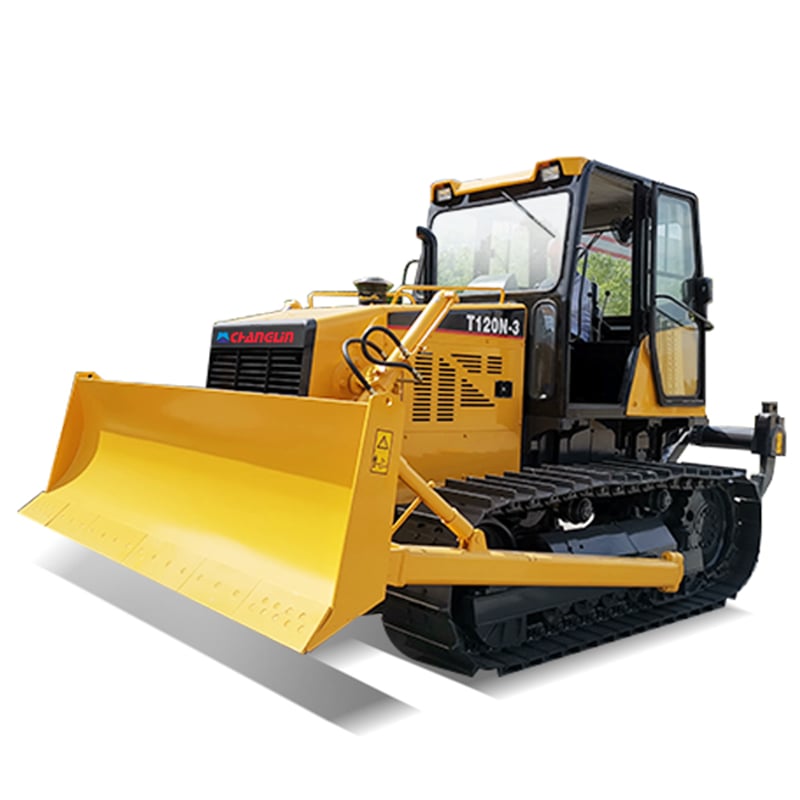

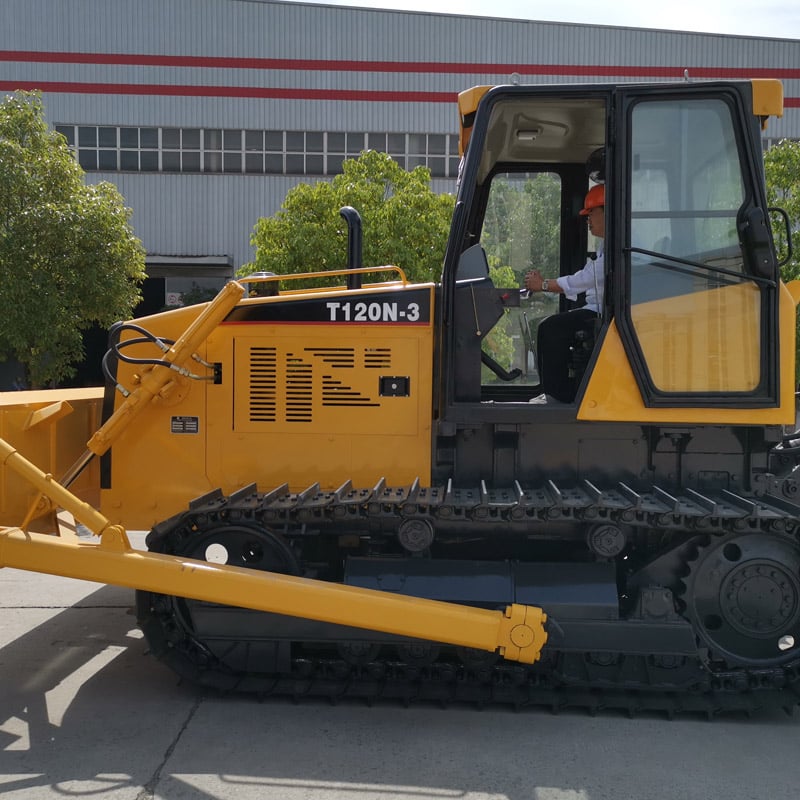

T120 mechanical transmission bulldozer has the features of high technology, advanced design, strong power and high efficiency, etc. It can adapt to more harsh working environment and is convenient for maintenance and repair.

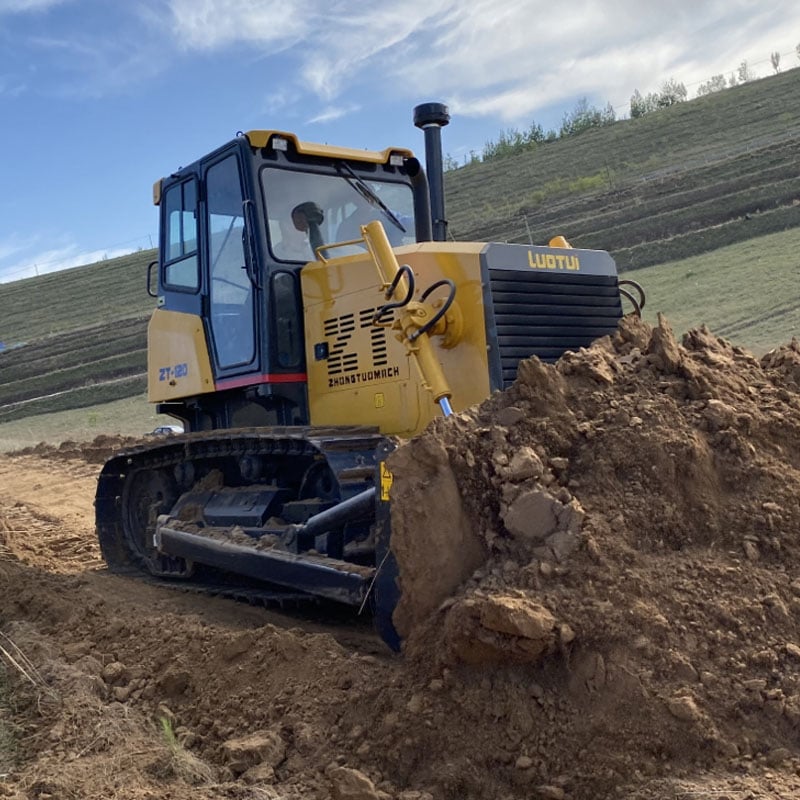

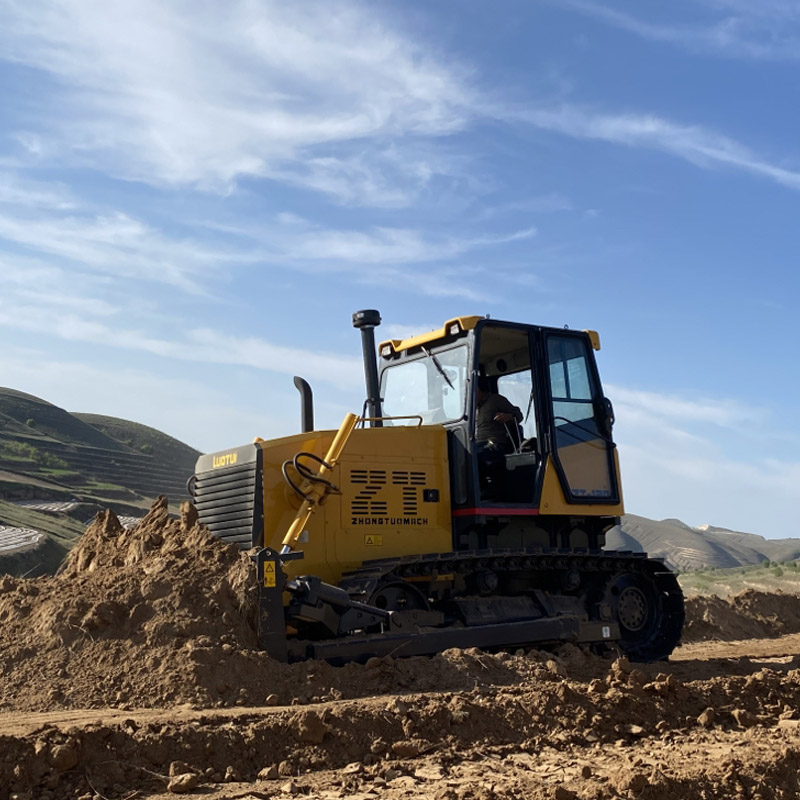

It is mainly applied to the push, excavation, backfilling earthwork and other bulk materials operations of roads, railways, mines, airports, etc. It is an indispensable mechanical equipment for national defense engineering, mine construction, urban and rural road construction and water conservancy construction.
