Safety products, fully meet the national standard safety requirements; Remote control operation, man-machine separation, effectively ensure the safety of the machine and the machine.

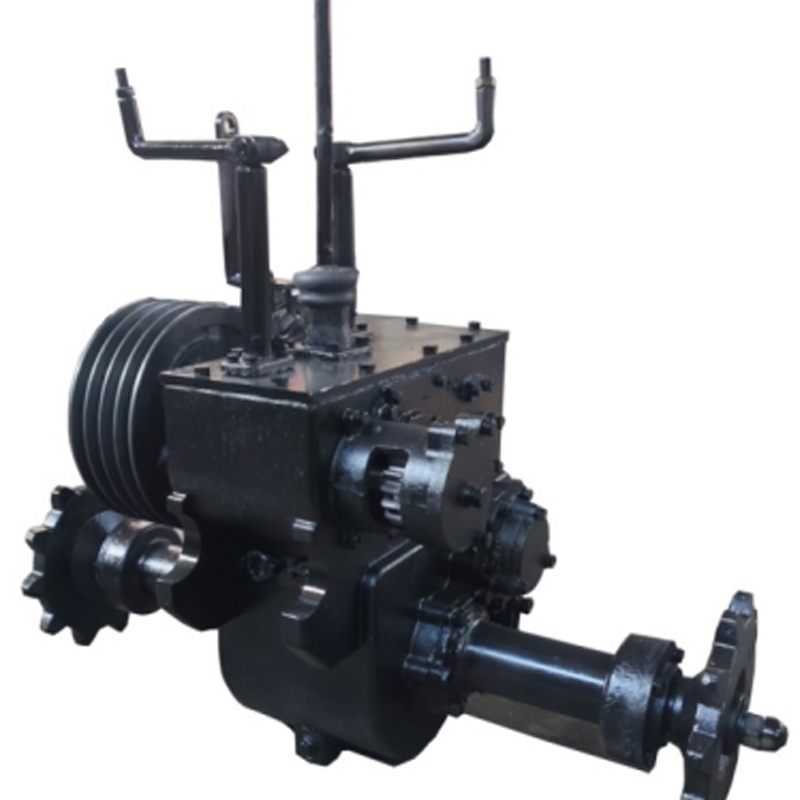

The first crawler tractor special transmission, short power transmission route, less power loss.
The rear-wheel drive chassis of multiple balancing carts is adopted, which has large driving force and makes it easy to open trenches and fertilize.

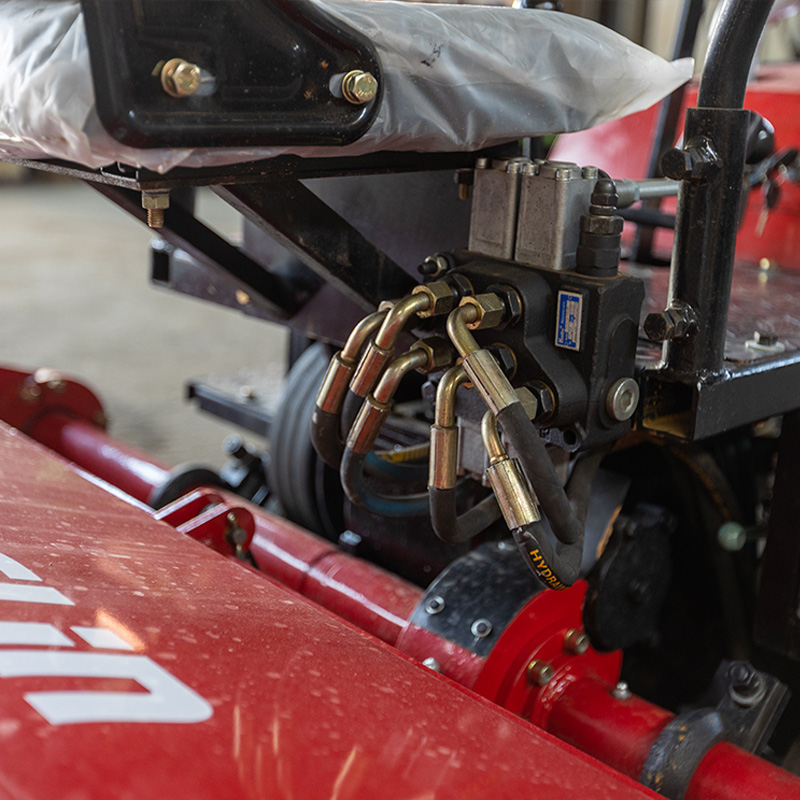

Industrial remote control and construction machinery hydraulic components, high reliability, long service life.
High-tech enterprises, municipal R & D center, mountain and hill machinery innovation center, 15 years of research and development and manufacturing experience in the field of fruit machinery, with more than 20 national new utility patents.
Customized Taiwan famous Yuding brand industrial wireless remote control device, easy to control, fast and durable.

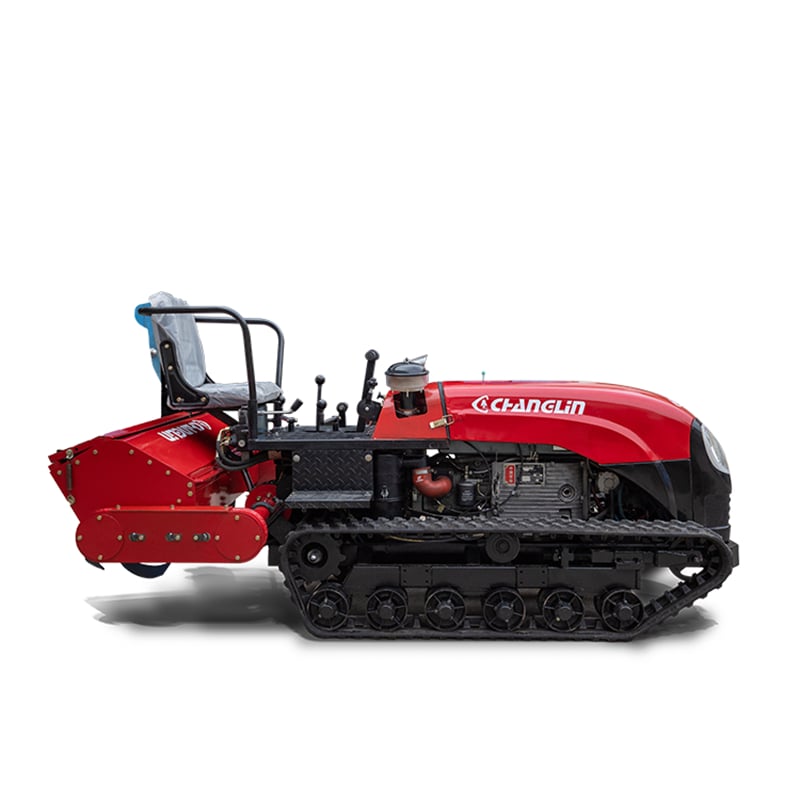

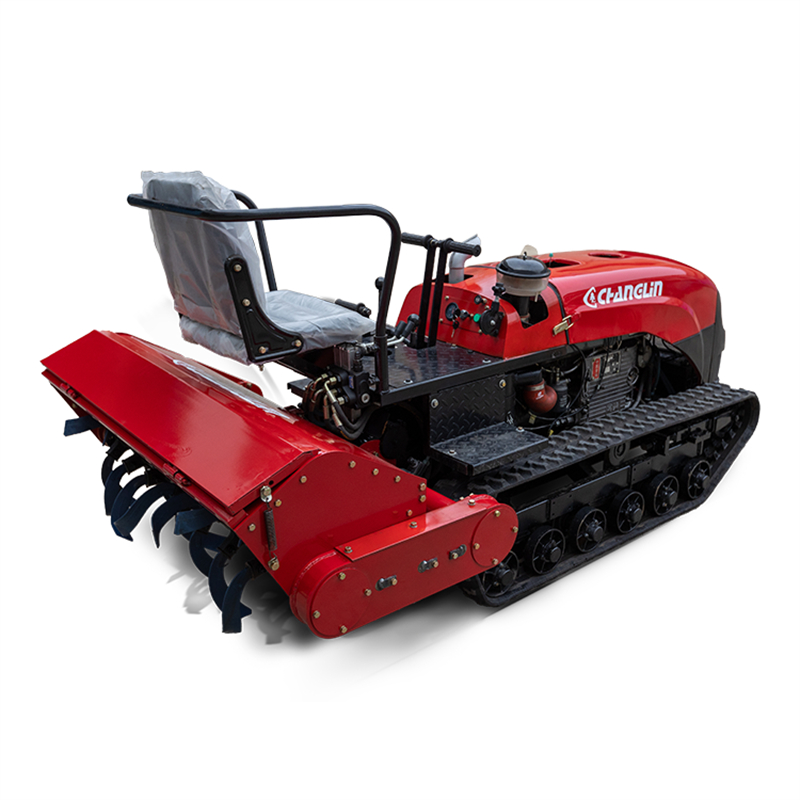

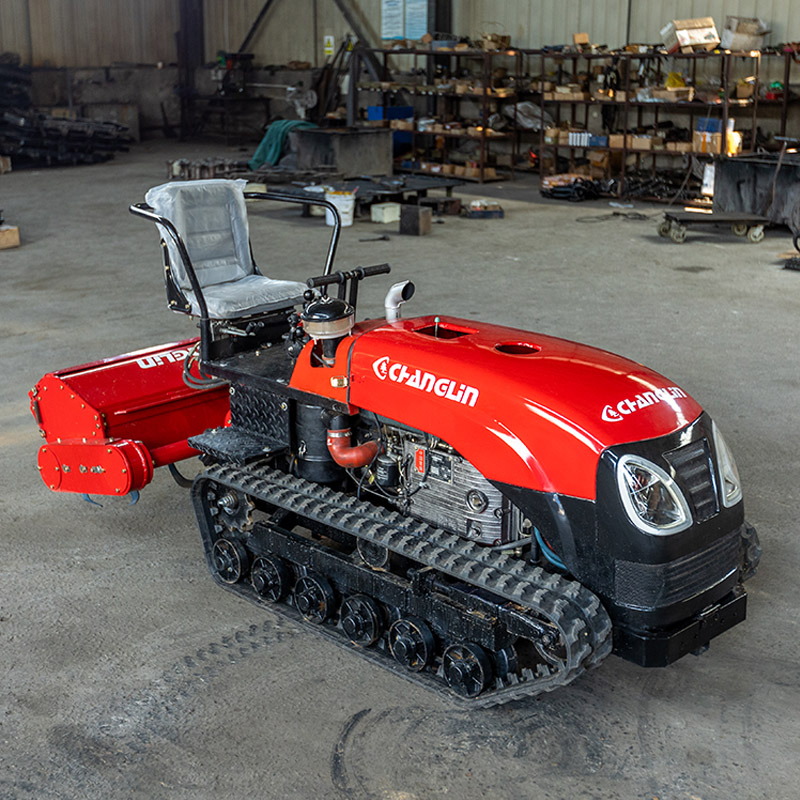

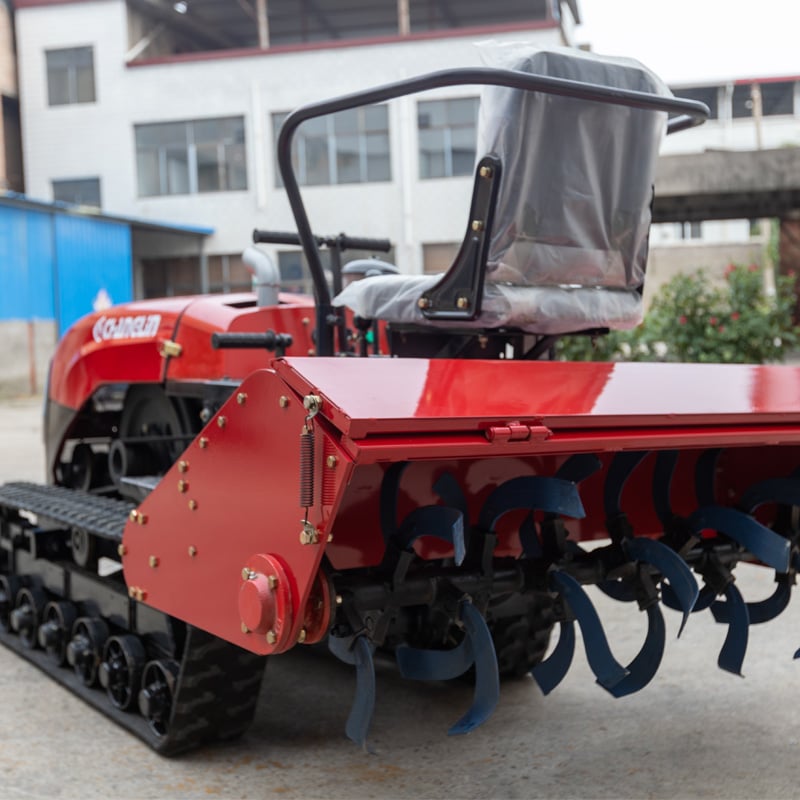

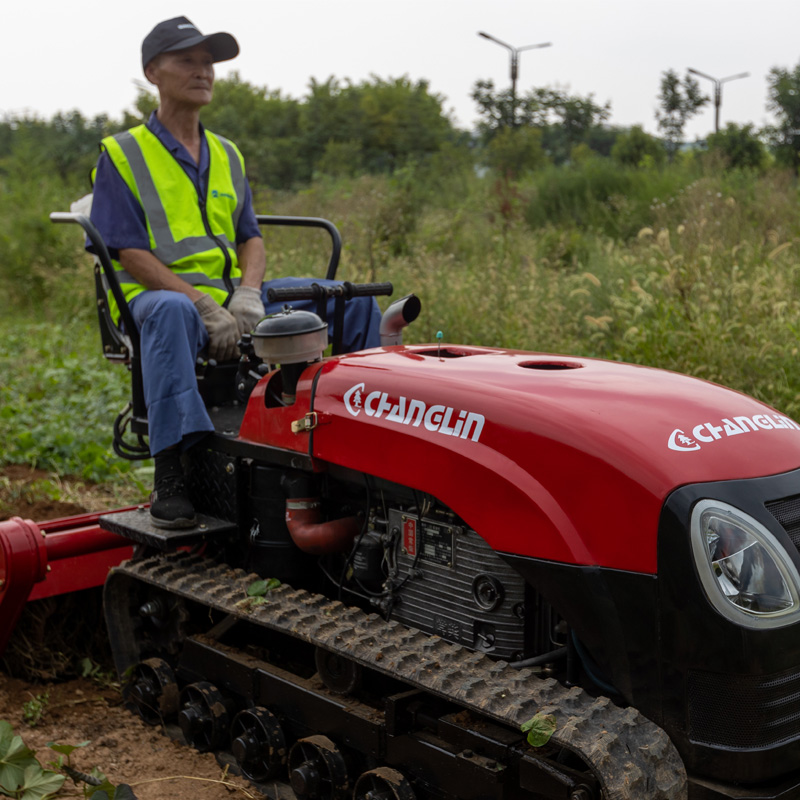

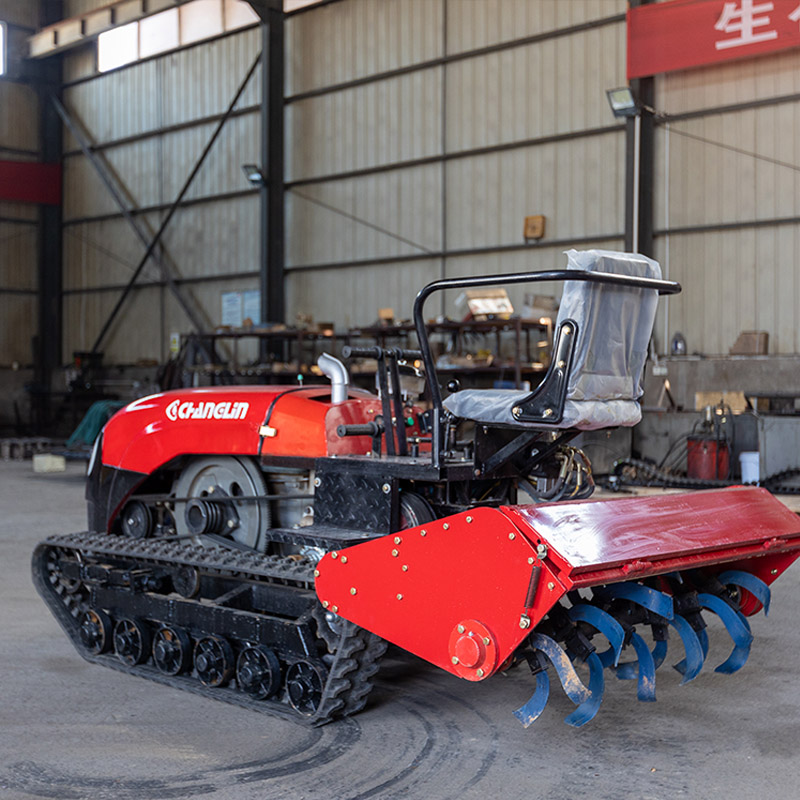

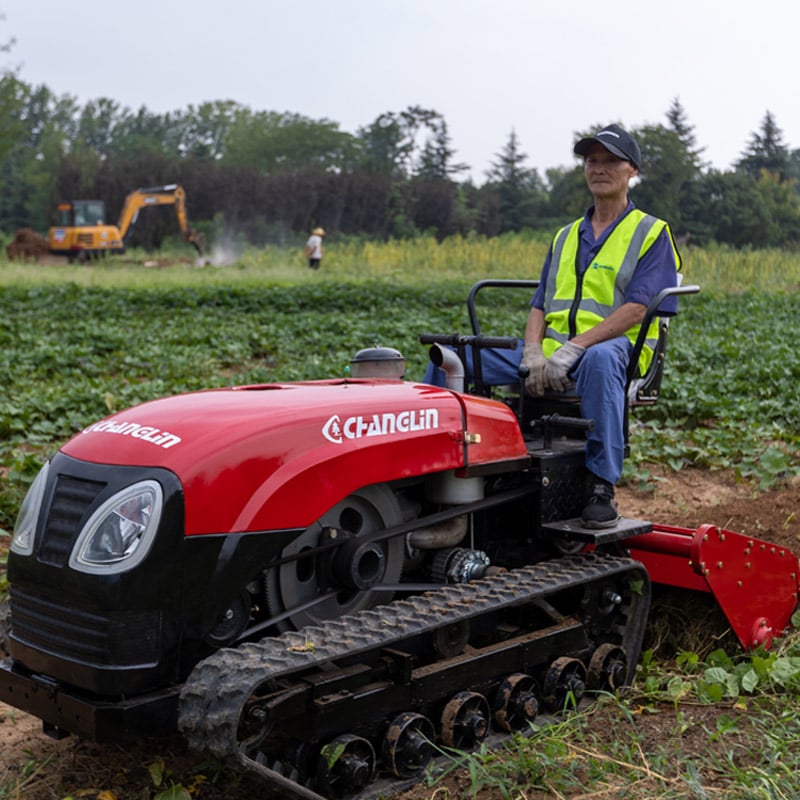

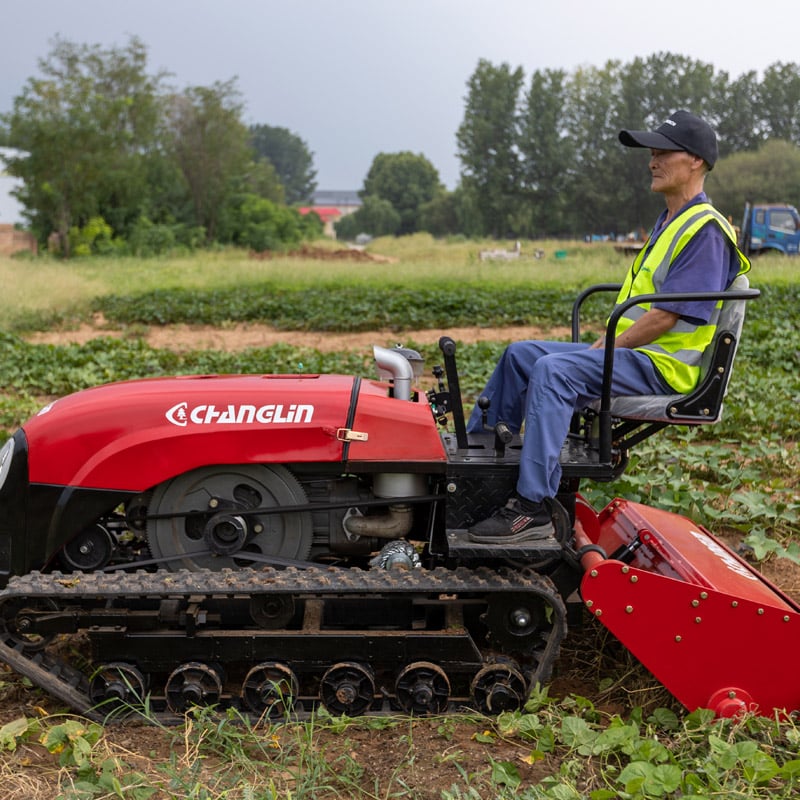

1GZL-120 remote control self-walking caterpillar rotary tiller, one machine ten functions, covering the orchard management of 7 major production links: tillage, ditching fertilization, backfilling, mowing, spraying, tree branch crushing, fruit tree management and fruit picking transport. Suitable for a variety of terrain operations; Especially suitable for large machinery can not enter the small fields, all kinds of forest orchards, planting greenhouses, tea gardens, hills, mountains, slopes and narrow land. Efficient and fast, especially easy to use, a set of products can complete the annual operation of 200-300 acres of orchard tasks.
Main operation functions:
Overall dimensions: 2300mm X 1300mm X 850mm
Equipped with a quick change mechanism, PTO gear mesh

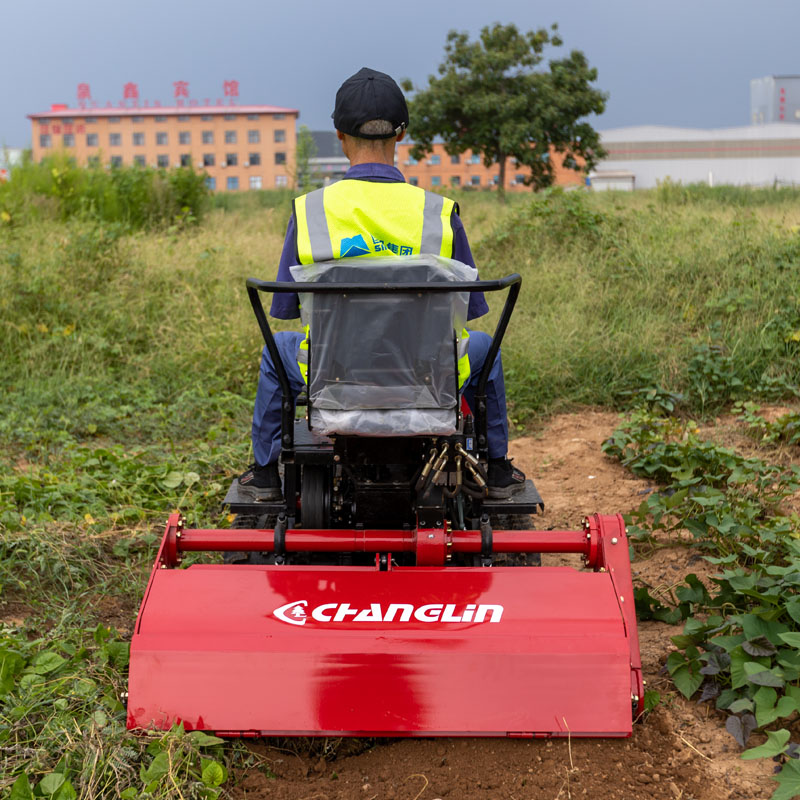

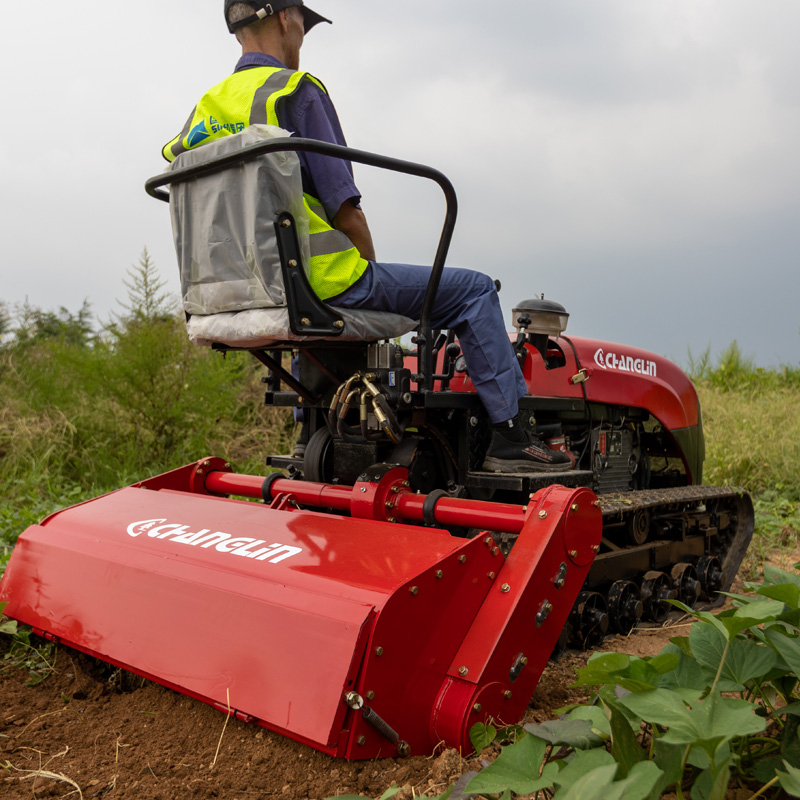

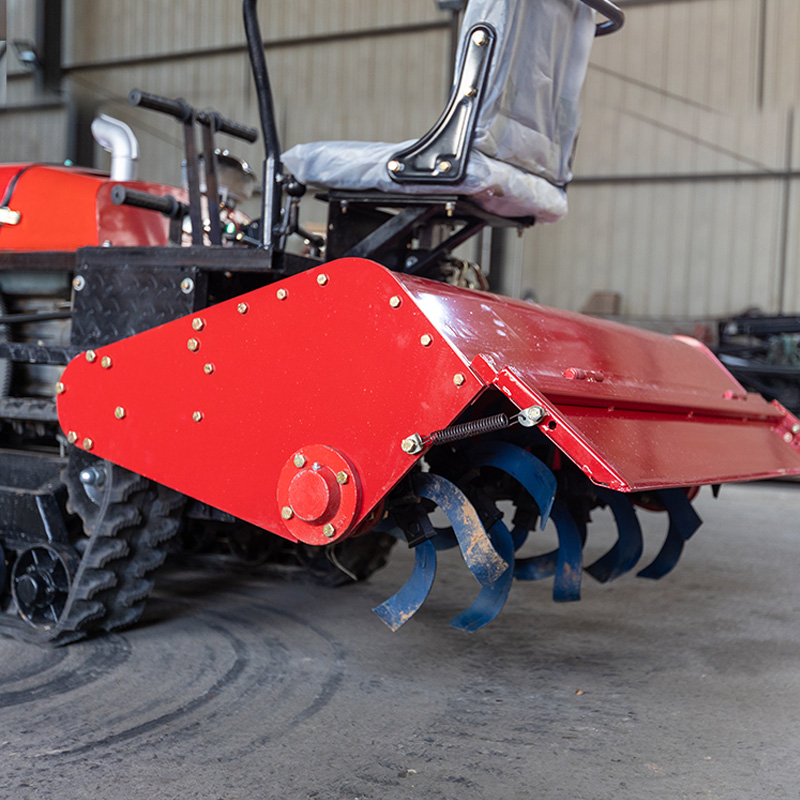

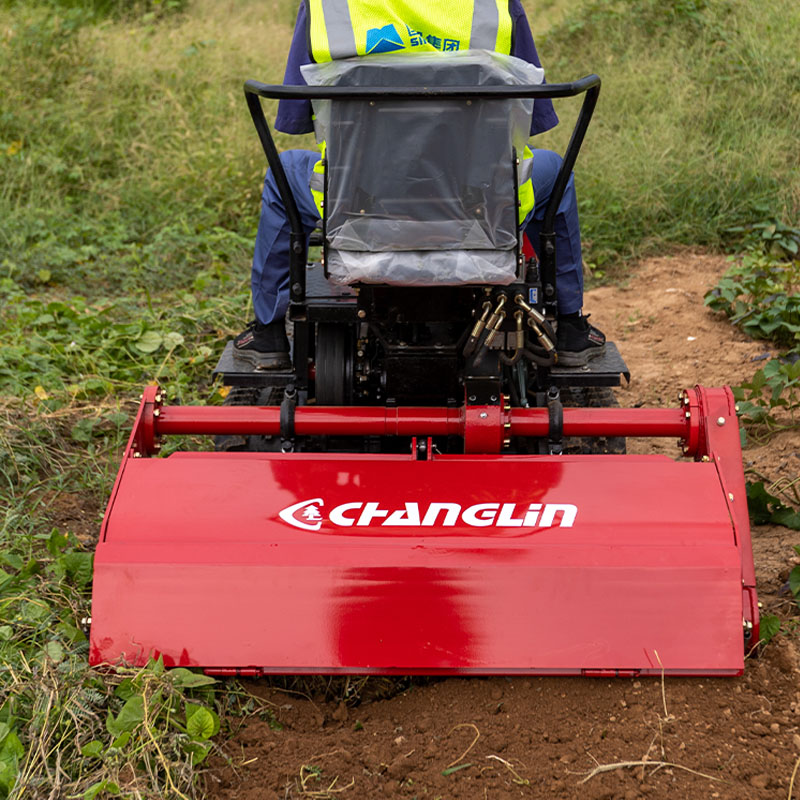

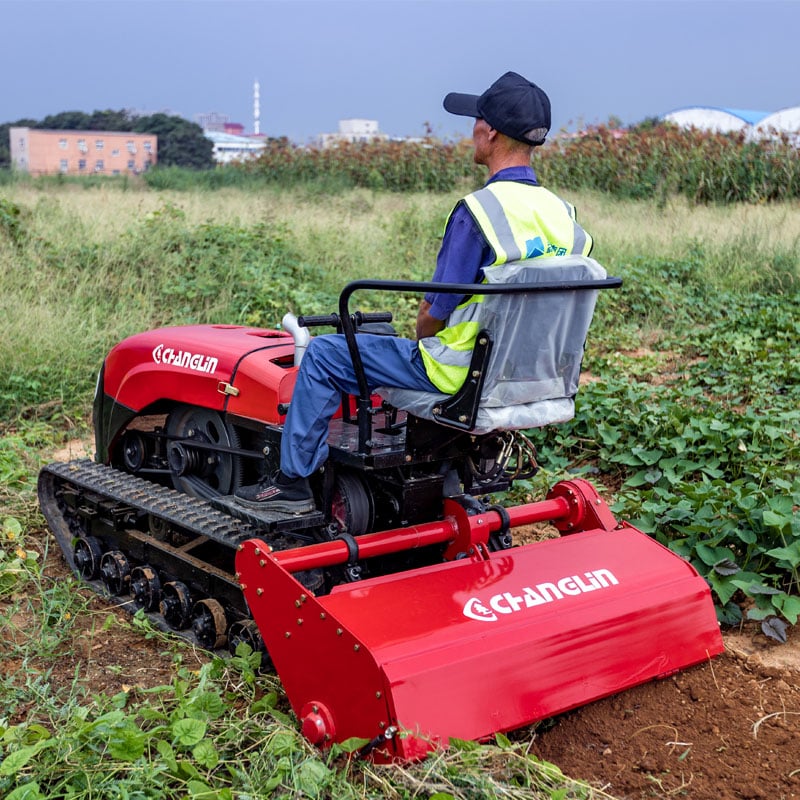

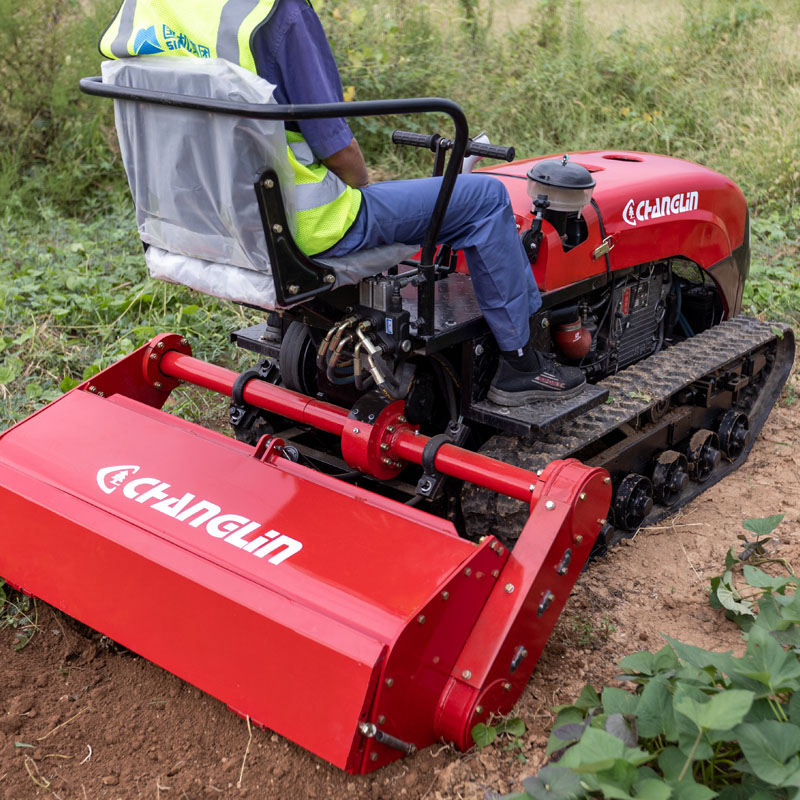

1, rotary tillage operation: tillage width 0.8~1.2m, working efficiency 3~4 mu/hour.
2, mowing operation: cut width 1.0~1.2m, working efficiency 4-6 mu/hour.
3, backfilling operation: fertilizer depth 25-32cm, operation efficiency 20-30 mu/day.
4, spraying operation: air-sent spray, spray radius 6-7m, working efficiency 8-10 mu/hour.
5, can be matched with tree crushing, transport platform, ridge, backfill, dozer shovel, etc.
| ITEM | UNIT | Specifications | ||
| Operating mass | kg | 820 | ||
| Length | mm | 2300 | ||
| Width | mm | 1300 | ||
| Height | mm | 850 | ||
| Approach angle | . | 25 | ||
| Departure angle | . | 20 | ||
| Gradeability | % | 46 | ||
| Remote control distance | m | ＞50 | ||
| Rated output | HP | 28 | ||
| Rated speed | rpm | 2200 | ||
| Max. Traction | kN | / | ||

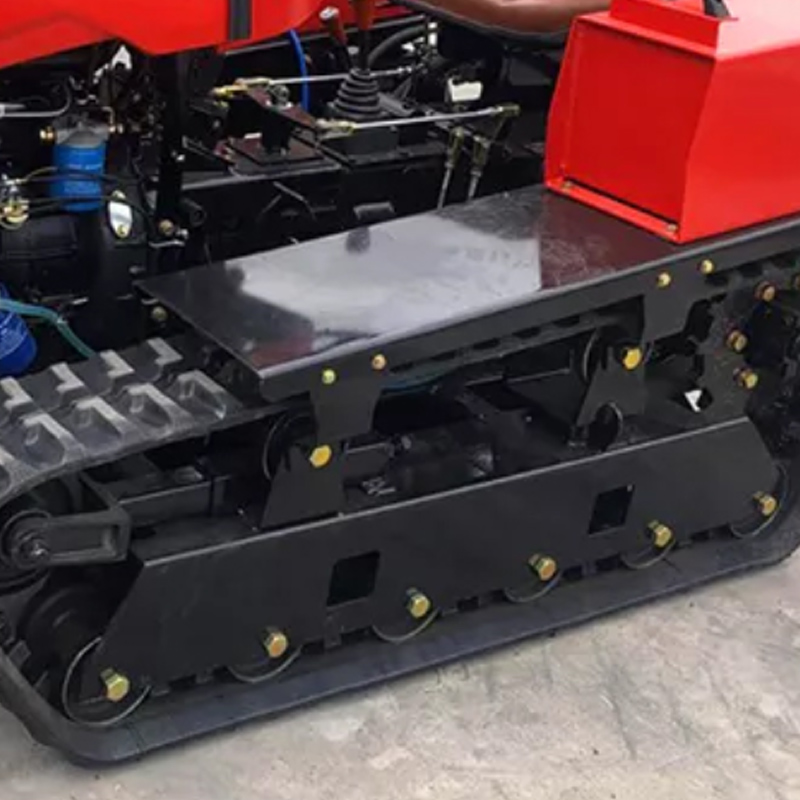

| Track shoe gauge | mm | 752 | ||
| Track grounding length | mm | 1050 | ||
| Standard track width | mm | 180 | ||
| Ground pressure | kpa | 21 | ||
| Min. ground clearance | mm | 145 | ||
| Min. turning radius | mm | 1500 | ||
| Supporting wheel | PCS | 12 | ||
| Guide wheel assy | PCS | 2 | ||
| Transmission type | Mechanical shift | |||
| Gear shift position | (3F+1R)x 2 | |||
| Speed | Low | km/h | F:0.55/0.8/1.2R:0.5 | |
| High | km/h | F:2.25/3.2/5.0R:1.7 | ||
| System pressure | MPa | 12 | ||
| Model of oil pump | CBW-F304 | |||
| Pump flow | ml/r | 4 | ||
| System voltage | V | 12 | ||
| Front counterweight(optional) | kg | 90 | ||
| Oil Capacity | Fuel | L | 24 | |
| Engine oli | L | Between the top and bottom of the dipstick | ||
| Transmission oil | L | Between the top and bottom of the dipstick | ||
| Hydraulic oil | L | Between the top and bottom of the dipstick | ||
| Coolant | L | water | ||
