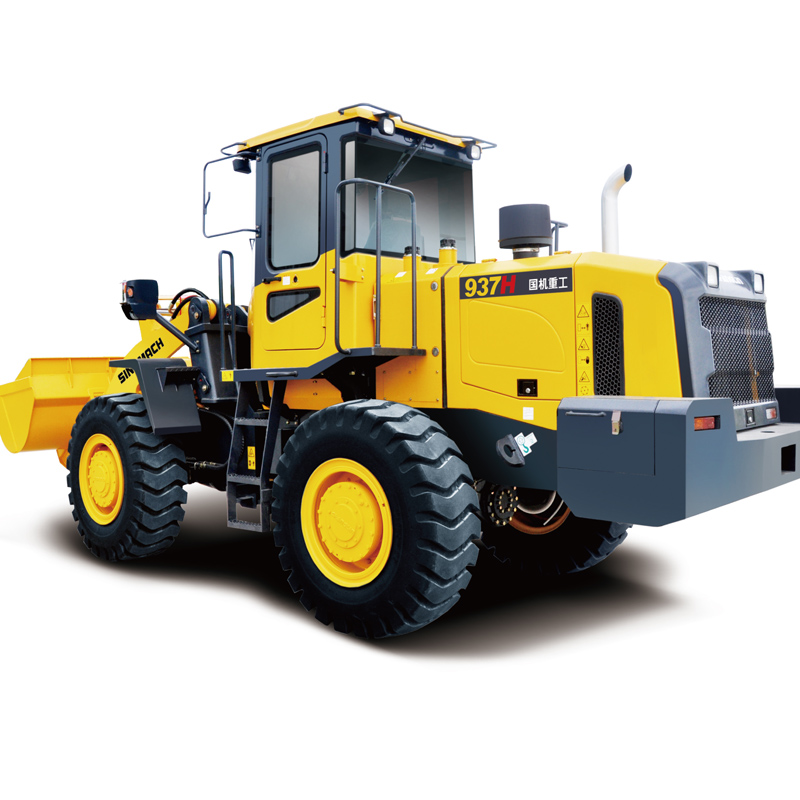

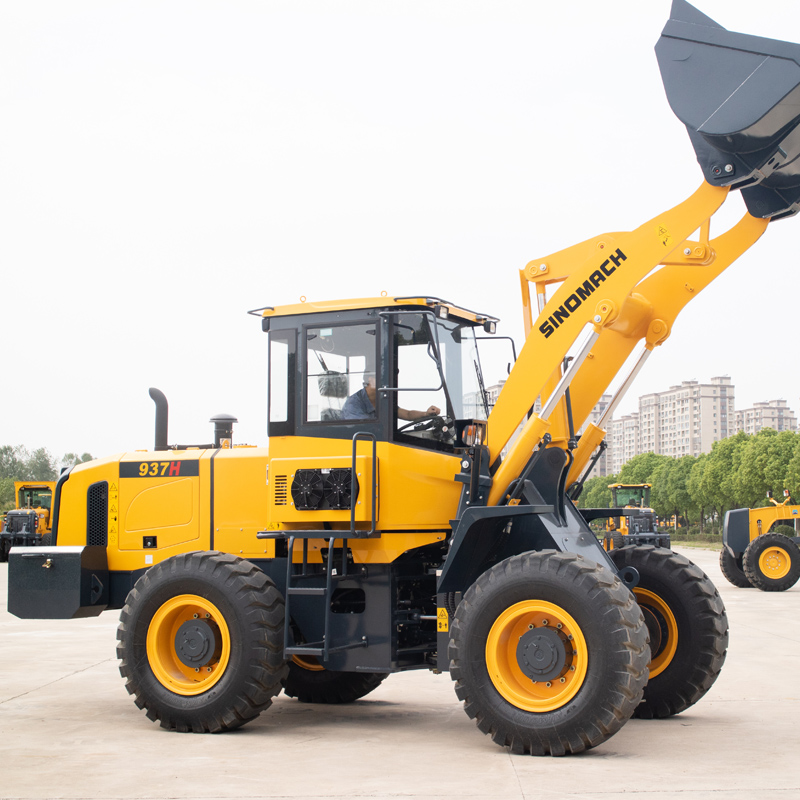

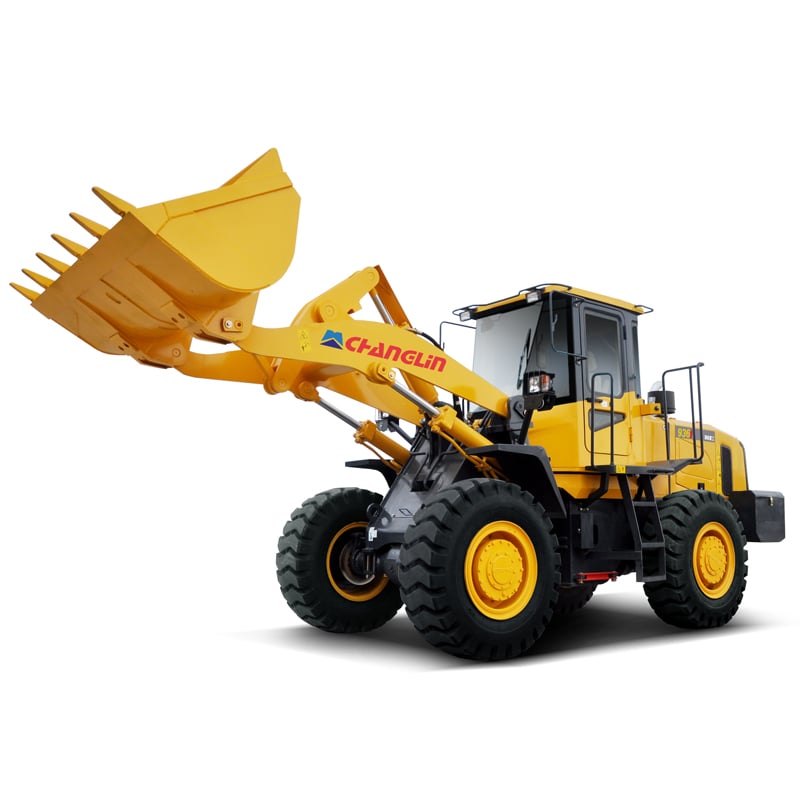

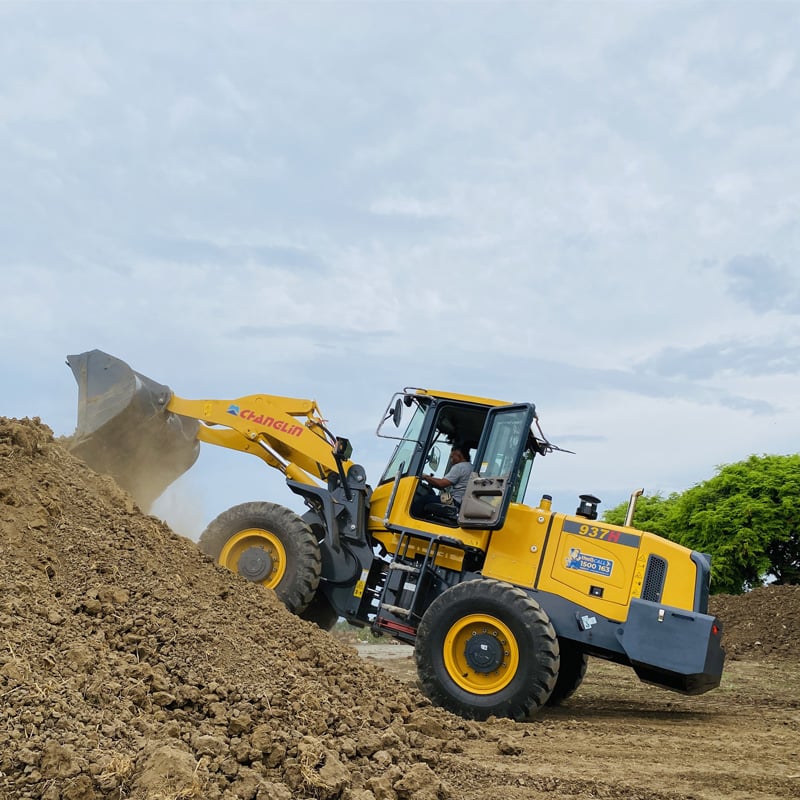

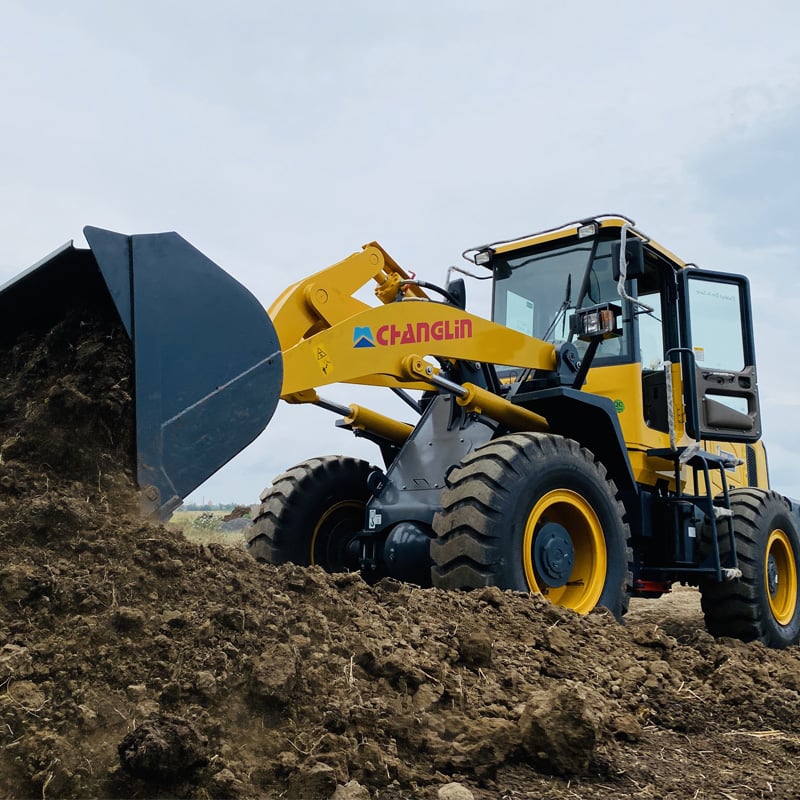

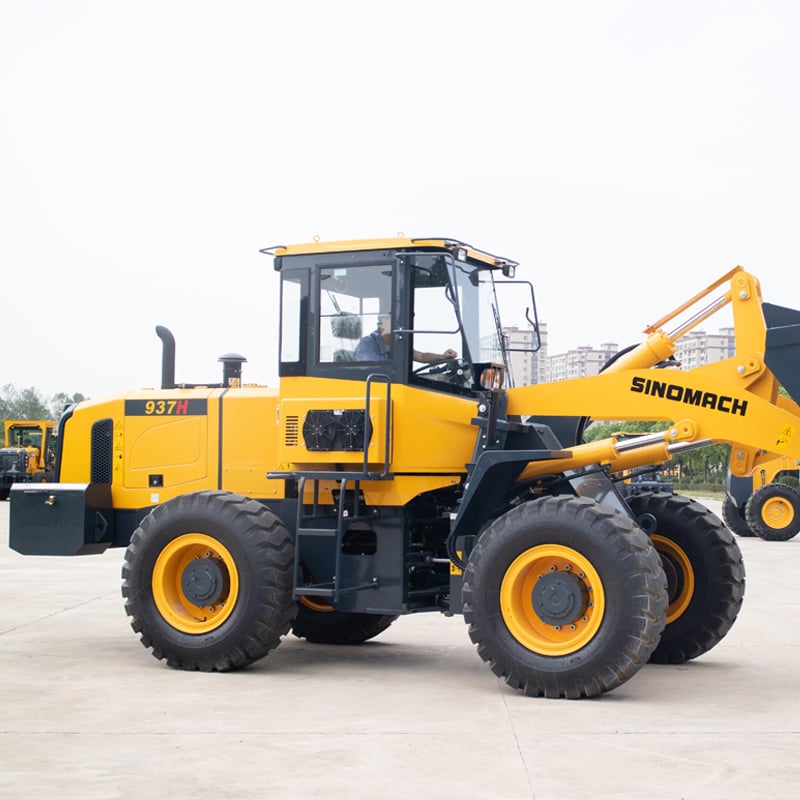

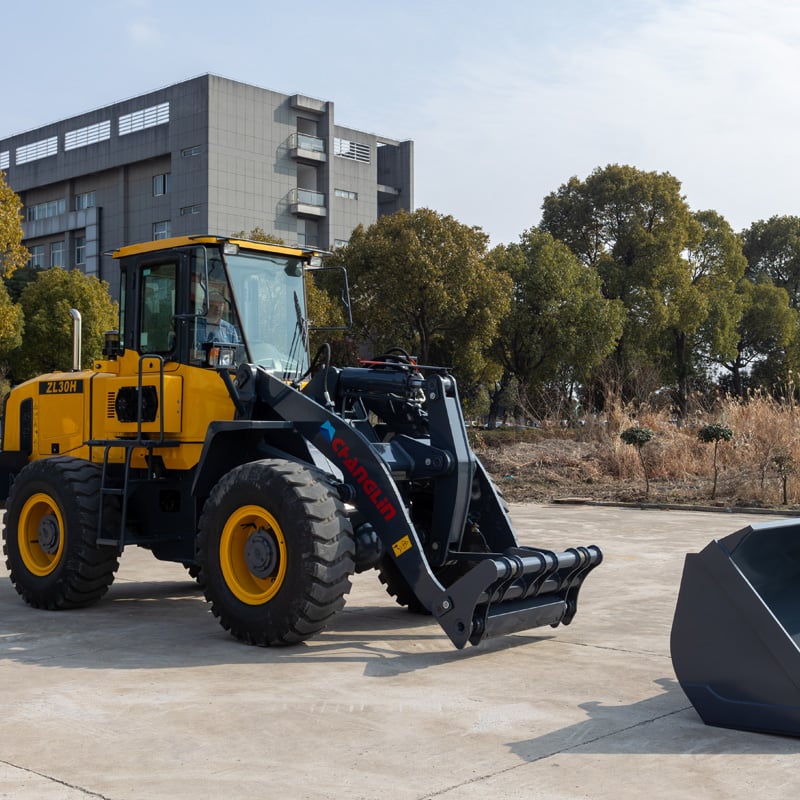

The ZL30H Wheel Loader stands out with its advanced features and robust design. It operates under a significant weight of 10,200kg and delivers a remarkable rated output of 97kW, handling loads up to 3,000kg with ease.

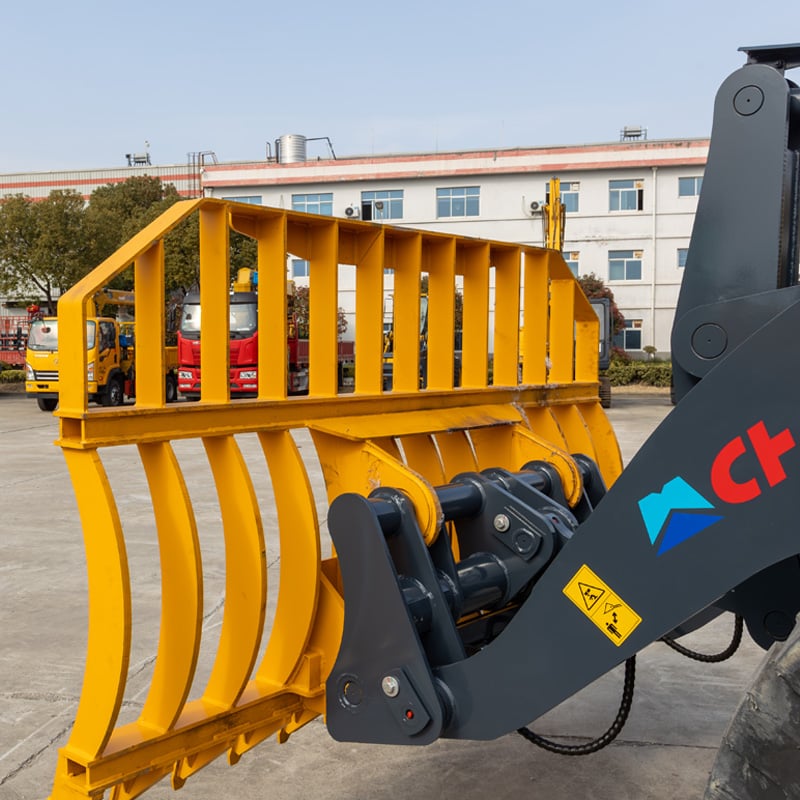

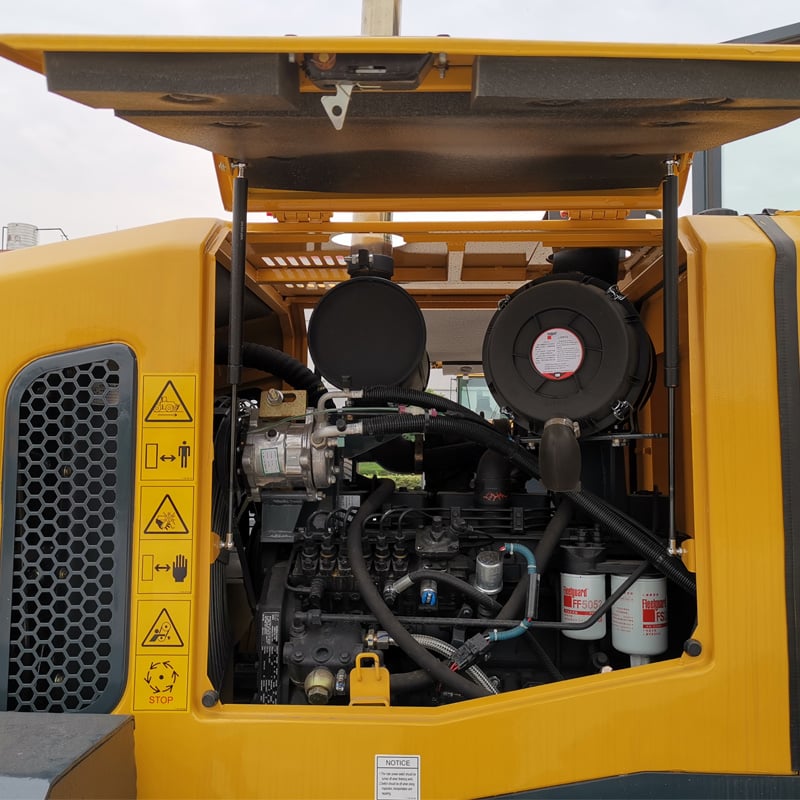

Engine choices, including Cummins or WeiChai, offer significant power reserves while maintaining low fuel consumption. Its reliability is enhanced by internationally sourced bearings in critical areas and durable YUNYU brand driving axles, designed for challenging environments. The wheel loader boasts a low-maintenance, separate structure in the axle housing and hub reduction, alongside a dual piping service brake system for added safety. The hydraulic system is notable for its simplicity and efficiency, complemented by a vacuum device for easier maintenance. With an optimized structure, the ZL30H ensures reduced frame distortion and increased durability, while the innovative design of the working equipment significantly enhances breaking force and operational efficiency.
| Overall Dimension | ||||
| 1 | Length(with bucket on ground)* | 6983(mm) | ||
| 2 | Width(to outside of wheels) | 2305(mm) | ||
| 3 | Bucket width* | 2430(mm) | ||
| 4 | Height(To the top of the cab)* | 3136(mm) | ||
| 5 | Wheel base | 2750(mm) | ||
| 6 | Min. ground clearance | 360(mm) | ||
| Technical Specification | ||||
| 1 | Rated load | 3000(Kg) | ||
| 2 | Operating weight | 10200KG | ||
| 3 | Rated bucket capacity | 1.7(m3),可选1.4-3.2 (m3) | ||
| 4 | Max. dump clearance | 2934(mm) | ||
| 5 | Dump reach | 1043(mm) | ||
| 6 | Min. turning radius(wheel) | 5185(mm) | ||
| Diesel engine | ||||
| 1 | Model | Dongfeng Cummins 6BT5.9-C130 | WeiChai WP6G125E22 | |
| 2 | Type | Direct injection. | ||
| 3 | Rated output | 97 (kW) | 92 (kW) | |
| 5 | Displacement | 5.9 (L) | 6.75 (L) | |
| 9 | Rated speed | 2200(r/min) | ||
| 10 | Max. Torque | 440(N.M)@1500 rpm | 500(N.M)@1500 rpm | |
| Transmission System | ||||
| 1 | Model型号 | BS428DX2+YJ315GZ-6F2 | ||
| 2 | Type形式 | Power shift | ||
| 3 | Gear shift position | 4 F, 2 R | ||
| 4 | Speed(F/R) | F:7.8/14.7/23.5/41.2R:10.8/31.6 | ||
| 5 | Max. drawing force | 96kN | ||
| 6 | Size of tire | 17.5-25-12PR | ||
| Working Hydraulic System | ||||
| 1 | Model of oil pump | CBGj2100(SAE) 100ml/r | ||
| 2 | System pressure | 16MPa | ||
| 3 | Model of Muti-way directional valve | GDF25-16YGDF-25-YL16(for pilot valve) | ||
| 5 | Pilot valve (optional) | DXS-00 | ||
| Steering System | ||||
| 1 | Model of steering pump | CBGj2100(SAE) | ||
| 2 | Model of redirector | 101S-5TS-500-20-A | ||
| 3 | Model of priority valve | YXL-F250F-14N7-A | ||
| 4 | System pressure | 14MPa | ||
| Brake System | ||||
| 1 | Type of traveling brake | Caliper disc brake | ||
| 2 | Air pressure | 0.7~0.8 MPa | ||
| 3 | Type of parking brake | clamp brake | ||
| Oil Capacity | ||||
| 1 | Fuel(diesel) | 130(L) | ||
| 2 | Engine lubricating oil | 13.5(L)(Cummins) | 17(L)(Weichai) | |
| 3 | Oil for converter and gear box | 35(L) | ||
| 4 | Oil for hydraulic system | 120(L) | ||
| 5 | Oil for driving axles(F/R) | 16/15(L) | ||
