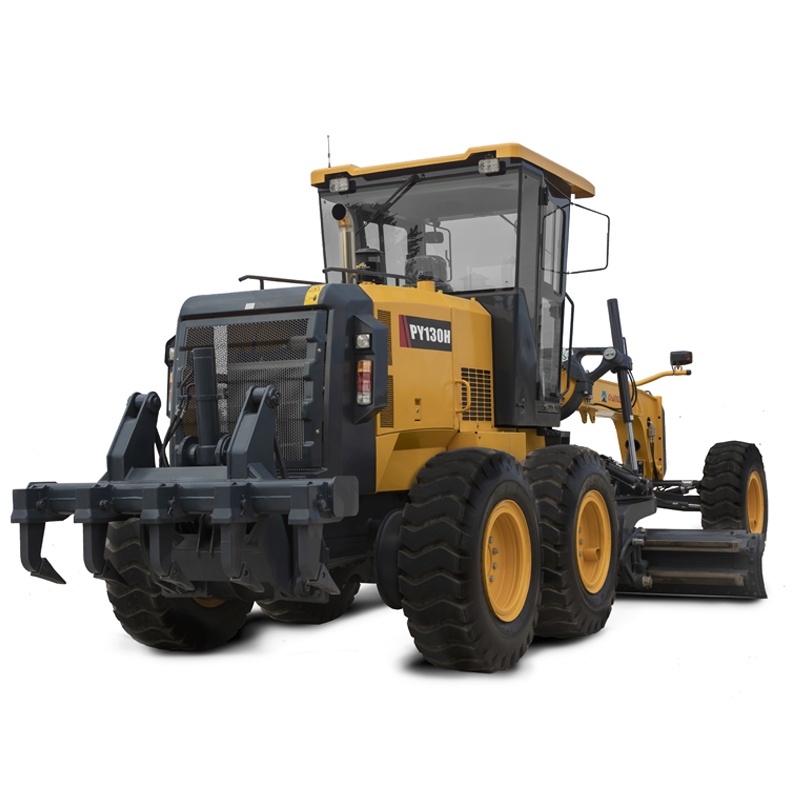

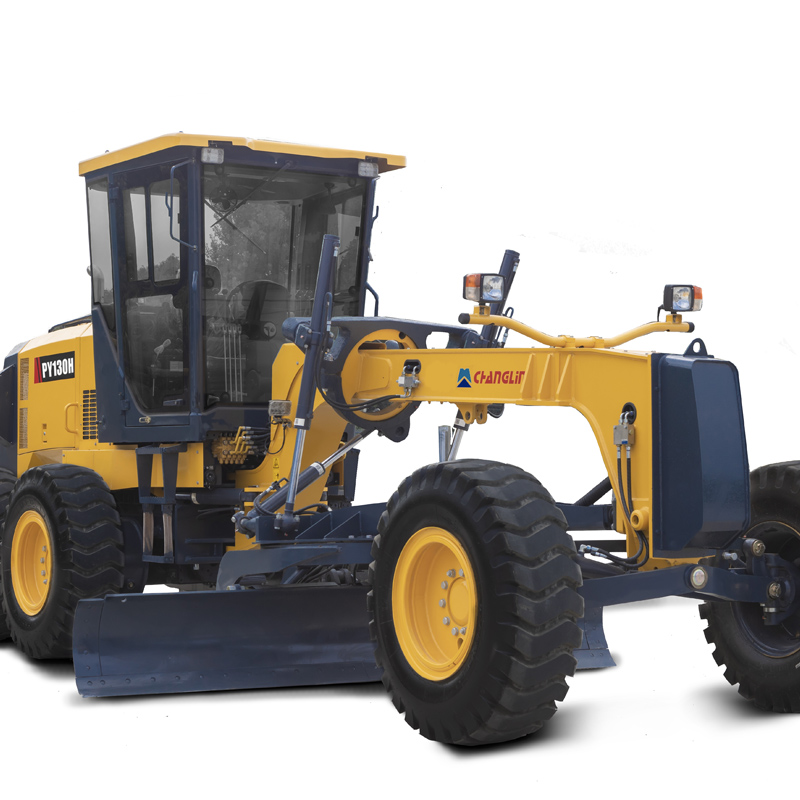

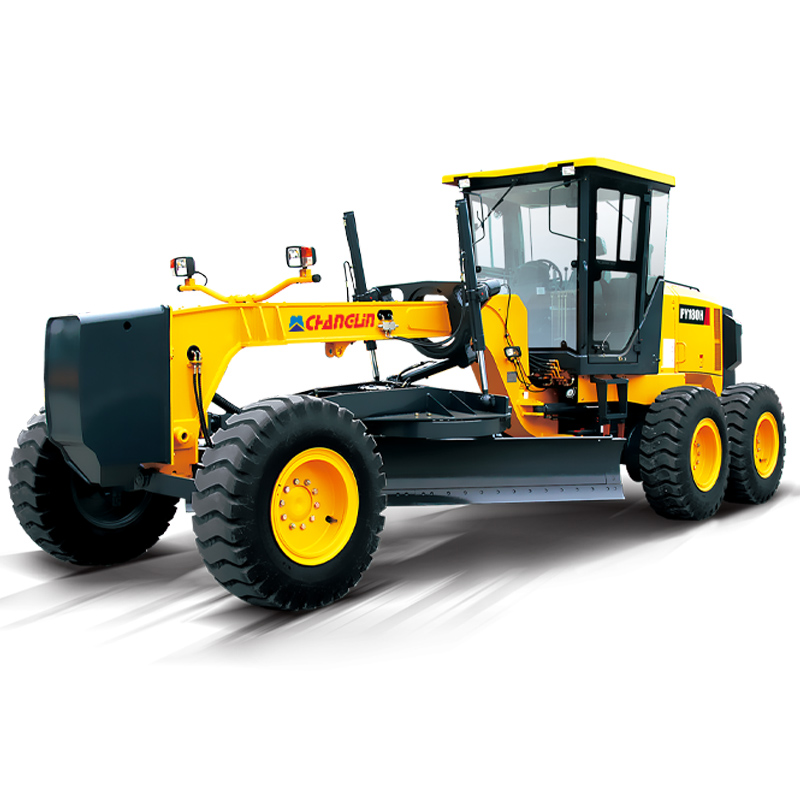

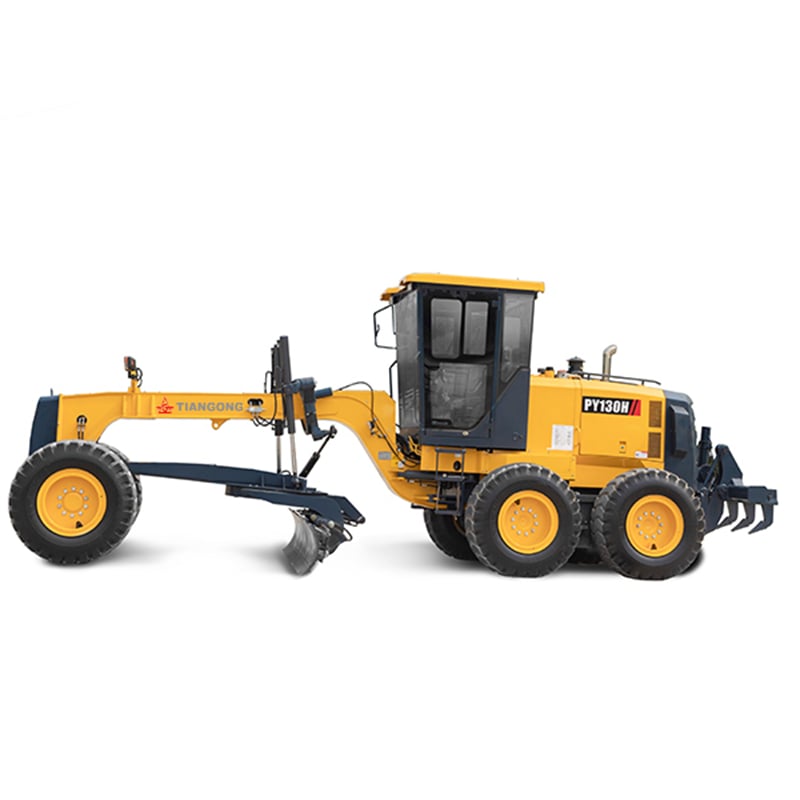

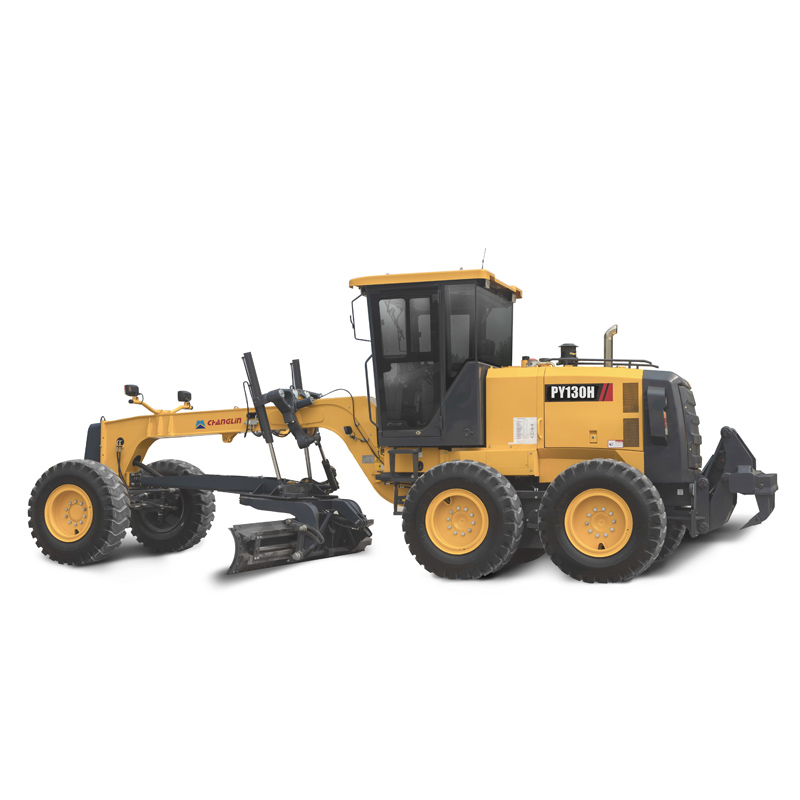

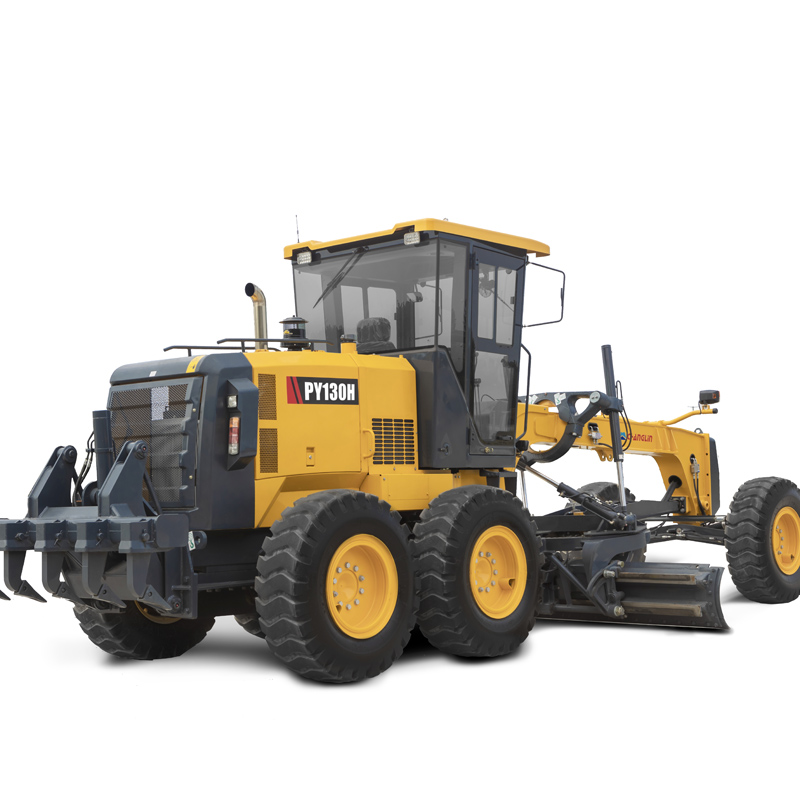

The PY130H heavy-duty grader features a single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse shifts, ensuring easy and convenient operation.
Equipped with a hydraulic lock and optional NO-SPIN differential, it guarantees stability and powerful traction. Its ideal axle load allocation ensures excellent stability on hard surfaces. The grader boasts a serviceable, efficient hydraulic system and a reliable full hydraulic brake system for safety. With a box-typed frame and advanced transmission, it excels at heavy-duty work. Its wide working range is achieved through a flexible blade suspension system and articulated frame.
| Overall Dimension | ||||||||||||||
| 1 | Length | 8290mm | ||||||||||||
| 2 | Width | 2600mm | ||||||||||||
| 3 | Height(To the top of the cab) | 3465mm | ||||||||||||
| 4 | Wheel base | 5780mm | ||||||||||||
| 5 | Tread | 2120(mm) | ||||||||||||
| 6 | Min. turning radius | 6.6(m) | ||||||||||||
| Main Technical Specification | ||||||||||||||
| 1 | Operating weight | 12000kg | ||||||||||||
| 2 | Blade length | 3658mm | ||||||||||||
| 3 | Blade height | 580mm | ||||||||||||
| 4 | Shovel Blade thickness | 20mm | ||||||||||||
| 5 | Max. lift above ground | 410mm | ||||||||||||
| 6 | Max. grading depth | 560mm | ||||||||||||
| 7 | Max. shoulder reach outside rear tire | 2000mm | ||||||||||||
| Traveling speed(Km/h),6 forward and 3 reverse | ||||||||||||||
| (1) forward | 6.9/10.7/17.3/26/37.8/53.4 | |||||||||||||
| (2) reverse | 6.9/17.3/37.8 | |||||||||||||
| Diesel engine | ||||||||||||||
| 1 | Model | DongFeng Cummins 6BT5.9-C130 6BT5.9-C130 | ||||||||||||
| 2 | Type | Direct injection. Turbocharged. Water cooling | ||||||||||||
| 3 | Rated output | 97kW | ||||||||||||
| 4 | Rated speed | 2200(r/min) | ||||||||||||
| 5 | Max. Torque | 560(N.M)/1500rpm | ||||||||||||
| Transmission case | ||||||||||||||
| 1 | Model | YD13 (CHINESE HANGCHI) | ||||||||||||
| 2 | Type | power shift, single-shift lever, natural-shift lock device | ||||||||||||
| 3 | Gear shift position | 6 Forward and 3 reverse gears | ||||||||||||
| Axle and Tire | ||||||||||||||
| 1 | Max. drawing force | 61.7KN(f=0.75) | ||||||||||||
| 2 | Size of tire | 17.5-25-12PR(standard)13.00-24-12PR(optional) | ||||||||||||
| Working Device Hydraulic System | ||||||||||||||
| 1 | Model of tandempump | HP51B678-07-07-7N | ||||||||||||
| 2 | System pressure | 17.5MPa | ||||||||||||
| 3 | Model of distribution valve | 5000-E187;5000-E186 | ||||||||||||
| 4 | Model of oil motor | EATON, 604-0663 | ||||||||||||
| Steering System | ||||||||||||||
| 1 | Type | Fore Tires deflexion | ||||||||||||
| 2 | Model of redirector | BZZ5-E160B+FKB-3022 | ||||||||||||
| 3 | System pressure | 16MPa | ||||||||||||
| Brake System | ||||||||||||||
| 1 | Type of service brake | Full hydraulic and inner-expanding brake | ||||||||||||
| 2 | Oil pressure | 10Mpa | ||||||||||||
| 3 | Type of parking brake | Mechanical and inner expand hoof brake | ||||||||||||
| Oil Capacity | ||||||||||||||
| 1 | Fuel(diesel) | 370L | ||||||||||||
| 2 | Engine lubricating oil | 17L | ||||||||||||
| 3 | Oil for converter and gear box | 28L | ||||||||||||
| 4 | Oil for hydraulic system | 65L | ||||||||||||
| 5 | Oil for driving rear axles | 18L | ||||||||||||
| 6 | Tandem box | 90L | ||||||||||||
