Operating weight：10000kg
Rated output：75kW
Compaction width：1700mm
Mechanical drive, three-speed gear shift. Hydraulic vibration start-oscillation by electronic control, hydraulic steering and light operation.
Articulated frame and flexible steering. Operate by double steering with good controlling of edge compaction.
Two sets of separate electric control pressurized sprinkler system on front and rear roller. Anticorrosive sprinkler tank and system.
The fore cover can be turned up in a big angel for easily maintenance.
Grade-III shock absorption for comfortable operation.
Equipped with Cummins diesel engine with large power.

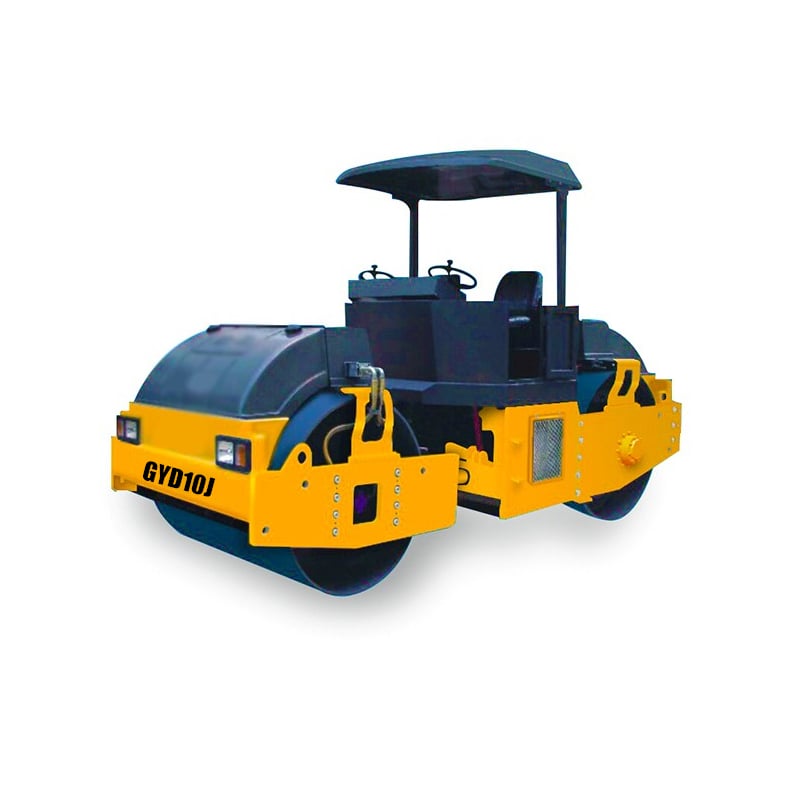

| MODEL: GYD10J mechanical vibratory roller | |
| 一,Operating weight | 10000kg |
| Front drum (Vibratory drum) | 4500kg |
| Rear drum (Drive drum) | 5500kg |
| 二,Drum dimension | |
| Front drum(Diameter×Width) | φ1200×1700mm |
| Rear drum(Diameter×Width) | φ1200×1700mm |
| 三,Static line pressure | |
| Front drum | 259 N/cm |
| Rear drum | 317 N/cm |
| 四,Wheel base | 3220mm |
| 五,Travelling speed | |
| First gear | 2.5 km/h |
| Second gear | 5.0 km/h |
| Third gear | 8.5 km/h |
| 六,Min. turning radius | 6500mm |
| 七,Gradeability | 20% |
| 八,Min. ground clearance | 280mm |
| 九,Vibratory parameter | |
| Vibratory frequency | 45HZ |
| Vibratory amplitude | 0.45/0.70mm |
| Centrifugal force | 85/100KN |
| 十,Hydraulic oil tank capacity | 160L |
| 十一,Fuel tank capacity | 160L |
| 十二,Water tank (Front/rear) | 200×2L |
| 十三,Engine | |
| Model | Cummins 4BT3.9-C100 |
| Rated power | 75 KW |
| Rated speed | 2400 rpm |
| 十四,Dimension | 4880×1980×2800mm |
