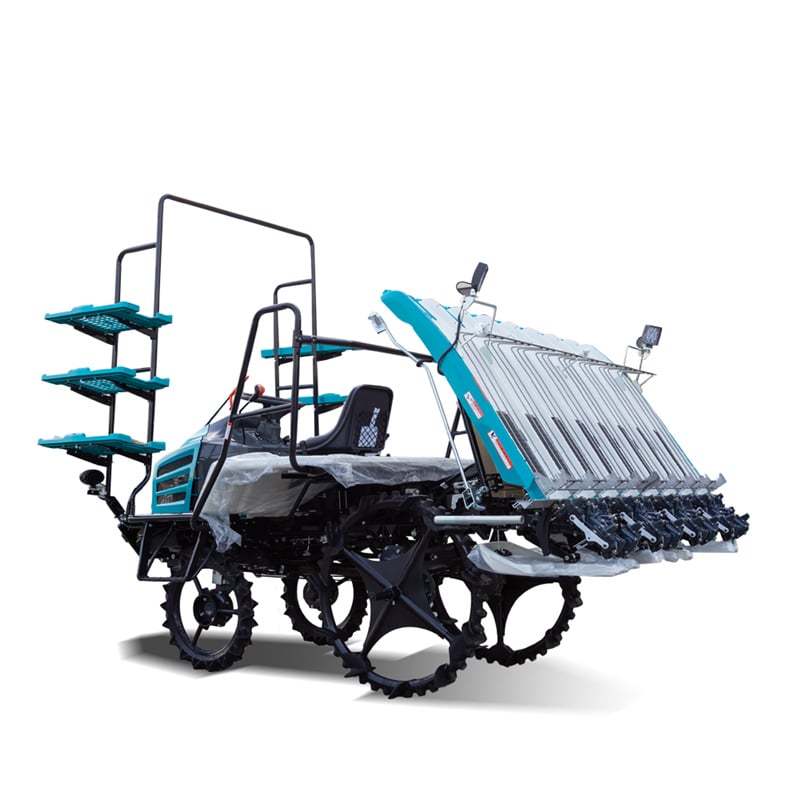

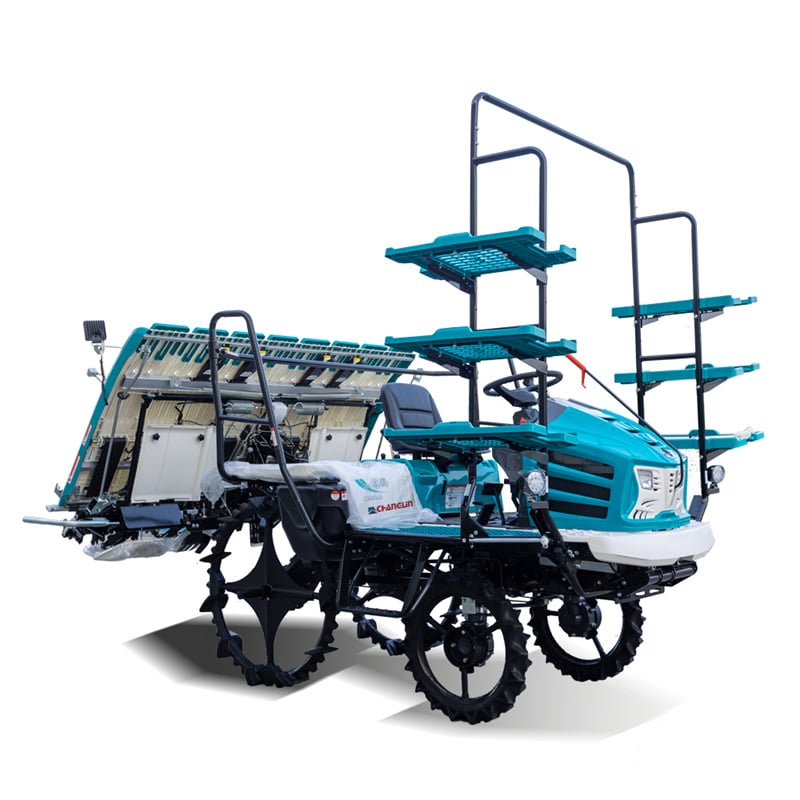

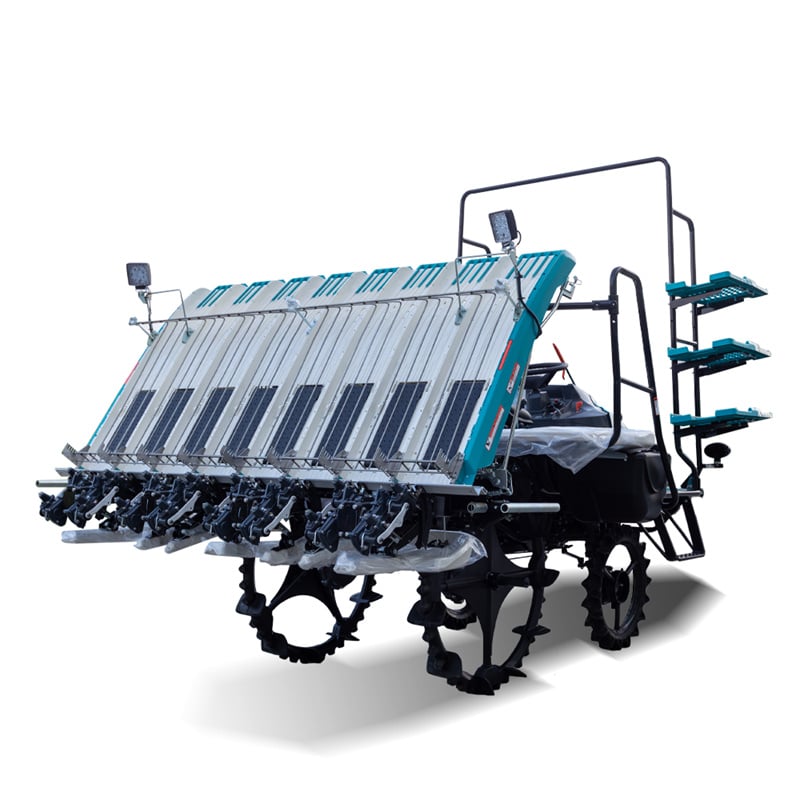

High Quality Ride Type Rotary Transplanting Arm Type Paddy 8 Rows Auto Rice Transplanters

structure type:ride type high speed

rate power:17.8KW Yanmar Engine

working lines: 8

Planting depth(mm):10-55mm

Main Features

This rice planter is our new design rice planter , it design with a long frame and wide pedal design, it can carry more seedlings at one time, reduce the number of seedlings, save time and improve work efficiency

It has the main feature as following:

1、accurate navigation using Beidou navigation and base station system accurate navigation to achieve accurate linear transplant operations

2、 intelligent planning of the path after the completion of the automatic planning of the planting operation path

3、automatic turning and turning of the driving operation field automatic turning, automatic lifting of the seedling platform,automatic speed control

4、The whole process of rice transplanting operation is simple, easy, comfortable and labor-saving

Advantage:

1. Designed with an extended frame and wide pedals, it can carry more seedlings at one time, reduce the number of seedling installations, save time, and improve operating efficiency.

2. It adopts four-wheel drive, extended wheelbase, anti-sag gear system design, equipped with large-diameter wheels, has good driving force and anti-sag ability, and has excellent operating adaptability and passability in wet and rotten rice fields.

3.Adopting high-strength rear axle design and high-strength frame chassis structure design, the body is firm and strong, and has strong resistance to tensile deformation.

4. Using a front cooling system, the transmission hydraulic oil temperature is low and the hydraulic system is reliable.

5.Matching high-horsepower Yanmar diesel engine, brand power, reliable use; high power, strong driving ability, suitable for use in wet rice fields in Northeast China. Matching the domestic gasoline engine power model, the whole machine is cost-effective and can meet the needs of rice field operations in the south.


Main Specifications
TECHNICAL  SPECIFICATION
structure type ride type high speed
engine producer Yanmar Engine Co.LTD
engine type 3TNM74-AFF
fuel type diesel
rate power 17.8KW
rate rpm 3600
dimension (mm) 3090×2220×2580
working lines 8
Line spacing(mm) 250
Hole distance adjustment mode Handle adjustment
Hole distance to adjust the number of gears 7
hole distance(mm) 100,120,140,160,180,210,240
Planting depth(mm) 10-55
shift(mm) 11.5,14.5,16.5,19.1
Seedling depth (mm) 8-18
Transplanting frequency(singal-line)(hole/min) 0-600
transmission type HST
front tire dimension φ650 Explosion-proof tyre
rear tire dimension φ950 Rubber tires with thick wheels
balance systme type Electronic
planting arm type Rotary transplanting
Product Superiority And Transportation

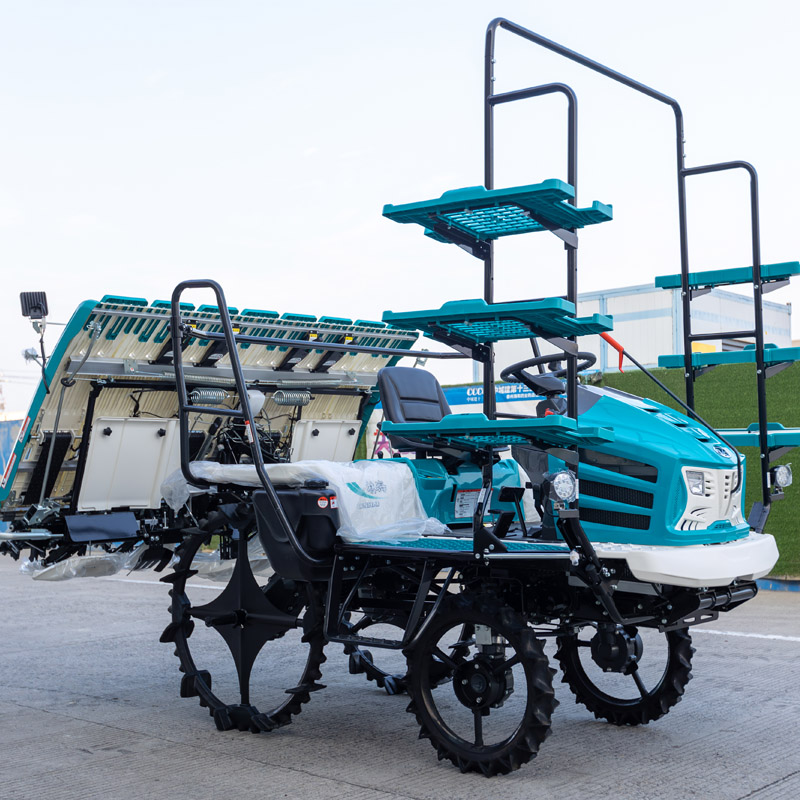

  • 1J4A7093-已增强-降噪

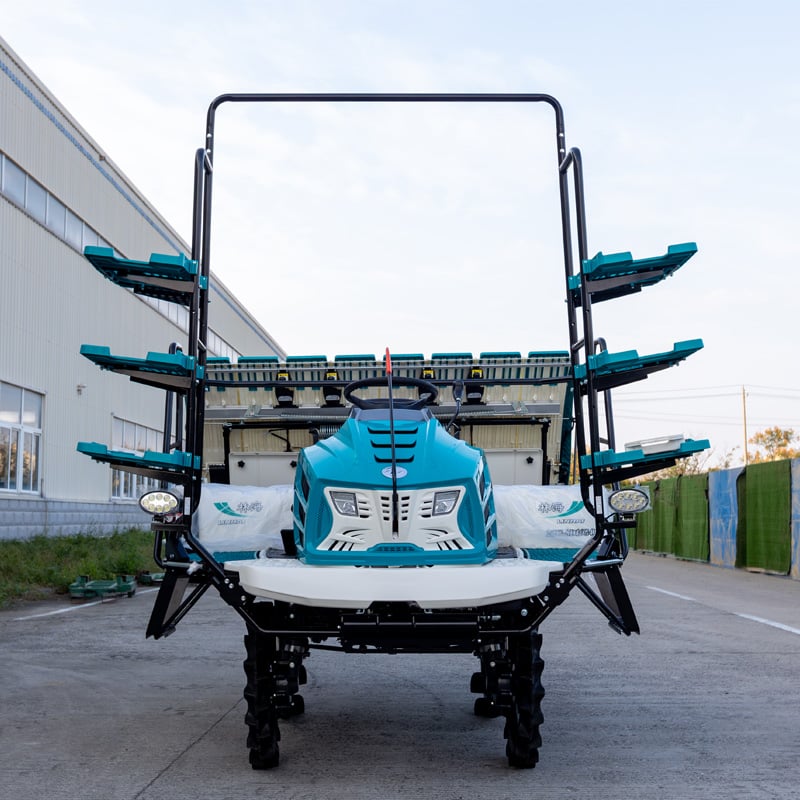

  • 1J4A7096-已增强-降噪

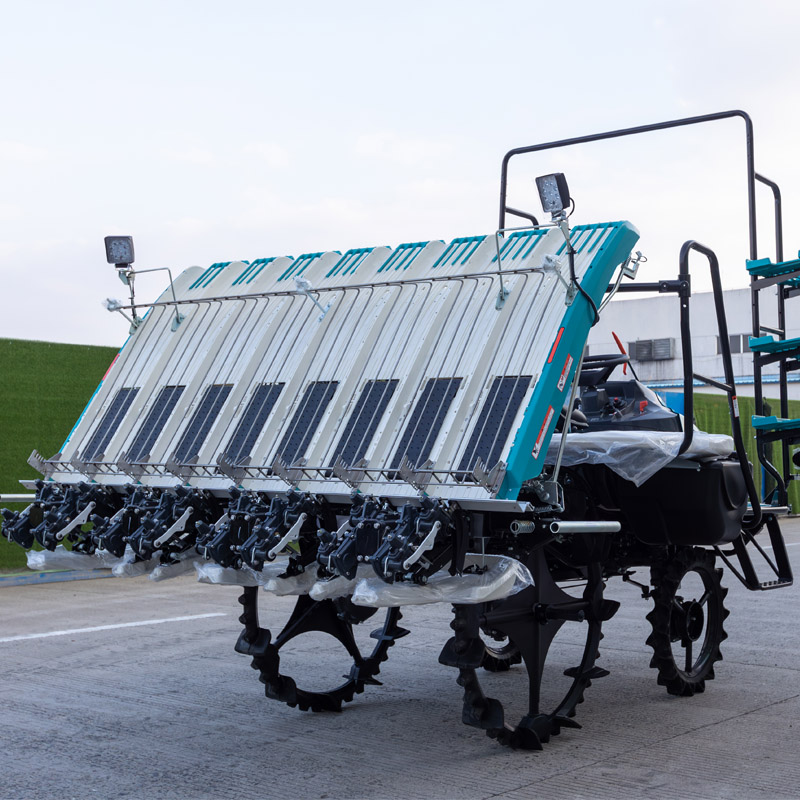

  • 1J4A7103-已增强-降噪

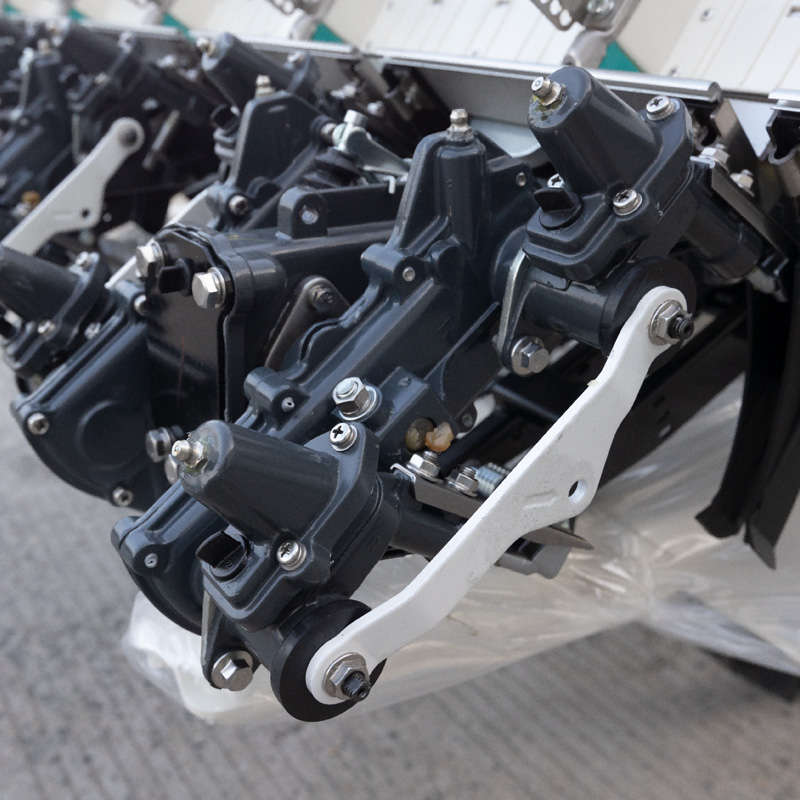

  • 细节2

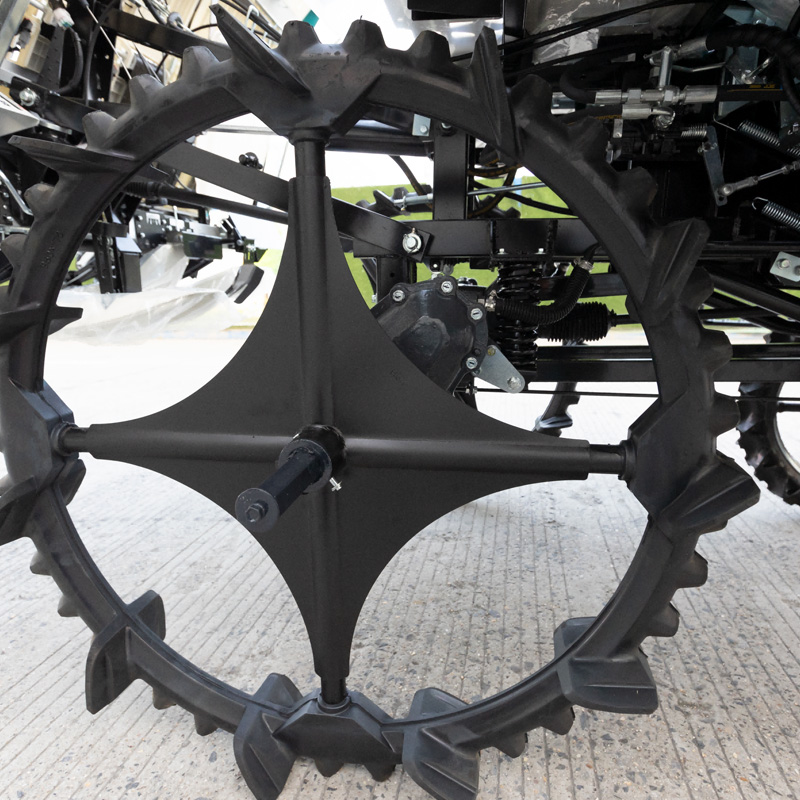

  • 细节3

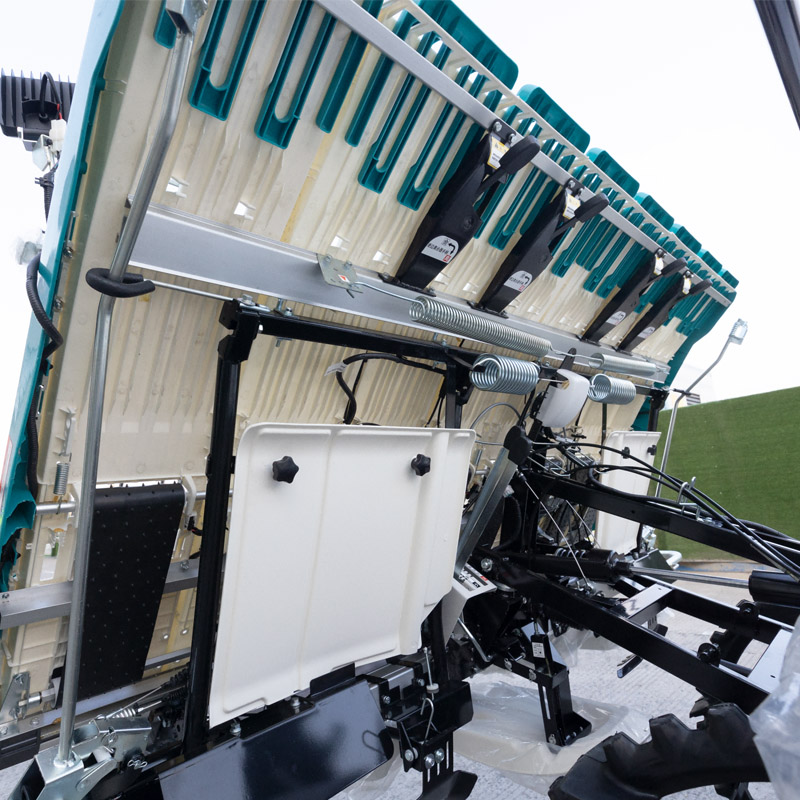

  • 细节4
Production Line

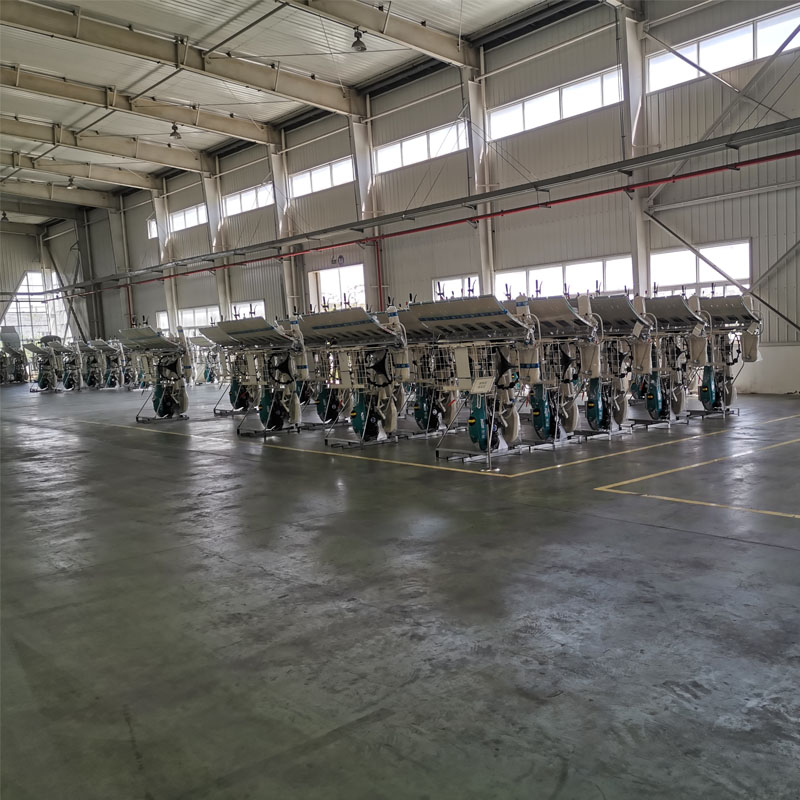

  • c4ca1d70f89112902af0cc5cf38a648

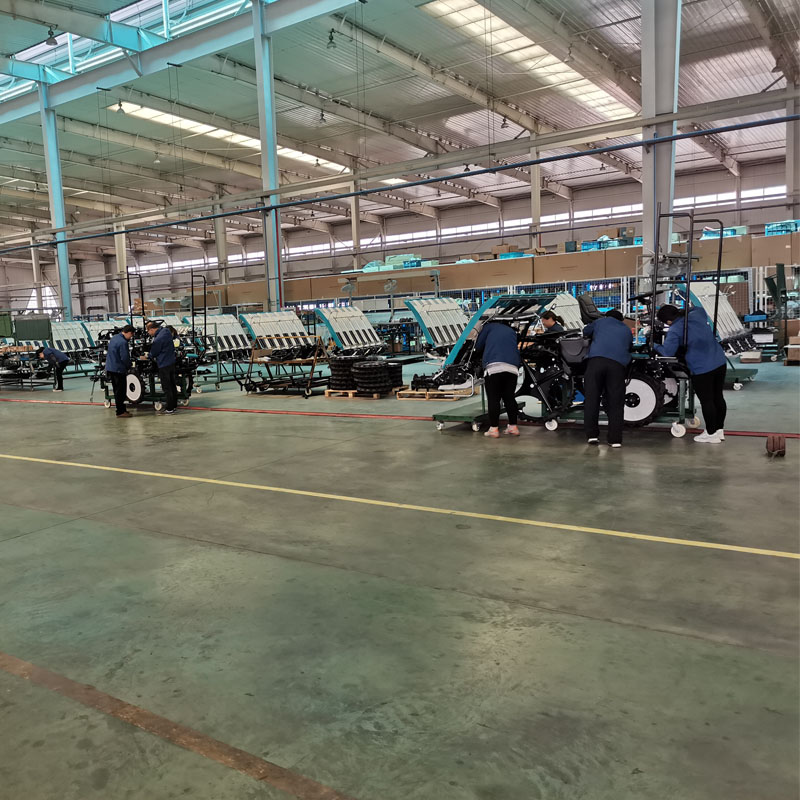

  • 插秧机车间照片 (2)

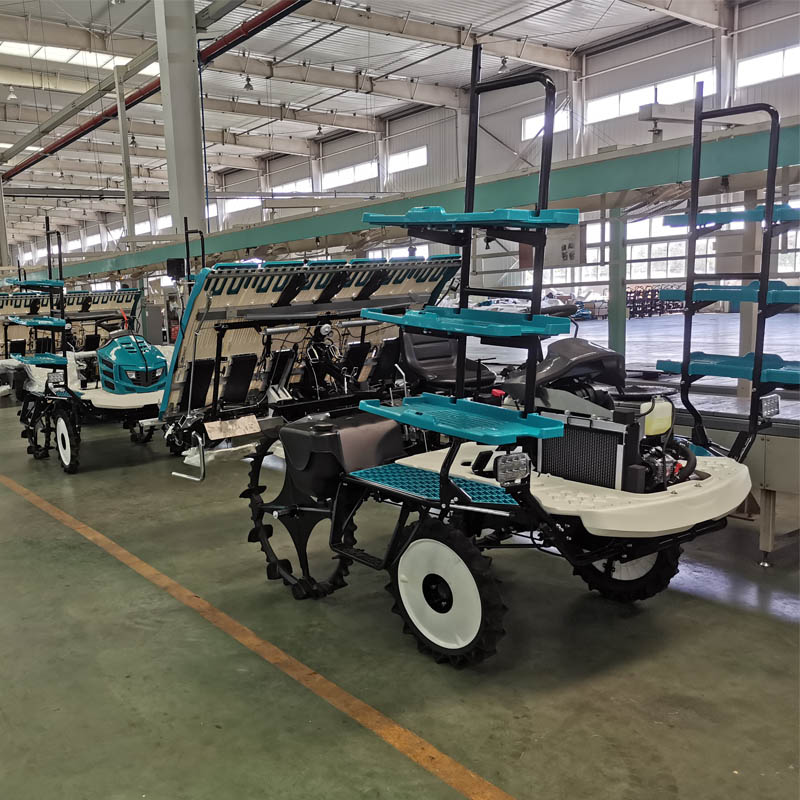

  • 插秧机车间照片 (5)

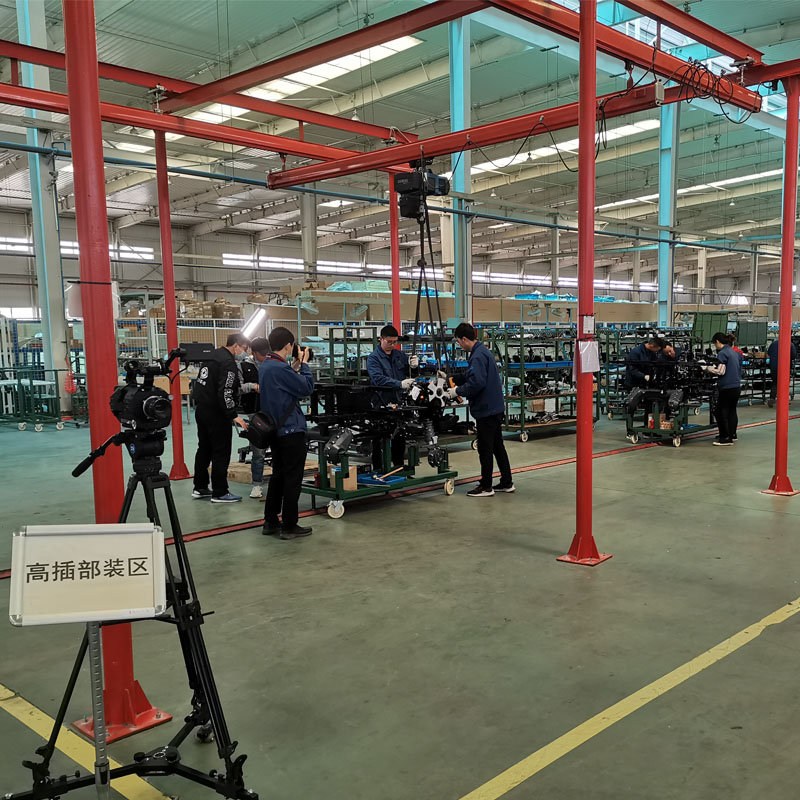

  • 插秧机车间照片 (6)

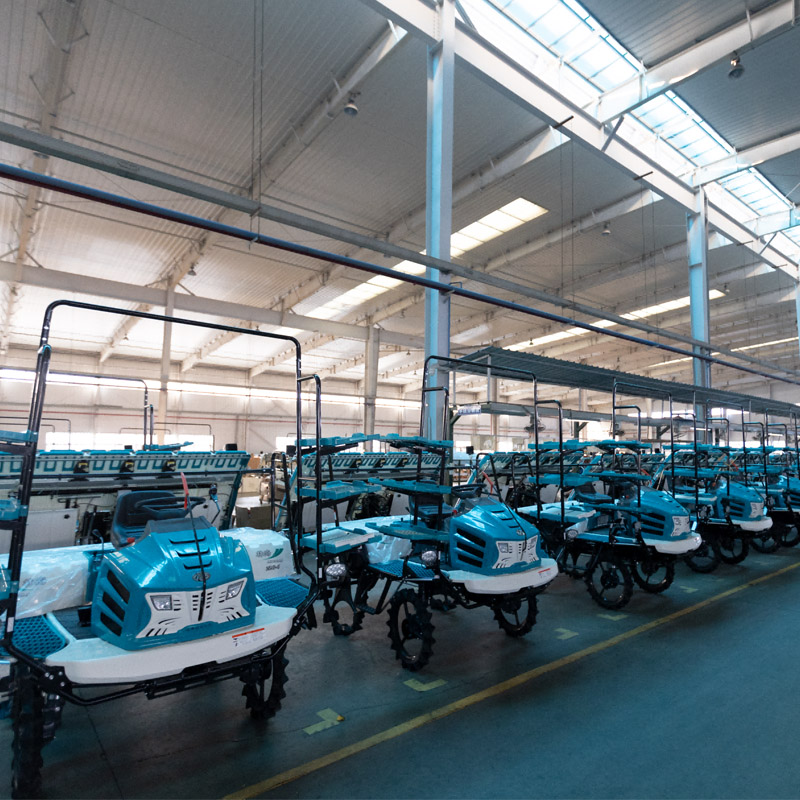

  • 厂子1

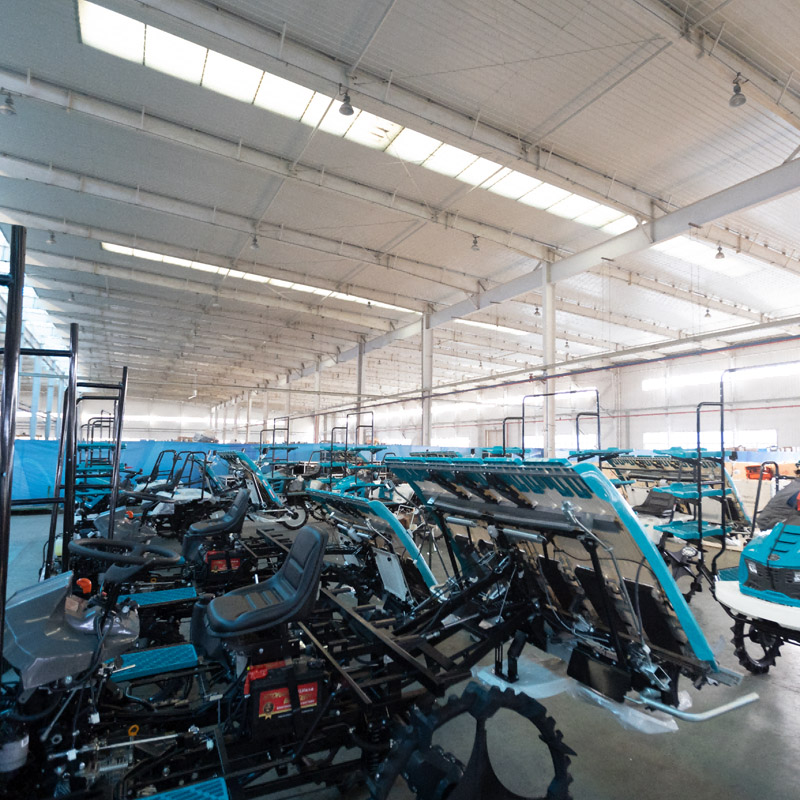

  • 厂子2
