weight：3780kg
rate power：99.5KW
Tank capacity: 1600L
structure style:crawler-type self-propelled full feed

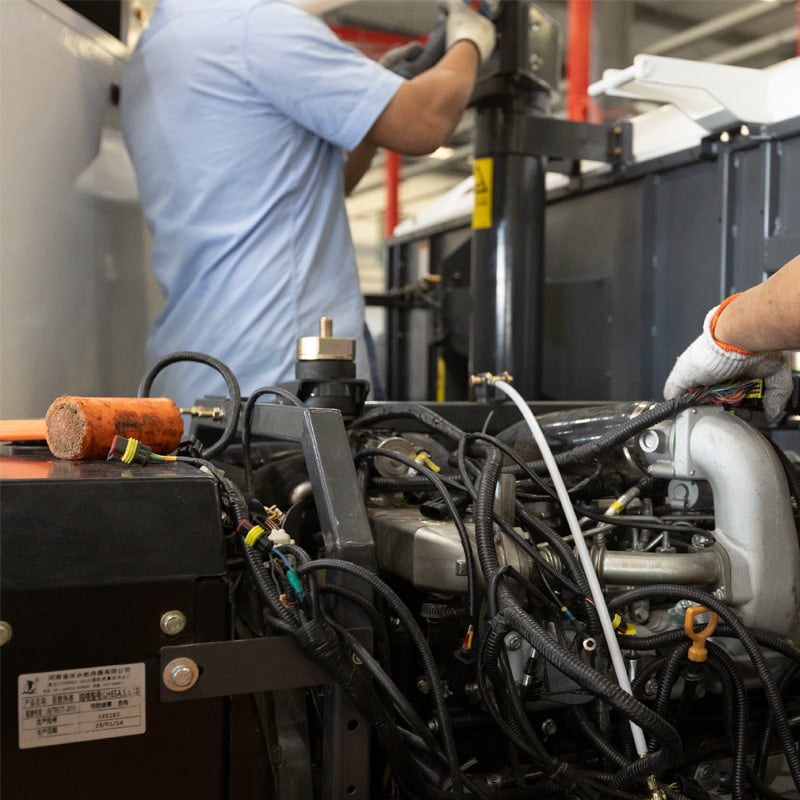

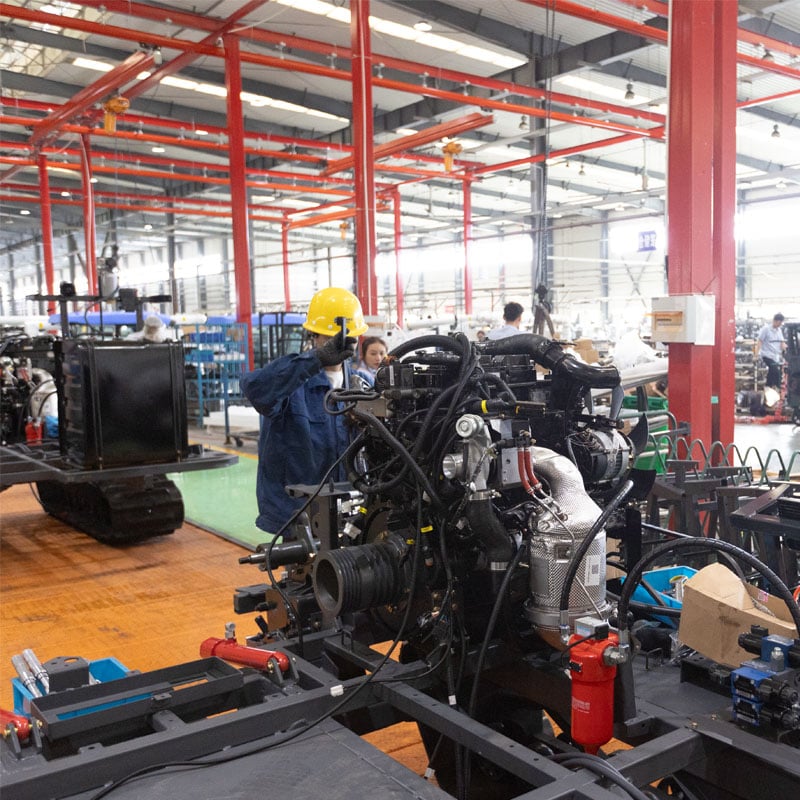

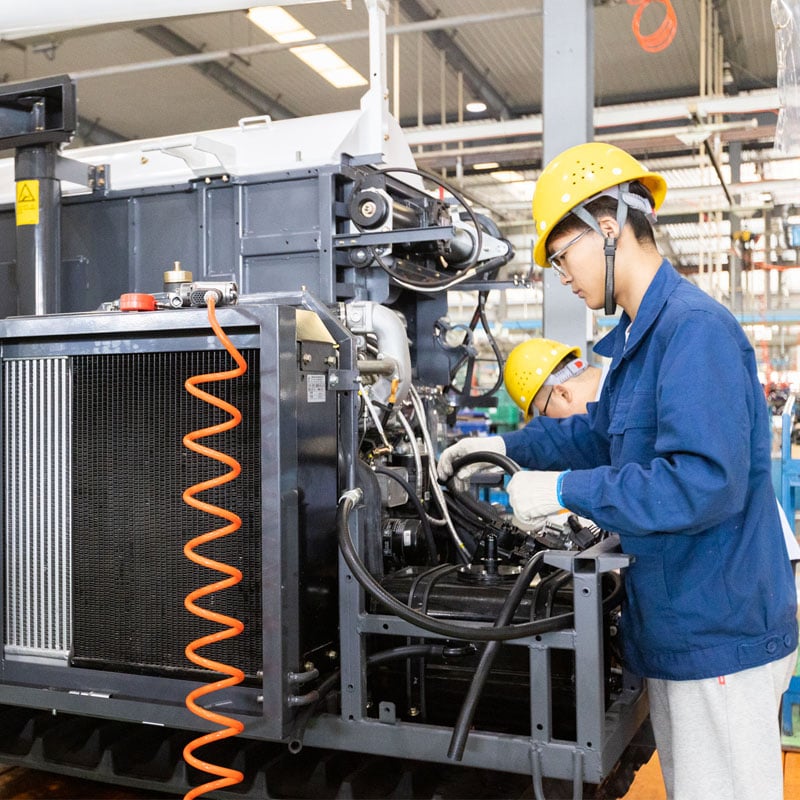

Changchai National IV emission 4G36V16 supercharged intake high pressure common rail
Diesel engine, large torque reserve, good fuel economy, low noise
Characterized by low sound and low vibration, it is energy-saving and environmentally friendly and dynamic at the same time.
Power is stable and reliable

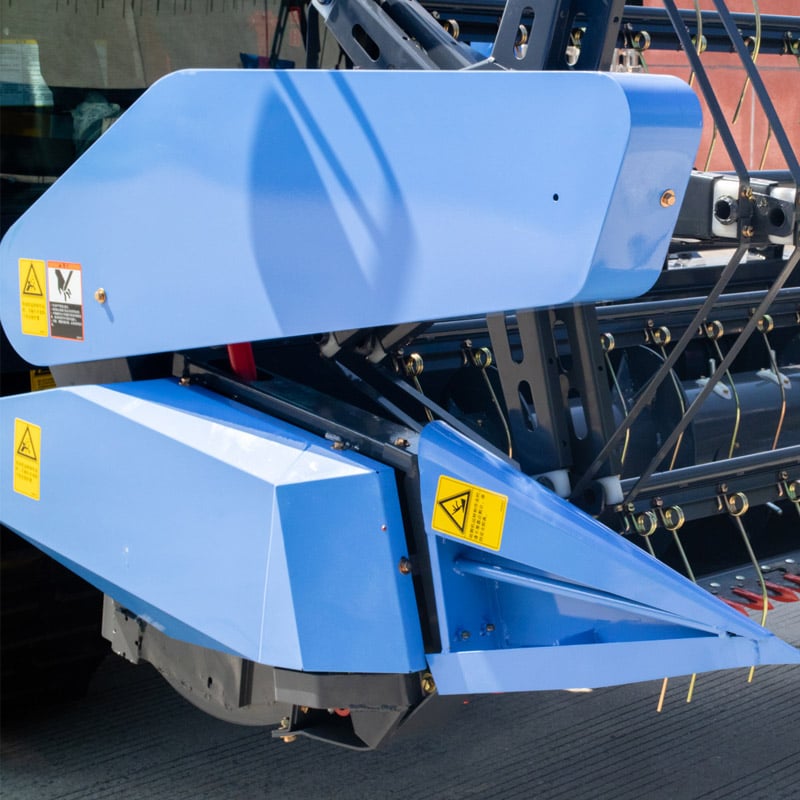

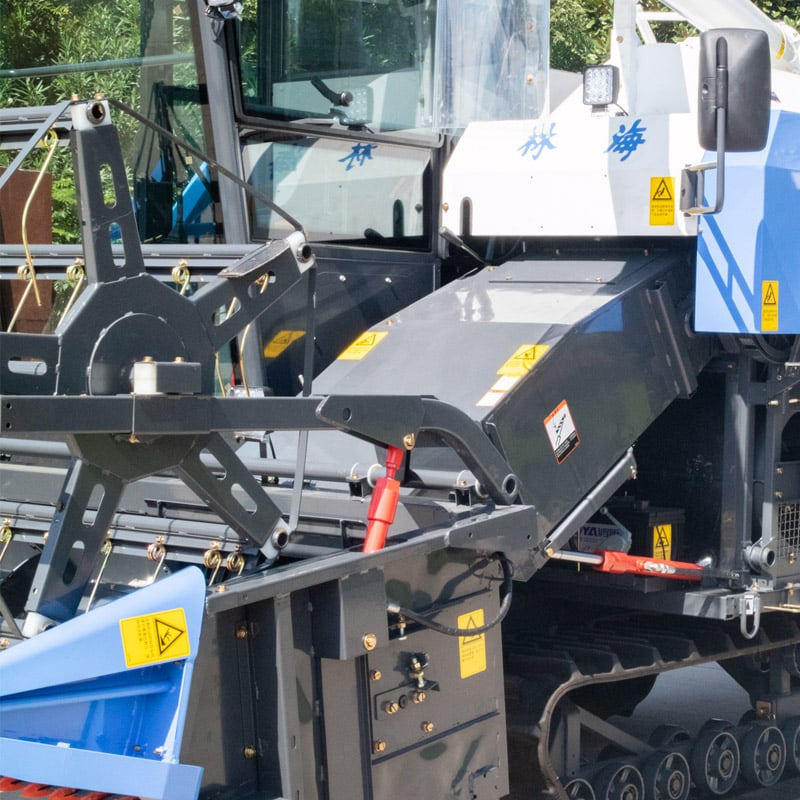

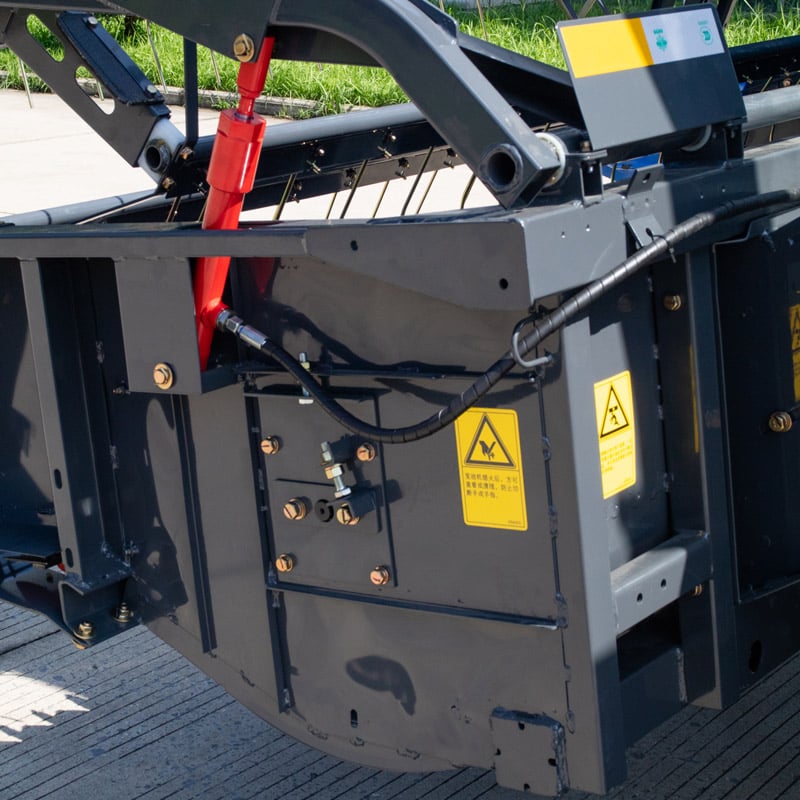

2.2m header (optional 2.3m), rigid transmission of reel chain, stable and reliable transportation, smooth rotation, small vibration and higher efficiency.
Machine related information can be displayed on the 7-inch LCD instrument. The instrument has a reversing rear view function. When the instrument detects the presence of a reversing signal, it automatically switches to the LCD screen as a rear view image, allowing you to check the situation behind you.

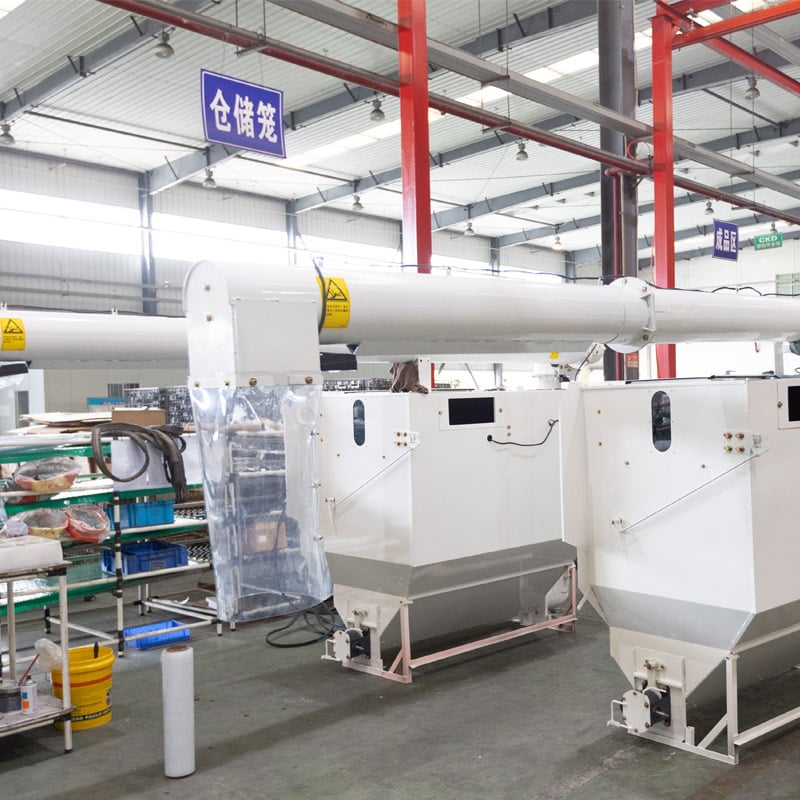

1600 liter grain tank, 360° rotation for unloading grain, one-click return.

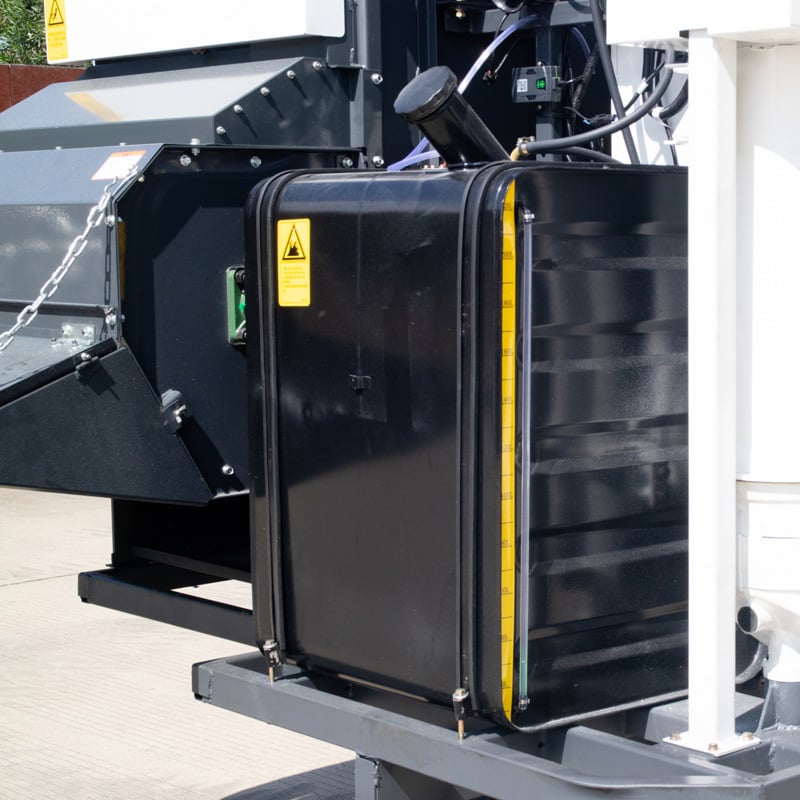

220-liter large fuel tank, labor-saving and efficient.
| TECHNICAL SPECIFICATION | |
| dimension(mm) | 5900*2500*3050 |
| weight | 3780kg |
| engine type | 4G33V16-147G412E |
| engine model | In-line water-cooled four-stroke direct injection,supercharged and mid-cooling |
| engine producer | Changchai Co,Ltd |
| cylinder quantity | 4 |
| rate rpm | 2400r/min |
| rate power | 99.5KW |
| cutter type | Il type |
| feed quantity | 6 Kg/s |
| swath | 2.2M |
| min.ground clearance | 320MM |

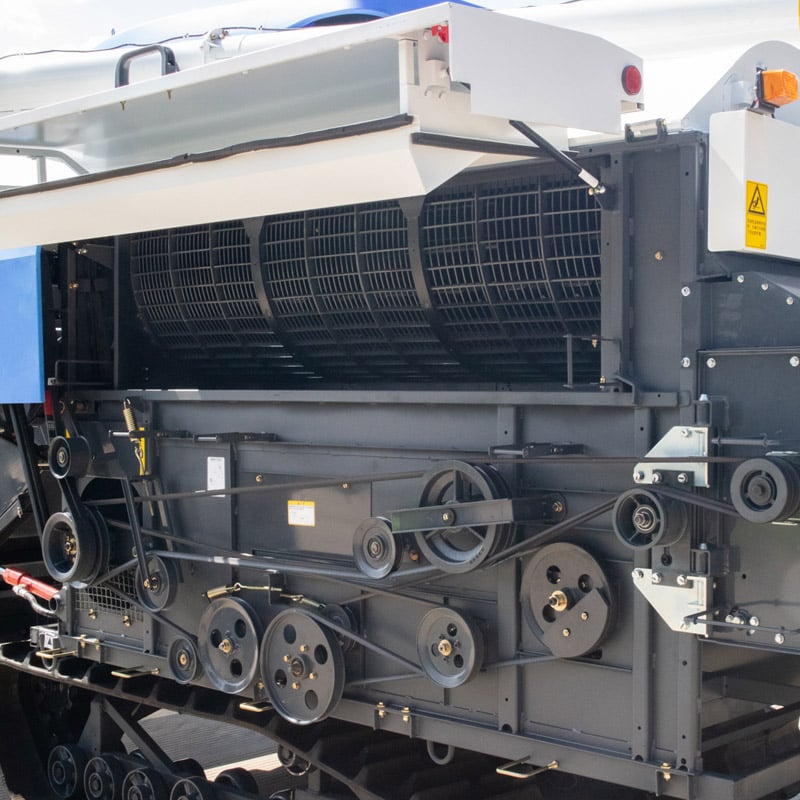

| threshing method | longitudinal axis Flow-rod tooth type |
| traesher dimension | ①620×2210 |
| trach type(pitch*number*width) | 90mm×56×500mm |
| gauge | 1250mm |
| task hour productivity | 0.2-0.85(hm²/h) |
| structure style | crawler-type self-propelled full feed |
| working gear | ow,medium |
| working speed | 0.9-6.5 km/h |
| fuel consumption | 20-35kg/hm² |
| Cutting table auger type | Spiral toothed type |
| Crawler grounding pressure | 22.8kpa |
| Winder reel type | Eccentric tooth extraction |
