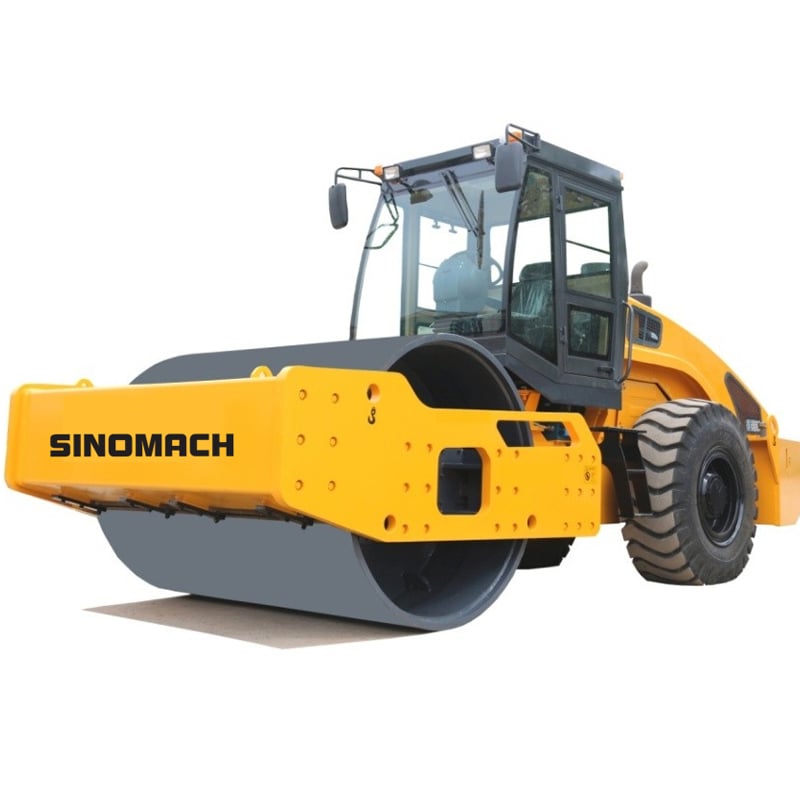

GYS122J DFULL HYDRAULIC SINGLE DRUM VIBRATORY ROLLER

Operating weight:12000kg

Rated output:97kW

Compaction width:2130mm

Main Features

Hydraulic front drum and rear wheel drive, multi-speed stepless speed change, strong climbing ability.

Hydraulic vibration, electronically controlled delay start, high excitation force, good compaction performance.

Hydraulic steering, articulated frame, light and flexible steering, light and flexible operation.

Equipped with a dedicated drive axle for the roller, which has superior drive performance.

Hydraulic travel brake, electric control disc brake parking brake, with brake release device for short-distance towing, good safety performance.

The rear hood can be turned up at a large angle for easy maintenance

The drive and vibration system are equipped with imported international famous brand hydraulic components, and the performance is reliable.

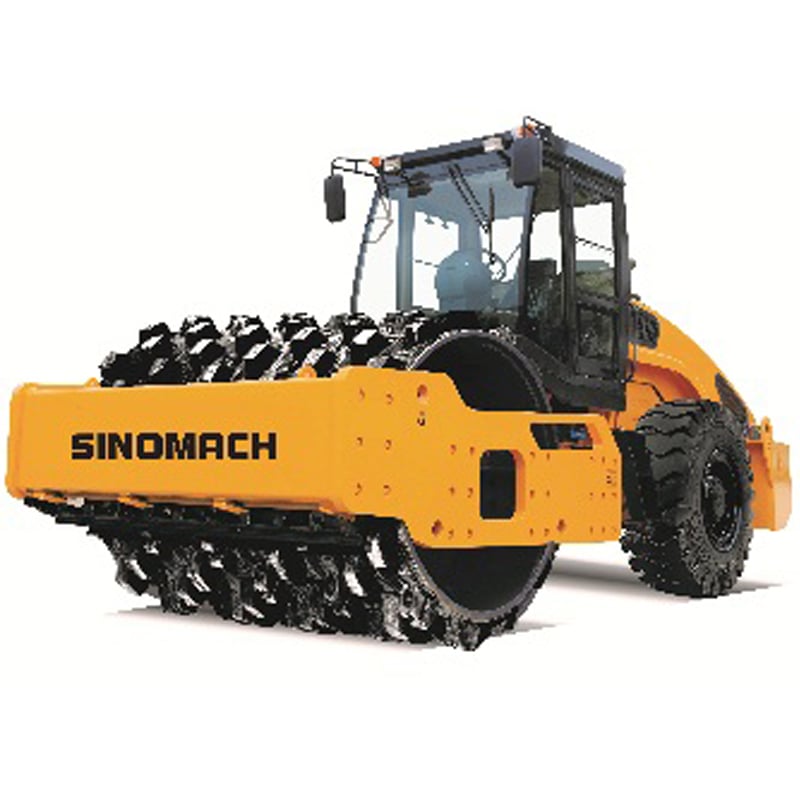

Optional different pattern tires; optional other brands of diesel engines; standard cab, optional air conditioning. Optional bump type steel wheel.

Main Specifications
Model GYS122J
Operating weight (kg) 12000
Compaction width (mm) 2130
Vibratory frequency(Hz) 30/35
Vibratory amplitude (mm) 1.9/0.9
Centrifugal force  (kN) 280/180
Travelling speed (km/h) (L)0~5.5 ,(F)0~10
Engine model 4BT3.9-C130
Engine power/speed (kW /rpm) 97/2500
Dimension (Length ×Width × Height)(mm) 6140×2300×3050
