Compacting Machinery

Home >  Products >  Compacting Machinery

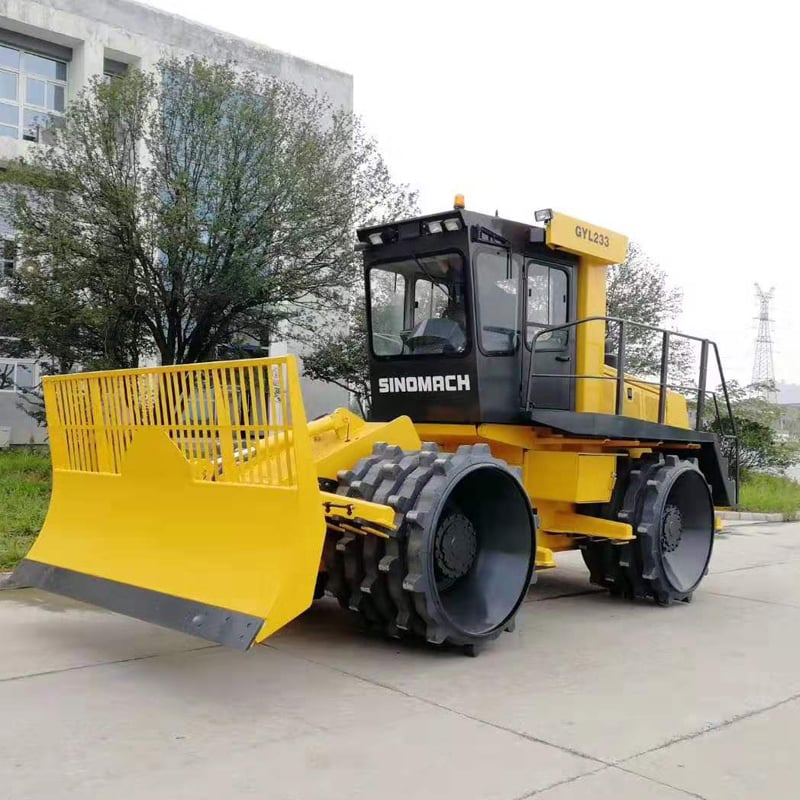

GYL233 LANDFILL COMPACTOR

Operating weight:23000kg

Rated output:147kW

Rolling width:2910mm

Main Features

1.SHANGCHAI water-cooled turbocharged diesel engine with the cold starting system.

2.Torque converter and power gearshift transmission are applied on four wheels.

3.The high wear life teeth are arranged specially, two scraper bars and two wire cutters on four

compaction wheels will avoid the wire wrap-around and keep the wheel clean.

4.The crucial spots are maintained regularly by the central lubrication system. The disinfector spray device is equipped to guard against mosquito.

5.The Roll-Over Protective Structure (ROPS) as an integral part of the frame, service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.

6.Turnover driver's cabin, engine hood with three windows at dual sides, access step and protective ladder in both sides make main components accessible.

7.Infrared vehicle video monitor system and backup buzzer are greatly convenient for driver's travel and working with more safe in increased rear view.

Main Specifications
Model
GYL233
Operating mass kg 23000
Rolling width mm 2910
Travel speed km/h 4.2/10.0
Gradeability % 100
Dozer blade height mm 1650×3000
Wheelbase mm 3350
Clearance mm 435
Wheel width mm 1040/835
Wheel diameter (front / rear, out teeth) mm 1500/1500
Teeth No. per wheel (front / rear)
50/40
Diesel engine model
SC8DK200G3
Diesel engine power kW 147
overall dimensions mm 7355×3000×3600
overall dimensions mm 7355×2910×3600
