Operating weight：4000kg
Rated output：33.5kW
Compaction width：1300mm

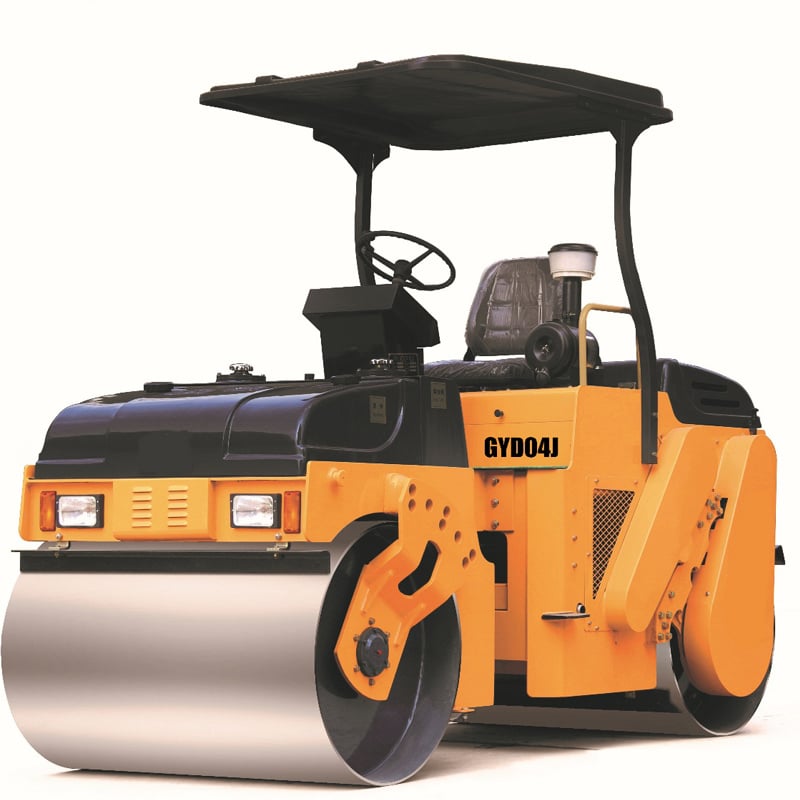

GYD04J vibratory roller is suitable for the compaction of general pavement foundation and asphalt surface layer such as road maintenance, municipal, rural roads, parking lots, stadiums and other industrial sites. Main features: mechanical drive, high reliability of vibration; second-stage dust-removing air filter, before extending the service life of the engine, the rear wheel has adjustable scraper device; gravity sprinkler on front and rear wheels; insulated ceiling, wide view; Optional mobile trailer for easy site transfer.
| Model:GYD04J Double drum vibratory roller | |
| 二,Main parameters | |
| 1,Operating weight | 4000 kg |
| 2,Vibratory drum diameter | 860 mm |
| 3,Compaction width | 1300 mm |
| 4,Static line pressure | 185 N/cm |
| 5,Travelling speed | Ⅰ 2.5 km Ⅱ 7.5 km/h |
| 6,Gradeability | 20% |
| 7,Vibratory frequency | 50 Hz |
| 8,Vibratory amplitude | 0.5 mm |
| 9,Centrifugal force | 40 kN |
| 10,Ground clearance | 210 mm |
| 11,Min. turning radius | 4800 mm |
| 12,Wheelbase | 2280 mm |
| 13,Water tank capacity | 250 L |
| 14,Fuel tank capacity | 100 L |
| 15,Dimension | 3180mm×1460mm×2560mm |
| 16,Engine | |
| Model | ZN490Q |
| Type | 4 cylinder in-line,4 stroke,water cooled |
| Rated power | 33.5 kW |
| Rated speed | 2600 r/min |
| Starting voltage | 12 V |
