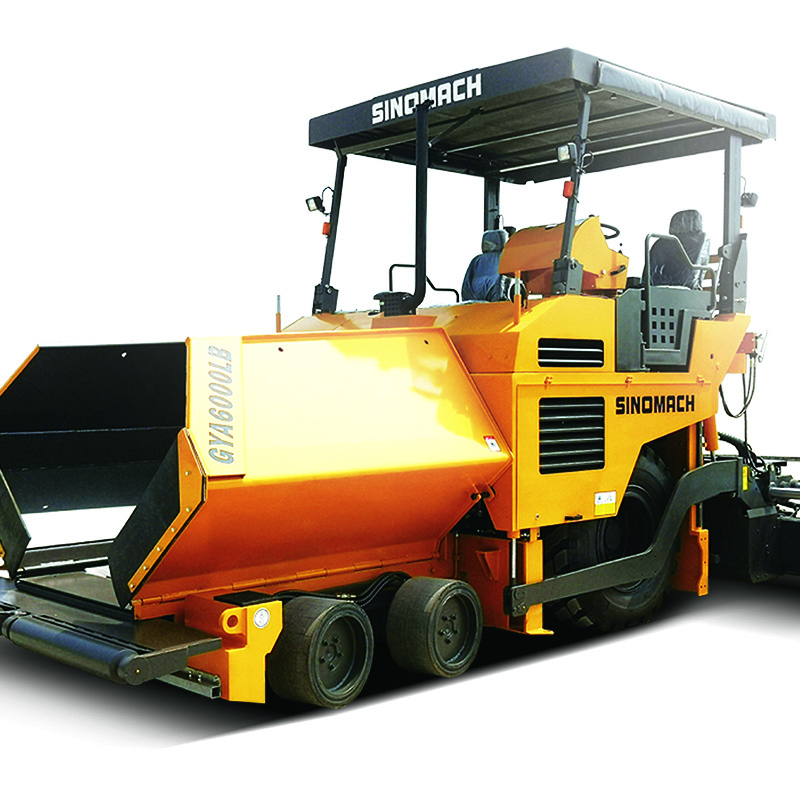

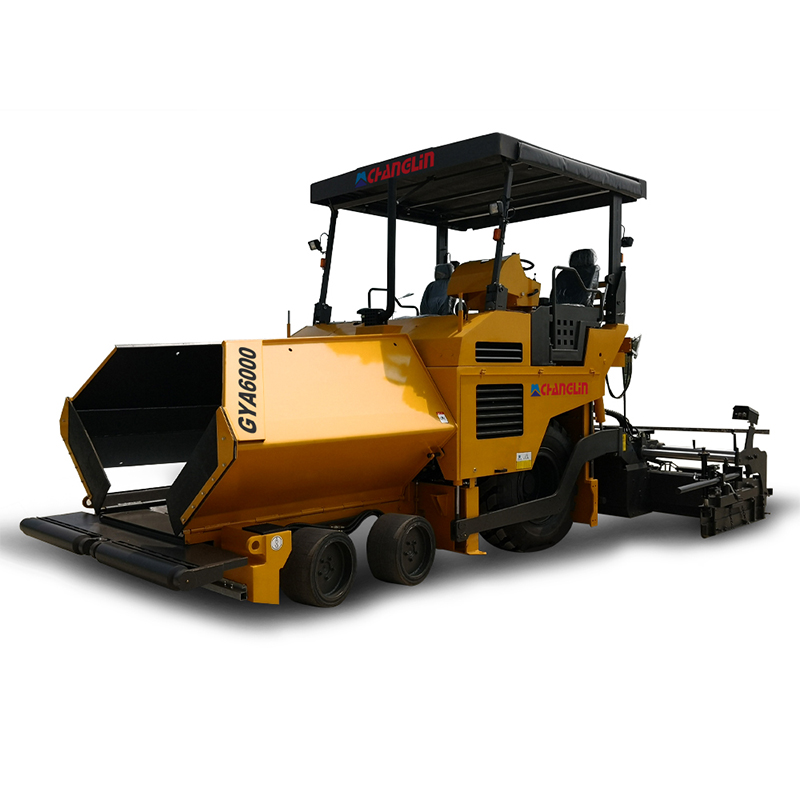

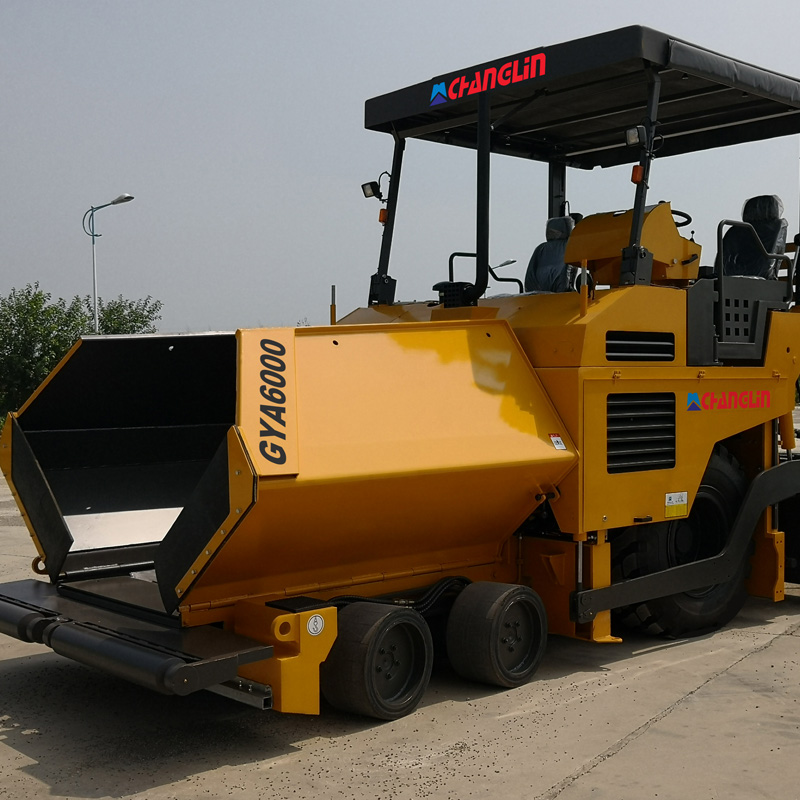

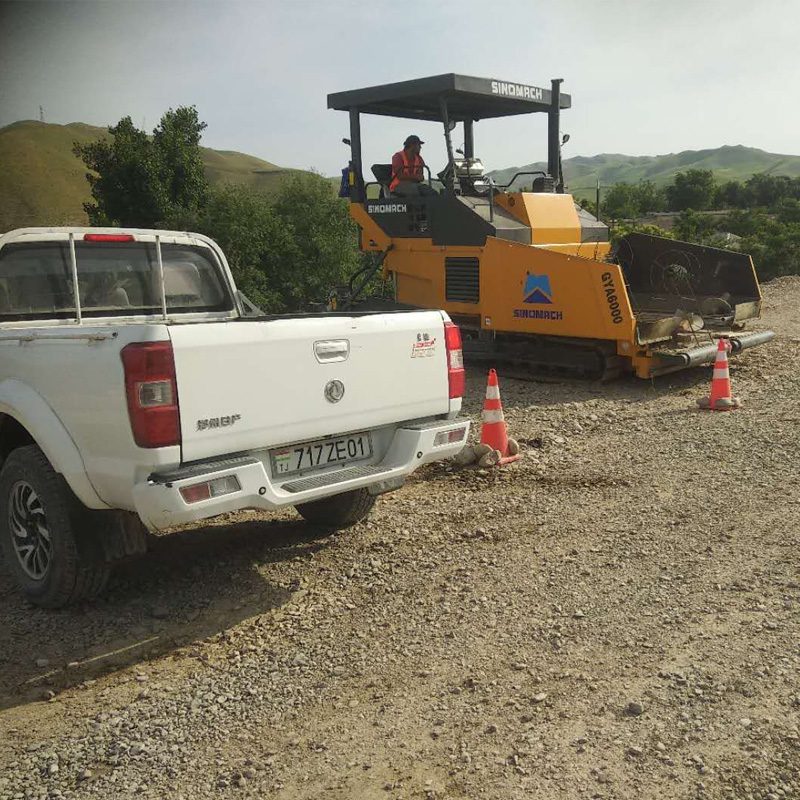

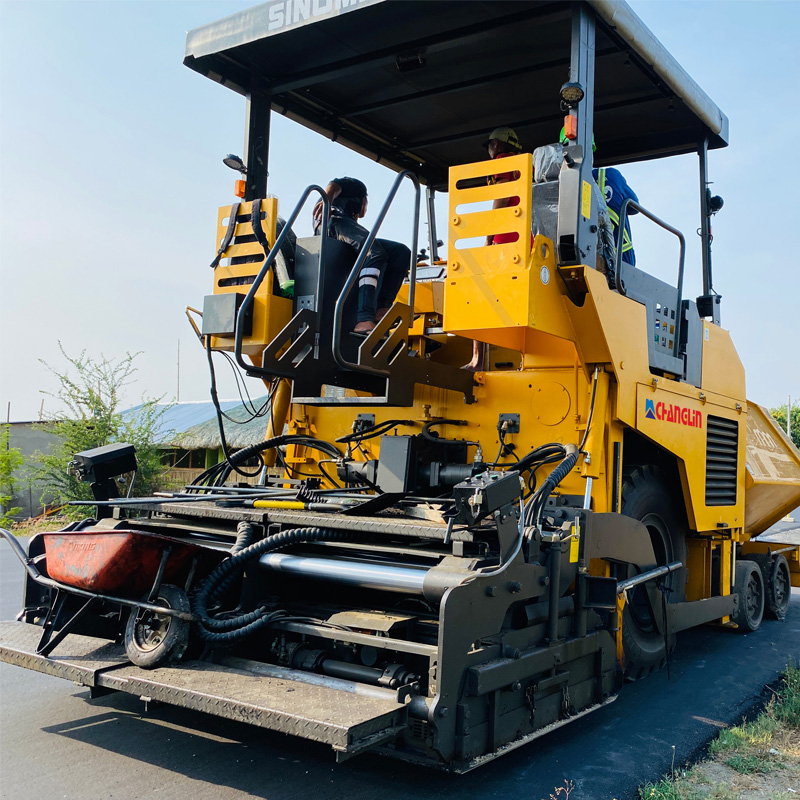

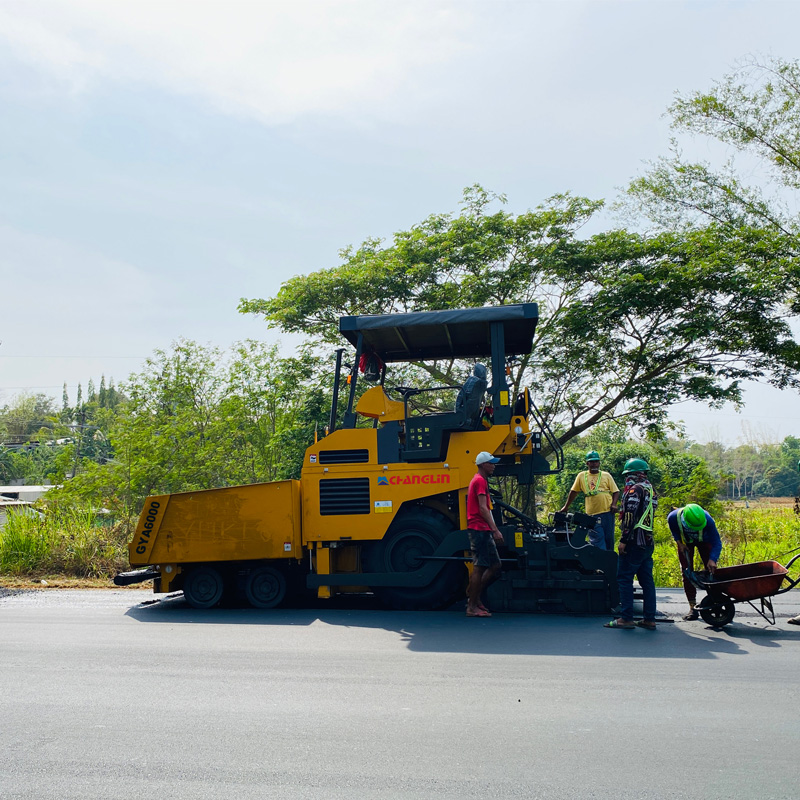

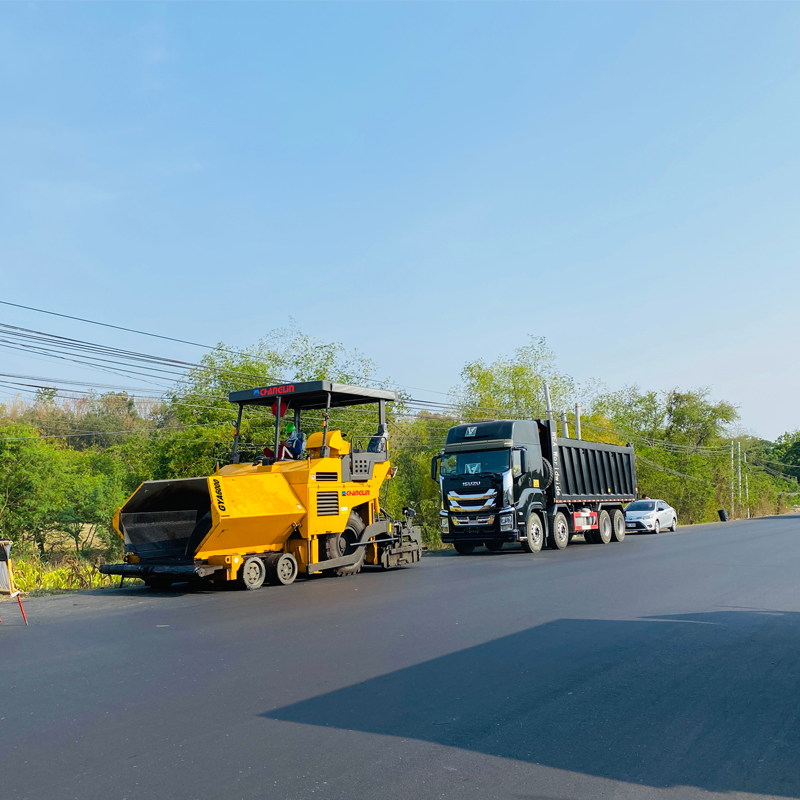

The GYA6000 Tracked Asphalt Paver is a versatile and efficient solution for paving roads, municipal streets, expressways, and small-area projects. With its advanced features and robust construction, it ensures precise and reliable asphalt paving, making it an essential equipment for various construction applications.
Key Specifications:
- Paving Width: Adjustable from 2.5m to 6m
- Working Speed: Up to 20m/min
- Overall Mass: 19.5 tons
- Rated Power: 133kW
Features:
1. Wide Range of Applications:
The GYA6000 is suitable for municipal roads, expressways, and small-area projects, providing versatile paving solutions.
2. Powerful Cummins Engine:
Equipped with a Cummins electronic-injection engine, the paver delivers strong power, high reliability, and excellent performance, even in low-temperature conditions.
3. Advanced Travel Drive System:
The travel drive system features original imported hydraulic plunger pumps, planetary reduction gears, and plunger motors, ensuring high reliability and smooth operation. The closed-loop control system enables independent drive on both sides, ensuring stability, flexibility in maneuvering, and easy site transitions.
4. Independent Hydraulic Material Distribution System:
Four sets of independent hydraulic systems control material distribution, ensuring uniform and proportional feeding controlled by sensors.
5. Durable Construction:
The blade and under-plate are constructed using high-wear-resistant alloy materials or imported armor plates, ensuring durability and long service life.
6. Adjustable Tamping System:
The tamping system features stepless speed regulation, ensuring perfect compaction effects during paving.
7. Efficient Electric Heating System:
The electric heating system offers convenience in operation, with fast and uniform heating, enhancing paving efficiency.
With its wide paving width range, powerful engine, advanced drive system, and efficient heating capabilities, the GYA6000 Tracked Asphalt Paver is the ideal choice for achieving high-quality and precise asphalt paving in various construction projects.
Item | Unit | GYA6000L | GYA6000LB | |
Specification | Traveling type | Driving | Rear wheel drive | Four-wheel drive |
Basic paving width | m | 2.5 | 2.5 | |
Max. paving width | m | 6 | 6 | |
Max. paving thickness | mm | 150 | 150 | |
Working Speed | m/min | 0-11 | 0-11 | |
Traveling speed | km/h | 0-11 | 0-11 | |
Theoretical productivity | t/h | 400 | 400 | |
Hopper capacity | t | 12 | 12 | |
Gradeability | % | ≥20 | ≥20 | |
Flatness deviation (longitudinal wave) | mm/3m | 2 | 2 | |
Transverse wave deviation | % | ±0.02 | ±0.02 | |
Degree of adjustment | % | -1~+3 | -1~+3 | |
Engine | Manufacturer | Dongfeng Cummins | Dongfeng Cummins | |
Model | QSB3.9-C125 | QSB3.9-C125 | ||
Fuel tank capacity | L | 116 | 116 | |
Rated power | kW | 93 | 93 | |
Rated speed | rpm | 2200 | 2200 | |
Electric system | V | 24 | 24 | |
Emission | State Ⅲ | State Ⅲ | ||
Ironing system | Screed type | Hydraulic | Hydraulic | |
Telescopic range | m | 2.5~4.5 | 2.5~4.5 | |
Compaction type | Single | Single | ||
Compaction frequency | HZ | 25 | 25 | |
Compaction amplitude | mm | 5 | 5 | |
Vibration frequency | HZ | 40 | 40 | |
Heating type | Diesel | Diesel | ||
Dimension & weight | Length | mm | 6290 | 6290 |
Width (Basic) | mm | 2690 | 2690 | |
Height (Cabin) | mm | 3650 | 3650 | |
Transport height | mm | 3000 | 3000 | |
Weight | t | 16(1±5%) | 17(1±5%) |
paving width | 2.5m-6m step less adjustable |
working speed | 0-20m/min |
Overall mass | 19.5t |
Rated power | 133kw |
Uses for municipal roads, expressway and small-area projects and so on.
Adopting Cummins electronic-injection engine, strong power, high reliability and excellent performance on paving
lOriginal imported hydraulic plunger pomp, planetary reduction gear, plunger motor on travel drive system, high reliability, independent drive type under closed control, good stability and flexibility of changing working site.
Independent hydraulic system, sensor control to material level, Conveyor and auger in proportional collaboration
The blade and under-plate made of high wearable alloy material or imported wearable armor plate, high-durability
lTamping system with stepless speed regulation, perfect compactioness effect.
lElectric heating system, convenience for operation and fast heating.
