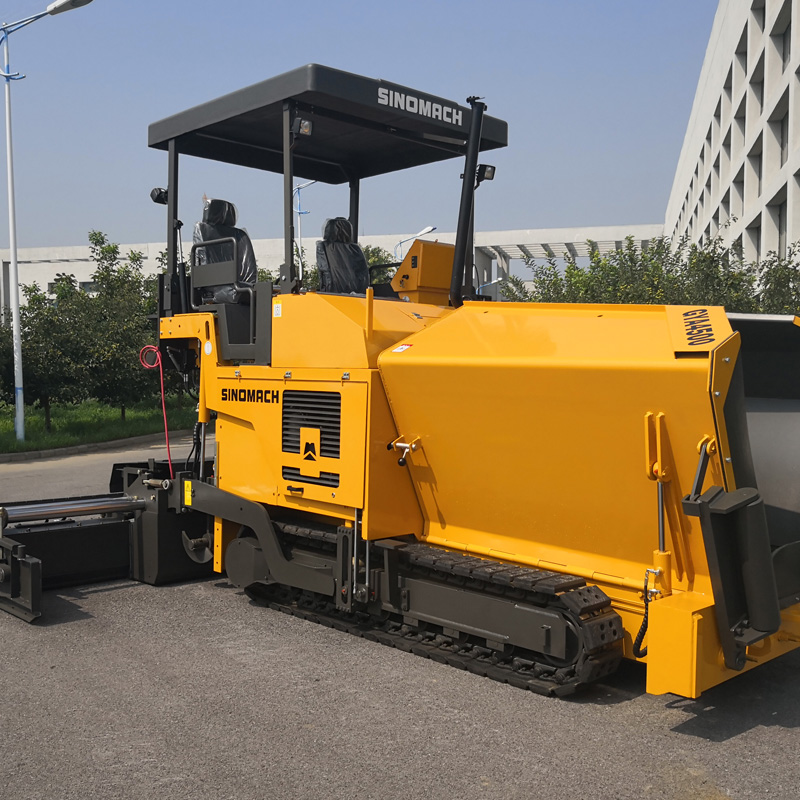

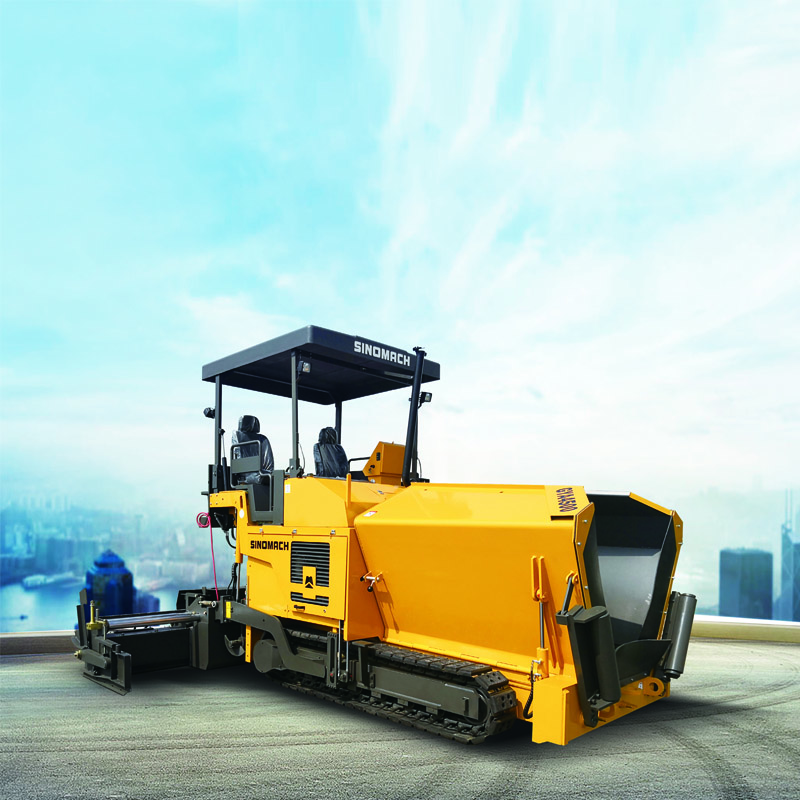

GYA4500 Precision Track Paver 4.5m Width High Performance Efficient Asphalt

Main Specifications:

- Paving Width: Adjustable from 2.0m to 4.5m

- Paving Thickness: Up to 200mm

- Paving Speed: Up to 20m/min

- Engine Power: 93kW/2200rpm

Main Features

Features:

1. Hydraulic Transmission System:

The hydraulic transmission system ensures smooth operation, guaranteeing high-quality paving results.

2. Auger Helical Distributor:

Equipped with a helical distributor, full hydraulic control, and adjustable height, suitable for various working conditions.

3. Independent Hydraulic Drive on Both Sides:

The independent hydraulic drive on both sides of the track ensures smooth paving on curved roads and side slopes. It also enables spin turns for convenient maneuverability.

4. Adjustable Scraper:

The scraper can be adjusted and moved, allowing the driver to observe the paving condition at any time.

5. Powerful Cummins Engine:

Powered by a Dong Feng Cummins 4BTA3.9-C125 engine, offering reasonable matching for any working site. With a powerful flywheel output and low fuel consumption, noise, and pollution, it has strong overload capacity.

6. Favorable Exchange Interface:

The machine features a favorable exchange interface between the operator and the machine. The humanized design of the operation table allows for left-right movement, while the adjustable seat can be moved beyond the machine, enabling the operator to observe the paving condition at any time.

7. Full Hydraulic Telescopic Heavy Duty Mangle:

Equipped with a full hydraulic telescopic heavy-duty mangle, with paving width adjustable from 2m to 4.5m. Gas heating ensures rapid temperature rise, while the strong tamper enhances the compaction of paving materials. Additionally, it comes with an ultrasonic leveling adjuster to achieve optimal paving leveling.

The GYA4500 Asphalt Paver offers precision, efficiency, and high performance, making it an ideal choice for a wide range of asphalt paving applications on various road surfaces.

Main Specifications
Item Unit GYA4500
Mainspecification Traveling type Crawler Type
Basic paving width m 2.0
Max. paving width m 4.5
Max. paving thickness mm 200
Paving speed m/min 0-20
Traveling speed km/h 0-4.5
Theoretical productivity t/h 150
Hopper capacity t 8
Gradeability % ≥20
Flatness deviation (longitudinal wave) mm/3m 2
Transverse wave deviation % ±0.02
Degree of adjustment % -1~+3
Engine Manufacturer Cummins
Model QSB3.9-C125
Fuel tank capacity L 115
Rated power kW 93
Rated speed rpm 2200
Electric system V 24
Emission 3
Crawler Grounding area mm*mm 2425*260
Crawler spacing mm 1284
Crawler width mm 260
Ironing System Screed type Hydraulic
Telescopic range m 2.0~4.0
压实方式Compaction type Single
Compaction frequency HZ 25
Compaction amplitude mm 5
Heating type Gas heating
Dimension & weight Length mm 5500
Width(main) mm 2050
Height (Cabin) mm 3415
Transport height mm 2765
Total weight t 10.5
Scope of Application

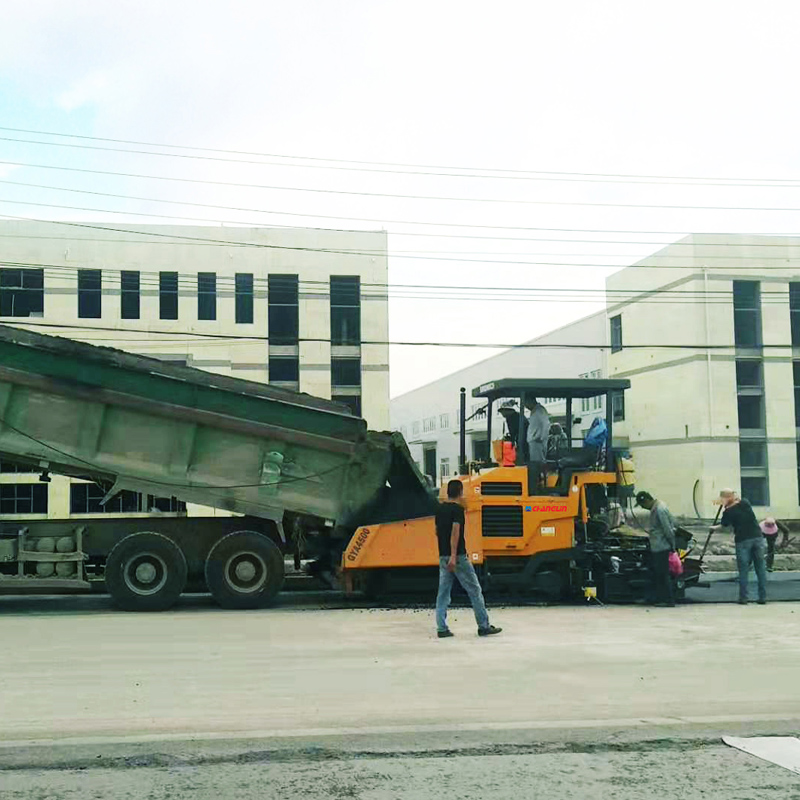

  • 1
  • WechatIMG1884

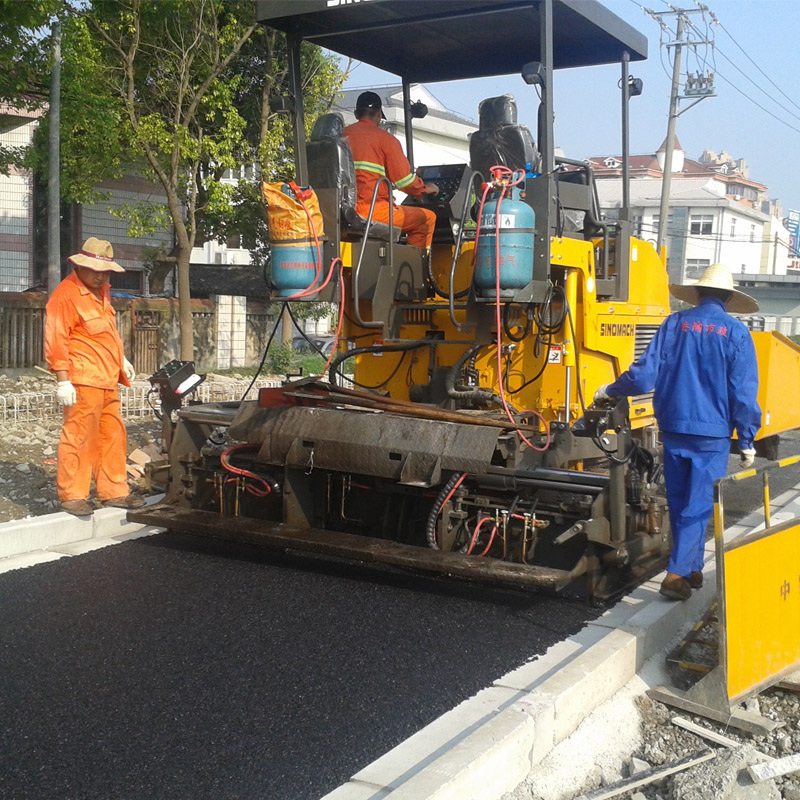

  • 图片1
Product Superiority And Transportation
Paving width 2.0-4.5m step less adjustable
paving thickness 0-200mm
paving speed 0-20m/min
Engine power 93kW/2200rpm

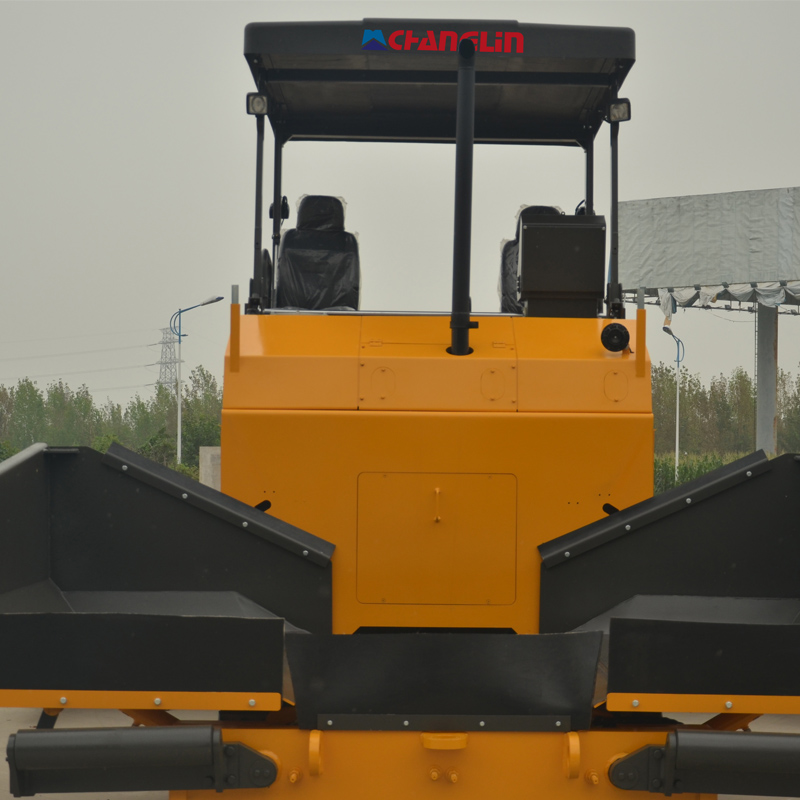

  • 大容量料斗,料斗容量可达10吨,顶推滚轮可随料斗开合而动

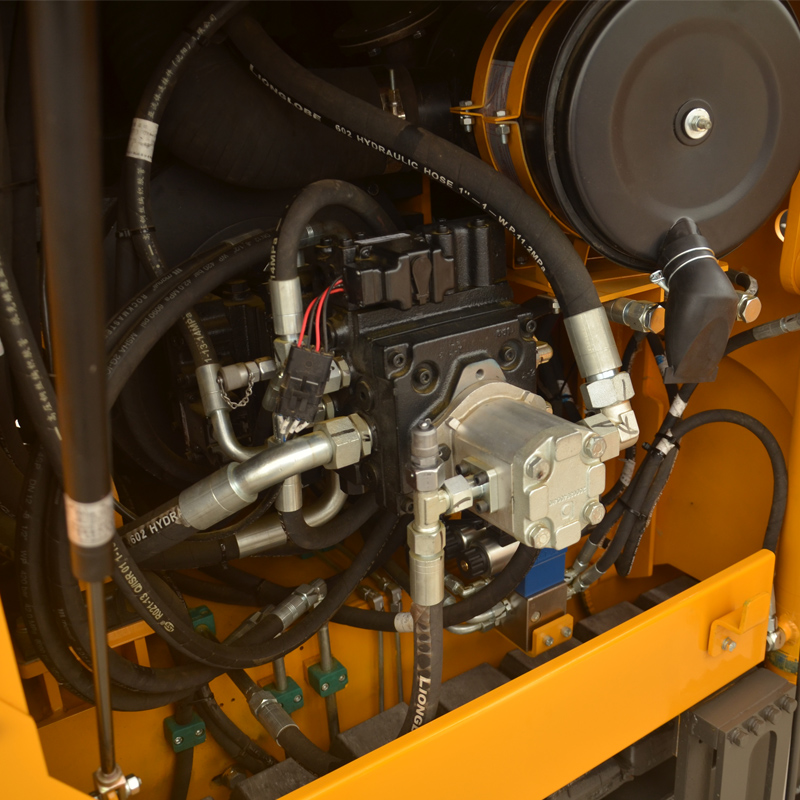

  • 可靠大排量液压原件

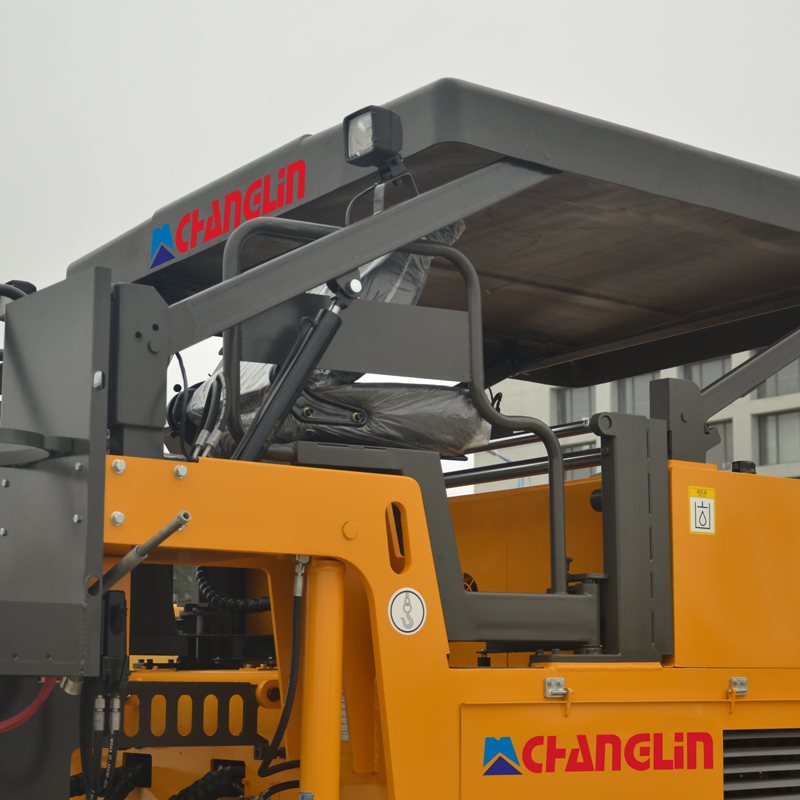

  • 可折叠顶篷,方便运输

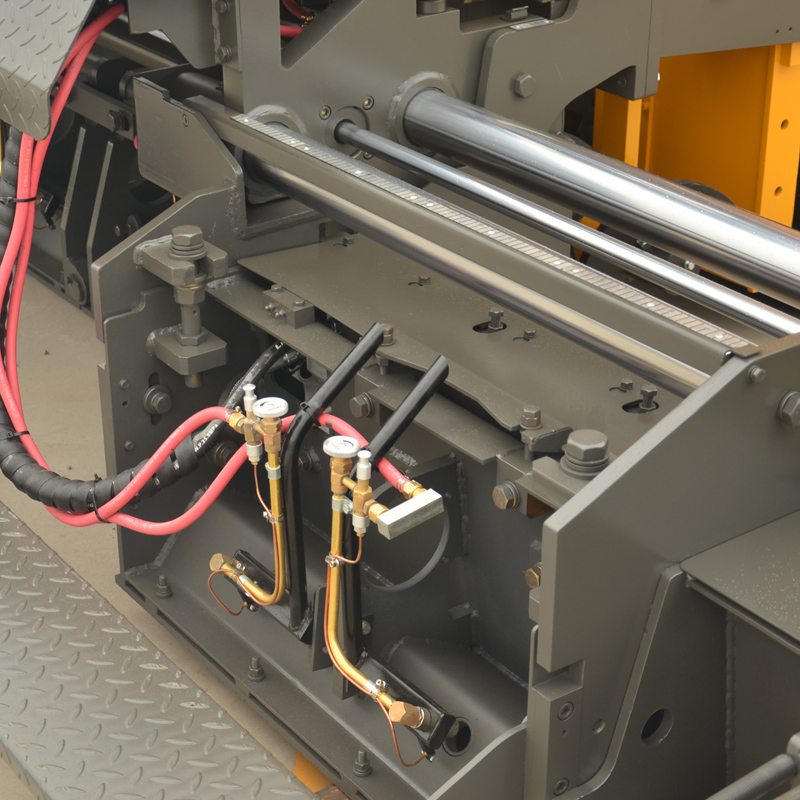

  • 燃气加热 液压伸缩熨平板 、单振捣压实结构

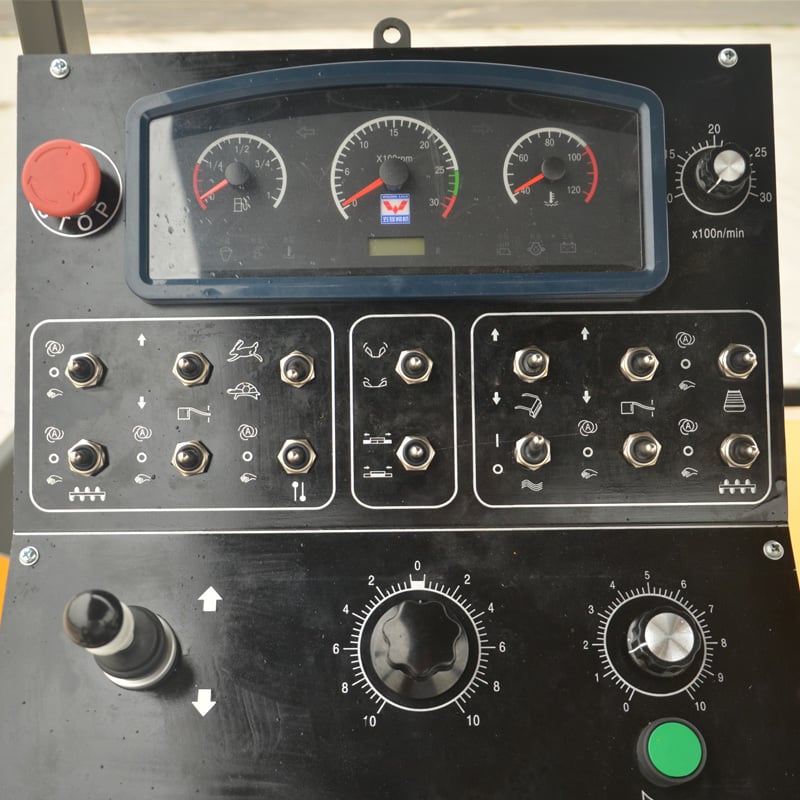

  • 以动操作平台
