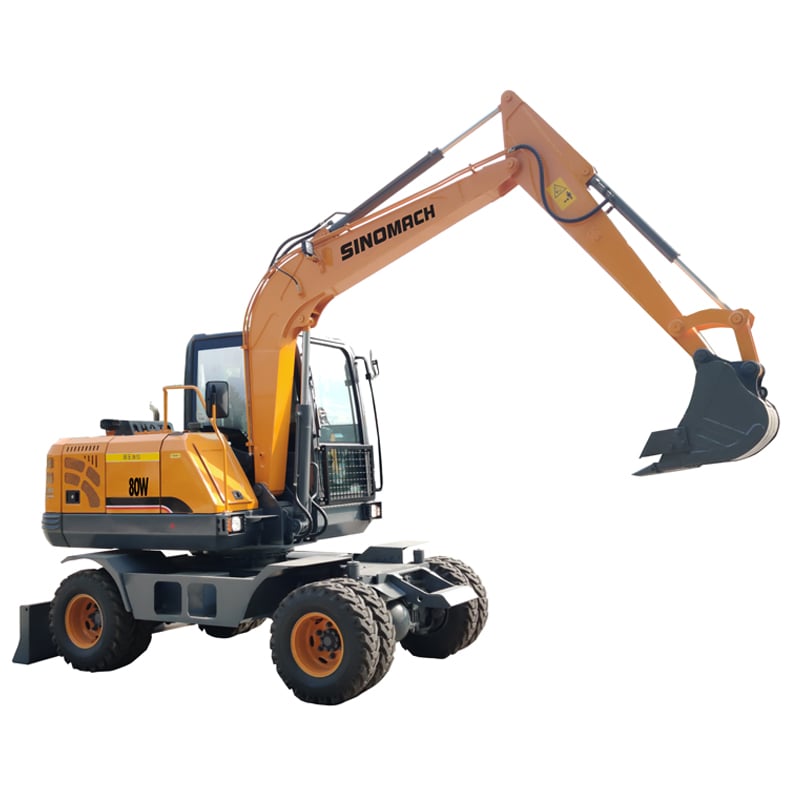

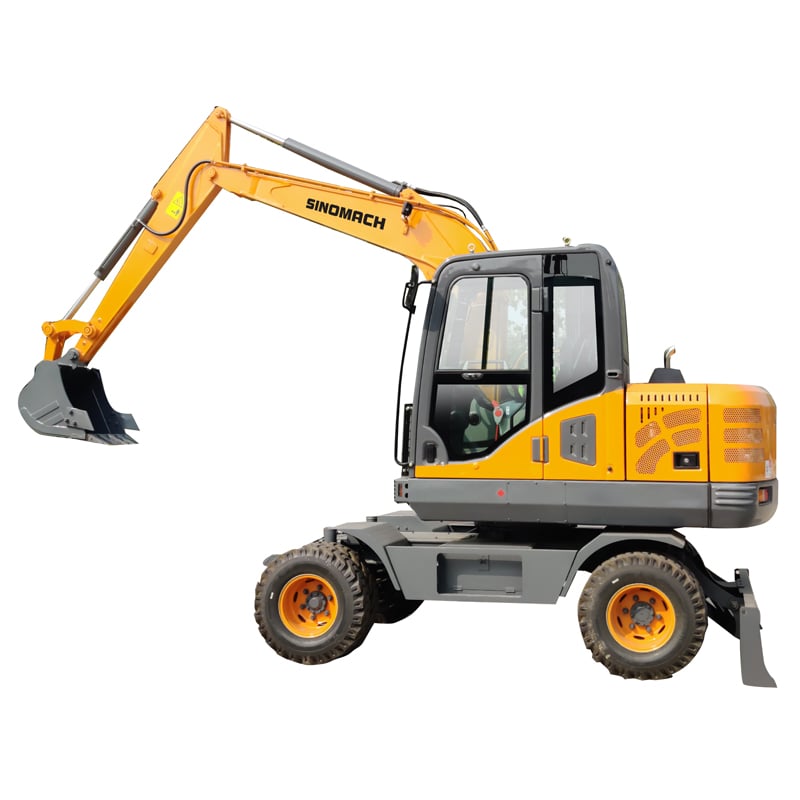

GHT80W Wheel Excavator: Power, Precision, and Comfort Combined

Introducing the GHT80W Wheel Excavator, a cutting-edge generation of fully hydraulic wheel excavators developed through independent innovation. Powered by a high-power, fuel-efficient, and environmentally friendly engine, this machine ensures robust performance and ample power reserves. The precision-engineered hydraulic system seamlessly integrates with the bridge box, guaranteeing versatility in both operational and idle states.

Main Features

The hydraulic system features advanced components meticulously matched for "high reliability, superior quality, safety, environmental consciousness, and comfort." Additionally, it offers specialized configurations to cater to diverse industry needs and customer requirements worldwide.

Features:

Tire-based Travel System:

- Fast operating speed, excellent maneuverability, long-distance self-transfer capability, without damaging road surfaces.

Continuous Core Power:

- Equipped with a powerful engine, ensuring efficient fuel combustion and reduced emissions.

- Multiple fuel filtration systems ensure engine durability and minimize harmful emissions for environmental protection.

Advanced Hydraulic System:

- New load-sensitive hydraulic system for faster single action speed and unaffected composite action, improving control and reducing pressure loss and fuel consumption.

- Optimized main control valve oil circuit design enhances operation speed and composite operation capability.

Safe and Stable Travel System:

- Improved low-speed driving capability.

- Classic wet bridge box system ensures operational reliability.

- Equipped with automatic suspension system for enhanced stability on rough terrain.

- Reasonable weight distribution layout and strong grip provide safe, stable climbing ability.

- Ensures driving safety, comfort, and economic operation cost reduction.

Durable Working Devices and Structural Components:

- Side-mounted boom design ensures optimal positioning of working devices and swing center, enhancing excavation stability.

- Installation of stronger large and small arms improves critical area strength, extending service life.

- Even under harsh working conditions, the upper and lower frames can withstand strong impacts.

- Optimized undercarriage structure improves equipment stability and durability.

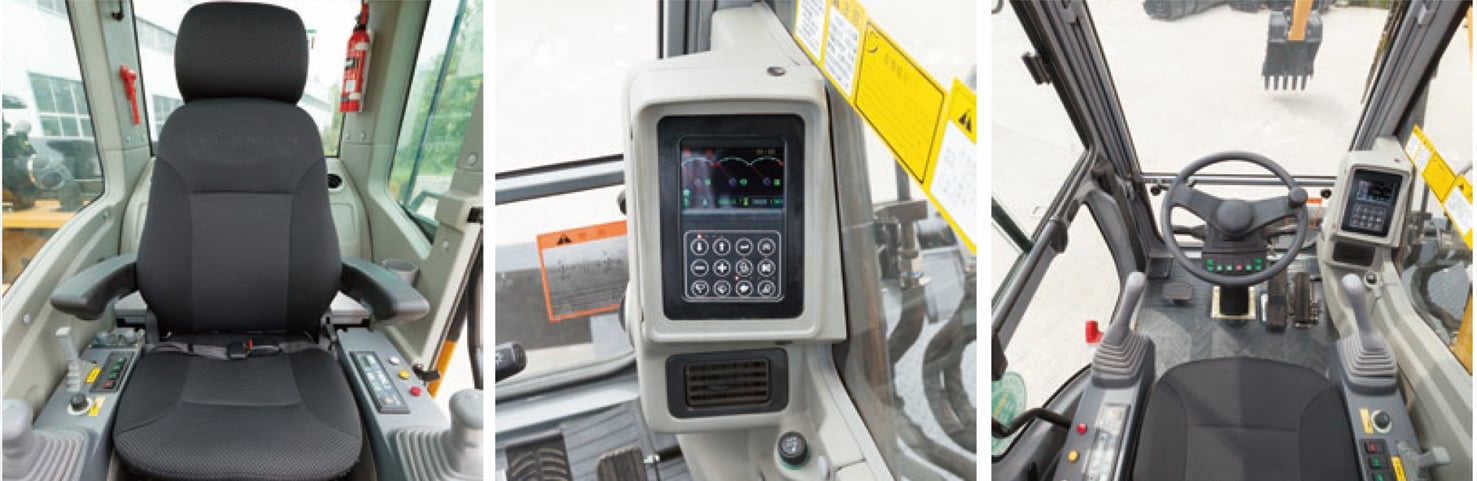

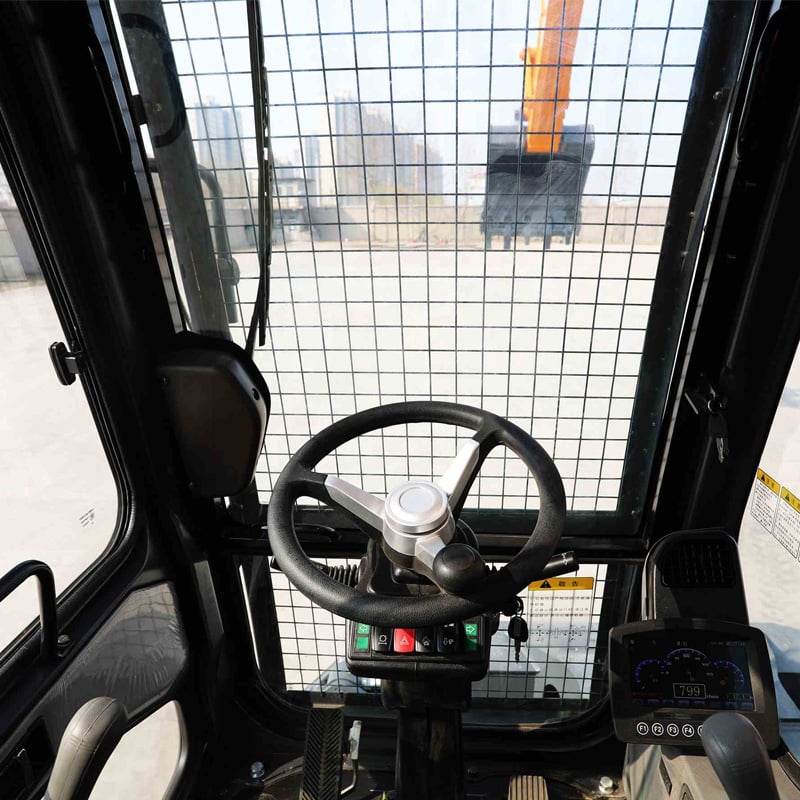

Enjoyable Driving Experience:

- Spacious cabin with a 5.6-inch LCD display for clear machine information.

- Customized air conditioning for comfortable indoor temperatures.

- Ergonomic seat adjustable to comfortable positions, reducing operator fatigue.

User-Friendly Design:

- Cabin interior inspection openings for convenient problem checking.

- Separate design for undercarriage cover, reserved maintenance space, and user-friendly design.

- Automatic transmission with high and low-speed gears.

- Modular design chassis system with mid-mounted gearbox, integral with front and rear axles, offering excellent off-road performance and rapid transfer capability.

- Elevated gearbox ground clearance design enhances passage capability, reinforced gearbox guard effectively protects component safety.

Experience power, precision, and comfort with the GHT80W Wheel Excavator.

Main Specifications
Engine Xinchai Engine (China emission II) A498BZG55kw/2500r/min
Operating Weight (kg) 6950
Bucket capacity (m ³) 0.3
Dimensions
Transportation length (mm) 6200
Transportation height (mm) 2920
Overall width (mm) 2150
Tail turning radius (mm) 1855
Height of turntable (mm) 1930
Track width (mm) 1665
Wheelbase (mm) 2350
Scope of work
Max excavation height (mm) 6910
Max unloading height (mm) 5160
Max excavation depth (mm) 3435
Max excavation radius (mm) 6385
Working parameters
Hydraulic system pressure (Mpa) 26
Hydraulic system flow (L/min) 140
Boom length (mm) 3500
Stick length (mm) 1800
Bucket digging force (kN) 45
Stick digging force (kN) 22
Fuel tank capacity (L) 120
Hydraulic oil tank capacity (L) 130
Climbing slope (%) ≥60
Rotation speed (r/min) 12-13
Max traveling speed (km/h) 30

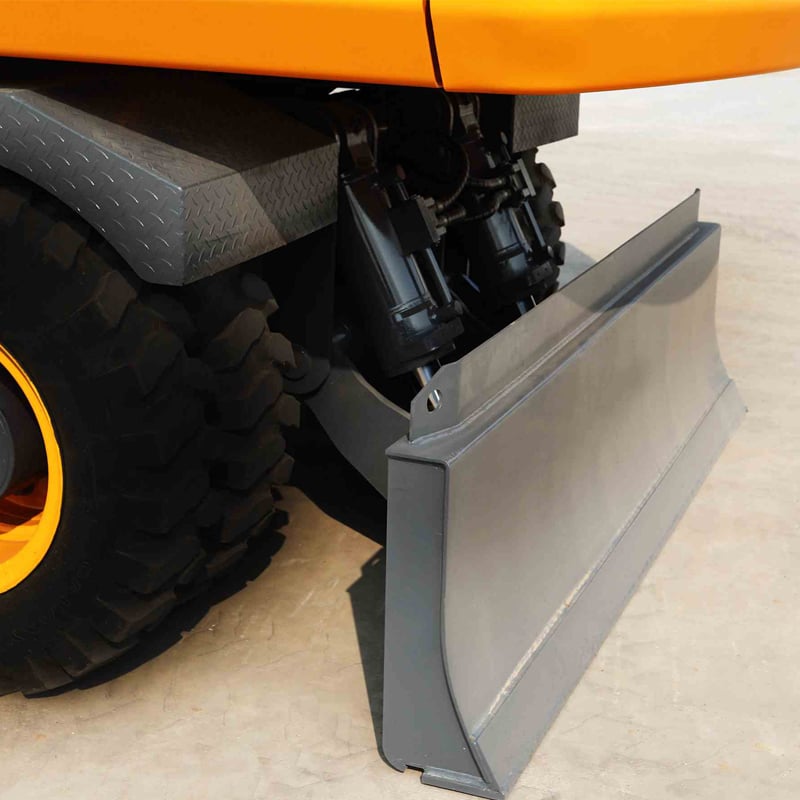

Bulldozer plate size (mm) 2150*500
Plate lifting height (mm) 380
Plate support height  (mm) 60

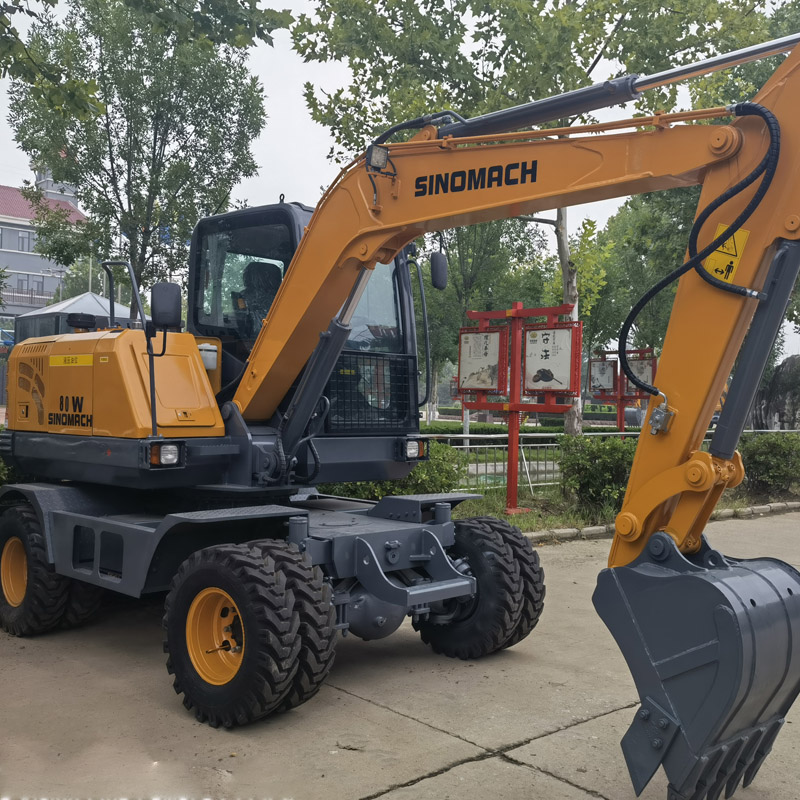

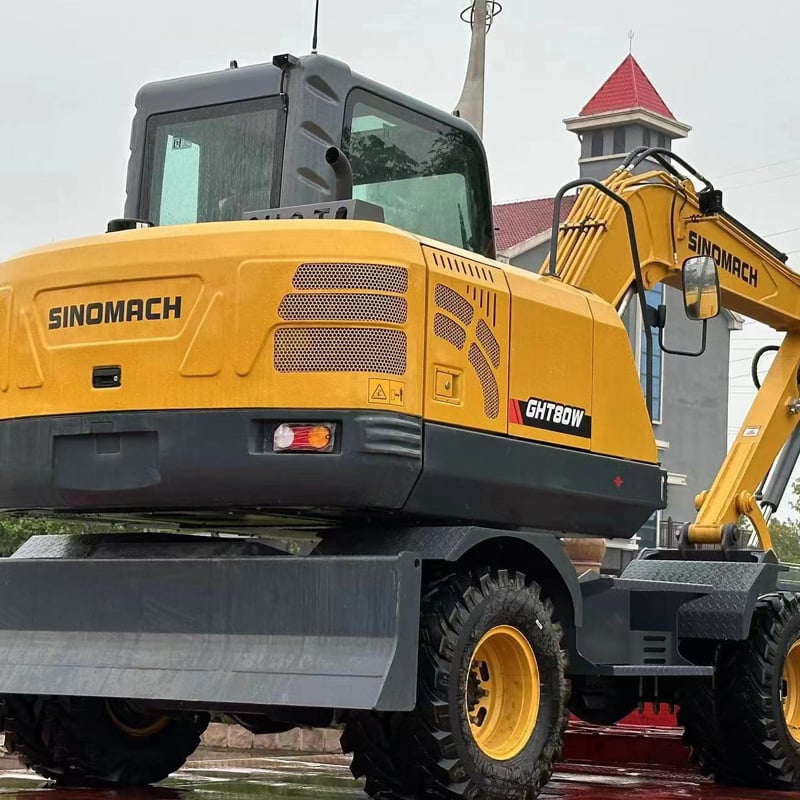

Scope of Application
  • 59fb87d24f03cce7d5bb2fa633293a6
  • 342652317c55ff7d7c8615837f97772
  • WechatIMG462ea19f23a54cb06ab1e3b80b459d5c

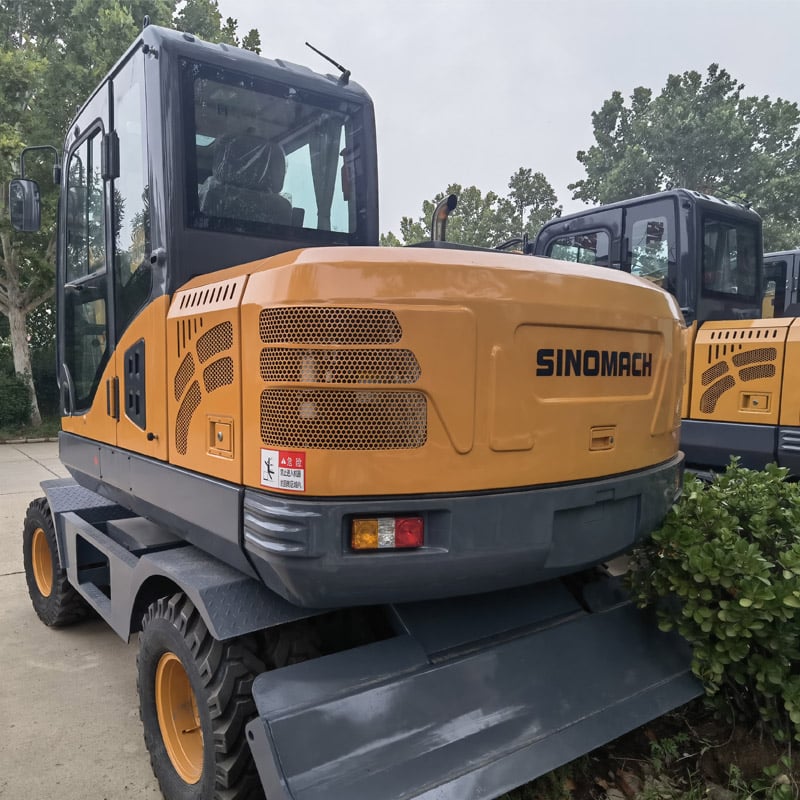

  • WechatIMGba5d2a60fd72ff815619cb93001ace39
  • 发运 (1)
  • 发运 (2)
  • 发运 (3)
  • 发运 (4)

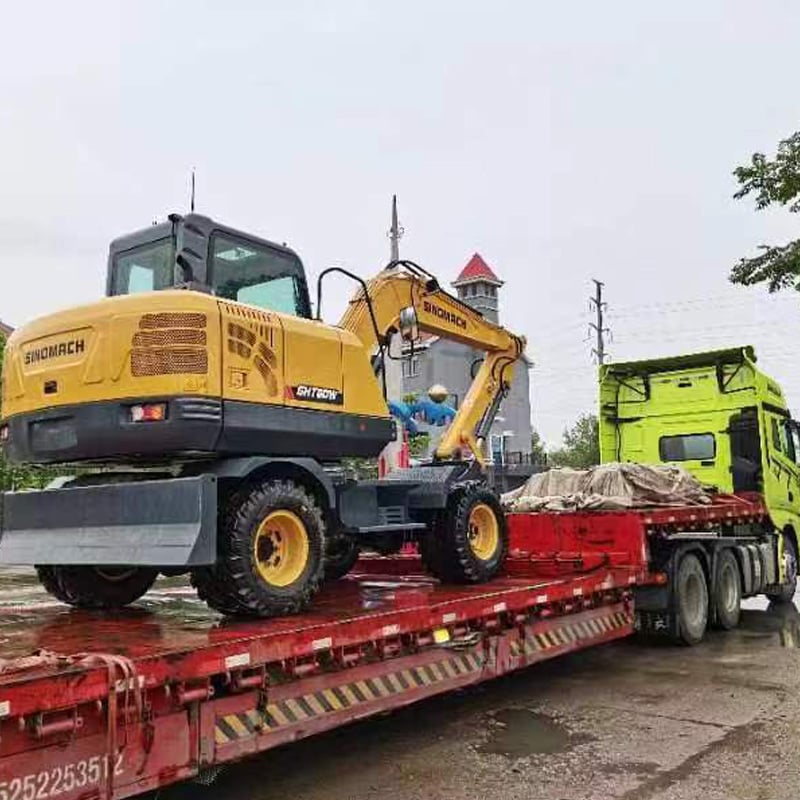

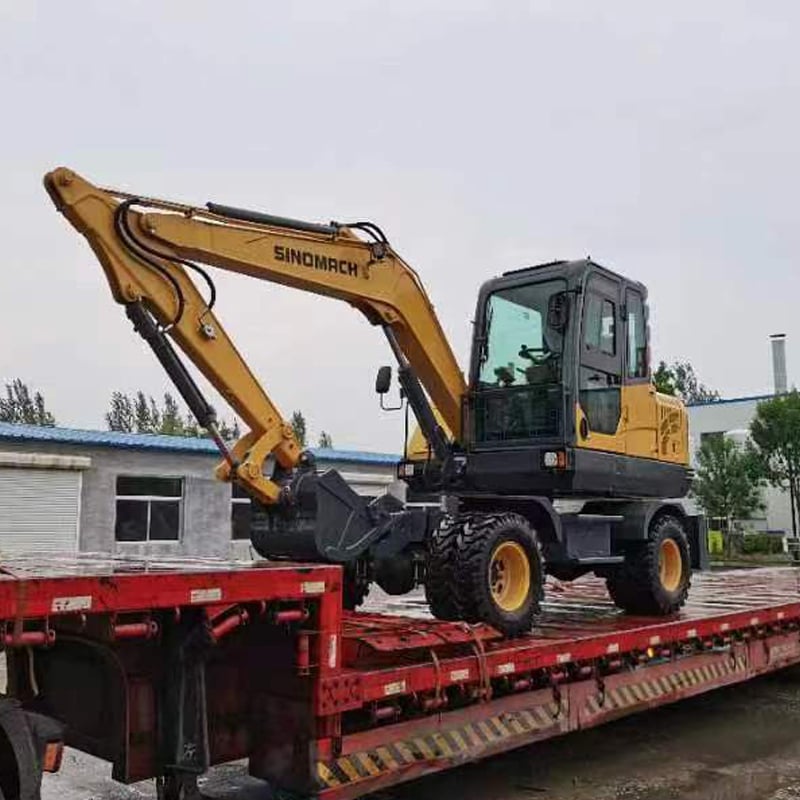

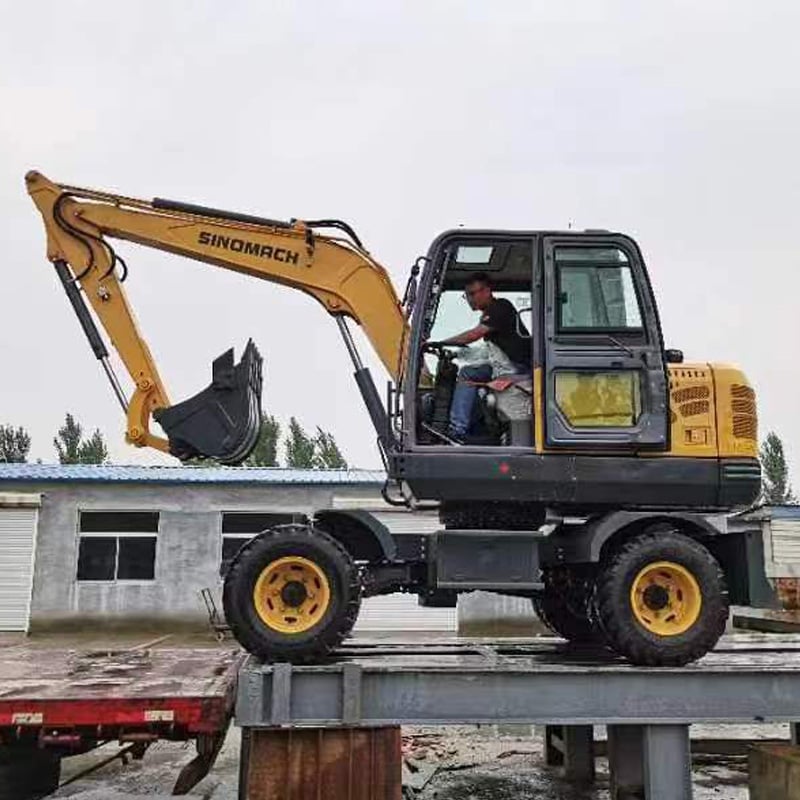

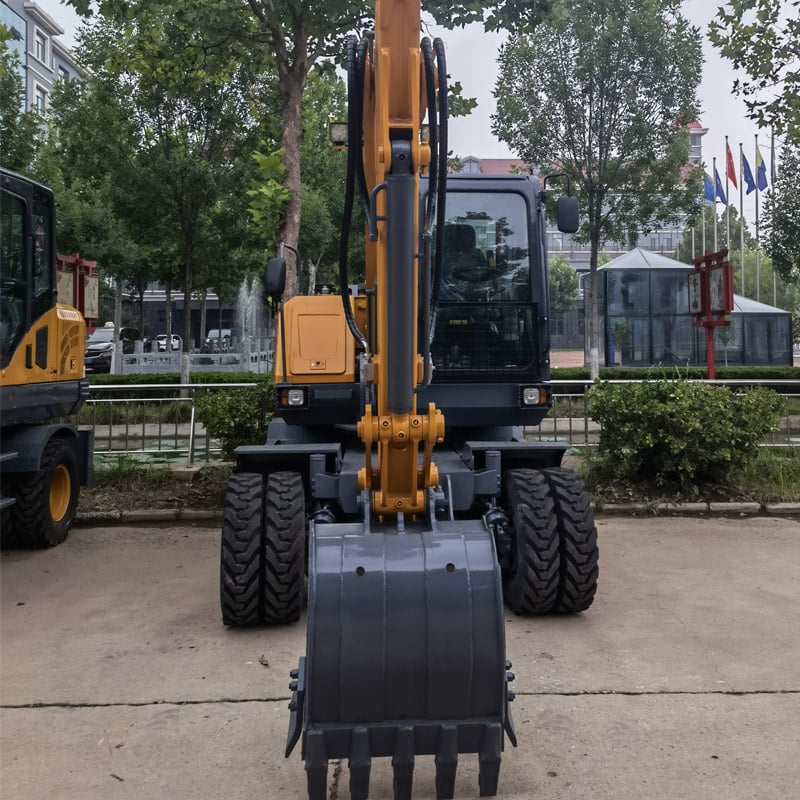

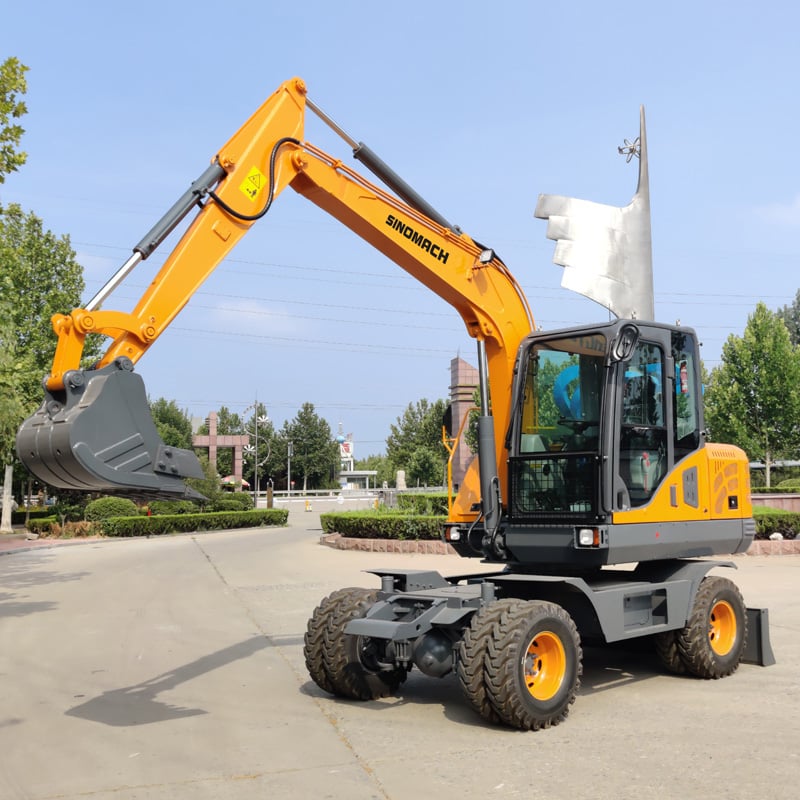

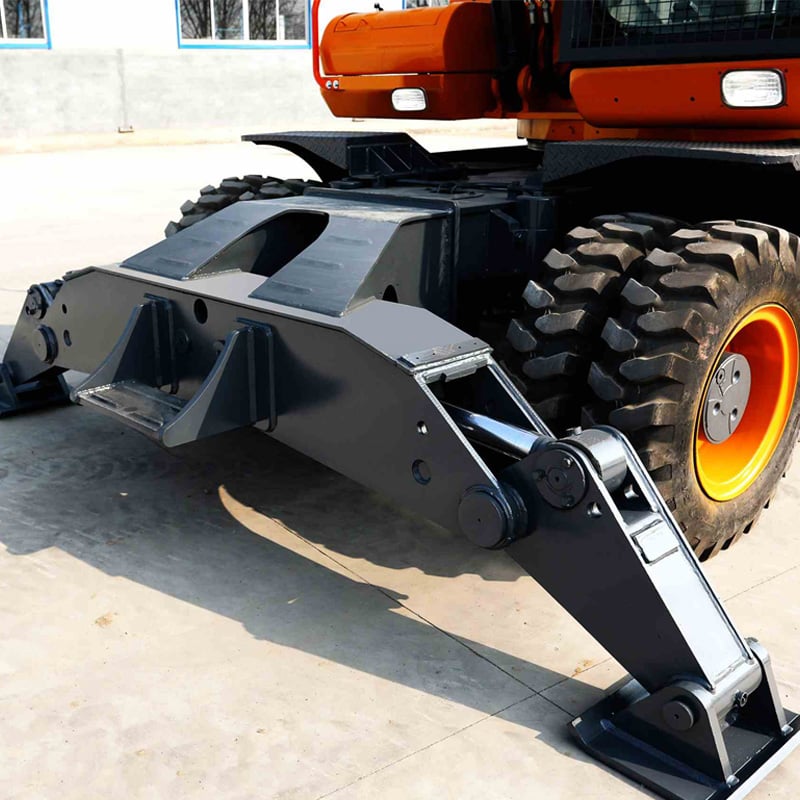

Product Superiority And Transportation
