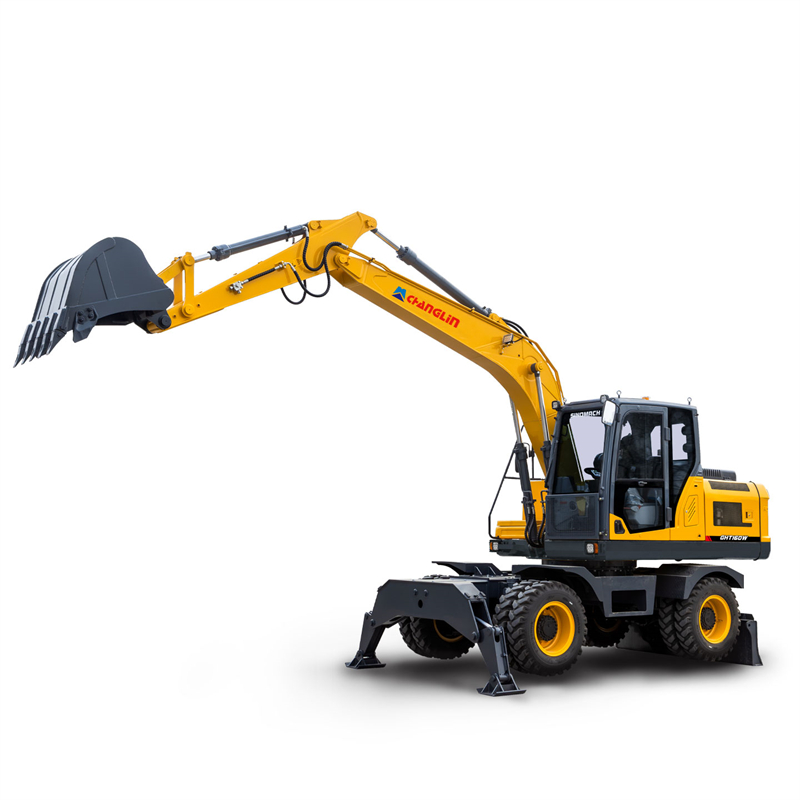

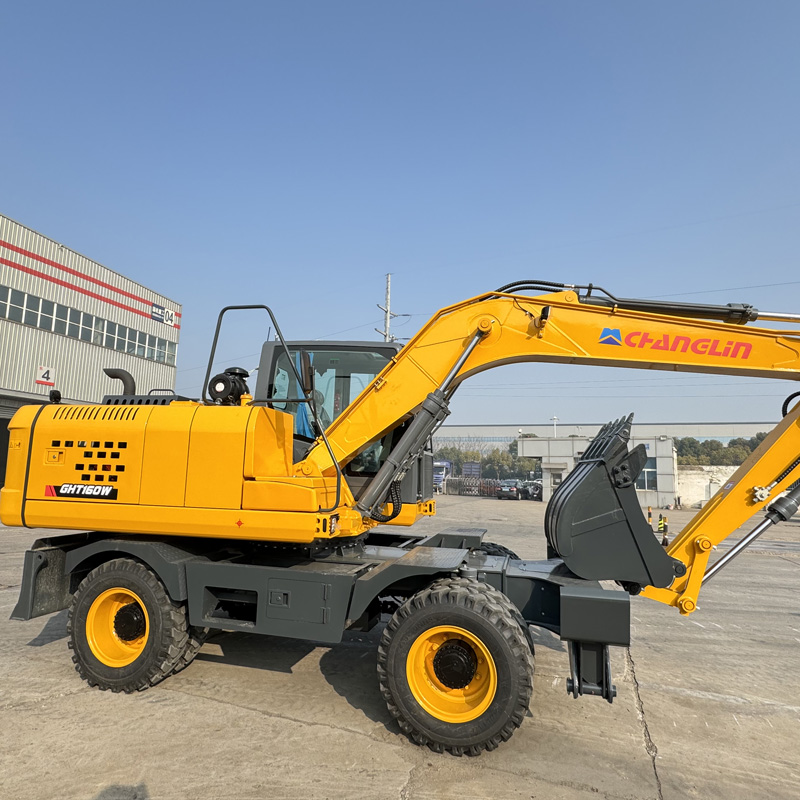

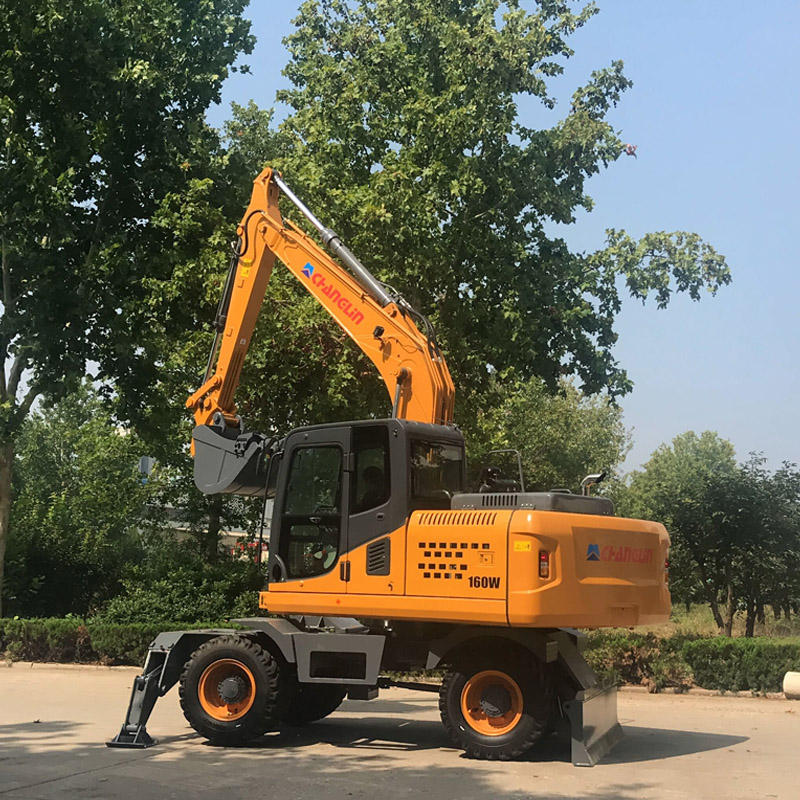

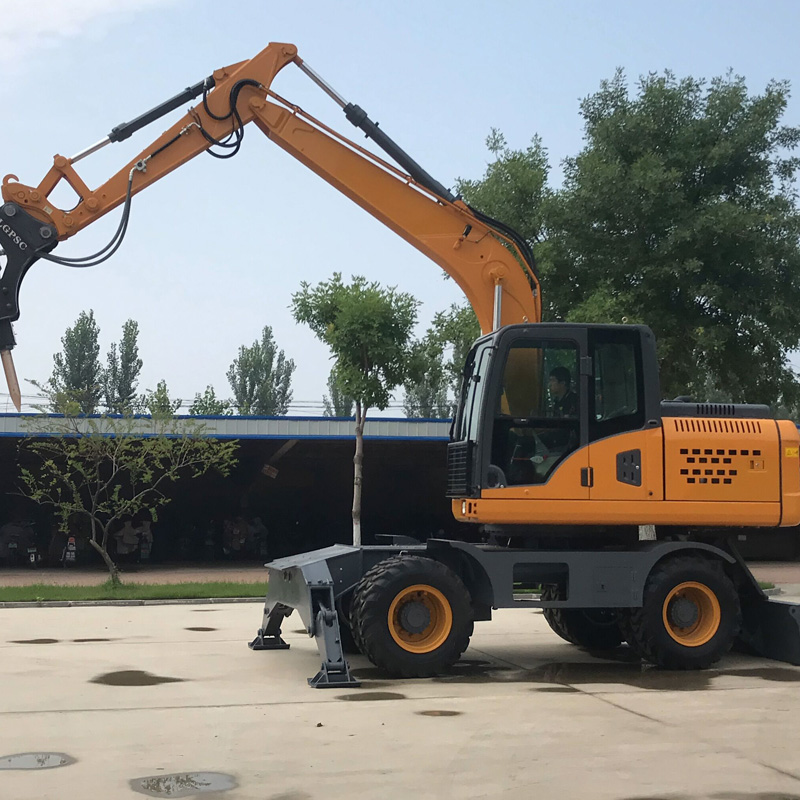

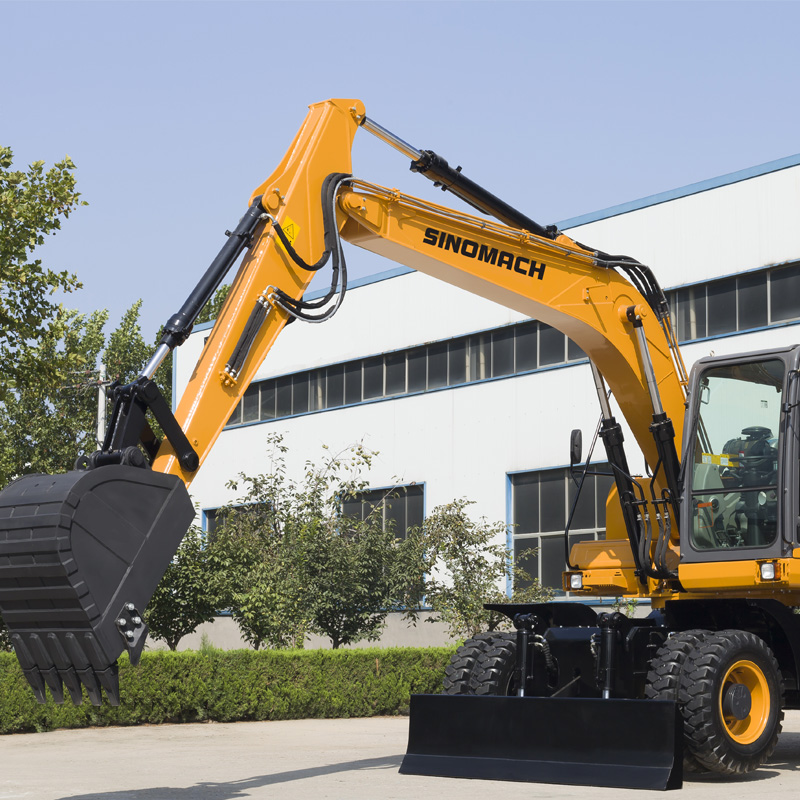

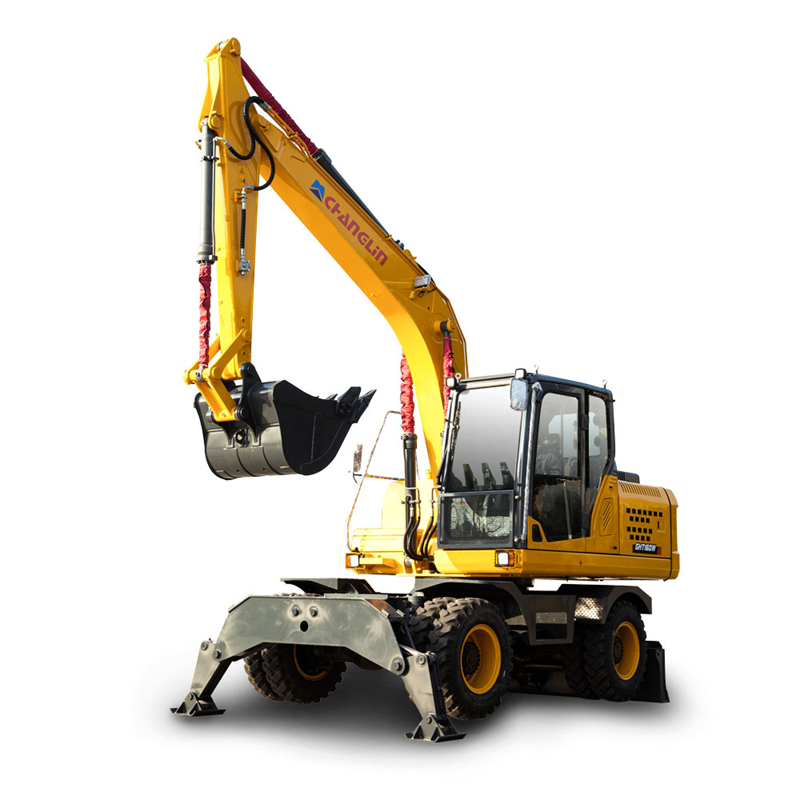

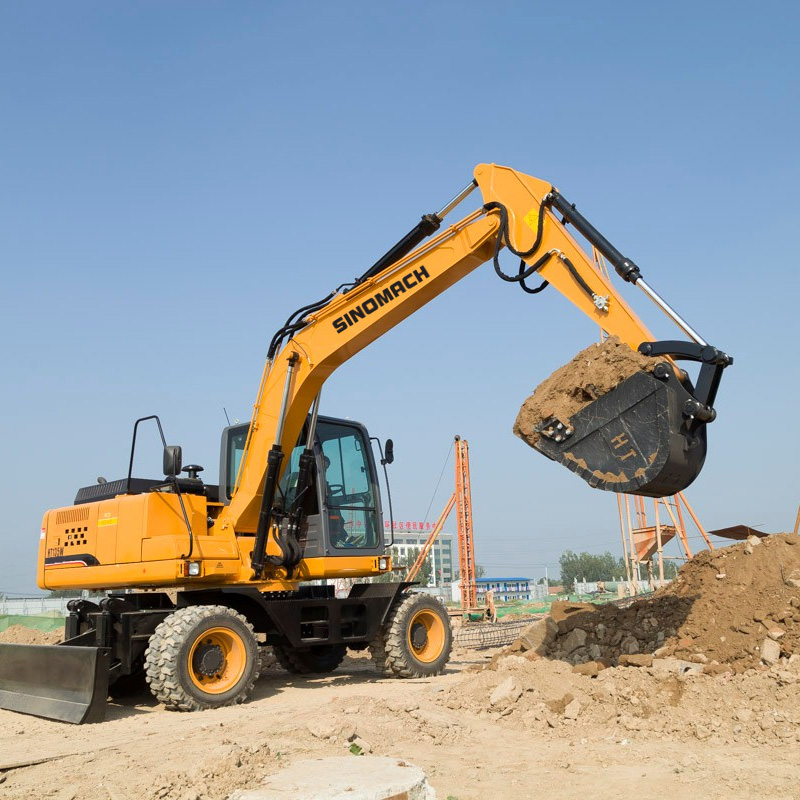

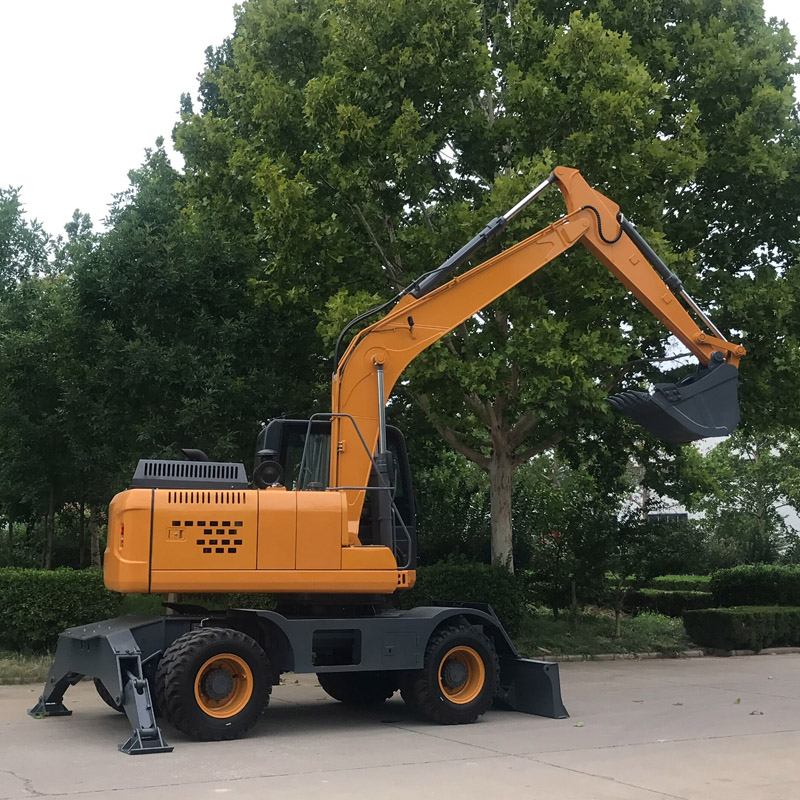

Introducing the GHT160W excavator, a cutting-edge hydraulic wheeled excavator developed independently by our company. Equipped with a standard EFI engine boasting high power and low fuel consumption, this machine ensures robust performance and power reserves. Precise matching between the efficient hydraulic system and the axle box enables seamless transitions between working and travel modes.

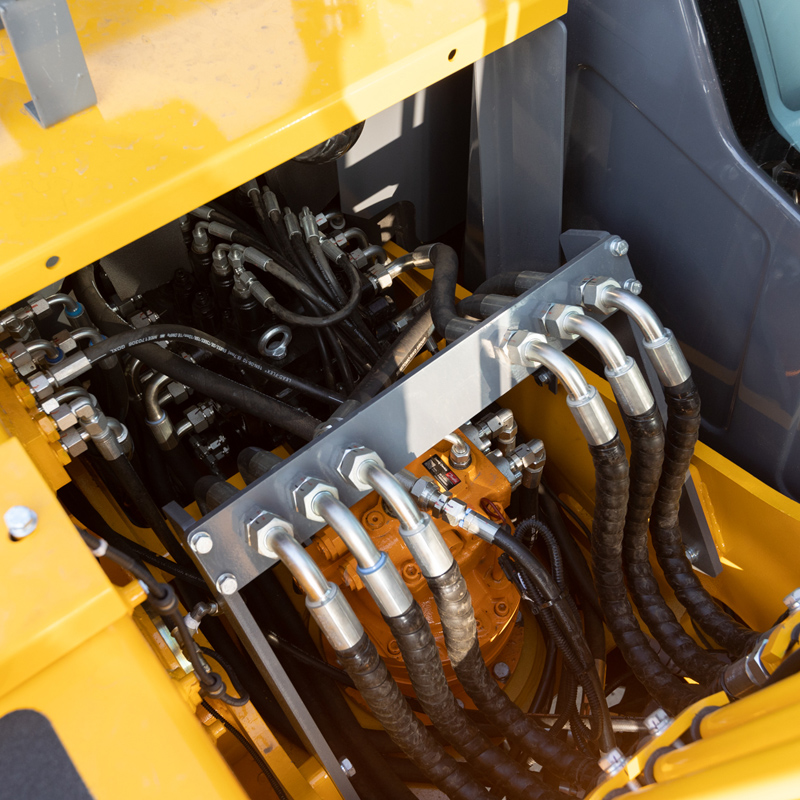

The hydraulic system of the machine is coupled with a load-sensitive system, offering coordinated action, high reliability, safety, environmental friendliness, and comfort. Customized configurations are available to meet diverse customer needs worldwide.
Enjoy comfort and convenience with:

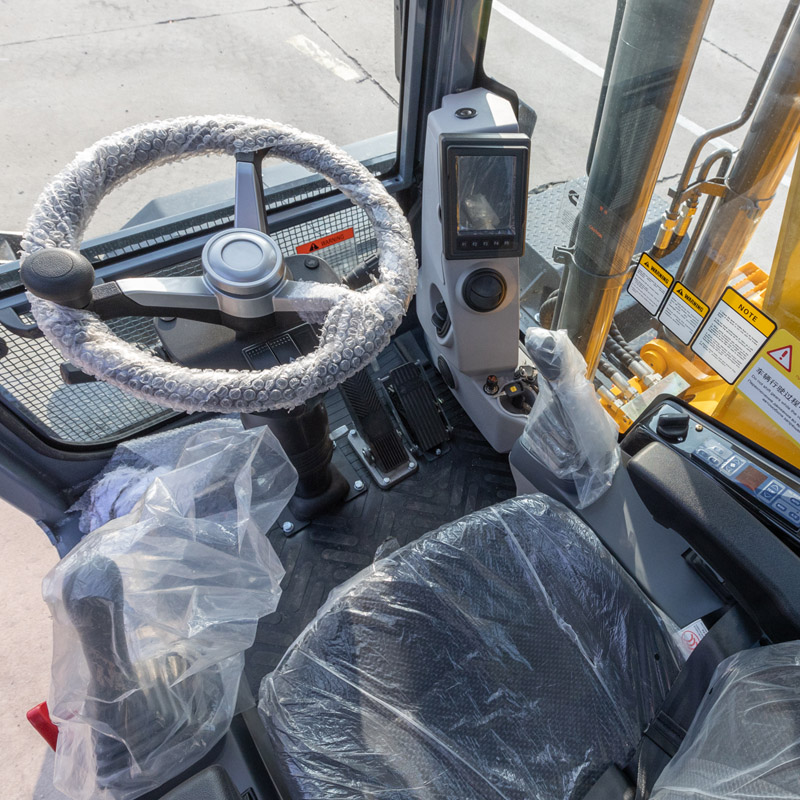

- A spacious, comfortable cab offering wide-ranging visibility.
- An ergonomic suspension seat with seven adjustable positions for optimal operator comfort and posture.

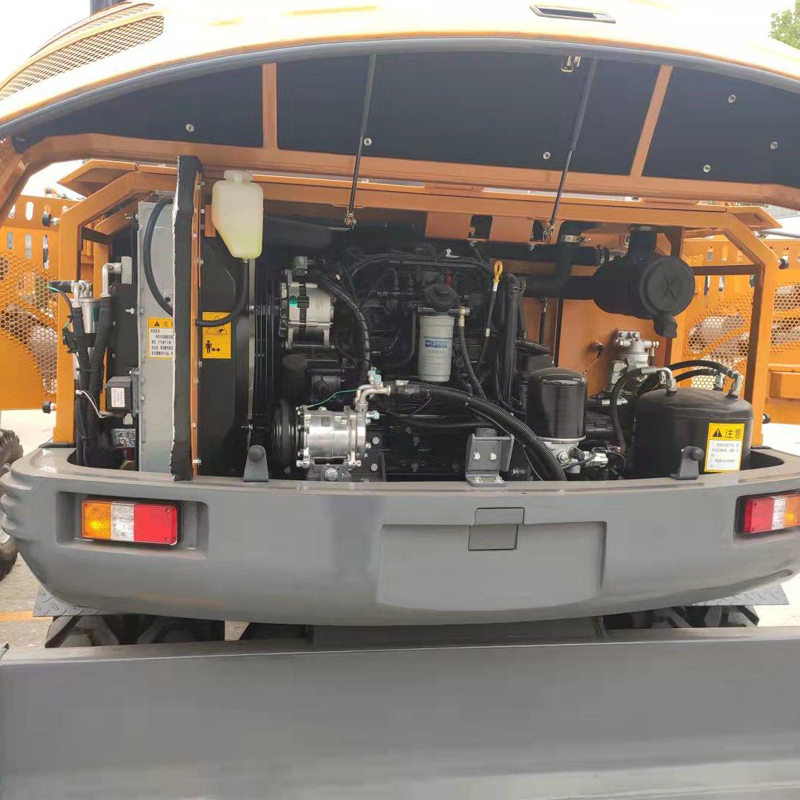

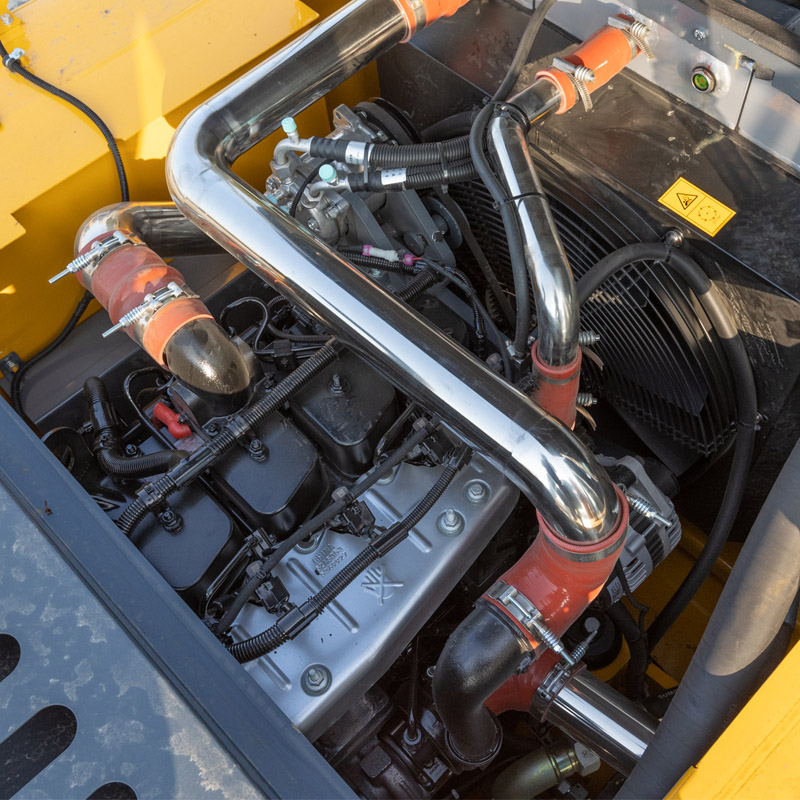

- Standard EFI engine with fuel-saving technology for powerful performance.

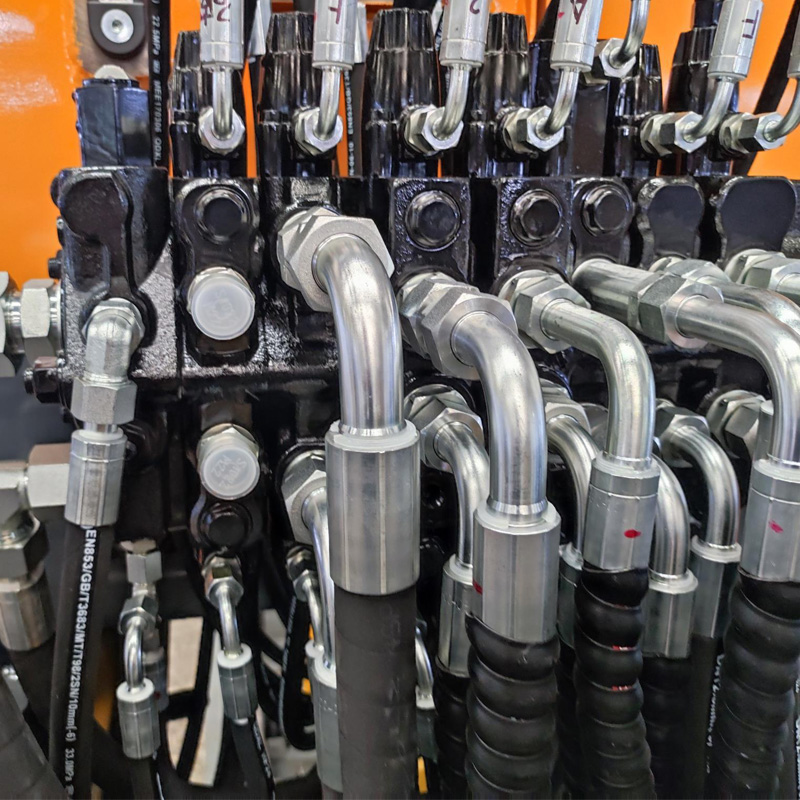

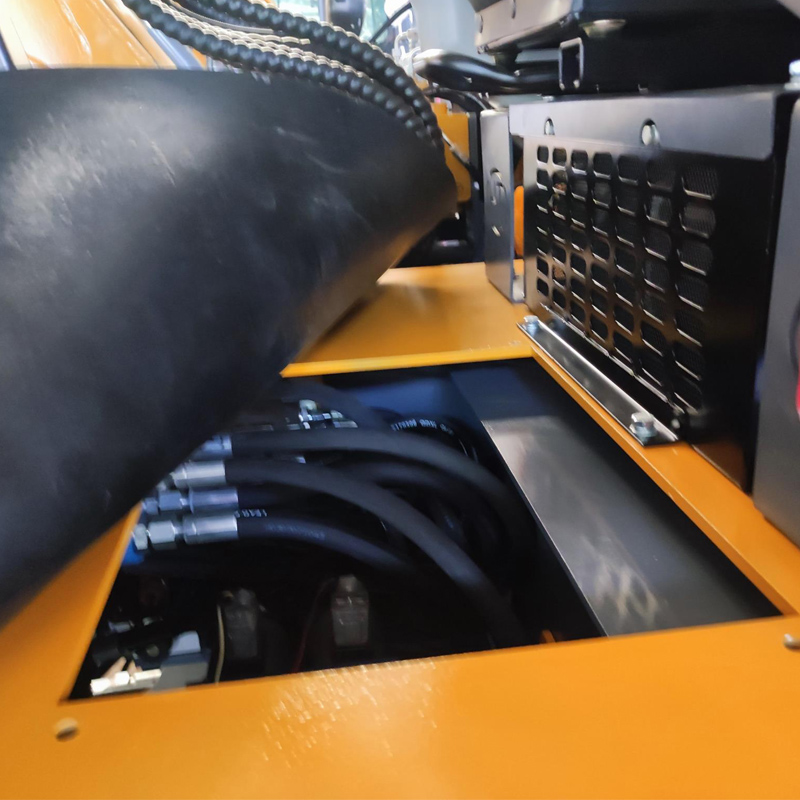

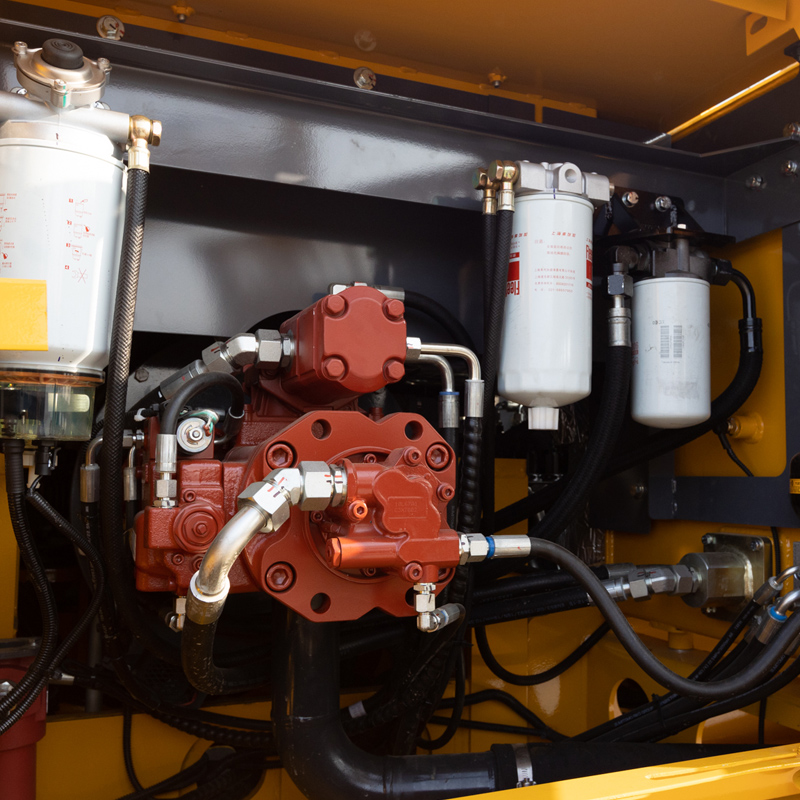

- Load-sensitive main hydraulic system precisely delivering flow, enhancing operational efficiency.
Experience intelligence with:
- Smart onboard computer featuring big data analysis, storage, and timely warning prompts.
Experience mobility with:
- Full-time four-wheel drive with high and low gears for high-speed travel capability and quick transitions.
- High driving force for agile maneuverability and strong off-road performance.
Experience reliability with:
- Wet brake system and imported brand axle.
- Hydraulic motor-driven automatic variable-speed walking, making operation effortless and efficient.
- Motor with balance valve to prevent machine control loss caused by external force-induced motor rotation.
Upgrade your productivity with:
- Reinforced drive shaft with doubled mounting holes for enhanced stability.
- Optimized chassis structure for improved overall stability and durability.
- Enhanced push shovel with increased vertical movement distance and high ground clearance for versatile operations.

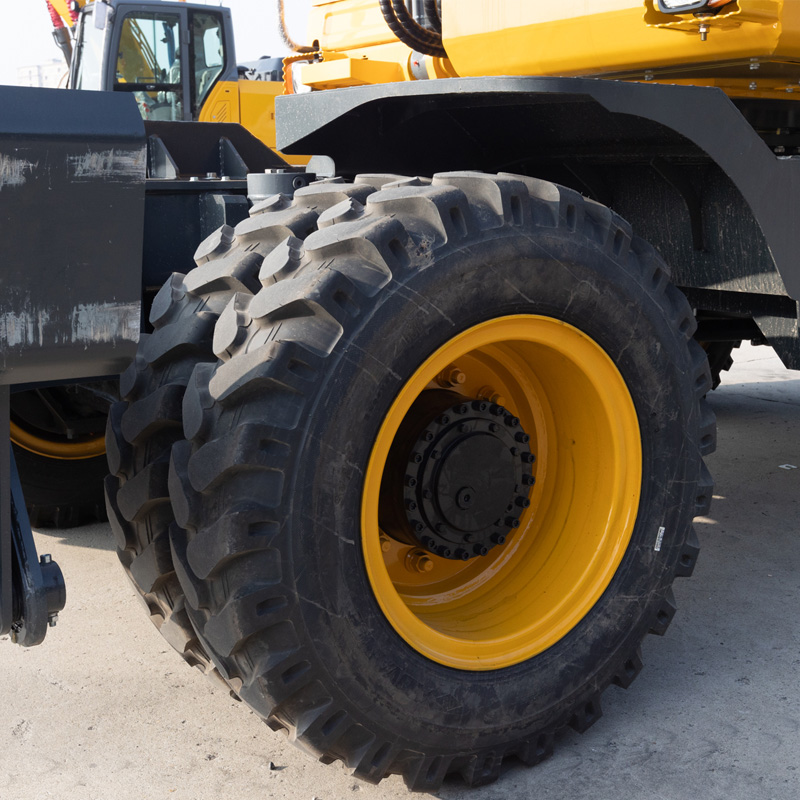

High-quality engineering tires (4 wheels, 8 tires) with excellent wear resistance, puncture resistance, and shock absorption. Seamless fit between dual tires prevents gravel intrusion.
Integrated bidirectional hydraulic lock for push shovel prevents self-locking and dropping.

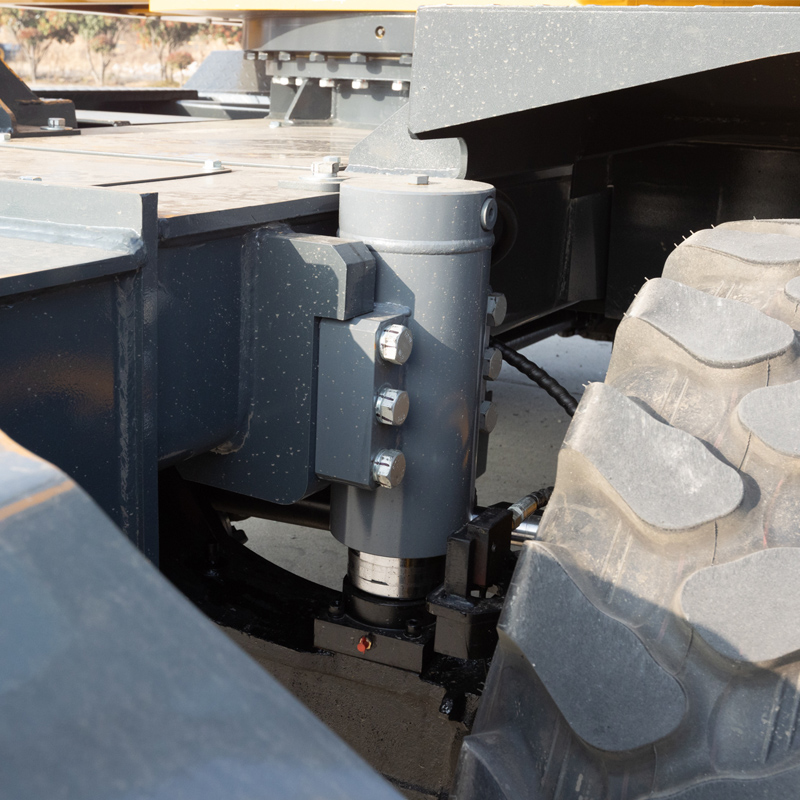

Double-balanced hydraulic suspension system:
- Longitudinal hinged balance cylinder reduces failure rates and minimizes chassis damage under harsh conditions, ensuring superior stability.
Elevate your excavating experience with the GHT160W, where power, precision, and comfort converge.
| Engine | 4BTAA3.9-C12593kw/2200r/min (China emission II) |
| YC4A125Z-T2192kw/2200r/min (China emission II) | |
| Operating Weight (kg) | 15450 |
| Bucket capacity (m ³) | 0.6 |
| Dimensions | |

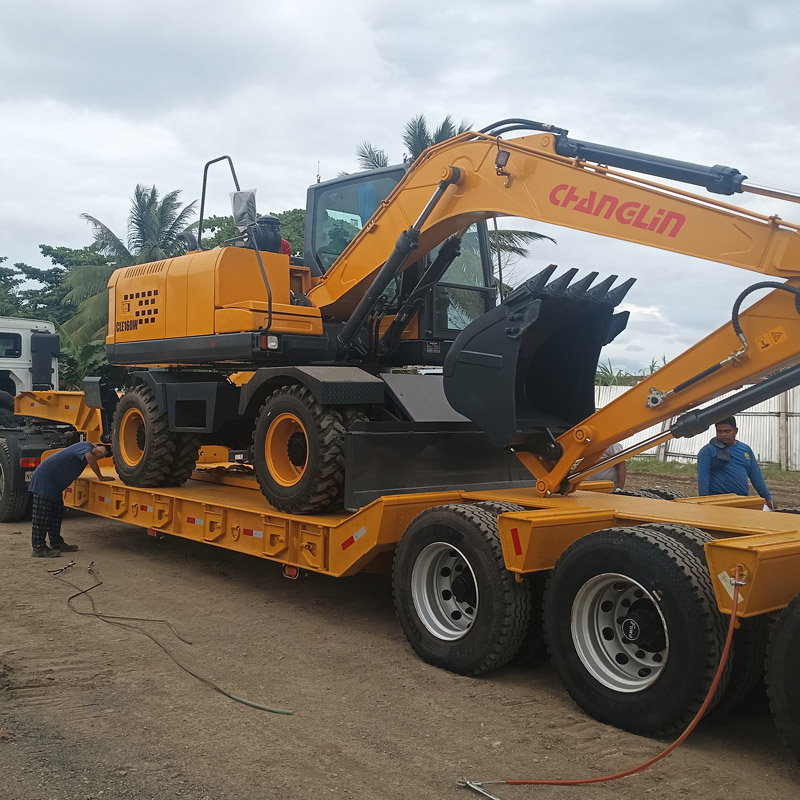

| Transportation length (mm) | 7900 |
| Transportation height (mm) | 3255 |
| Overall width (mm) | 2580 |
| Tail turning radius (mm) | 2395 |
| Height of turntable (mm) | 2500 |
| Track width (mm) | 1900 |
| Wheelbase (mm) | 2645 |
| Scope of work | |
| Max excavation height (mm) | 8720 |
| Max unloading height (mm) | 6300 |
| Max excavation depth (mm) | 4865 |
| Max excavation radius (mm) | 8060 |
| Working parameters | |
| Hydraulic system pressure (Mpa) | 32 |
| Hydraulic system flow (L/min) | 2*130 |
| Boom length (mm) | 4600 |
| Stick length (mm) | 2200 |
| Bucket digging force (kN) | 85 |
| Stick digging force (kN) | 53 |
| Fuel tank capacity (L) | 220 |
| Hydraulic oil tank capacity (L) | 180 |
| Climbing slope (%) | ≥60 |
| Rotation speed (r/min) | 13-14 |
| Max traveling speed (km/h) | 30 |
| Bulldozer plate size (mm) | 2500*560 |
| Plate lifting height (mm) | 450 |
| Plate support height (mm) | 60 |
