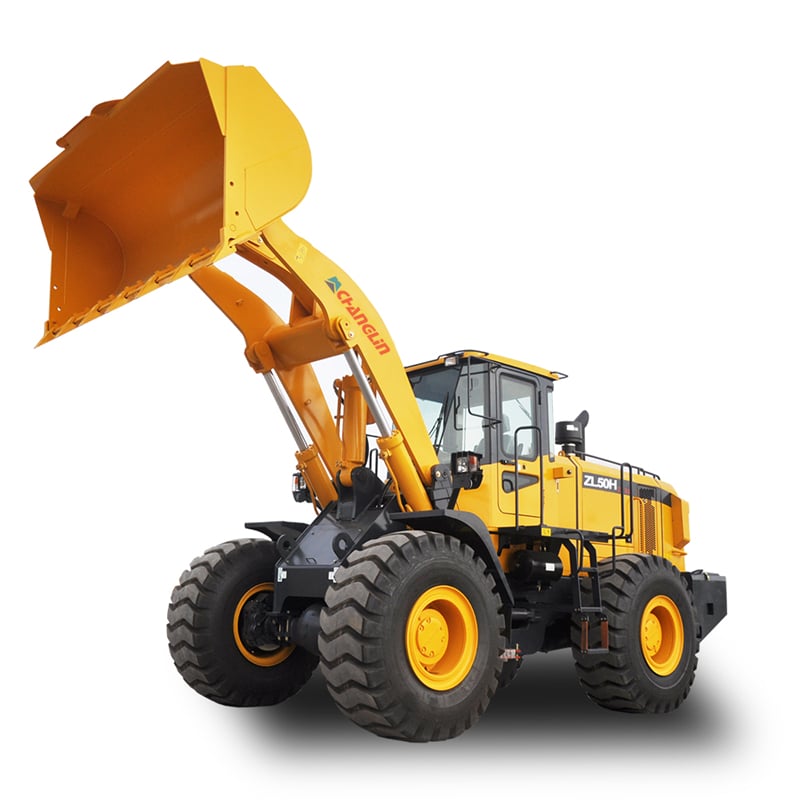

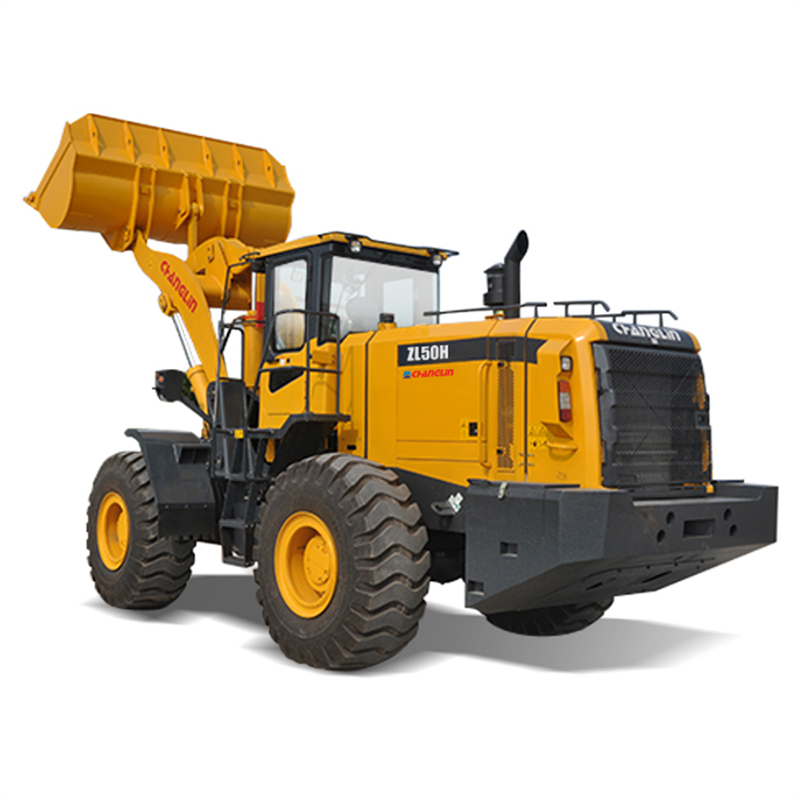

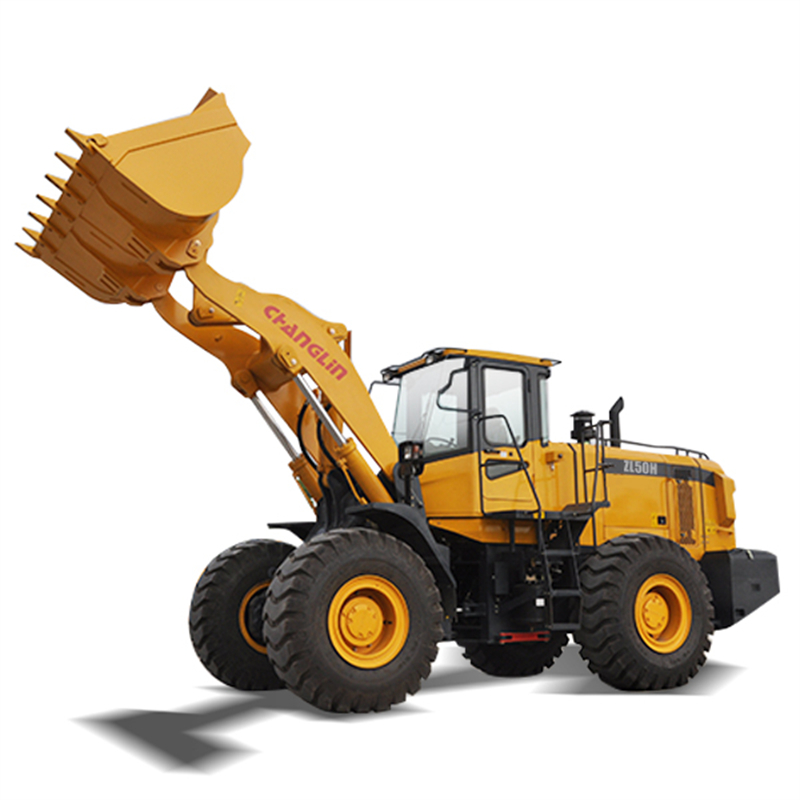

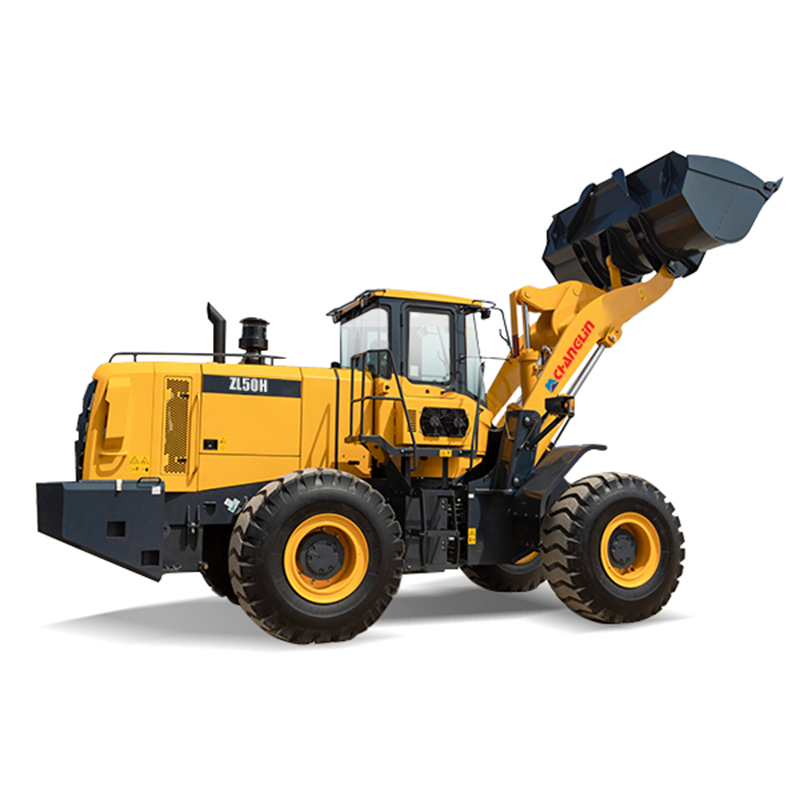

The ZL50H Wheel Loader is a powerhouse of efficiency and sustainability, tailored for the dynamic demands of material handling with its substantial 17,300kg operating weight and robust 162kW output, supporting loads up to 5,000kg.

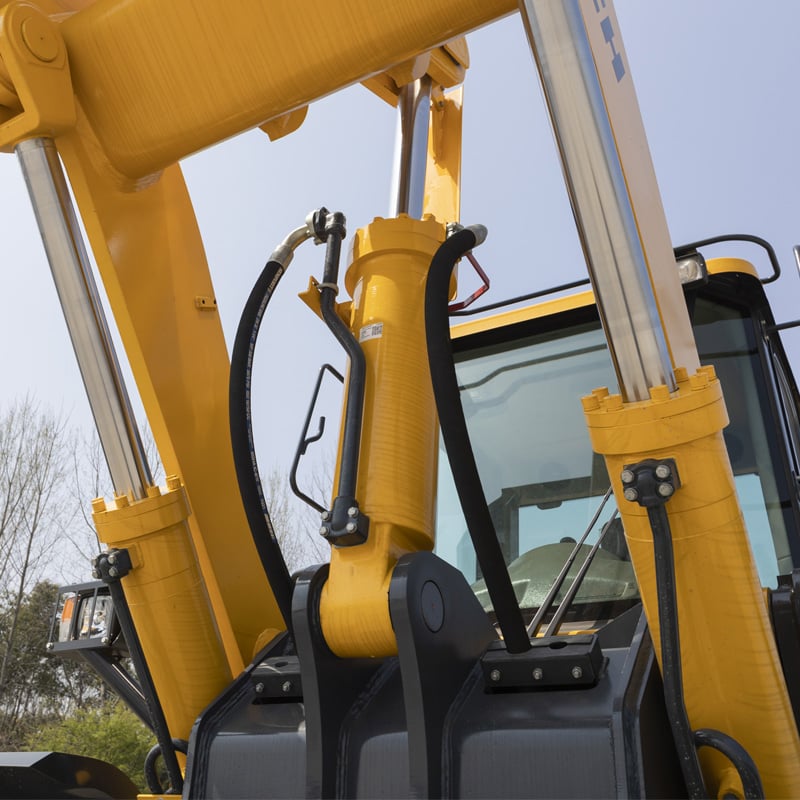

It boasts a lengthy 3300mm wheelbase ensuring stability and efficiency in operations, ideal for shifting loose materials. Enhanced reliability is achieved through its frame articulation with tapered roller bearings. Its innovative hydraulic system, integrating double pump flow merging and a unique shunt cooling system, maintains hydraulic oil temperatures below 85℃, ensuring operational efficiency and energy conservation. The loader features a T series appearance with large access doors, enabling easy radiator maintenance while ensuring superior sealing and significantly reduced noise levels, enhancing operator comfort. Designed with user-friendliness in mind, it features centralized relay and fuse boxes, easily accessible grease points, and conveniently located pressure measuring ports, simplifying maintenance routines and reducing downtime.
| Overall Dimension | ||||
| 1 | Length(with bucket on ground)* | 8390(mm) | ||
| 2 | Width(to outside of wheels) | 2800(mm) | ||
| 3 | Bucket width* | 2946(mm) | ||
| 4 | Height(To the top of the cab)* | 3450(mm) | ||
| 5 | Wheel base | 3300(mm) | ||
| 6 | Min. ground clearance | 450(mm) | ||
| Technical Specification | ||||
| 1 | Rated load | 5000(Kg) | ||
| 2 | Operating weight | 17300KG | ||
| 3 | Rated bucket capacity | 3.1(m3),可选2.2-4.5 (m3) | ||
| 4 | Max. dump clearance | 3136(mm) | ||
| 5 | Dump reach | 1121(mm) | ||
| 6 | Min. turning radius(wheel) | 6192(mm) | ||

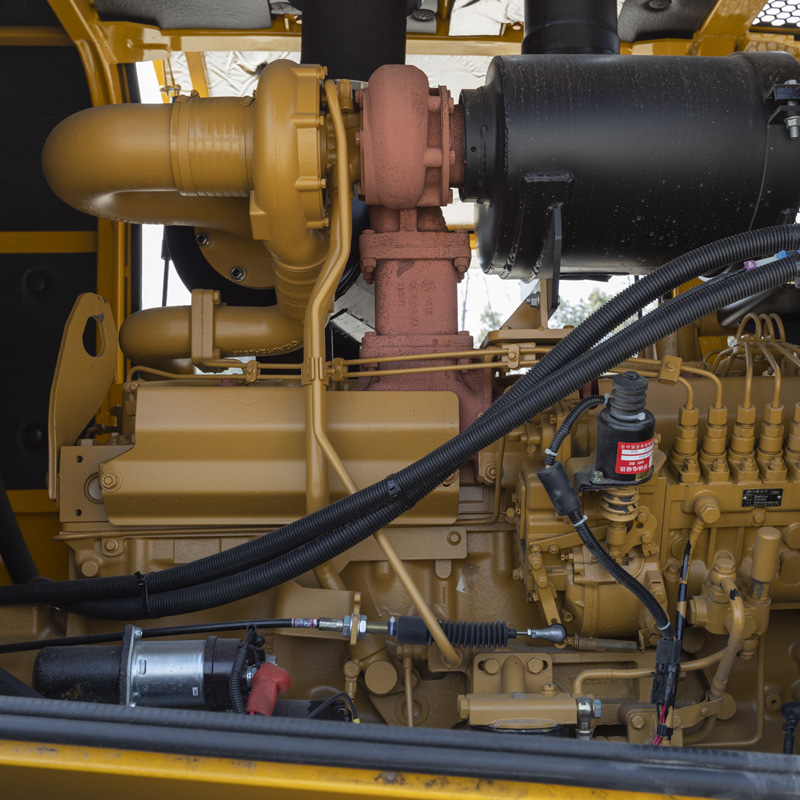

| Diesel engine | ||||
| 1 | Model | Cummins 6LTAA 9.3 | ShangChaiSC11CB220G2B1 | |
| 2 | Type | Direct injection. | ||
| 3 | Rated output | 162 (kW) | ||
| 5 | Total exhaust of cylinder | 9.3 (L) | 10.5(L) | |
| 9 | Rated speed | 2200(r/min) | ||
| 10 | Max. Torque | 940(N.M)@1400 rpm | 920(N.M)@1400 rpm | |
| Transmission System | ||||
| 1 | Model | CHANGLIN 957H.4C | ||
| 2 | Type | Power shift | ||
| 3 | Gear shift position | 3 F, 3 R | ||
| 4 | Speed(F/R) | 6.8/8,10.8/14.3,32/34.1 | ||
| 5 | Max. drawing force | 160kN | ||
| 6 | Size of tire | 23.5-25-16PR | ||

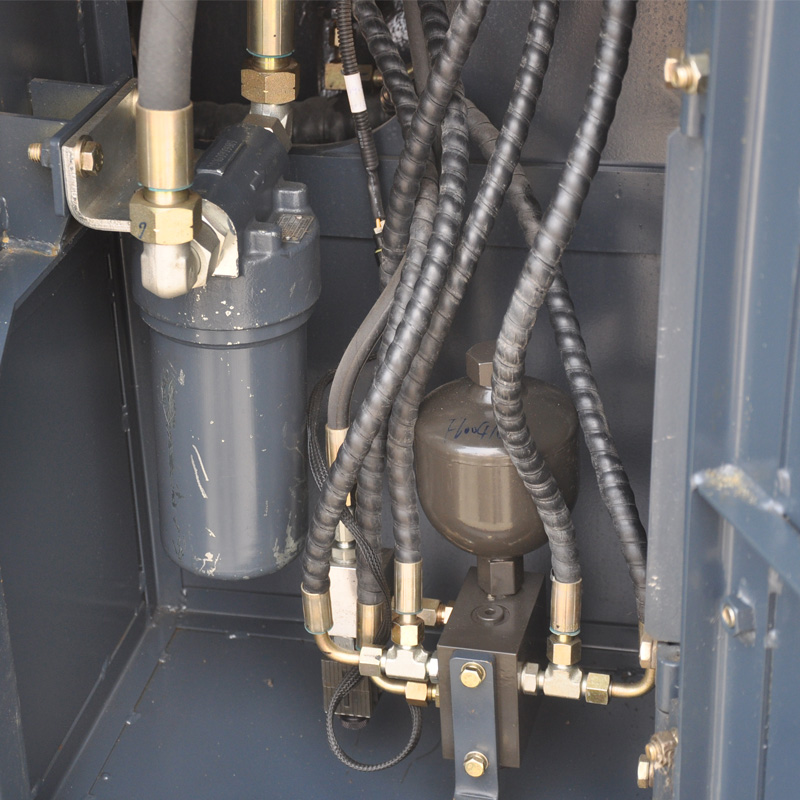

| Working Hydraulic System | ||||
| 1 | Model of oil pump | JHP3100A | ||
| 2 | System pressure | 18MPa | ||
| 3 | Model of Muti-way directional valve | YGDF32Ⅱ-YL18 | ||
| 5 | Pilot valve | DXS-00 | ||
| Steering System | ||||
| 1 | Model of steering pump | JHP2080S | ||
| 2 | Model of redirector | TLF2J-800-22-A | ||
| 3 | Model of priority valve | YXL-F250F-N7 | ||
| 4 | System pressure | 16MPa | ||
| Brake System制动系统 | ||||
| 1 | Type of traveling brake | Caliper disc brake | ||
| 2 | Air pressure | 6-7.5(kgf/cm2) | ||
| 3 | Type of parking brake | Caliper disc brake | ||
| Oil Capacity加油量 | ||||
| 1 | Fuel(diesel) | 280(L) | ||
| 2 | Engine lubricating oil | 24(L) | ||
| 3 | Oil for converter and gear box | 45(L) | ||
| 4 | Oil for hydraulic system | 230(L) | ||
| 5 | Oil for driving axles(F/R) | 18/18(L) | ||
