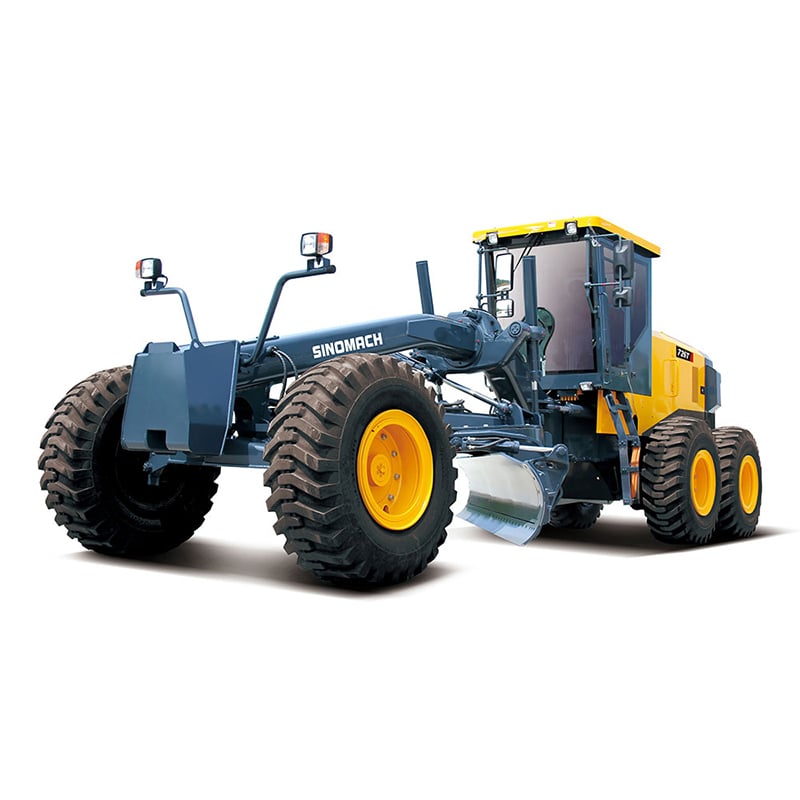

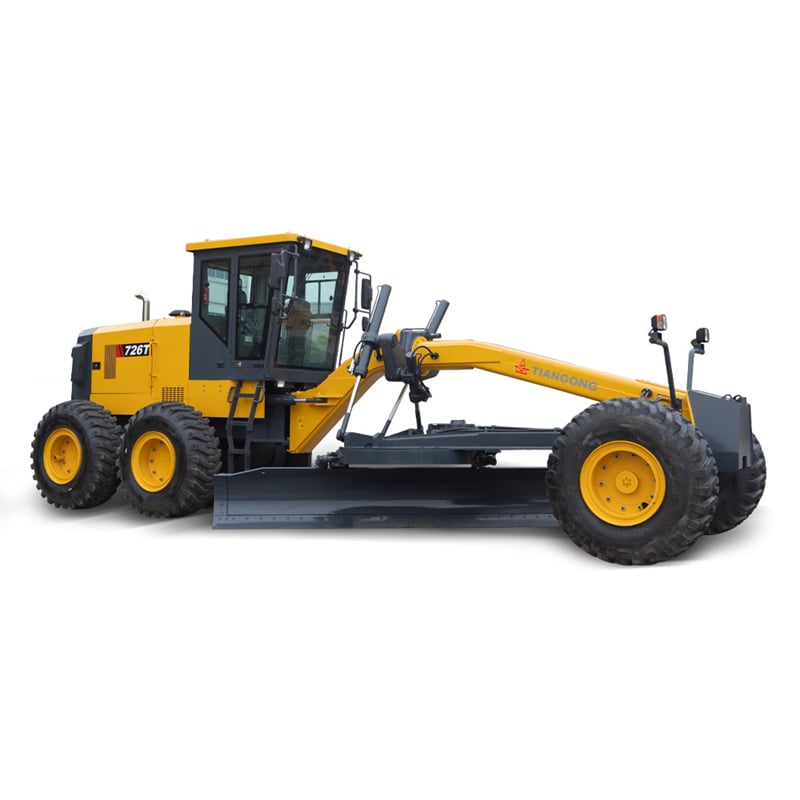

Efficient 726T Motor Grader for Heavy-Duty Work

The 726T Motor Grader is a powerhouse equipped with a Dong Feng Cummins TIER III engine, ensuring reliable performance in demanding conditions. Its ZF single-handle electro-hydraulic controlled power shift transmission with 6 forward and 3 reverse shifts makes operation easy and convenient.

Main Features

Efficiency and energy savings are achieved through load-sensitive pumps and valves, while the MICO dual circuit hydraulic brake system ensures high security. Optimum axle load allocation provides excellent stability, particularly in rough and rocky areas. With its box-type frame and advanced transmission, it's capable of completing heavy-duty work with ease. The flexible moldboard suspension system and articulated frame offer a wide working range, making it ideal for leveling large-scale ground in mining areas, highways, airports, and more. Specifically designed for mining areas, the 726T Motor Grader offers high strength and sufficient power, perfectly suited for road construction, maintenance, and rock cleaning tasks.

Main Specifications
Engine model Cummins QSL8.9-C260
Engine type - EFI, turbocharger, air-to-air cooling; temperature control independent cooling system
Rated power kW/rpm 194/2200
Mass of the whole machine t 19.5
Outline dimension mm 9550x2800x3650
Transmission - ZF 6BP230;
Rear axle & Tandem - Meritor
Tyre - 20.5-25-16PR  L-2
Speed of advance km/h 5.8,8.9,14.2,21.6,33.2,48.9
Backward speed km/h 6.1,15,34.9
Hydraulic system - Dual-handle electronically controlled load-sensing system
Steering system - Full hydraulic front wheel steering, articulated steering, emergency steering
Service brake - Full Hydraulic Wet Brakes
Parking brake - Hydraulically Operated Disc Brake
Blade length/height mm 4422/688
Max.lift above ground mm 425
Max.grading depth mm 470
Max.wheel lean angle . 90
Blade tip angle . 36-66
Maximum swing angle of front axle . 15
Maximum tilt angle of front wheel . 17
Maximum steering angle of front wheel . 45
Maximum steering angle of articulation . 25
Min.Turning radius mm 8600
