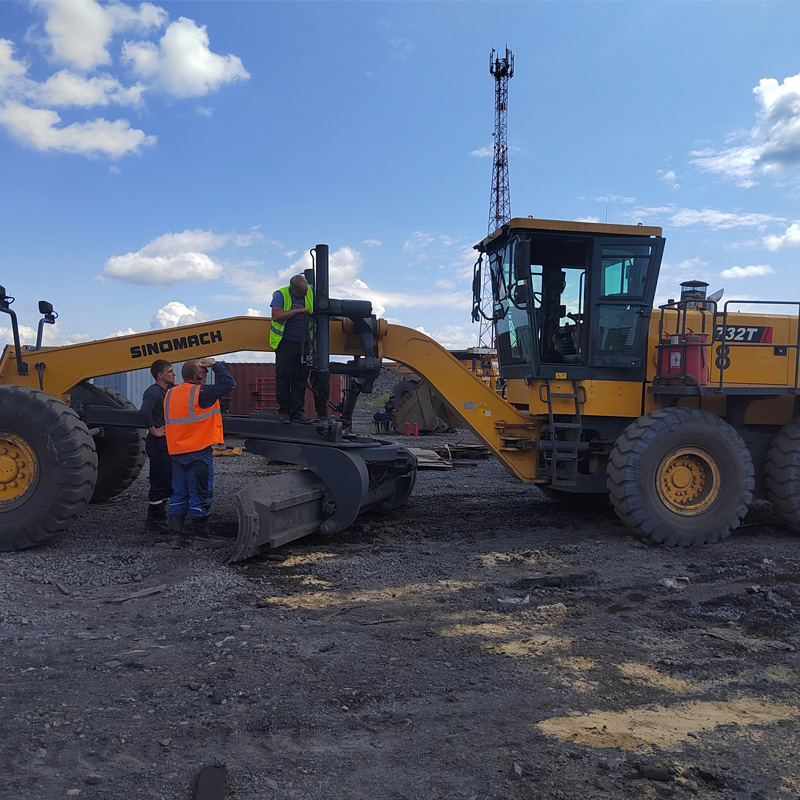

The 732T Motor Grader is a robust machine designed for heavy-duty operations. With an impressive operating weight of 28,000kg and a rated output of 246kW, it offers exceptional power and performance.
Equipped with a reliable Cummins QSM11-C330 engine, it ensures reliability and efficiency. Its single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse shifts makes operation effortless.

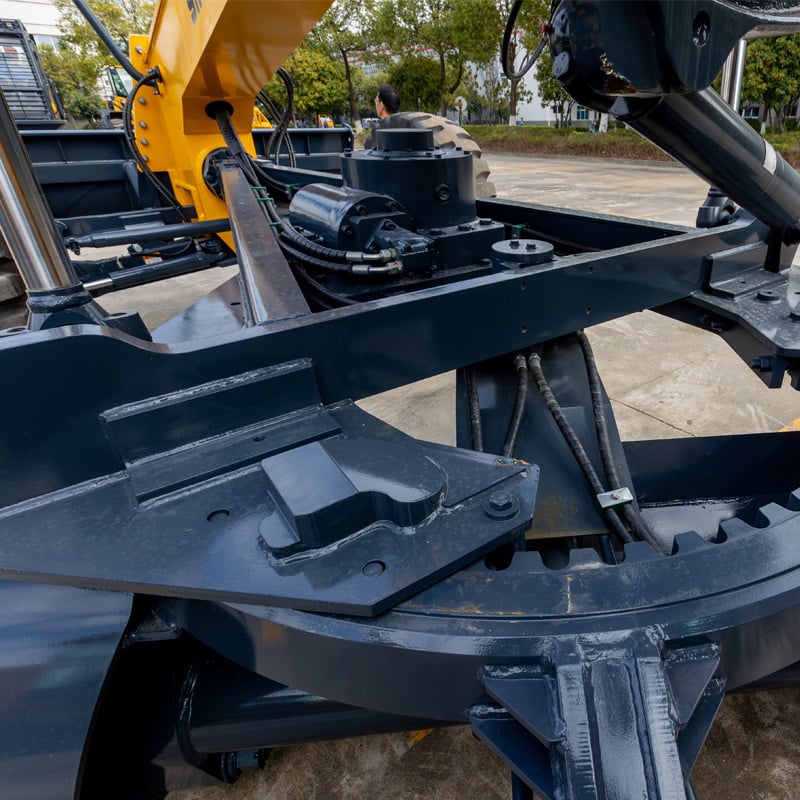

Enhanced stability and traction are guaranteed with a hydraulic lock and auto lock/unlock NO-SPIN differential. The ideal axle load allocation provides stability even on hard surfaces, while the efficient hydraulic system maximizes component utilization. Its box-typed frame and advanced transmission enable it to tackle heavy-duty work with ease. With a flexible blade suspension system and articulated frame, it offers a wide working range, making it suitable for various applications.
Overall Dimension | |||||||||||||
1 | Length | 12500mm | |||||||||||
2 | Width | 3300mm | |||||||||||
3 | Height(To the top of the cab) | 3700mm | |||||||||||
4 | Wheel base | 7760mm | |||||||||||
5 | Tread | 2650mm | |||||||||||
6 | Min. turning radius | 9000mm | |||||||||||
Main Technical Specification | |||||||||||||
1 | Operating weight | 28000kg | |||||||||||
2 | Blade length | 4620mm | |||||||||||
3 | Blade height | 695mm | |||||||||||
4 | Blade width | 20mm | |||||||||||
5 | Max. lift above ground | 515mm | |||||||||||
6 | Max. grading depth | 735mm | |||||||||||
7 | Max. shoulder reach outside rear tire | 2260mm(R)/1950mm(L) | |||||||||||
8 | Traveling speed(Km/h),6 forward and 3 reverse | ||||||||||||
(1) forward | 5.5,8.6,13.3,20.3,29,43 | ||||||||||||
(2) reverse | 5.5,13.3,29 | ||||||||||||
Diesel engine | |||||||||||||

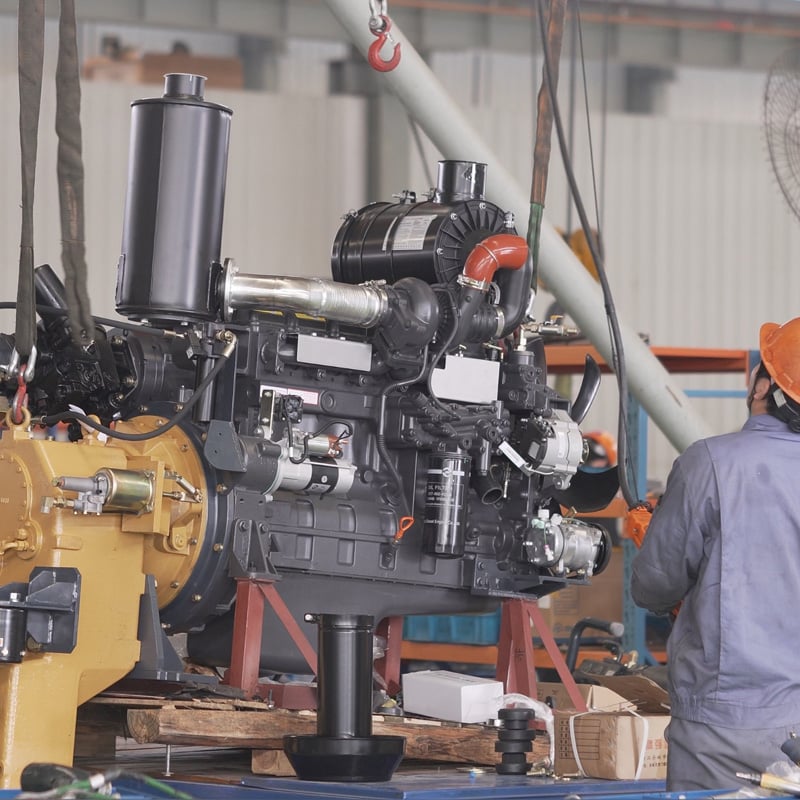

1 | Model | Cummins QSM11-C330 | |||||||||||
2 | Type | EFI,turbocharger,air-to-air cooling,temperature control independent cooling system | |||||||||||
3 | Rated output | 246(kW) | |||||||||||
4 | Rated speed | 2100(r/min) | |||||||||||
5 | Max. Torque | 1674(N.m)/(1400r/min) | |||||||||||
Transmission case | |||||||||||||
1 | Model | 6WG260 (ZF technology) | |||||||||||
2 | Type | electro-hydraulic controlled power shift single handle operation,automatic transmission | |||||||||||
3 | Gear shift position | 6 Forward and 3 reverse gears | |||||||||||
Axle and Tire | |||||||||||||
1 | Max. drawing force | 144kN | |||||||||||

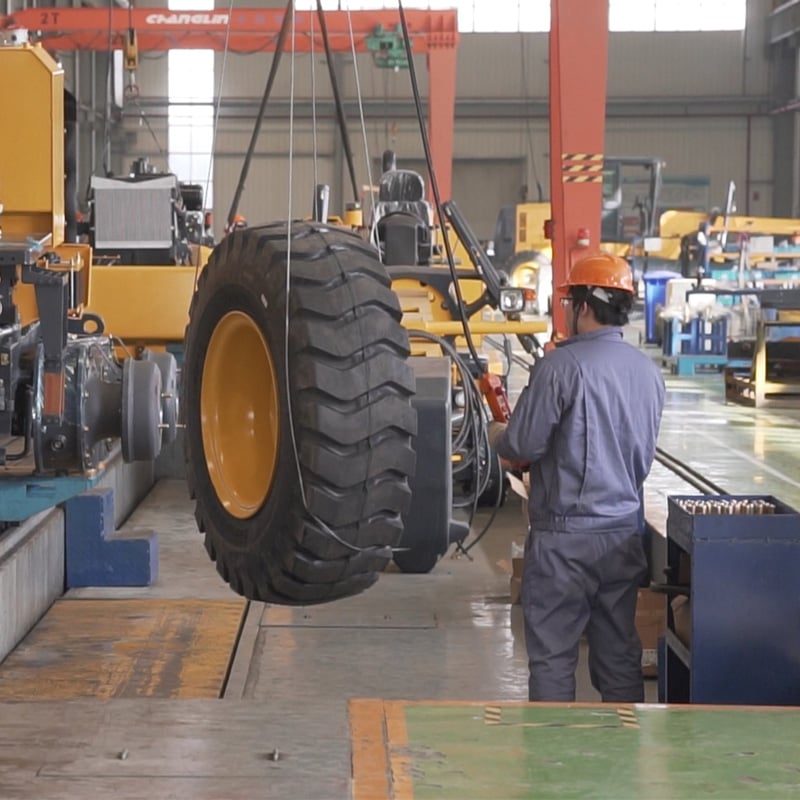

2 | Size of tire | 18.00-25-28PR | |||||||||||
Working Device Hydraulic System | |||||||||||||
1 | Model of oil pump | RR074BLS2520-3S1N2A1 | |||||||||||
2 | System pressure | 25MPa | |||||||||||
3 | Model of distribution valve | Walvoil DRFC22132 DPX100/5Walvoil DRFC22133 DPX100/5 | |||||||||||
4 | Model of oil motor | Eaton 604-1113 | |||||||||||
Steering System | |||||||||||||
1 | Type | Fore Tiredeflexion | |||||||||||
2 | Model of steering gear | Eaton Xcel45-320 | |||||||||||
3 | System pressure | 16MPa | |||||||||||
Brake System | |||||||||||||
1 | Type of traveling brak | Full Hydraulic Wet Brakes | |||||||||||
2 | Model of brake pump | HPT2-35/HPT1-20/9 | |||||||||||
3 | System pressure | 6.9MPa | |||||||||||
4 | Type of parking brake | Hydraulically Operated Disc Brake | |||||||||||
Oil Capacity | |||||||||||||
1 | Fuel(diesel) | 540L | |||||||||||
2 | Engine lubricating oil | 28L | |||||||||||
3 | Oil for converter and gear box | 35-40L | |||||||||||
4 | Oil for hydraulic system | 200L | |||||||||||
5 | Oil for driving rear axles | 35L | |||||||||||
6 | Tandem box | 2*60L |
