- Model: CT502
- Rated Power: 50HP
- Type: Crawler Tractor
- Weight: 1300 KG
- Ground Clearance: 185 mm

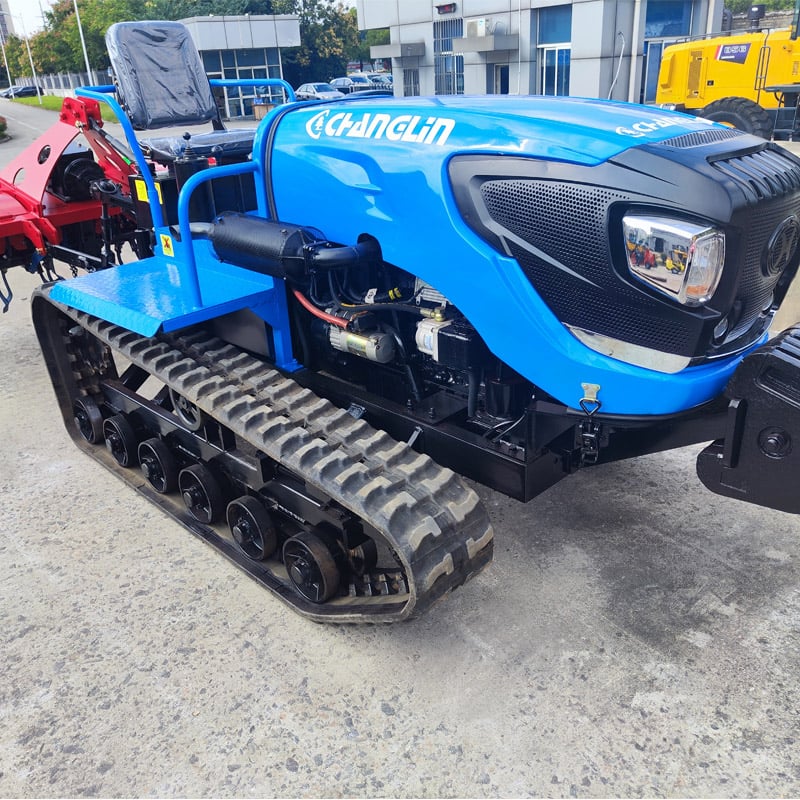

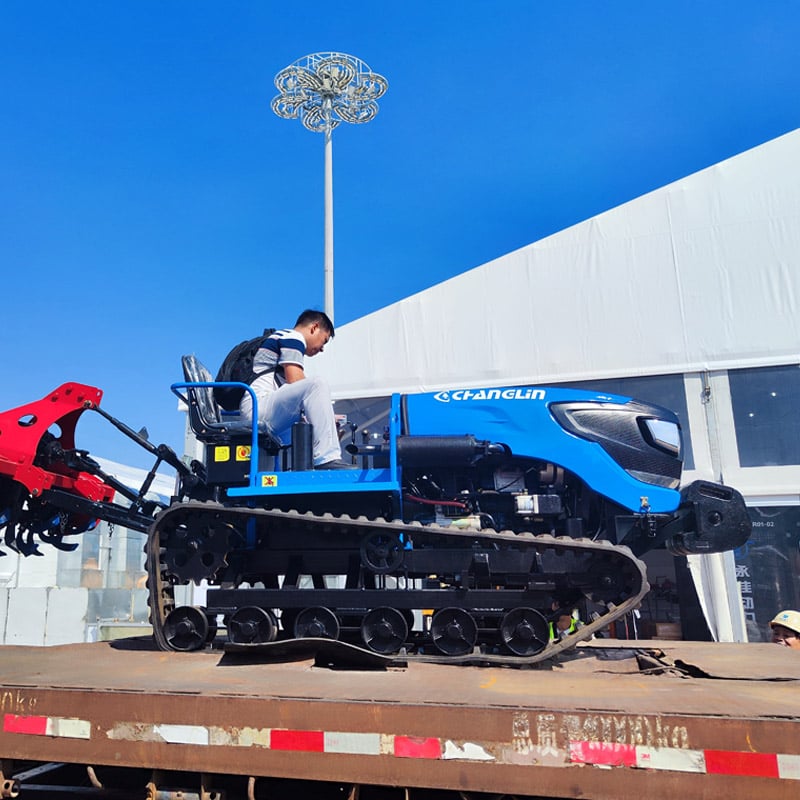

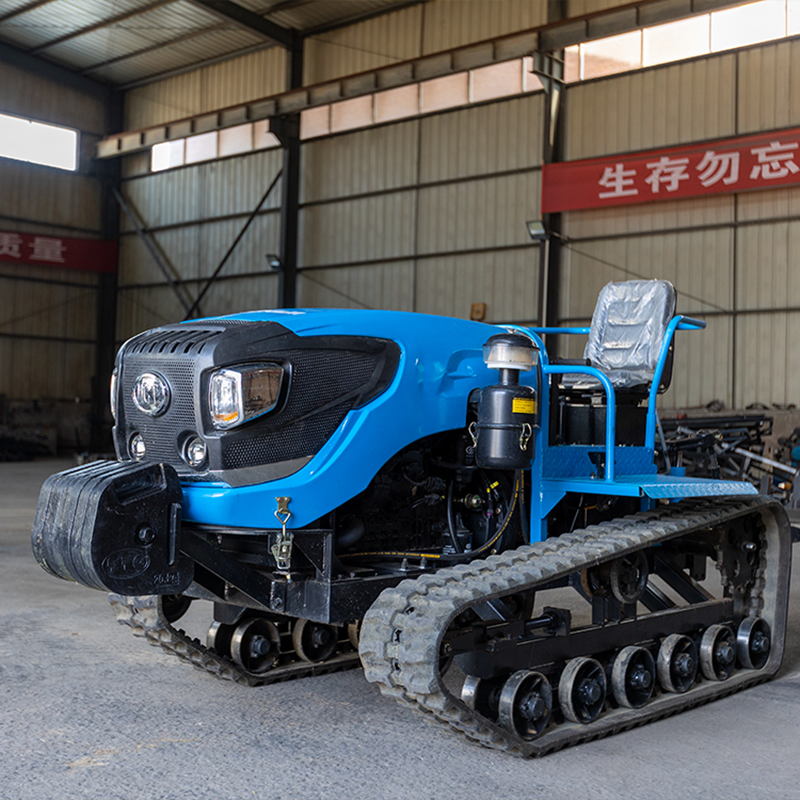

The CT502 is a remote-controlled lightweight tracked tractor developed to meet market demands for efficient orchard and agricultural field operations. Its compact design allows it to navigate densely planted orchards with ease while offering excellent traction and maneuverability. With both remote-controlled and manual operation modes, it reduces operator fatigue and ensures safety, especially in hazardous environments.
Key Features:

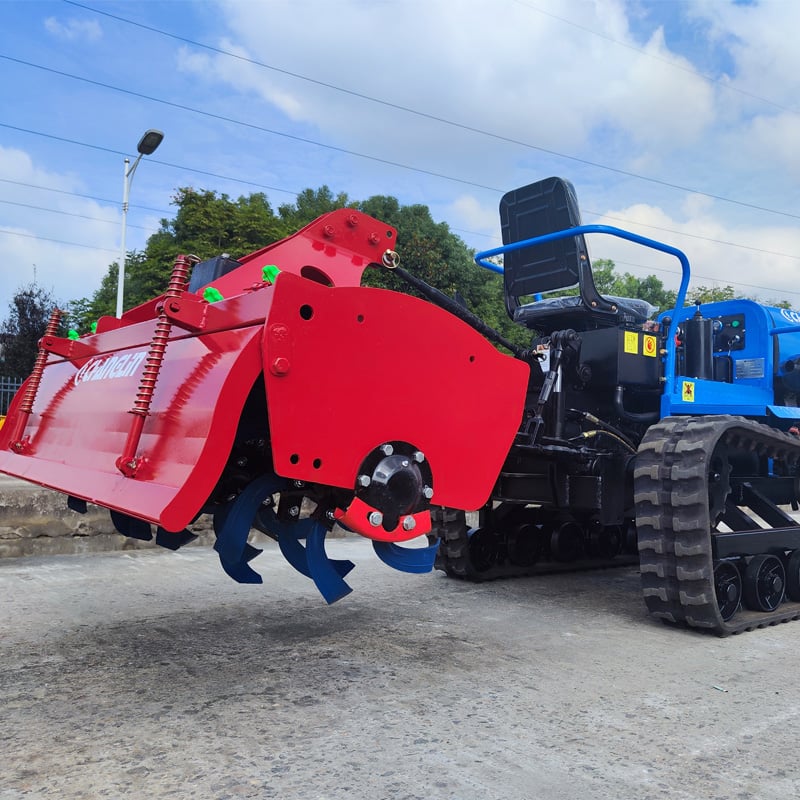

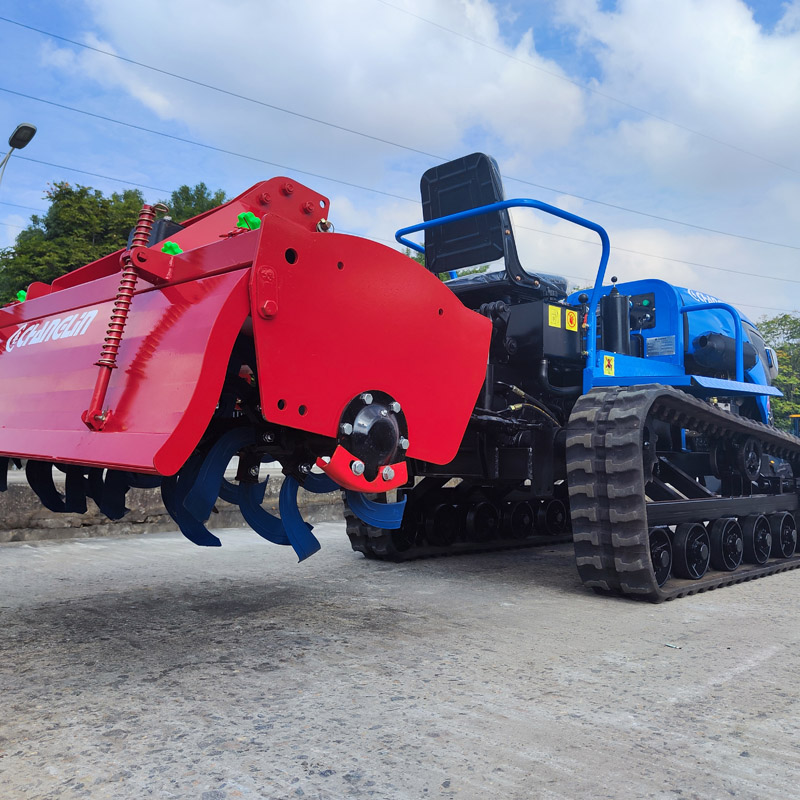

- Versatile operation: rotary tilling, grass cutting, trenching, fertilization, backfilling, and more.

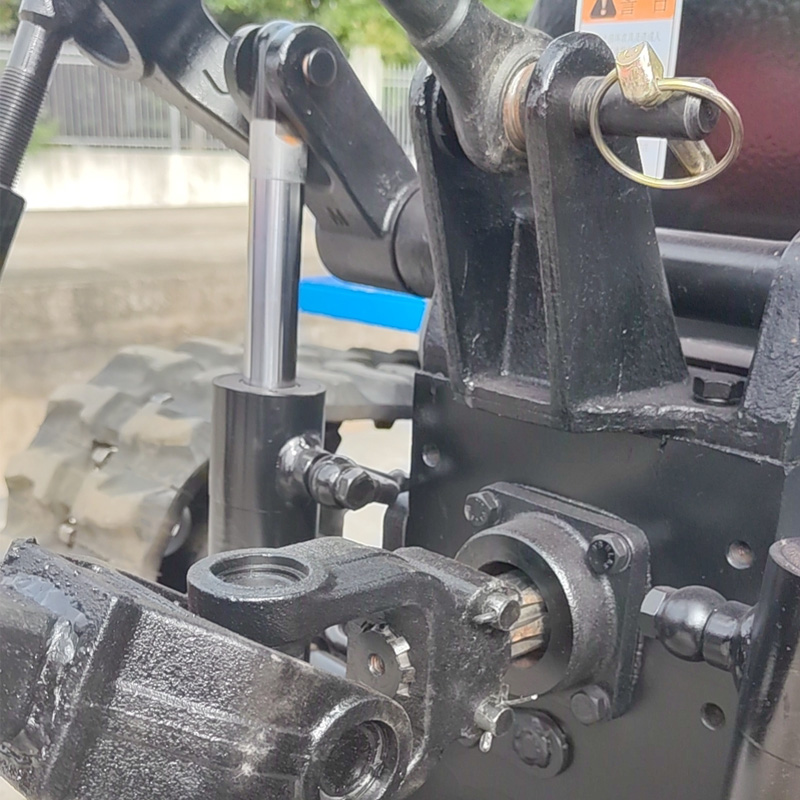

- Equipped with a rear-mounted power output and standard three-point suspension for compatibility with various implements.
- Ideal for orchard management and hilly terrain operations, offering convenience, high traction force, and strong climbing ability.
Performance and Flexibility:
- Reliable performance and flexible operation make it suitable for forest orchards, greenhouses, and hilly terrain.
- The tractor features a humanized console with an advanced electronic control system and hydraulic system integration.
Tool Selection and Control:

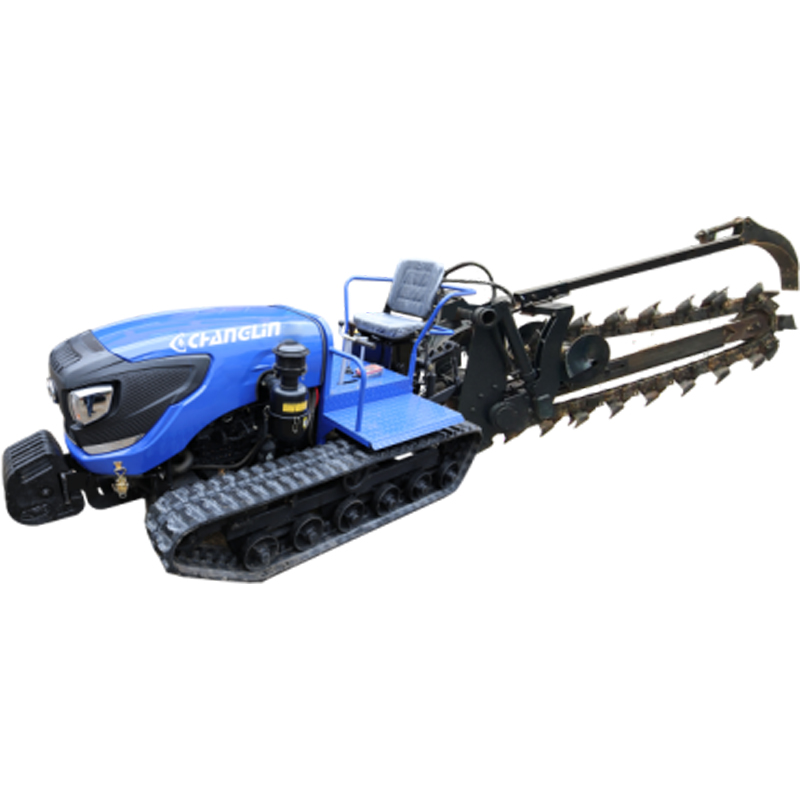

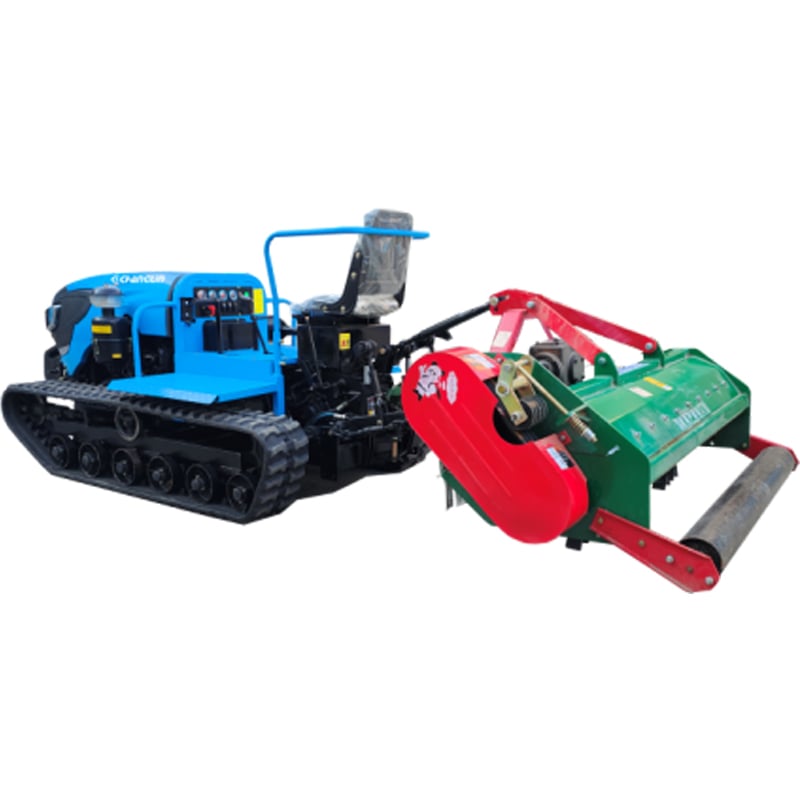

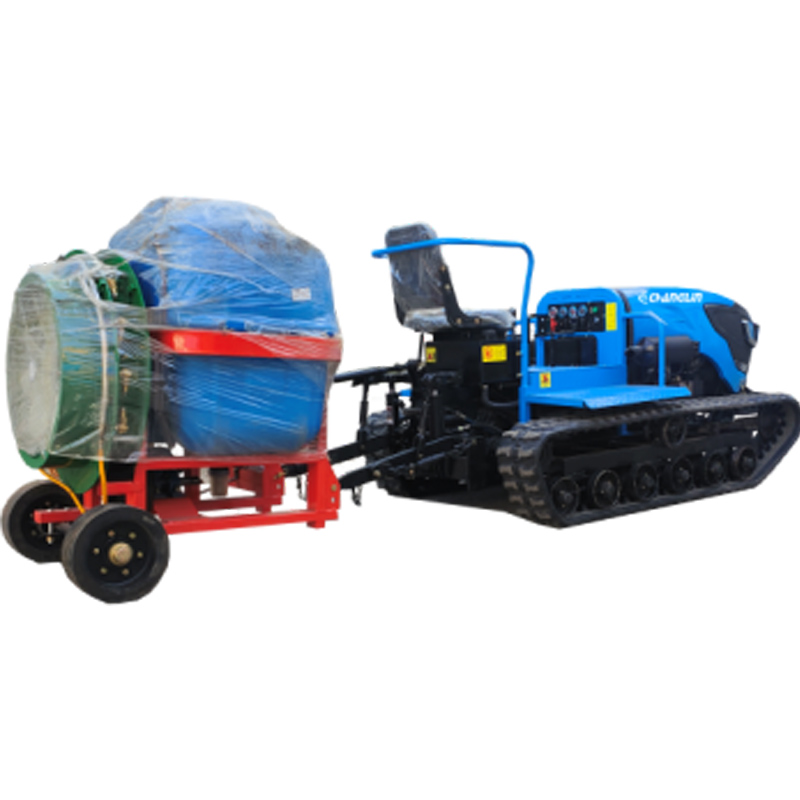

- Users can select from a range of implements including ditching machines, backfilling machines, lawn mowers, and pesticide/fertilizer applicators.
- The tractor offers flexible response with four forward gears and one reverse gear.
Portable and Comfortable:

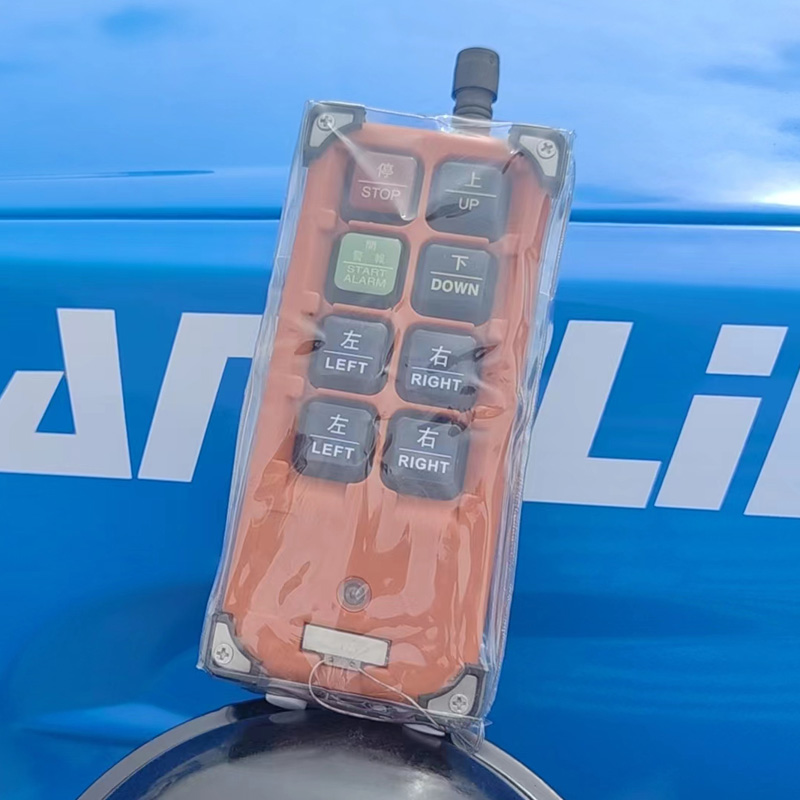

- Equipped with both mechanical and remote control systems, offering integrated manual and remote operation for reduced labor intensity and enhanced operator safety.
- The widened chassis ensures stability for both front and rear of the machine.
Design:
- The widened chassis design ensures stability across various terrains, enhancing overall performance and safety.
Model | CT402 | CT502 | |||
Type | Light crawlertractor | ||||
Dimensions (L×W×H)mm | 3000×1350×1060 | ||||
The mass of the whole unit(kg) | 1300 | ||||
Front counterweight (optional)(kg) | 135 | ||||
Dieselengine | Mode | YD4R40V1 | YD4R50V1 | ||
Type | nline, water-cooled, four-stroke | ||||
Aspiration | Natural | ||||
Number of cylinders-bore Diameter x Stroke(mm) | 4-90×95 | ||||
Rated power (kW) | 29.4 | 36.75 | |||
Rated speed (rpm) | 2400 | ||||
Fuel consumption rate at ratedcondition (g/kW.h) | S245 | ||||
Oil consumption rate(g/kW.h) | ≤1.5 | ||||
Clutch type | 9 inch, single acting | 10 inch, single acting | |||
Crawler type | Rubber crawler | ||||
Crawler ground length (mm) | 1350 | ||||
Gauge (mm) | 1100 | ||||
Minimum tuming radius (mm) | 2000 | ||||
Minimum ground clearance (mm) | 185 | ||||
Average ground pressure (kPa) | 19 | ||||
PTO shaft speed (rpm) | 720 | ||||
PTO shaft power(%) | 80 | ||||
Number of gears | 12 forward gears +4 reverse gears | ||||
The SpeedOfeachshiftgearlntheory(km/h) | Creepergea | Low | I,Ⅱ,II,R | 0.16/0.21/0.31/0.19 | |
High | I,Ⅱ ,I,R | 0.41/0.53/0.80/0.48 | |||
Normalgear | LoW | I,Ⅱ,Ⅲ,R | 1.02/1.33/1.99/1.19 | ||
High | I,Ⅱ,I,R | 2.62/3.42/5.12/3.07 | |||
*Subject to change without notice.Ilustrations in this article are not necessarily standard for this model. |
