Changlin GHT215W Hydraulic Wheeled Excavator - Power and Precision Combined

Introducing the GHT215W excavator, a new generation of fully hydraulic wheeled excavator independently developed by Changlin. Powered by a high-power, low-fuel-consumption engine, this excavator ensures robust power and reserves. The precise matching of the high-efficiency hydraulic system and axle box guarantees optimal performance.

Main Features

The hydraulic system features renowned components, offering high reliability, genuine quality, safety, environmental friendliness, and comfort. It provides various special configurations and attachment options, adaptable to diverse customer demands worldwide.

Standard equipped with a hydraulic travel system, eliminating the need for clutch operation and gear shifting during operation, allowing for seamless speed changes. High driving force enables agile maneuverability and strong off-road performance.

Choose from a variety of attachments to suit different tasks. The spacious, comfortable cab provides excellent all-round visibility. Plus, the new ergonomic seat enhances operator comfort, ensuring efficiency and ease during long work hours. Experience power, precision, and comfort with the GHT215W excavator.

Main Specifications
Engine Cummins 6BTA5.9-C180/132kw/2200rpm
Yuchai, YC6A190Z-T20140KW/2300r/min (China emission II)
Operating Weight (kg) 21030
Bucket capacity (m ³) 0.9-1
Dimensions
Transportation length (mm) 9700
Transportation height (mm) 3340
Overall width (mm) 2730
Tail turning radius (mm) 2500
Height of turntable (mm) 2600
Track width (mm) 1980
Wheelbase (mm) 2840
Scope of work
Max excavation height (mm) 10600
Max unloading height (mm) 7700
Max excavation depth (mm) 6400
Max excavation radius (mm) 9900
Working parameters
Hydraulic system pressure (Mpa) 32
Hydraulic system flow (L/min) 2*239
Boom length (mm) 5700
Stick length (mm) 3000
Bucket digging force (kN) 152.1
Stick digging force (kN) 119.5
Fuel tank capacity (L) 350
Hydraulic oil tank capacity (L) 215
Climbing slope (%) ≥60
Rotation speed (r/min) 13-14
Max traveling speed (km/h) 30
Bulldozer plate size (mm) 2700*590
Plate lifting height (mm) 450
Plate support height  (mm) 100
Scope of Application

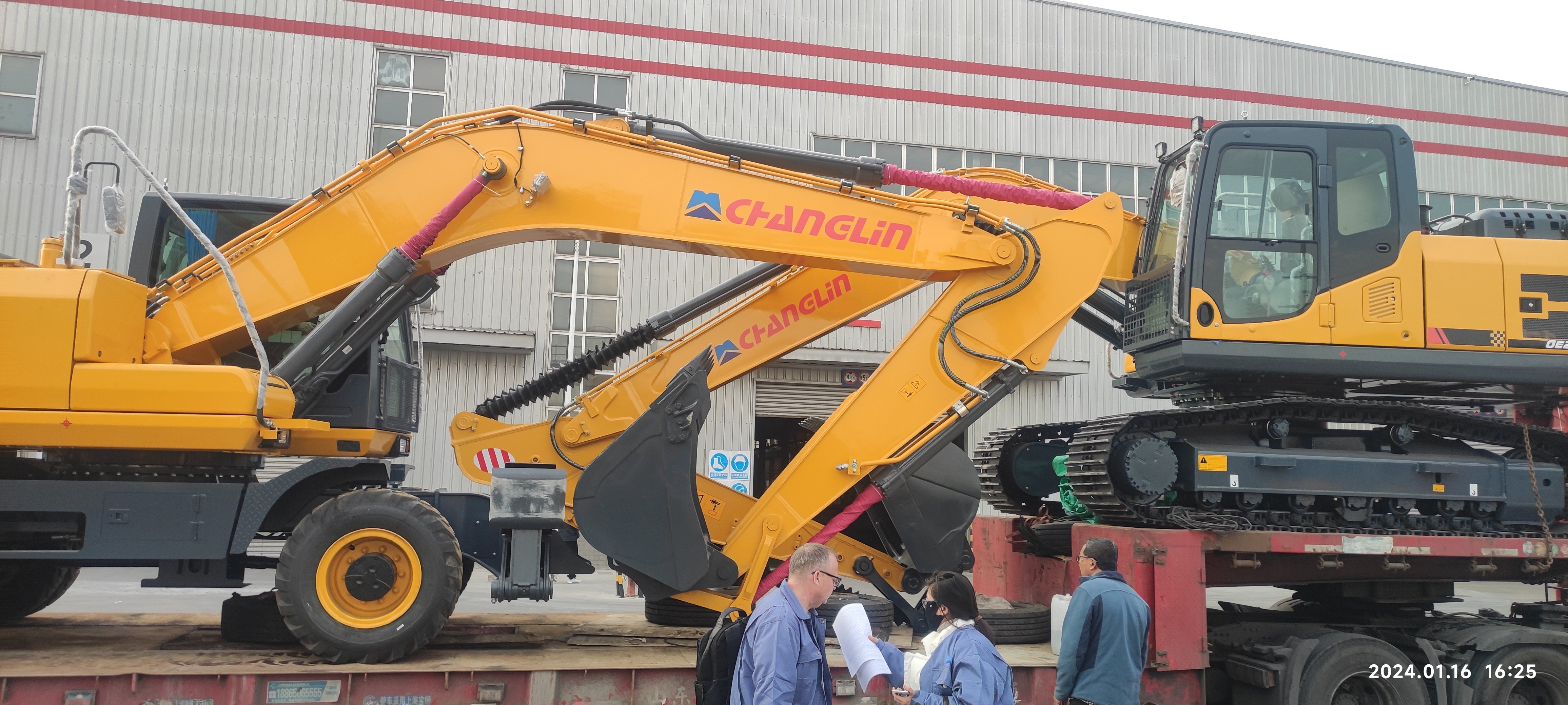

WechatIMG5031

Product Superiority And Transportation

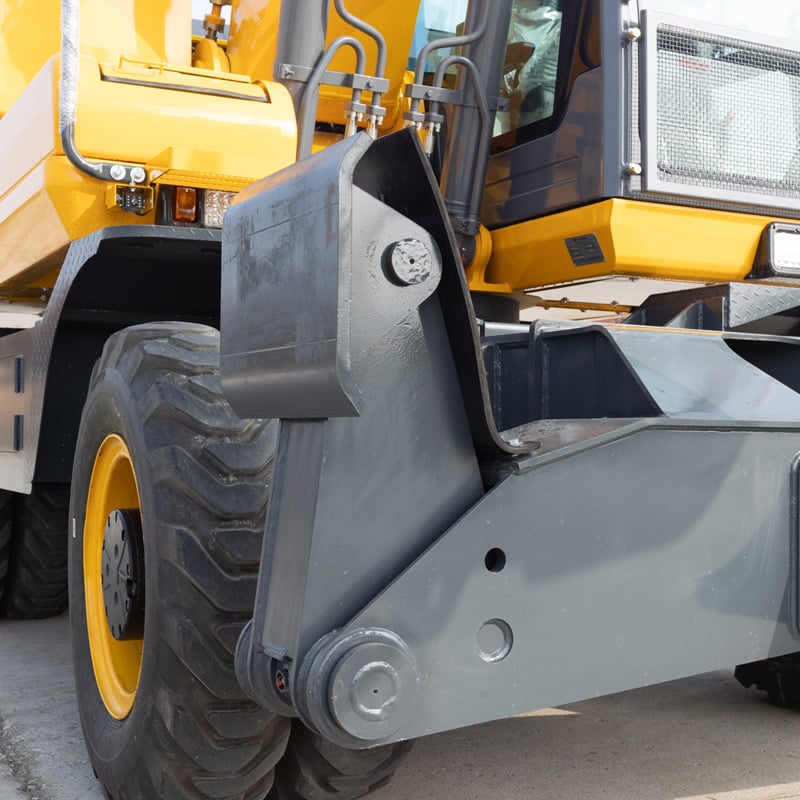

  • 1J4A8960-12

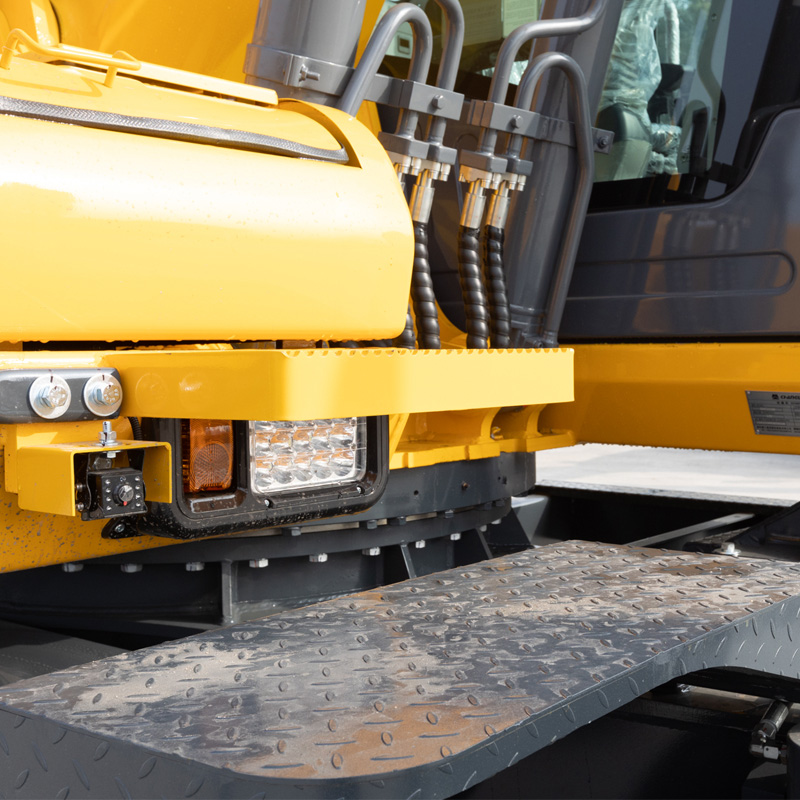

  • 1J4A8963-15

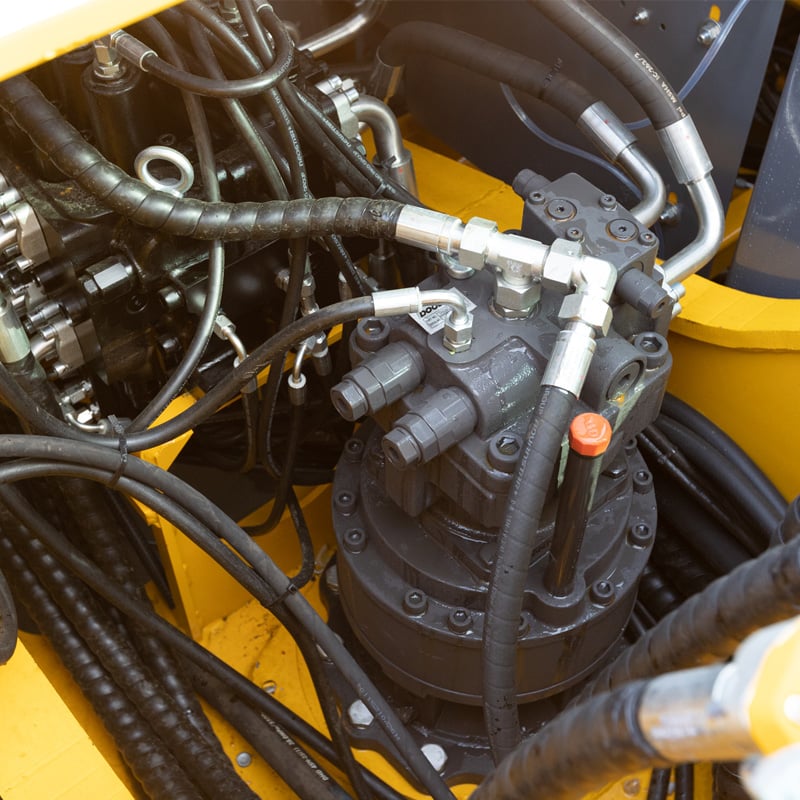

  • 1J4A8967-19

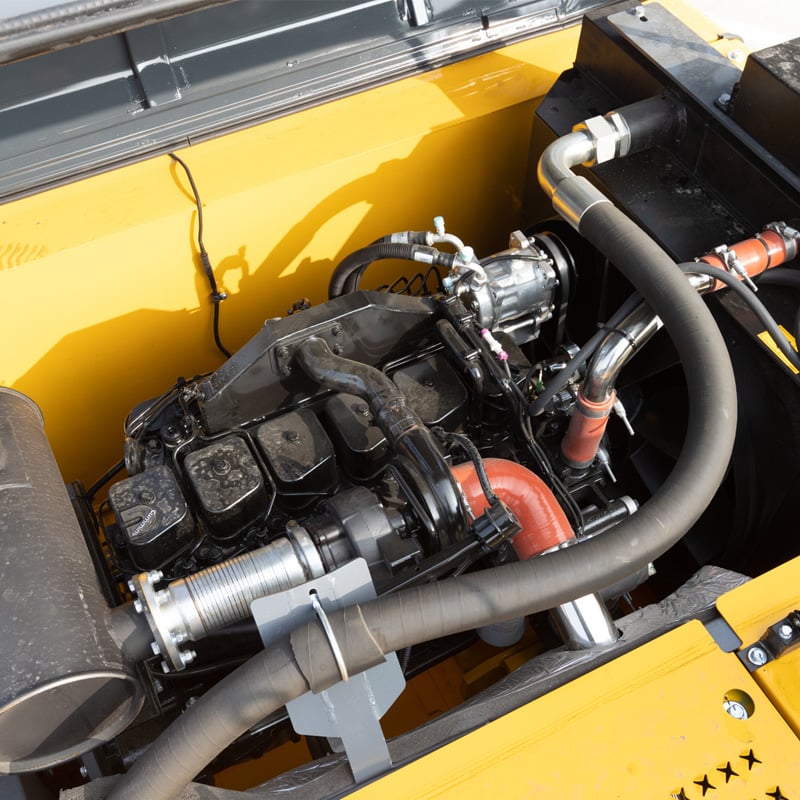

  • 1J4A8971-23

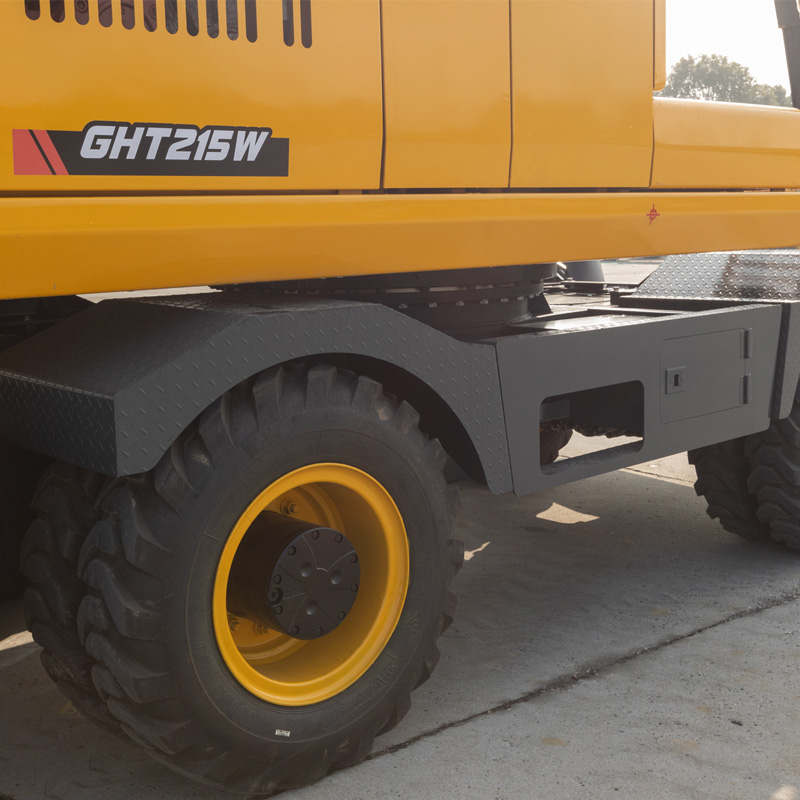

  • 1J4A8995-29

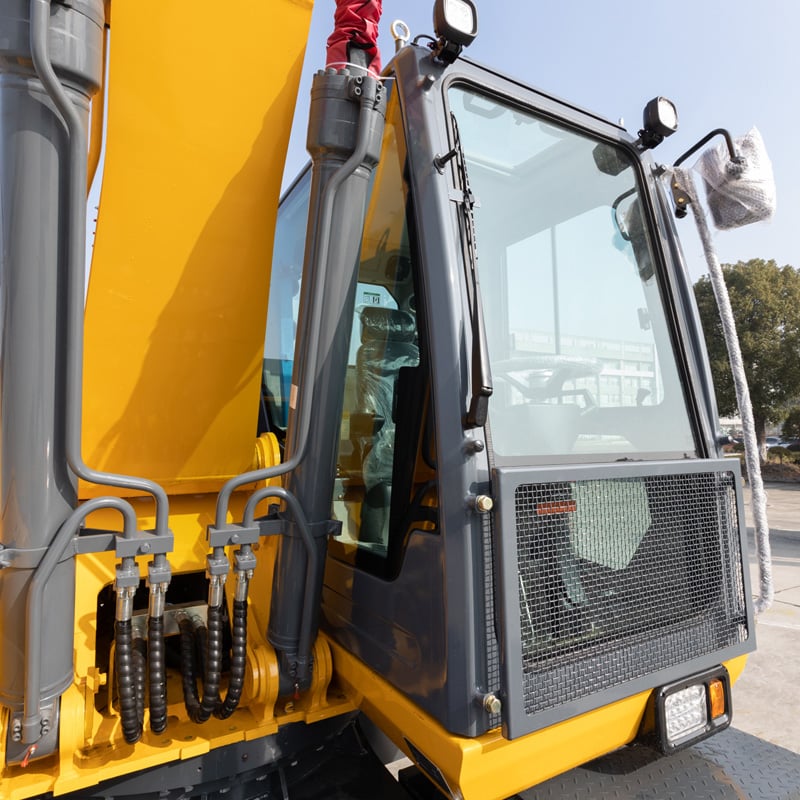

  • 1J4A9000-33

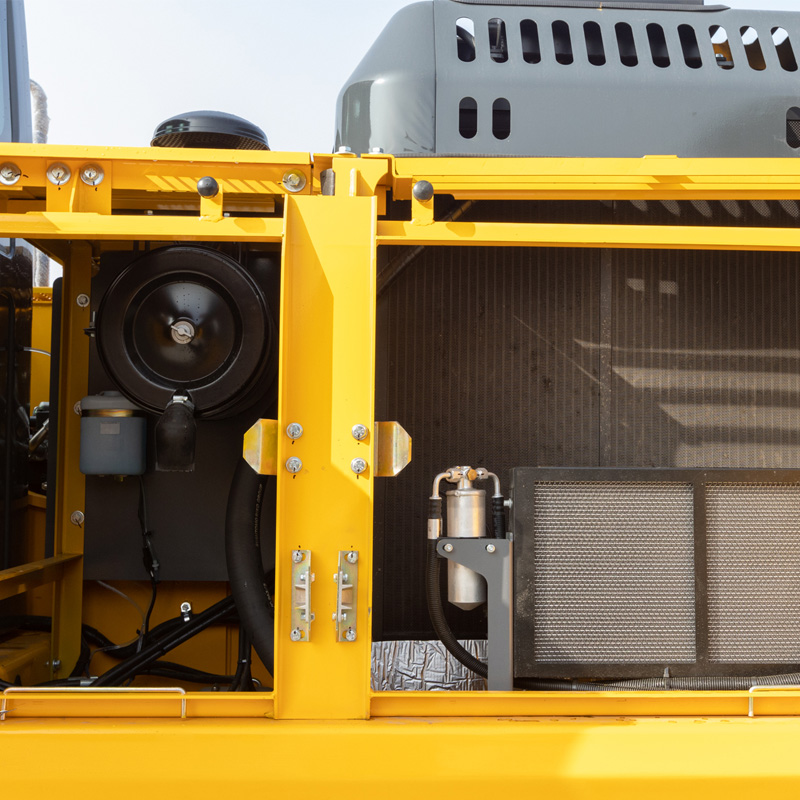

  • 1J4A9007-40

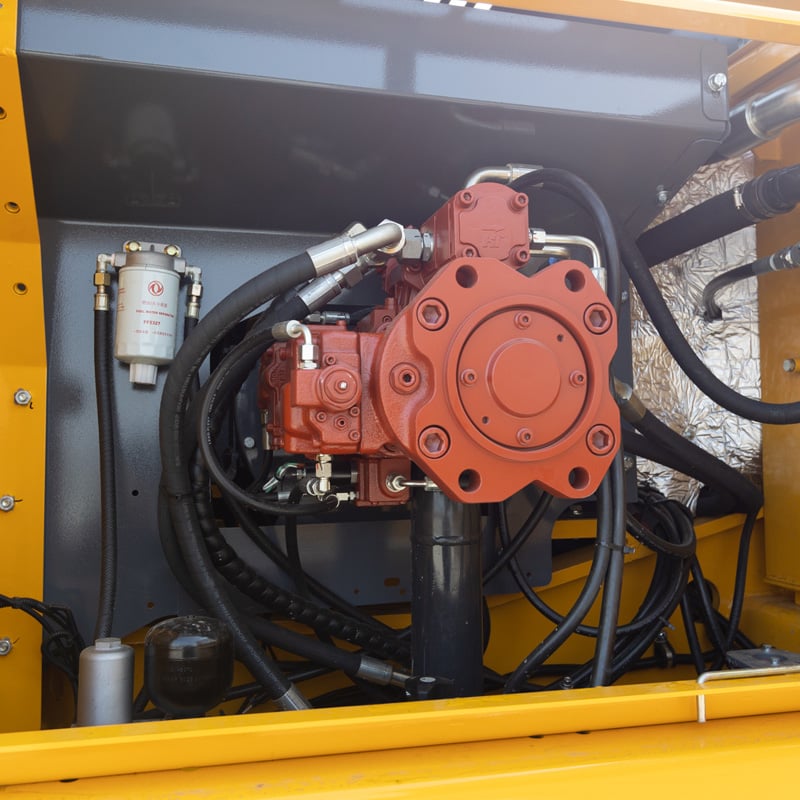

  • 1J4A9010-42

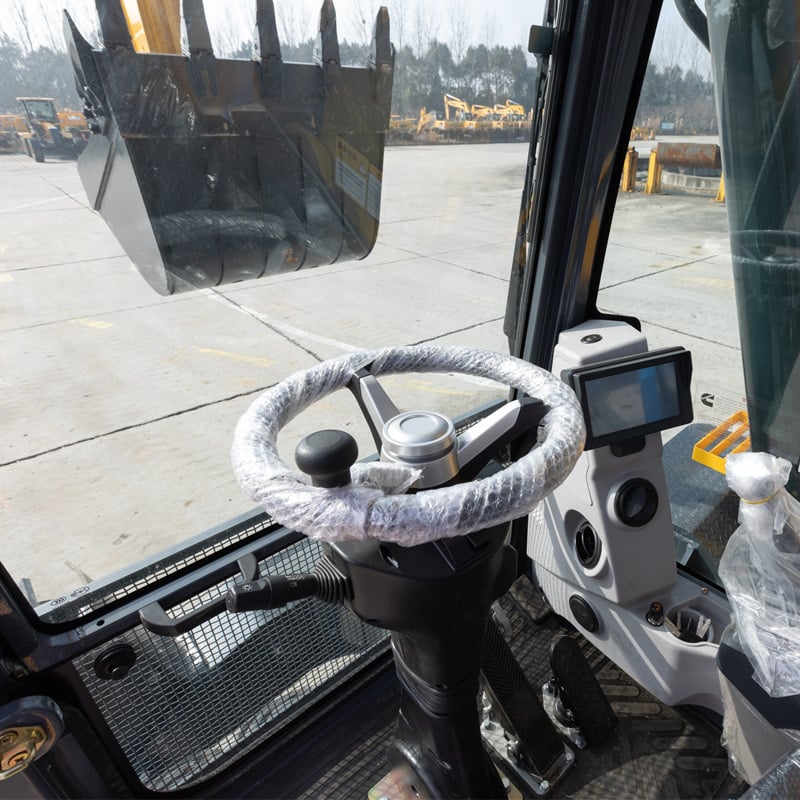

  • 1J4A9014-46

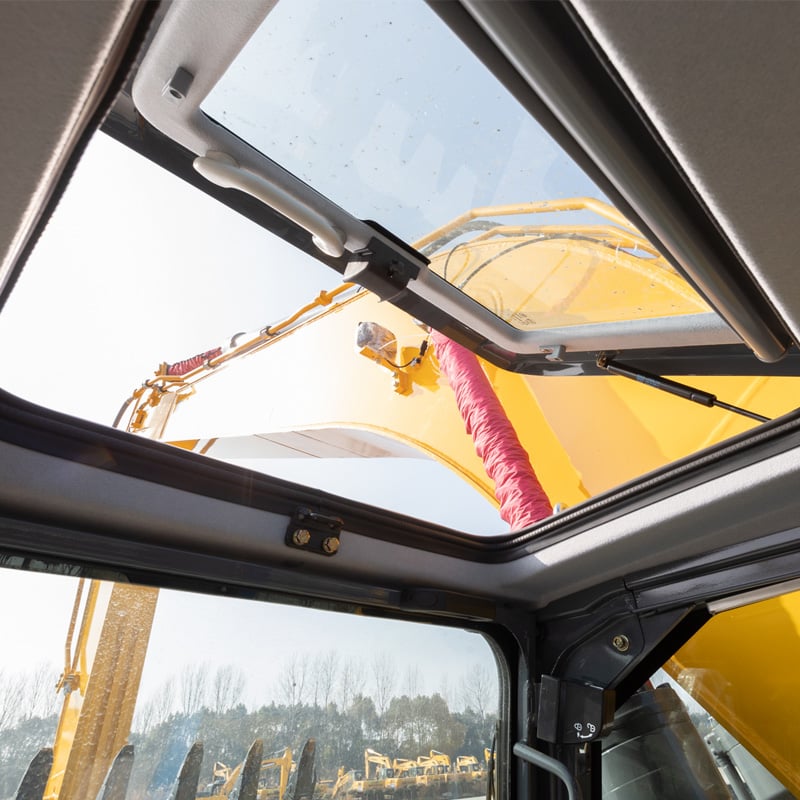

  • 1J4A9034-62
Production Line

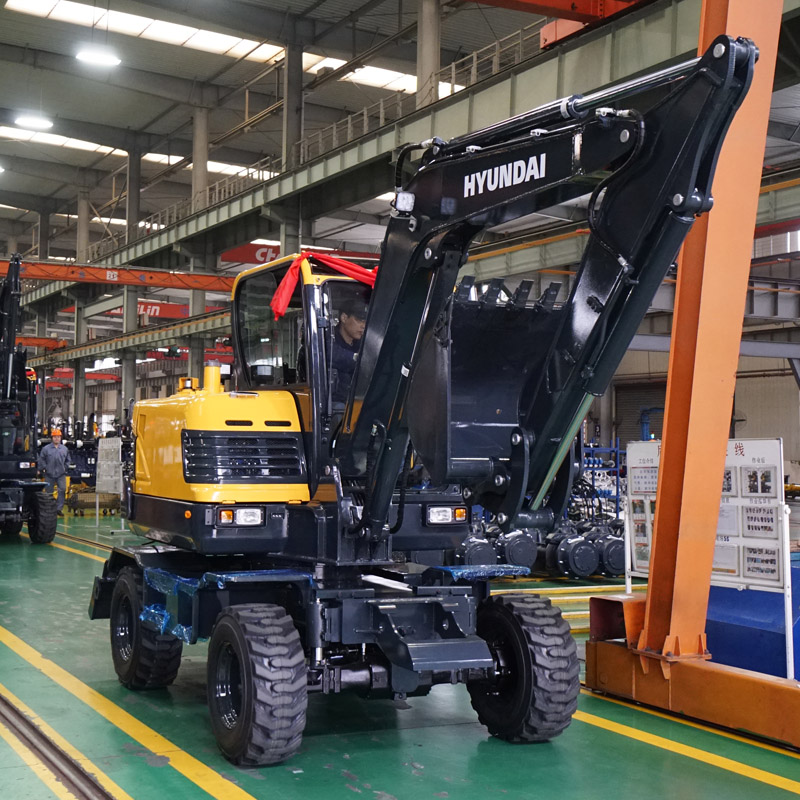

  • _DSC5191

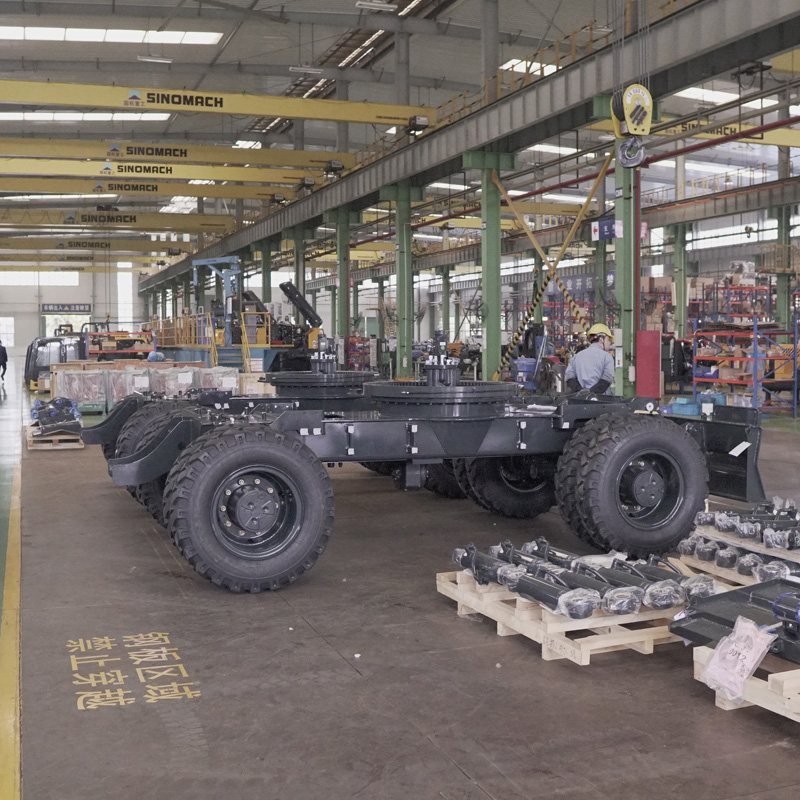

  • _DSC8565

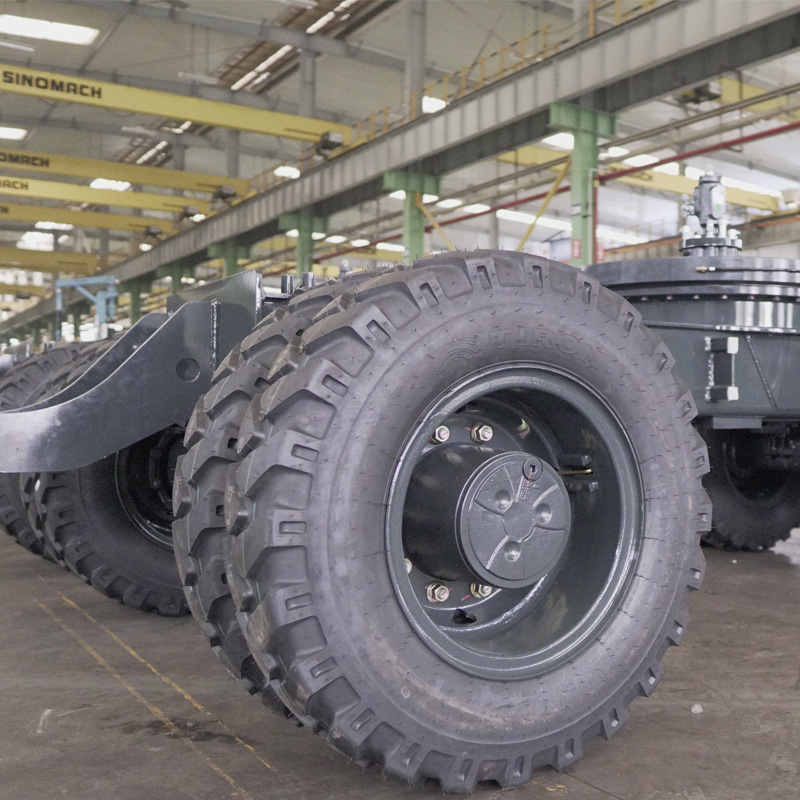

  • _DSC8566

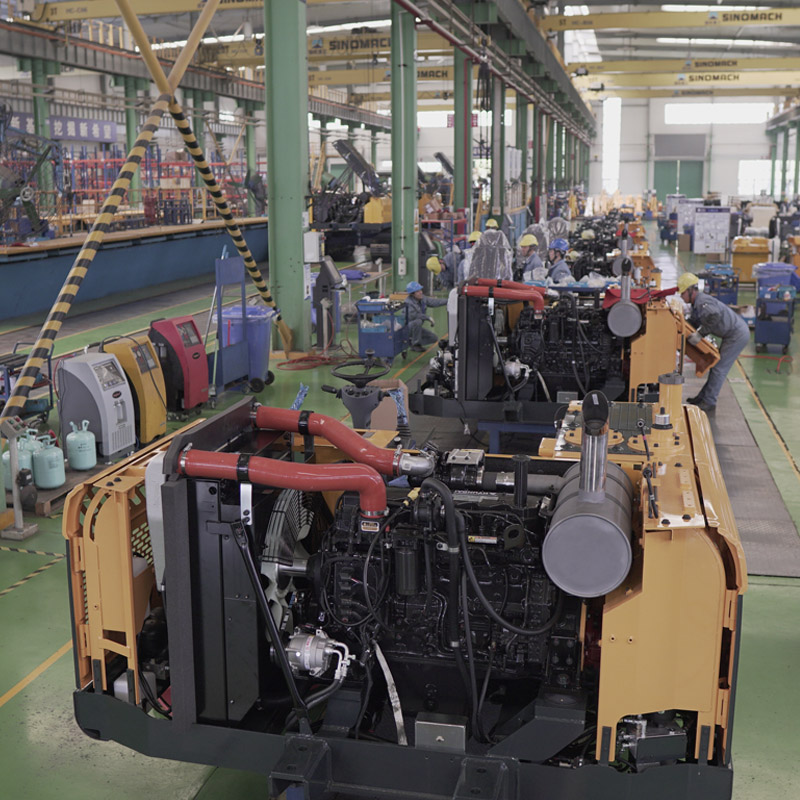

  • _DSC8585

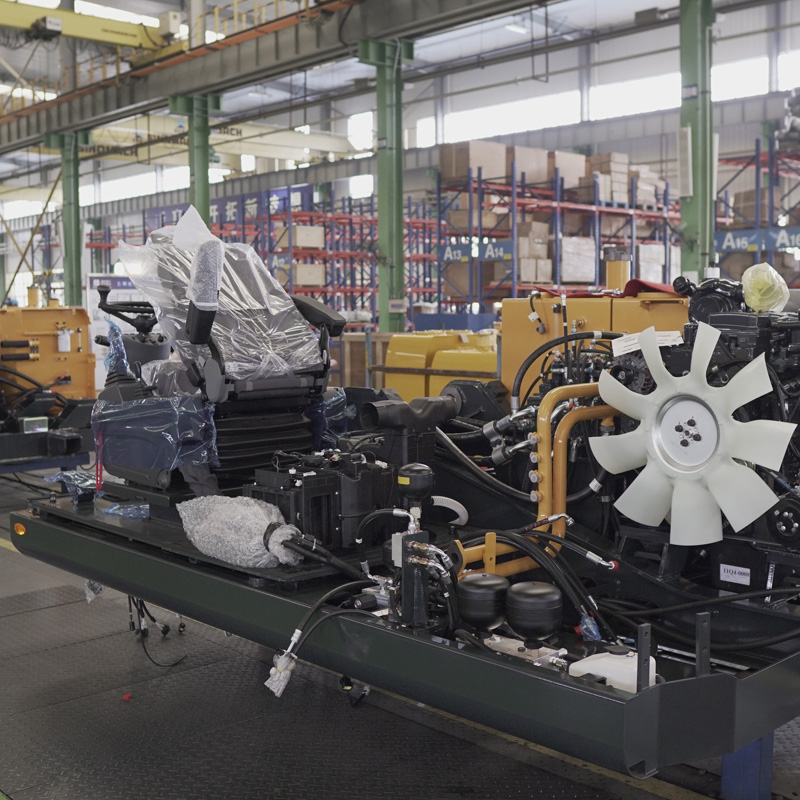

  • _DSC8645

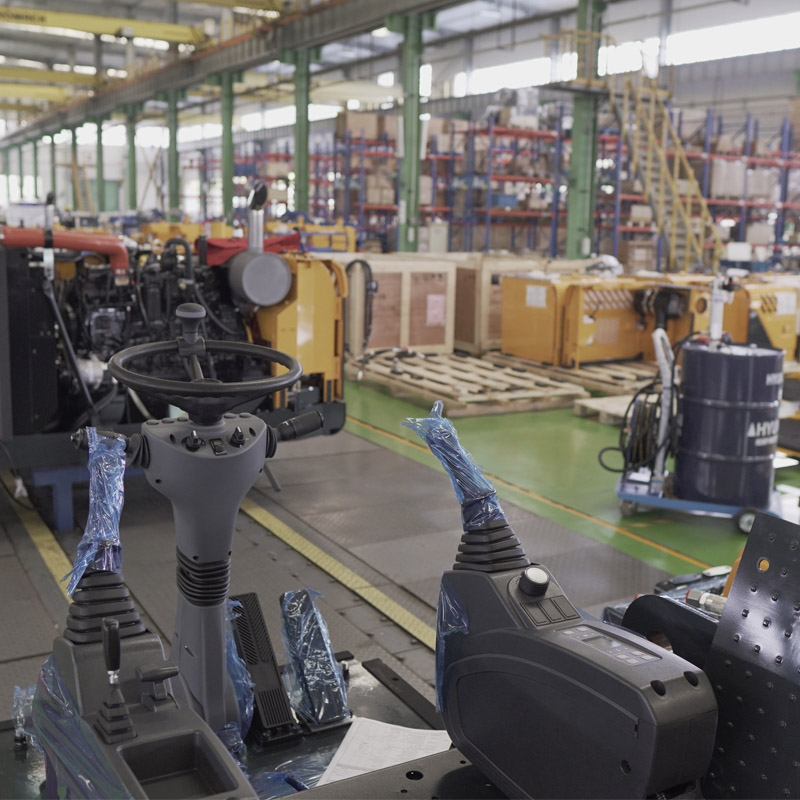

  • _DSC8658

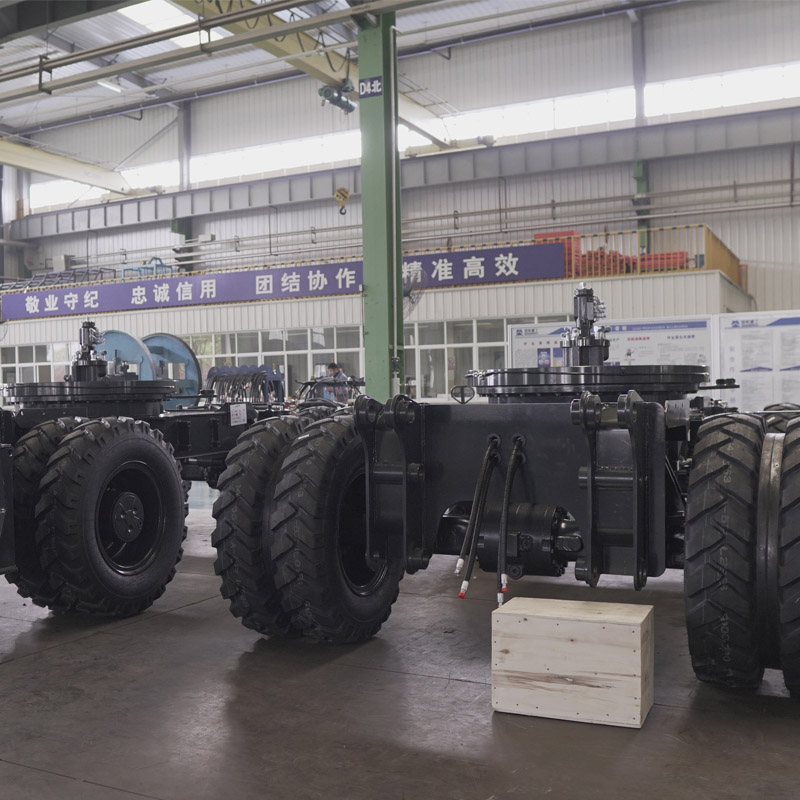

  • _DSC8662

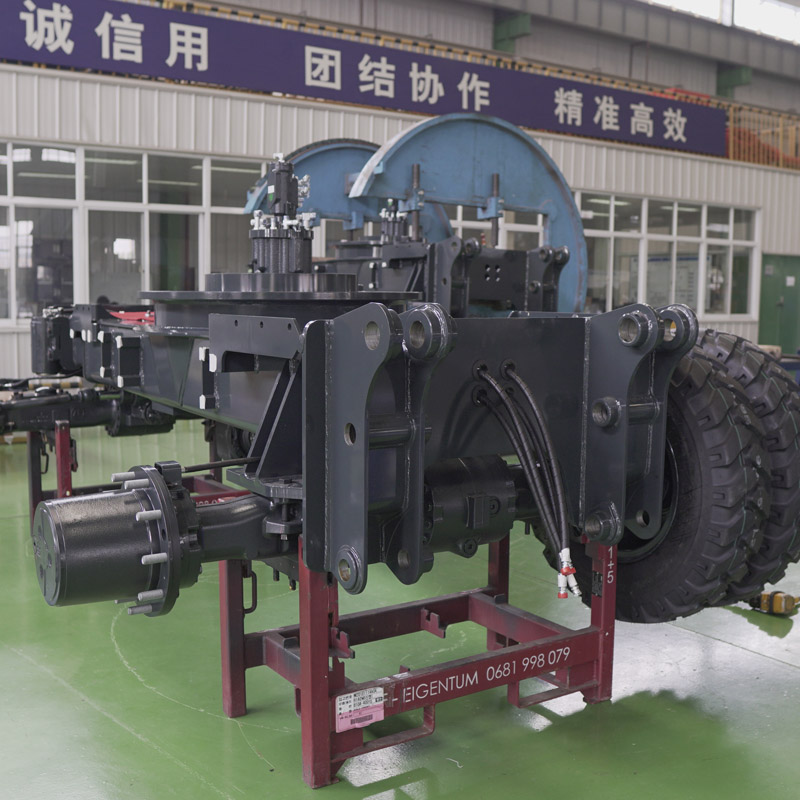

  • _DSC8669

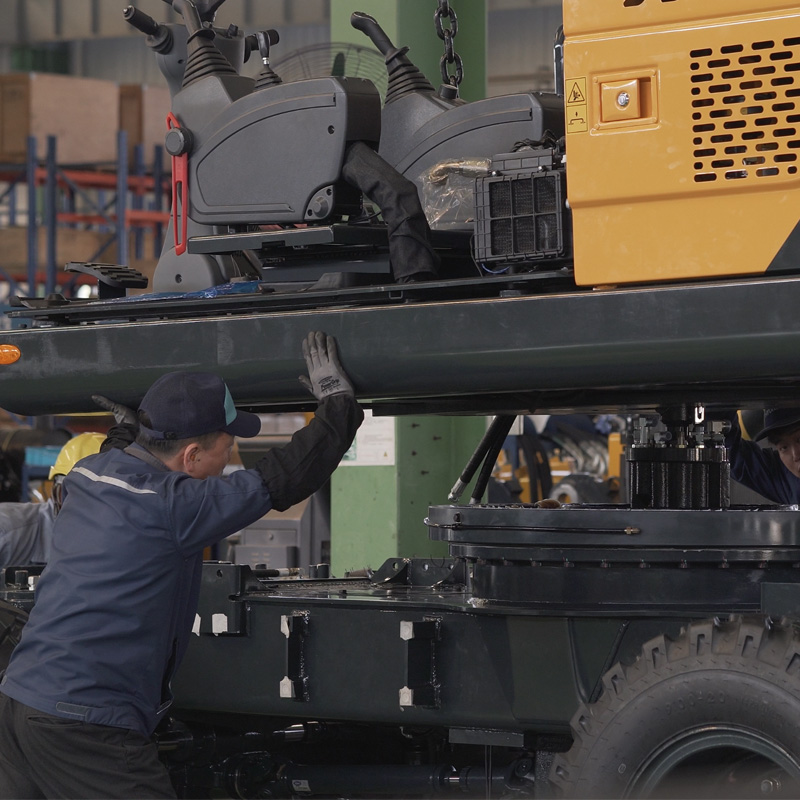

  • WX20240329-152721@2x

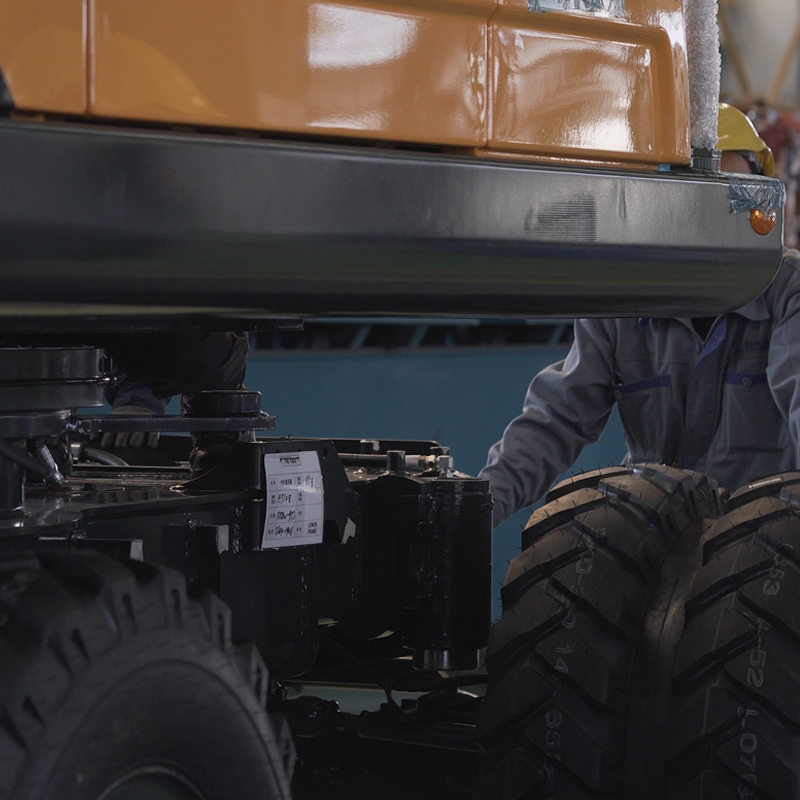

  • WX20240329-152811@2x
