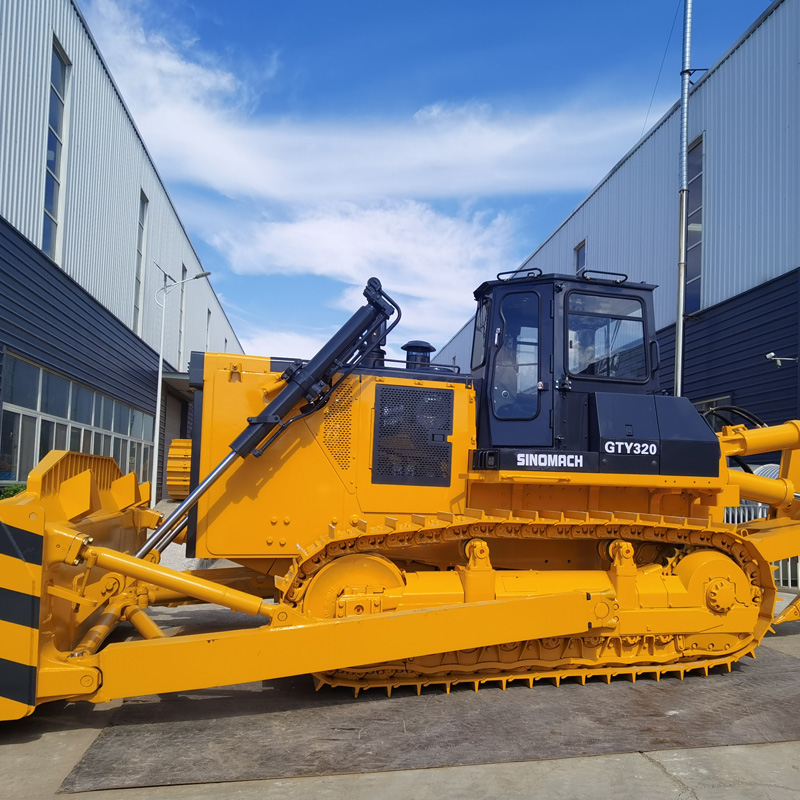

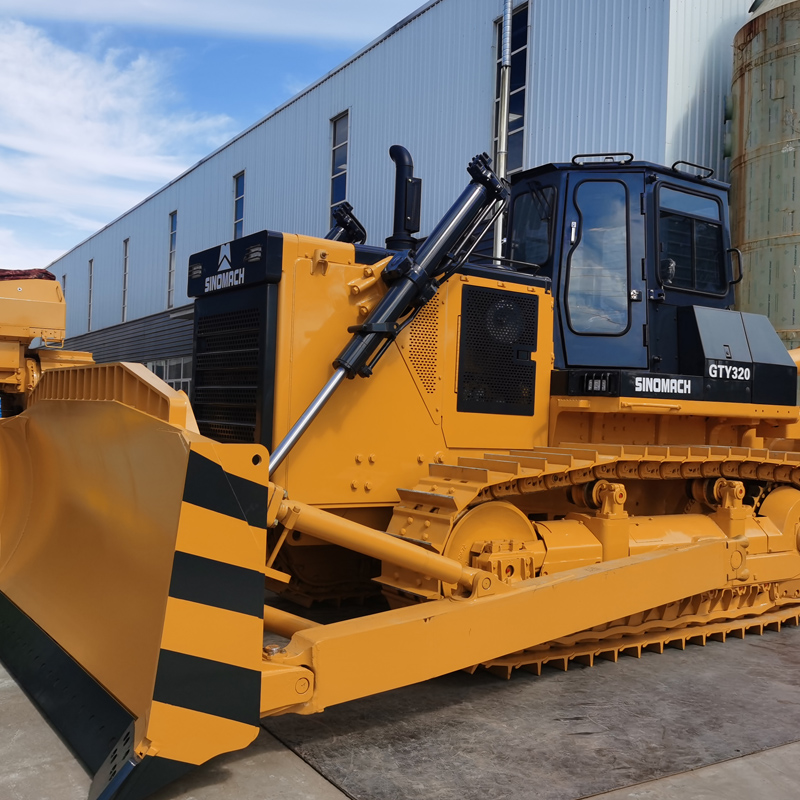

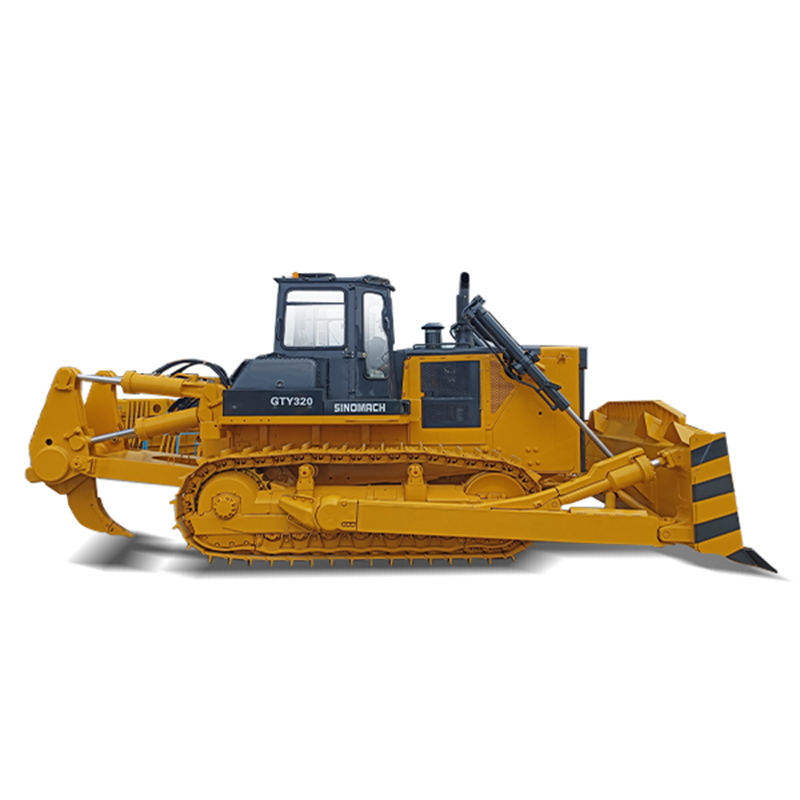

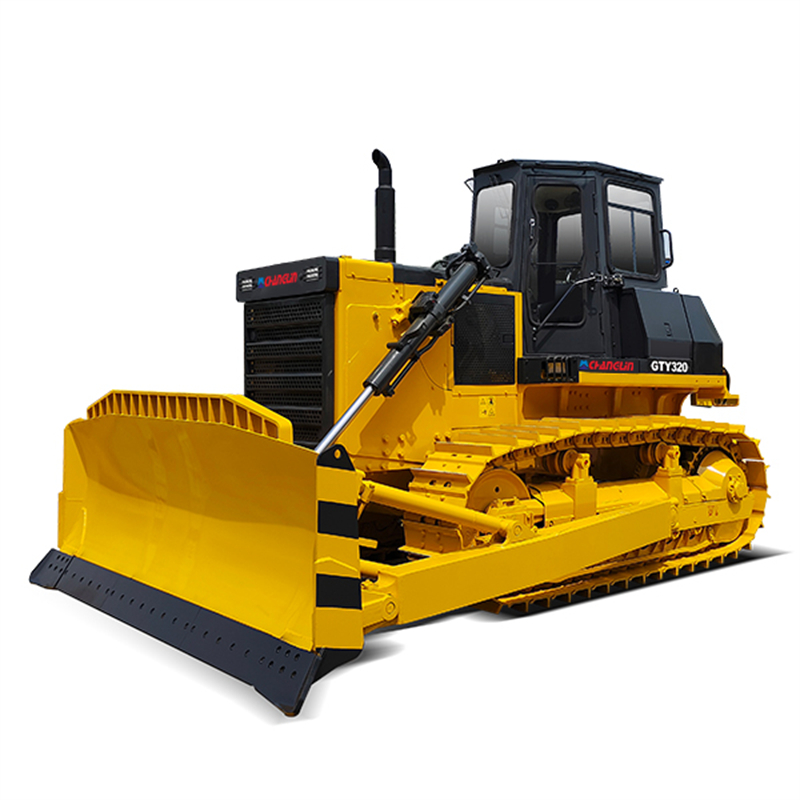

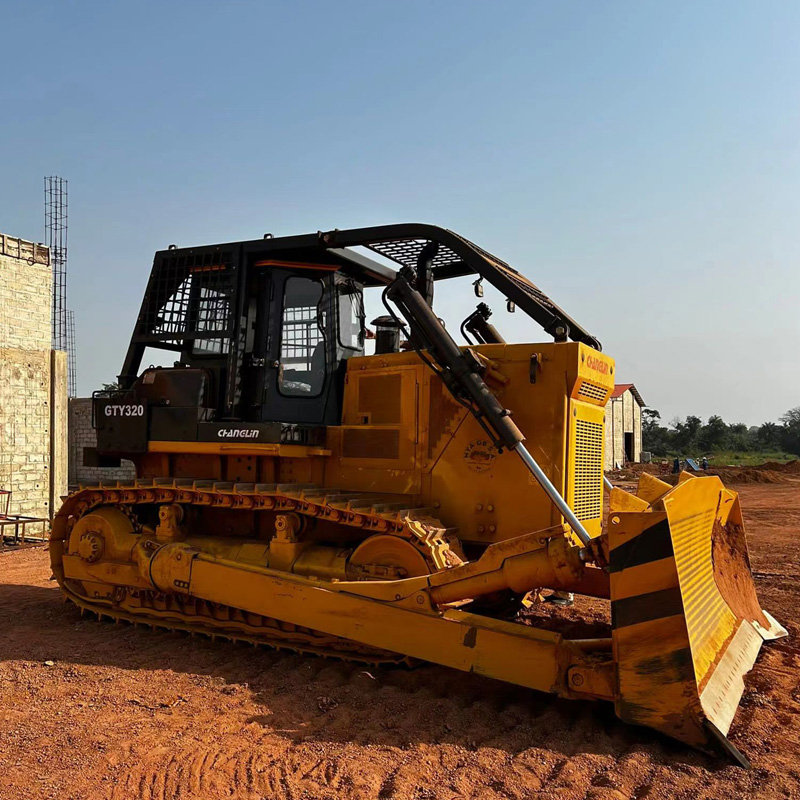

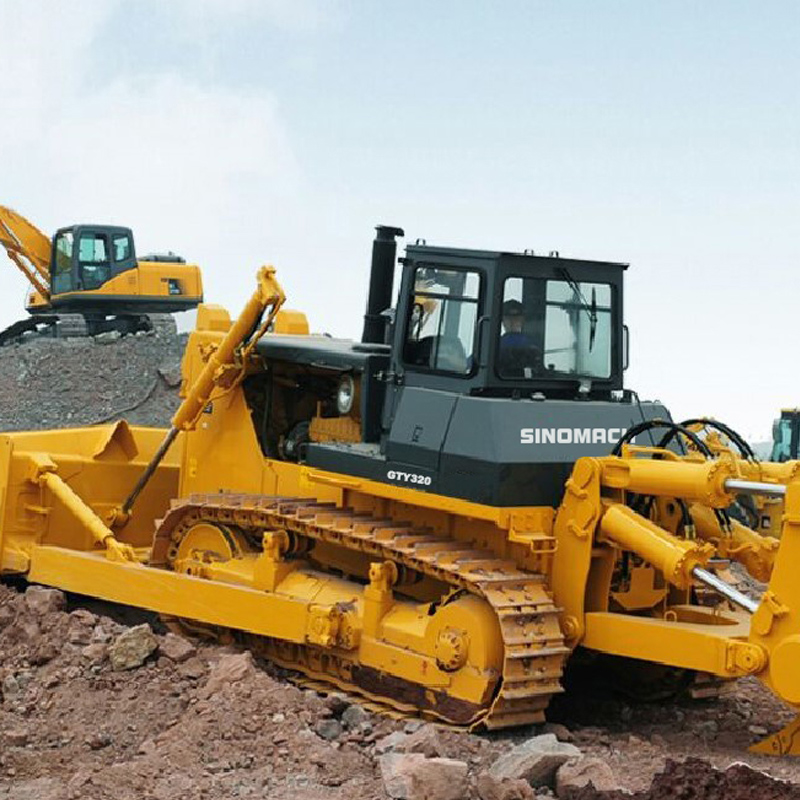

Unleash the power of the GTY320, featuring a robust CUMMINS NTA855-C360S10 engine for unmatched reliability and strength. With an operating weight of 37,200kg and a rated output of 257kW, it's designed to tackle the toughest tasks. The 4,150mm blade width, coupled with efficient power transmission and a stable torque converter, ensures high productivity.
A CUMMINS NTA855-C360S10 engine which can gives you more power and reliability you need.
The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure final drive transmit power efficiently.
With independent engine cooling water tank, chassis oil cooler, water and air intercooler provides excellent cooling performance and simple maintenance operation to ensure continuous operation of the machine.
The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.

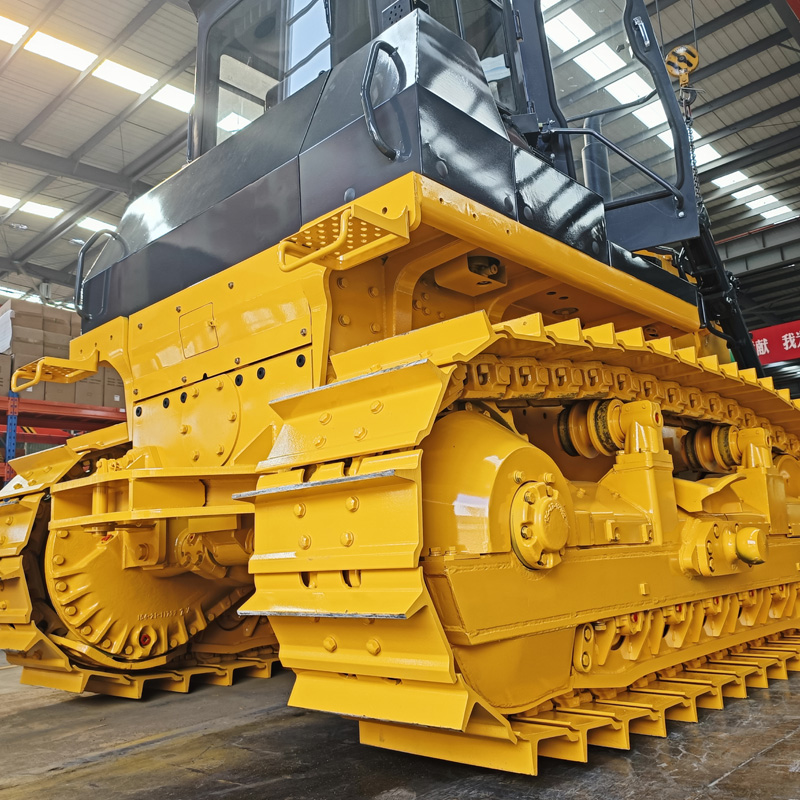

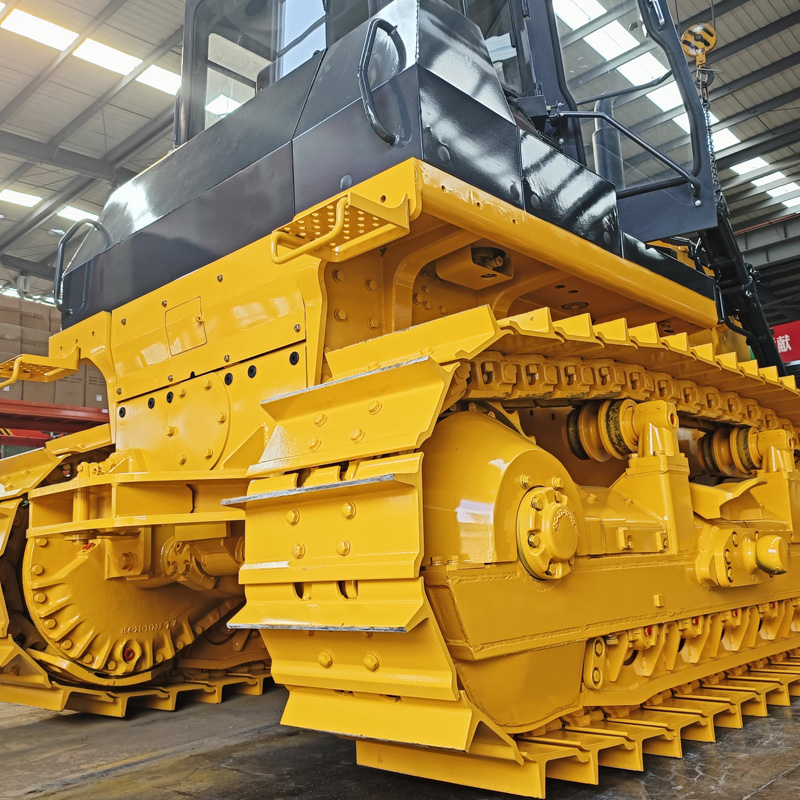

The final drive is driven low and provides more powerful driving force and efficient gradeability. The crawler-type walking chassis has reached the international advanced level and is suitable for various complicated working conditions, with high reliability and carrying capacity.

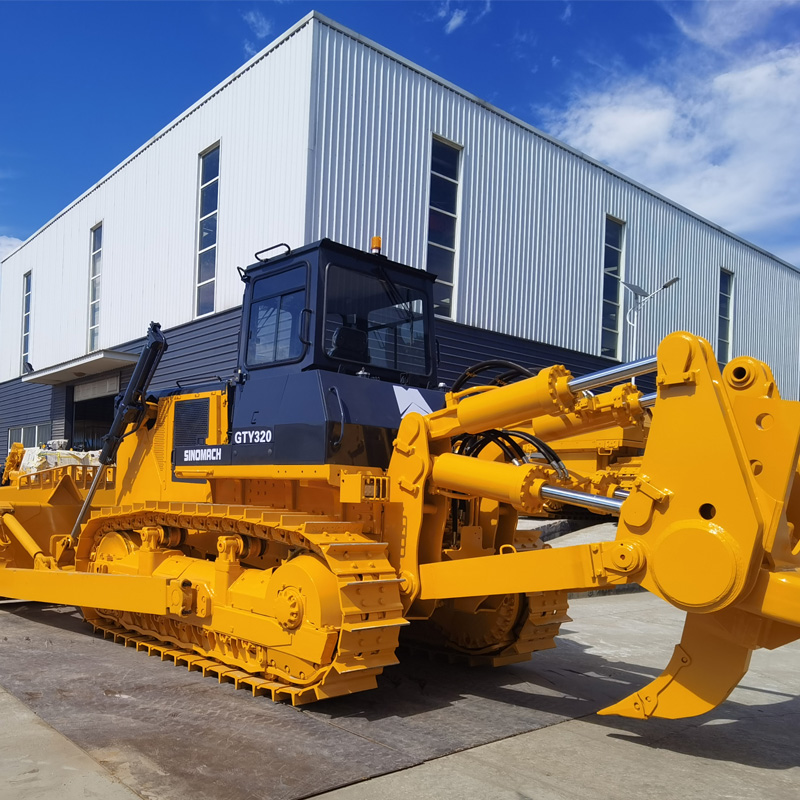

The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force.
| Model | GTY320 |
| Type | Standard Hydraulic Crawler Type |
| Type | CUMMINS NTA855-C360S10 |
| Displacement(L) | 14.01 |
| (kw/rpm)Rated power | 257/2000 |
| (N.m/rpm)Max.torque | 1440@1400 |
| Operating weight | 37.2 Ton |
| (mm) Dimension(no ripper) | 6535×4150×3515 |
| (mm) Grounding length | 3150 |
| (MPa) Ground pressure | 0.105 |
| (mm) Track gauge | 2140 |
| Dozing capacity(m³) | 10 |
| (mm) Blade width | 4150 |
| (mm) Blade height | 1610 |
| (mm) Max drop below ground | 560 |
| (mm) Track shoe width | 560 |
| (mm) Pitch | 228.6 |
| Quantity of track link | 41 |
| Quantity of Carrier rollers | 4 |
| Quantity of Track rollers | 14 |
| (MPa) Max pressure | 14 |
| L/min Discharge | 355 |
| (KN) Max tractor force | 280 |
| (Km/h) Forward Speed | F1:0-3.6 |
| F2:0-6.6 | |
| F3:0-11.5 | |
| (Km/h) Rear Speed | R1:0-4.4 |
| R2:0-7.8 | |
| R3:0-13.5 |
| S/N | Item | Model | Manufacturer |
| 1 | Engine | NTA855-C360S10 | Cummins |
| 2 | Torque converter | HAITUI | |
| 3 | Gear box | HAITUI | |
| 4 | Steering clutch | JINRUNTONG | |
| 5 | Brake | WUHUAN | |
| 6 | Gear pump | CHANGZHI | |
| 7 | Valve | XINLONG | |
| 8 | Track shoe | 228.6 | LIAOAN |
| 9 | Track roller, carrier roller | JINNIU | |
| 10 | Cylinder | WENDENG |
GTY320 crawler bulldozer, carries out standardized mass production of high-power bulldozer. The whole machine adopts advanced hydraulic transmission, hydraulic control technology, advanced and reasonable structure, light and flexible operation, quality and reliable.
