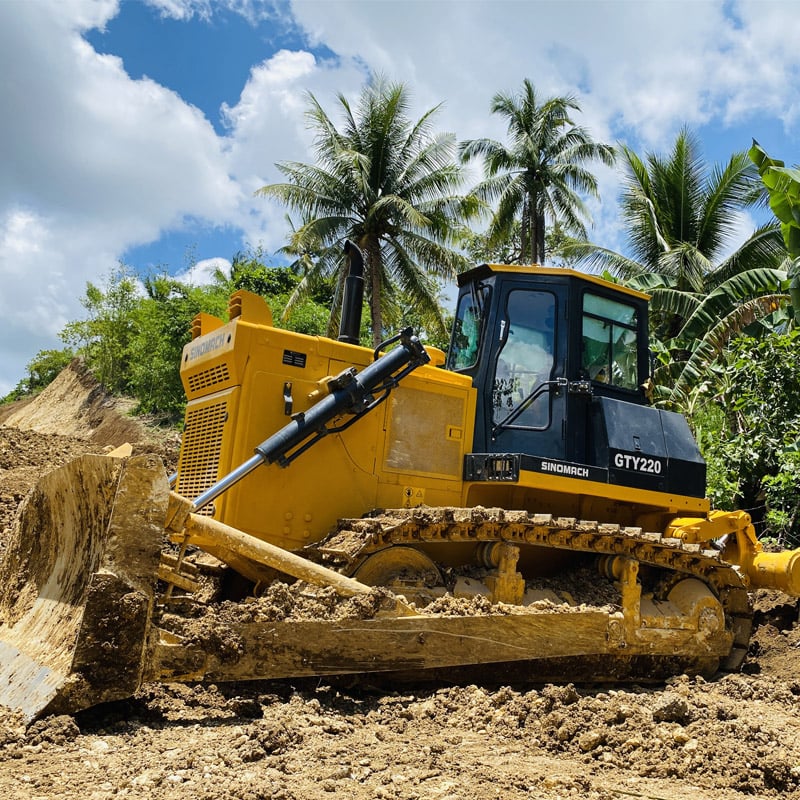

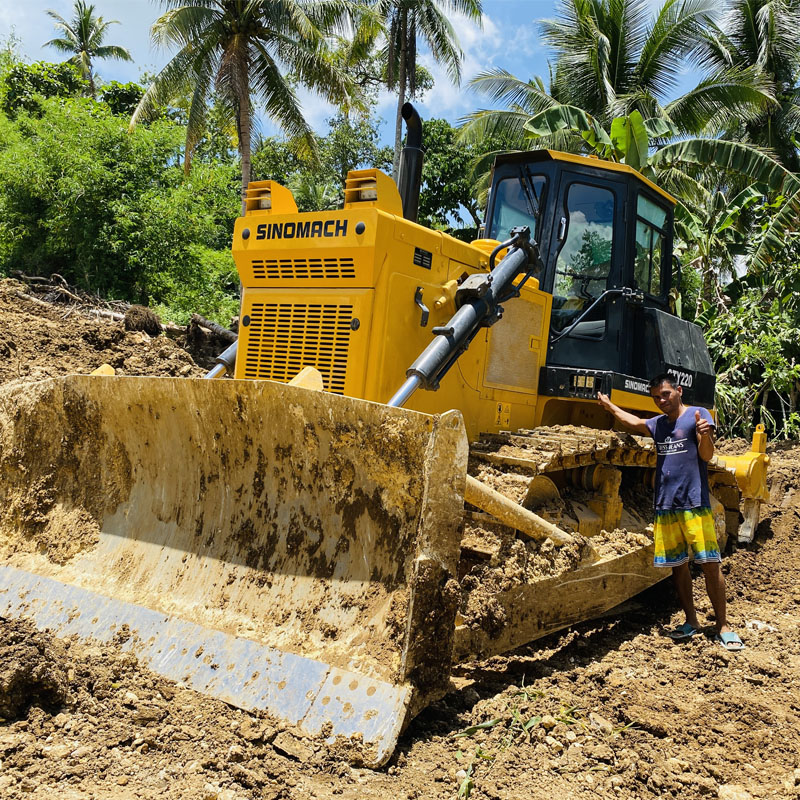

Introducing the GTY220 Bulldozer, where power meets precision. Powered by a robust CUMMINS NT855-C280S10 engine, it delivers unmatched reliability and strength. With an operating weight of 23,500kg and a 175kW rated output, this bulldozer excels in both efficiency and power. Its 3,735mm blade width, combined with improved fuel economy and strong torque output, ensures superior performance and fluid efficiency.

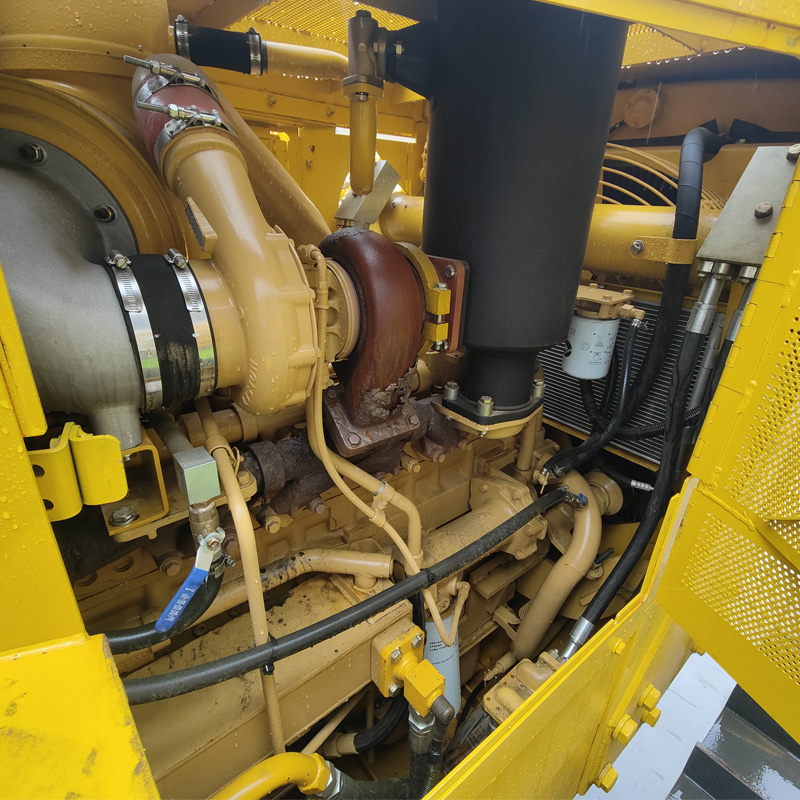

A CUMMINS NT855-C280S10 engine which can meet gives you more power and reliability you need. Improved fuel economy over the previous model with strong torque output and low fuel consumption gives you excellent overall fluid efficiency.
The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure final drive transmit power efficiently.

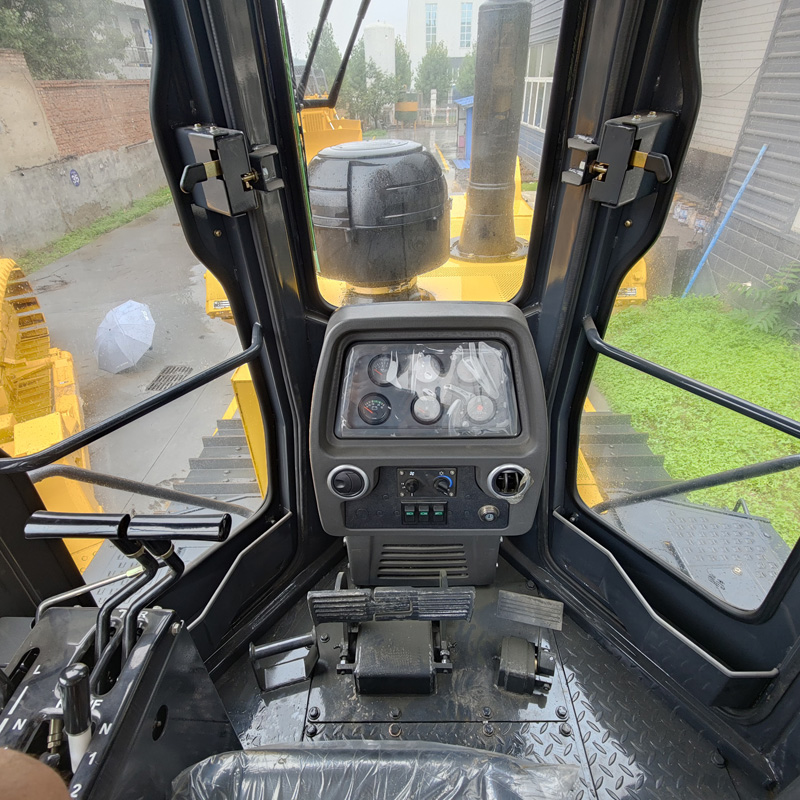

It can realize automatic fault diagnosis and full monitoring.The overall cast instrument panel integrates air conditioning, electrical appliances and instruments into one, which is more beautiful and luxury.
The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.

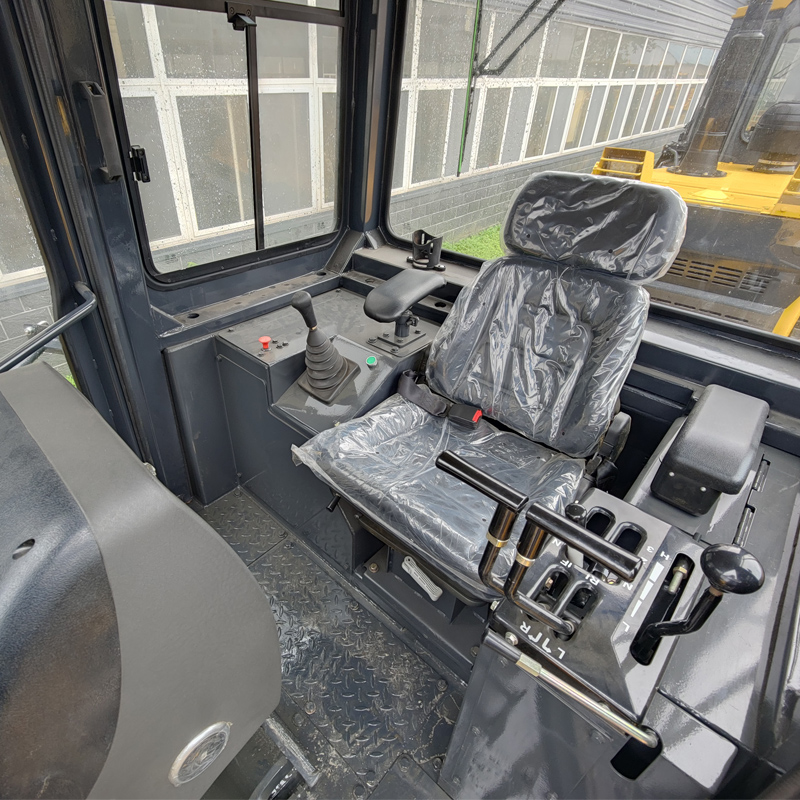

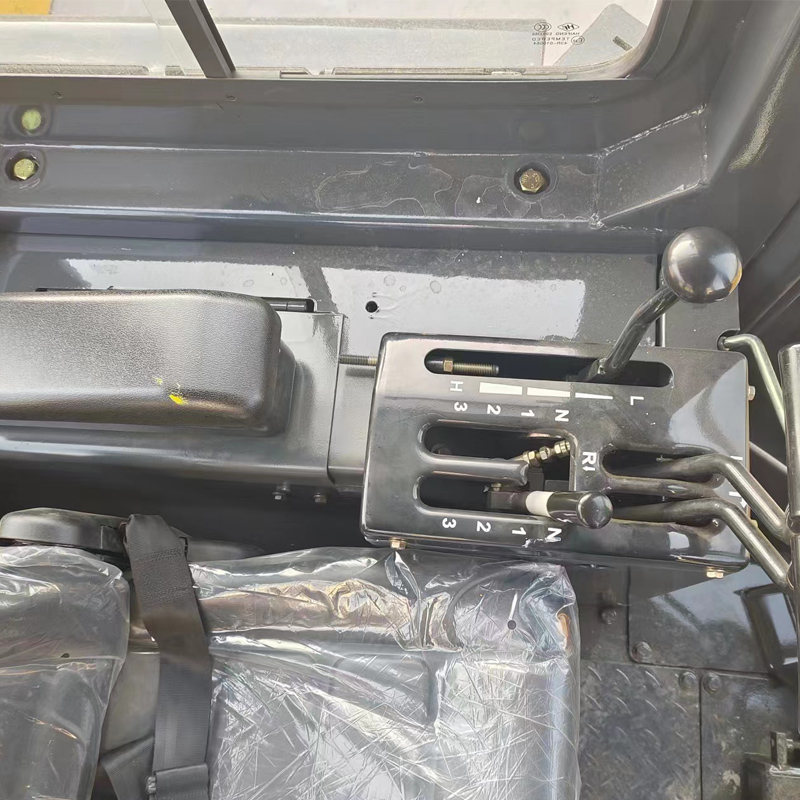

According to the ergonomic design, the driver's seat and armrest can be adjusted up and down, the shifting, steering and throttle are placed on the left side, and the soft shaft structure is adopted. The working device is operated on the right side, and the servo control system is used to make the operation process more light and flexible.

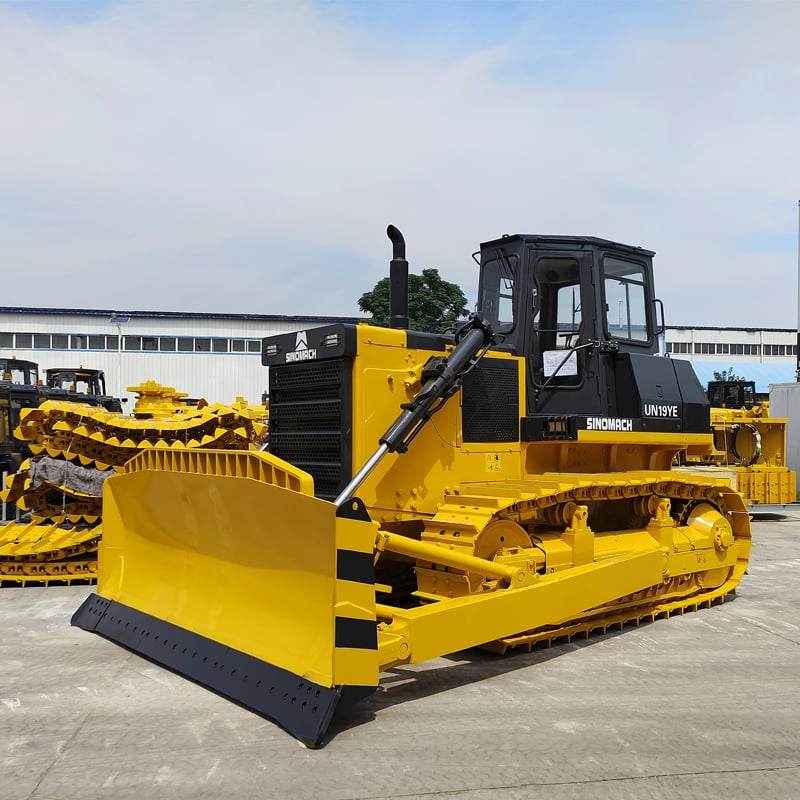

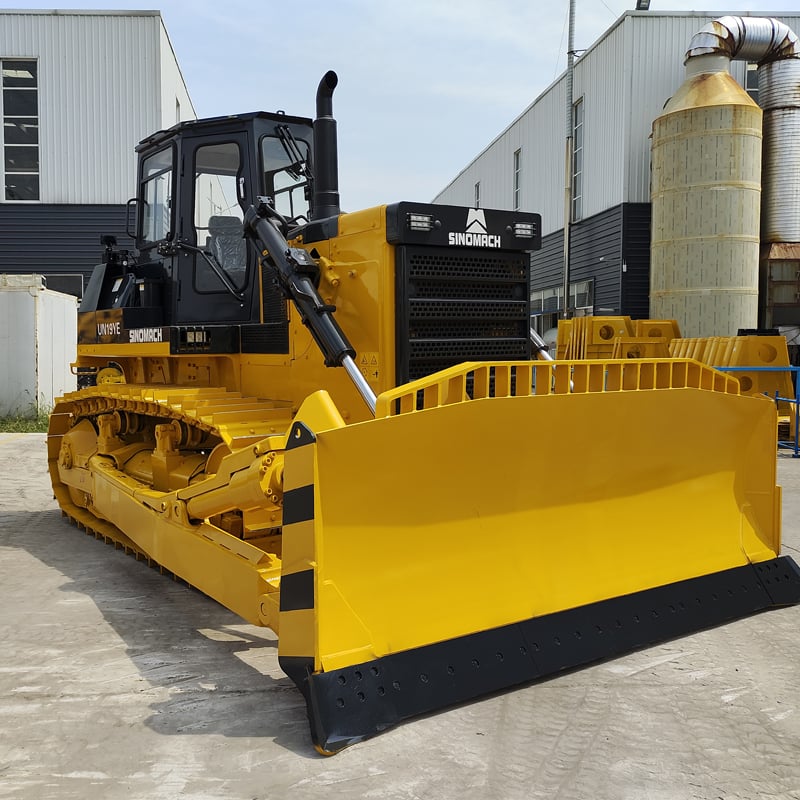

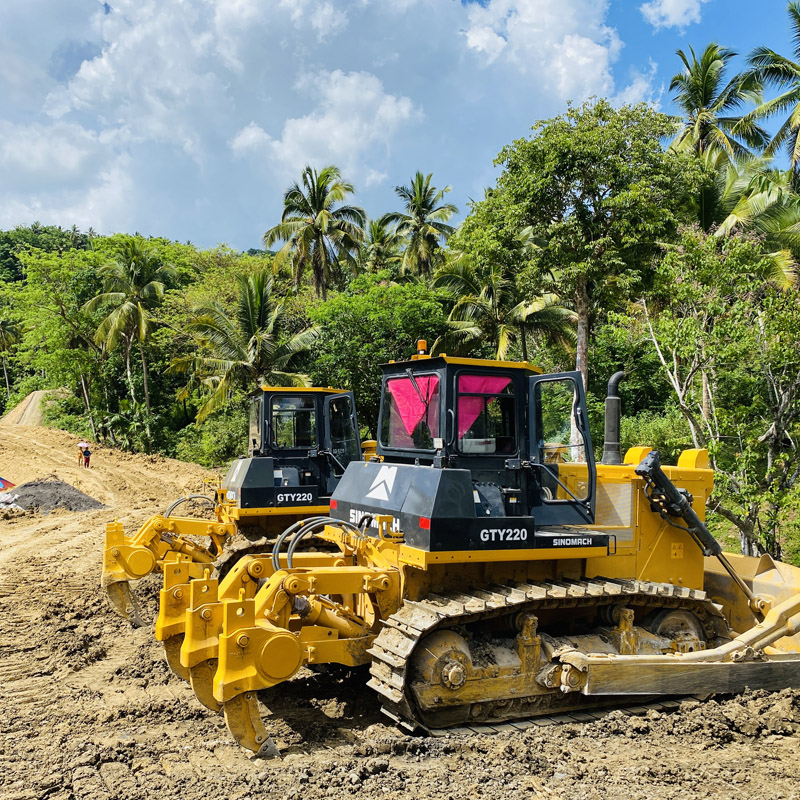

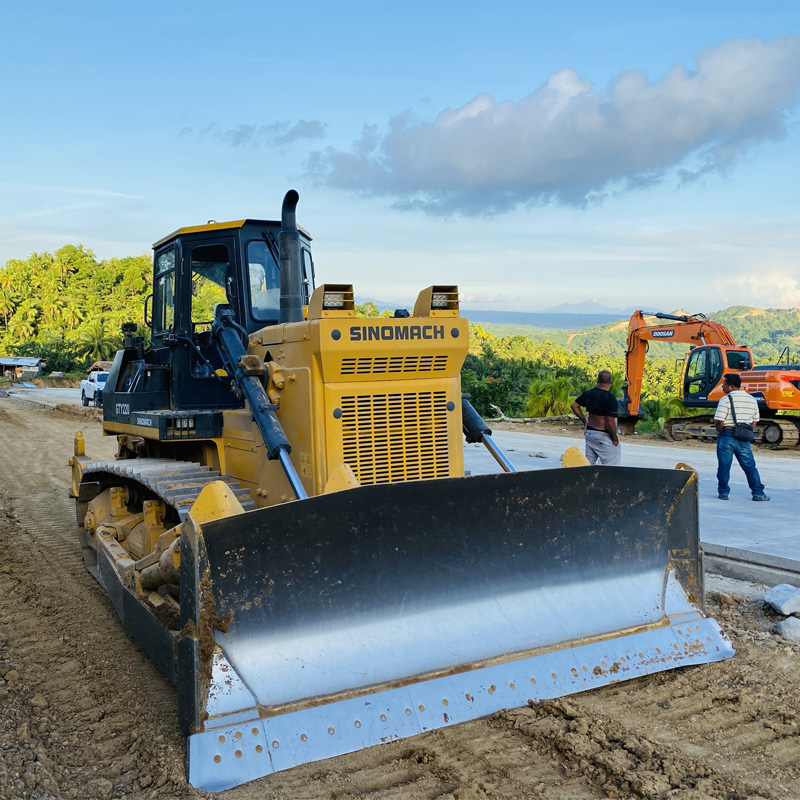

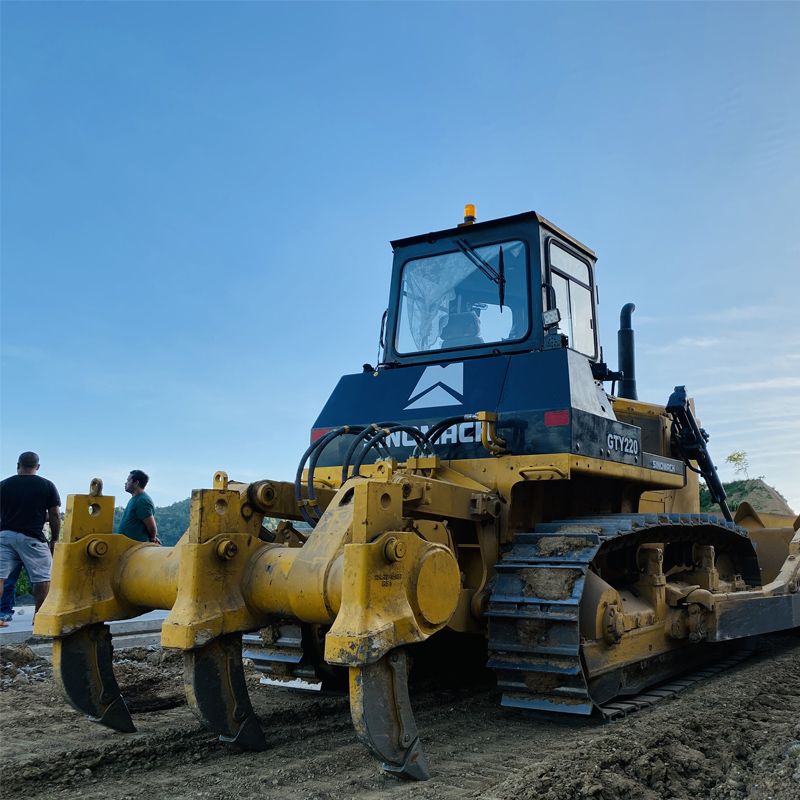

The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force.
Model | GTY220 |
Type | Standard Hydraulic Crawler Type |
Engine Model | CUMMINS NT855-C280S10 |
(L)Displacement | 14.01 |
(kw/rpm)Rated power | 175/1800 |
(N.m/rpm)Max.torque | 1030/1250 |
Operating weight | 23.5 Ton |
(mm) Dimension(no ripper) | 5390×3735×3350 |
(mm) Grounding length | 2730 |
(MPa) Ground pressure | 0.077 |
(mm) Track gauge | 2000 |
(m³) Dozing capacity | 6.4 |
(mm) Blade width | 3735 |
(mm) Blade height | 1310 |
(mm) Max drop below ground | 540 |
(mm) Track shoe width | 560 |
(mm) Pitch | 216 |
Quantity of track link | 38 |
Quantity of Carrier rollers | 4 |
Quantity of Track rollers | 12 |
(MPa) Max pressure | 14 |
L/min Discharge | 262 |
(KN) Max tractor force | 202 |
(Km/h) Forward Speed | F1:0-3.6 |
F2:0-6.5 | |
F3:0-11.2 | |
(Km/h) Rear Speed | R1:0-4.3 |
R2:0-7.7 | |
R3:0-13.2 |
S/N | Item | Model | Manufacturer |
1 | Engine | NT855-C280S10 | Cummins |
2 | Torque converter | HAITUI | |
3 | Gear box | HAITUI | |
4 | Steering clutch | JINRUNTONG | |
5 | Brake | WUHUAN | |
6 | Gear pump | WEICHAI | |
7 | Valve | WEICHAI | |
8 | Track shoe | 216 | LIAOAN |
9 | Track roller, carrier roller | JINNIU | |
10 | Cylinder | WENDENG |
GTY220 series bulldozers adopt advanced technologies such as centralized lubrication, centralized pressure measurement and automatic tightening of crawlers. It can be equipped with a variety of working devices and cabs to meet the various working conditions. They are ideal and efficient equipment for earth and stone construction work and bulk scraping.
